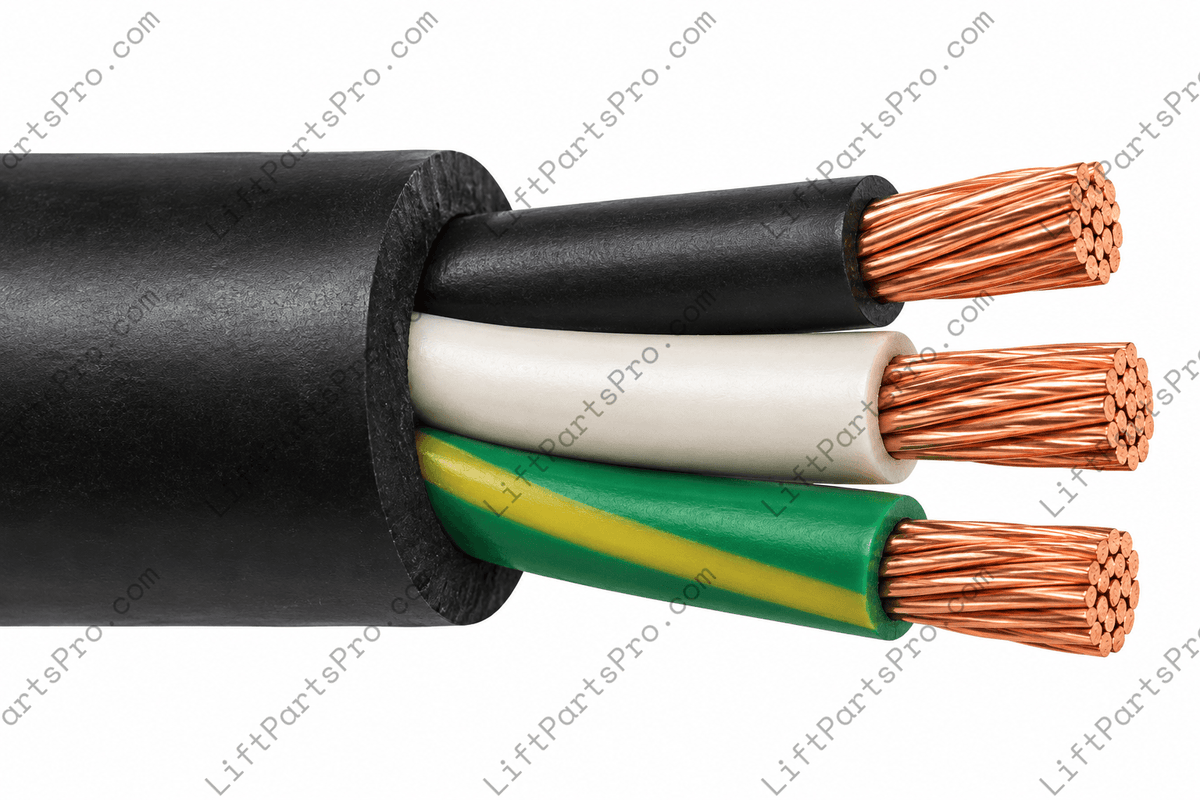

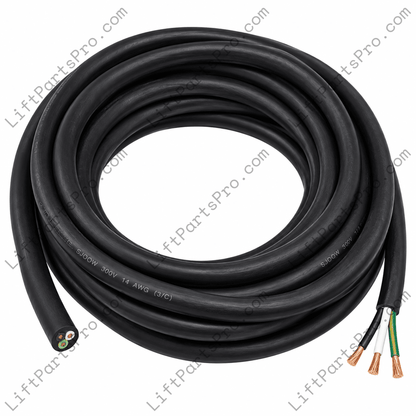

Trailing Cable for RAM Trus-T-Lift TTL750 | 3 Conductor 14 AWG

This heavy-duty, 3-conductor cable is commonly used alongside the 16/8 SOOW traveling cable in compatible RAM Trus-T-Lift vertical platform lift configurations. Featuring stranded bare copper conductors and EPDM rubber insulation, its highly flexible construction accommodates movement during normal lift operation. The cable also offers resistance to oil, water, and weather exposure, making it suitable for indoor and outdoor applications.

Sold by the linear foot and cut to length, this replacement cable can be ordered to match the original equipment configuration. If the required length is unknown, customers may contact Lift Parts Pro (LPP) with their vertical platform lift's serial number to confirm the cable length originally supplied with their equipment.

Specifications:

• Cable Type: SJOOW Portable Cord
• Wire Size: 14 AWG
• Number of Conductors: 3
• Conductor Material: Stranded Bare Copper
• Outside Diameter: 0.370"
• Ampacity: 18 Amps
• Voltage Rating: 300V
• Temperature Rating: -40°C to 90°C
• Insulation Material: EPDM Rubber
• Flexibility: High Flexibility
• Application: Indoor and Outdoor
• Shielding: Unshielded
• Conductor Color Code: Black, White, Green
• Resistance Properties: Weather, Water, and Oil Resistant
• Certifications: UL Listed, CSA Certified, RoHS Compliant, MSHA Approved
• Unit of Sale: Per Linear Foot (Cut to Length)

Replacement trailing cables should be installed by qualified lift service personnel in accordance with applicable electrical standards and manufacturer equipment requirements. Proper cable selection and professional installation help maintain dependable operation and the intended performance of the vertical platform lift.
