Trailing Cable for RAM Trus-T-Lift TTL750 | 8 Conductor 16 AWG

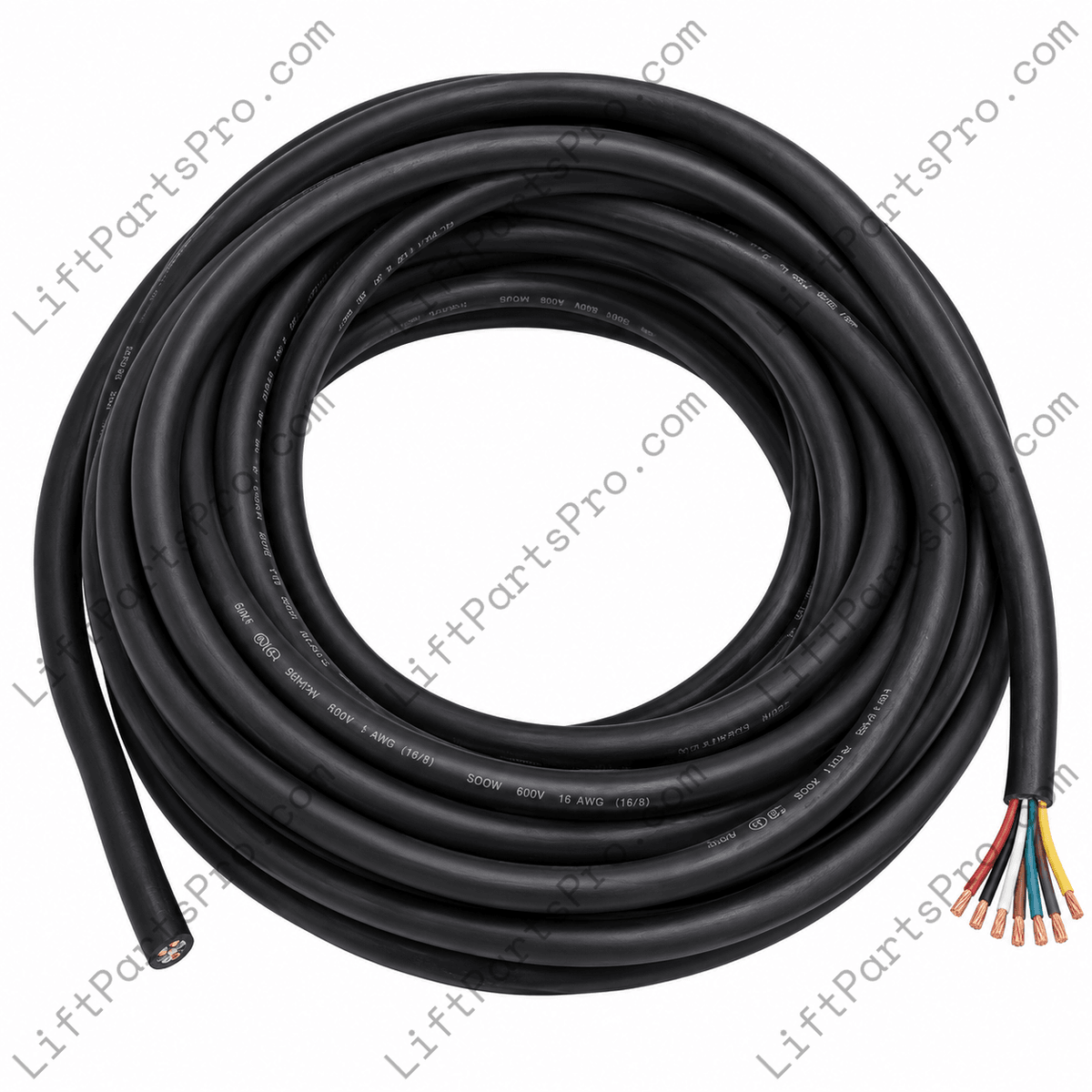

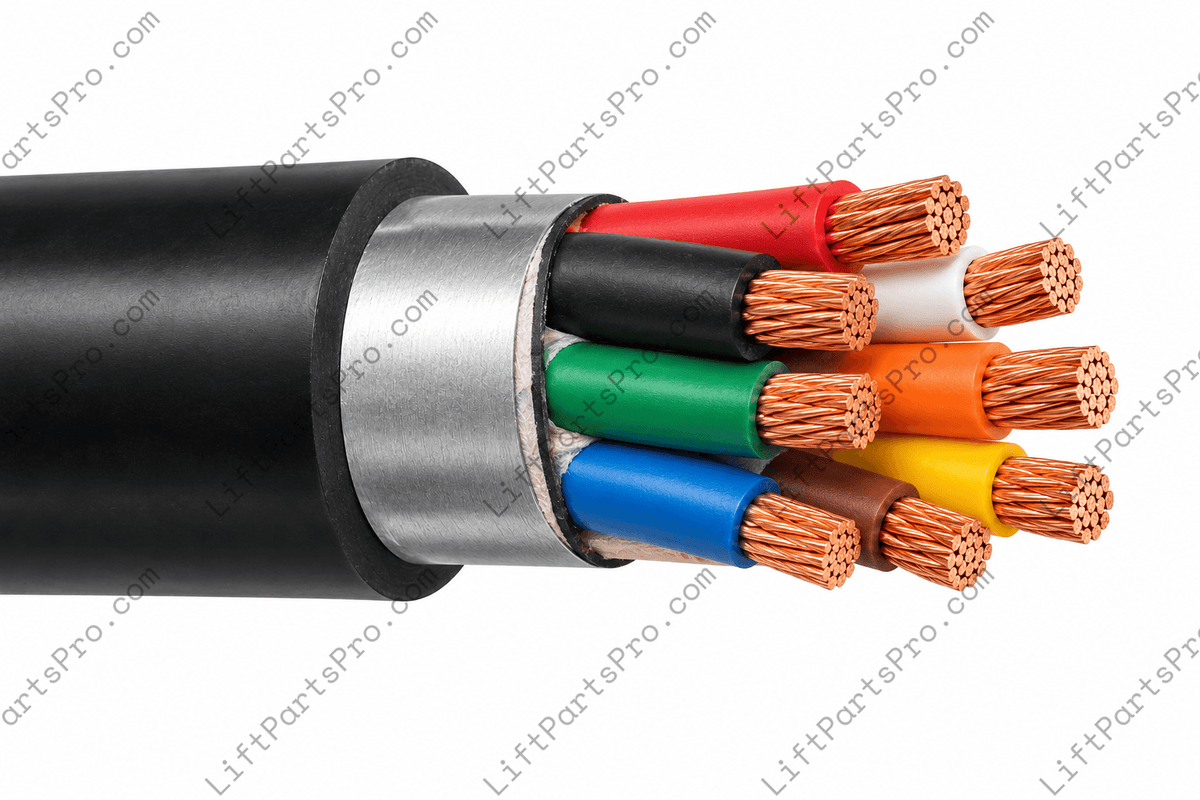

This heavy-duty, 8-conductor flexible cable is designed for applications requiring repeated movement, making it suitable as a replacement trailing cable for compatible RAM Trus-T-Lift vertical platform lifts. Constructed with stranded bare copper conductors, EPDM rubber insulation, and a durable chlorinated polyethylene (CPE) outer jacket, it provides flexibility and resistance to oil, water, and weather exposure.

The cable is cut to length and sold by the linear foot, allowing customers to order the appropriate quantity for their lift. If the original traveling cable length is unknown, customers may contact Lift Parts Pro (LPP) with their vertical platform lift's serial number to confirm the cable length originally supplied with their equipment.

Specifications:

• Cable Type: SOOW Portable Cord
• Wire Size: 16 AWG
• Number of Conductors: 8
• Conductor Material: Stranded Bare Copper
• Outside Diameter: 0.575"
• Ampacity: 7 Amps
• Voltage Rating: 600V
• Temperature Rating: -40°C to 90°C
• Insulation Material: EPDM Rubber
• Jacket Material: Chlorinated Polyethylene (CPE)
• Flexibility: High Flexibility
• Application: Indoor and Outdoor
• Shielding: Unshielded
• Resistance Properties: Weather, Water, and Oil Resistant
• Certifications: UL Listed, CSA Certified, RoHS Compliant, MSHA Approved
• Unit of Sale: Per Linear Foot (Cut to Length)

Replacement traveling cables should be installed by qualified lift service personnel in accordance with applicable electrical standards and equipment requirements. Proper cable selection and professional installation help maintain reliable operation and the intended performance of the vertical platform lift.
