Porch-Lift VDR Landing Gate Interlock Assembly Rod

Secure and reliable VDR lock assembly for ThyssenKrupp Access Porch Lift landing gates, replacing legacy part numbers 59487 (left-hand) and 59486 (right-hand).

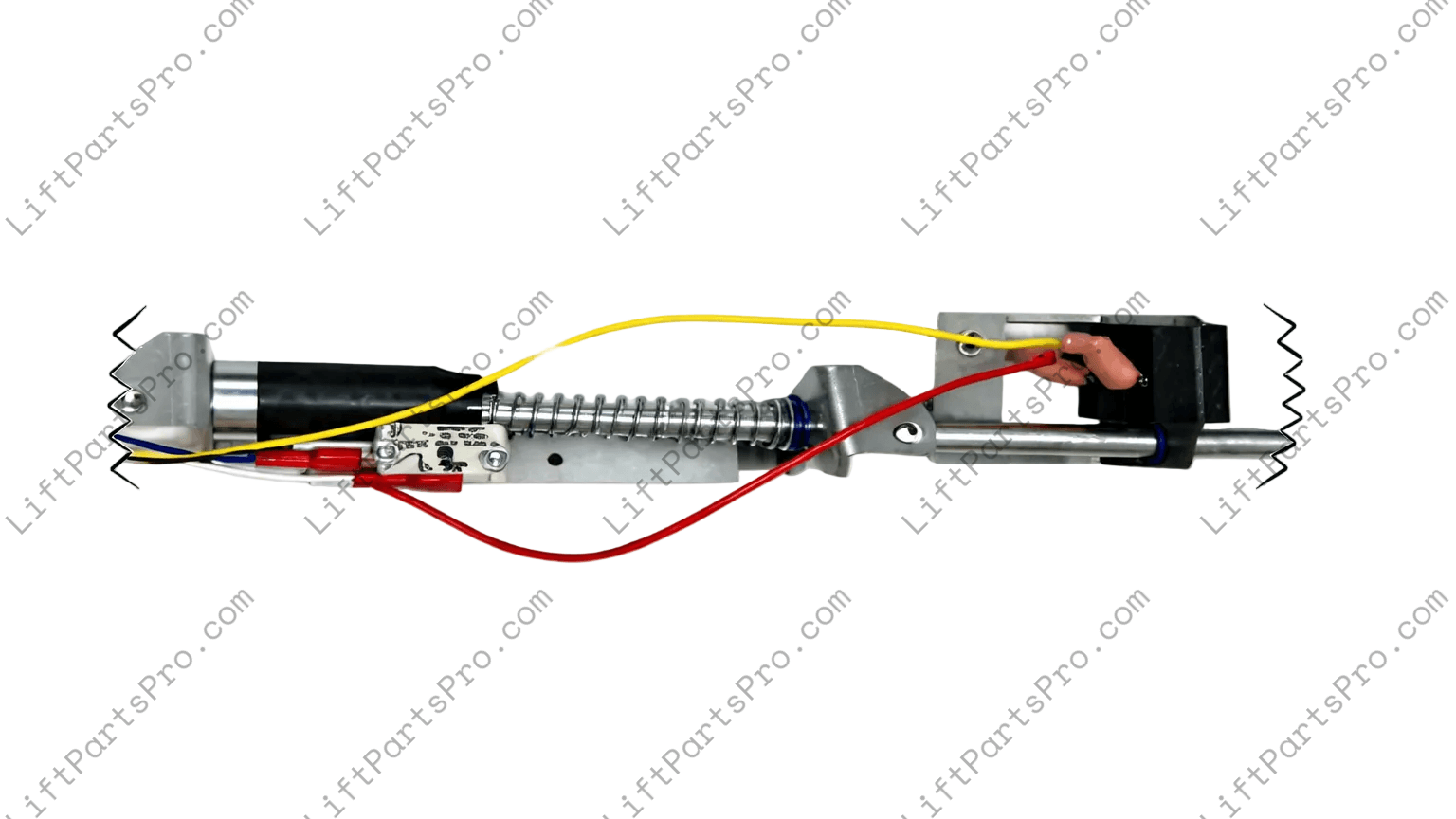

This VDR lock assembly is designed specifically for Porch-Lift landing gates, providing dependable gate locking functionality through a complete, integrated mechanism. The assembly includes the latch hook, gate contacts, spring bracket assembly, folding elbow with rubber gasket, and a pre-configured wiring harness for streamlined integration.

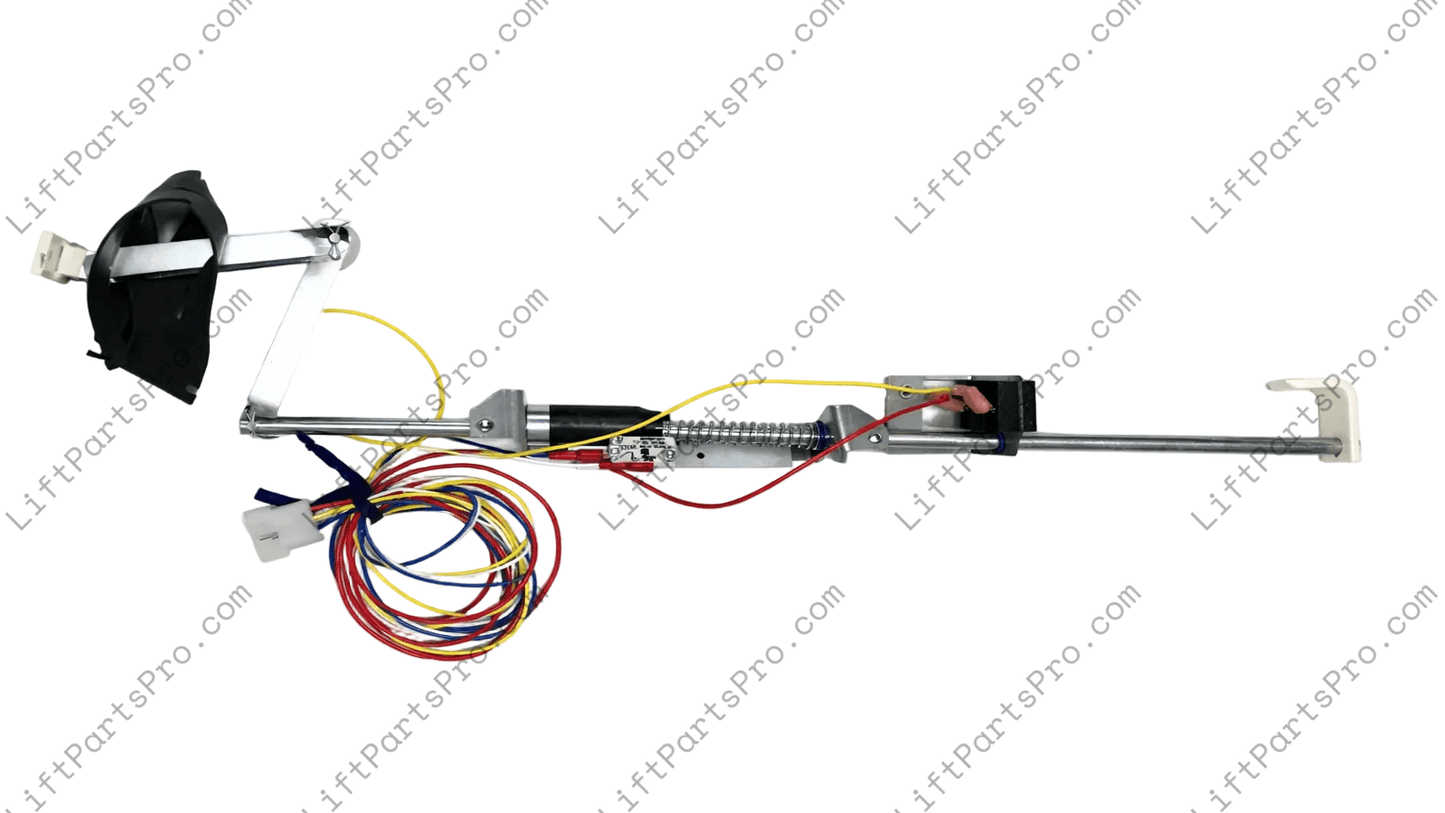

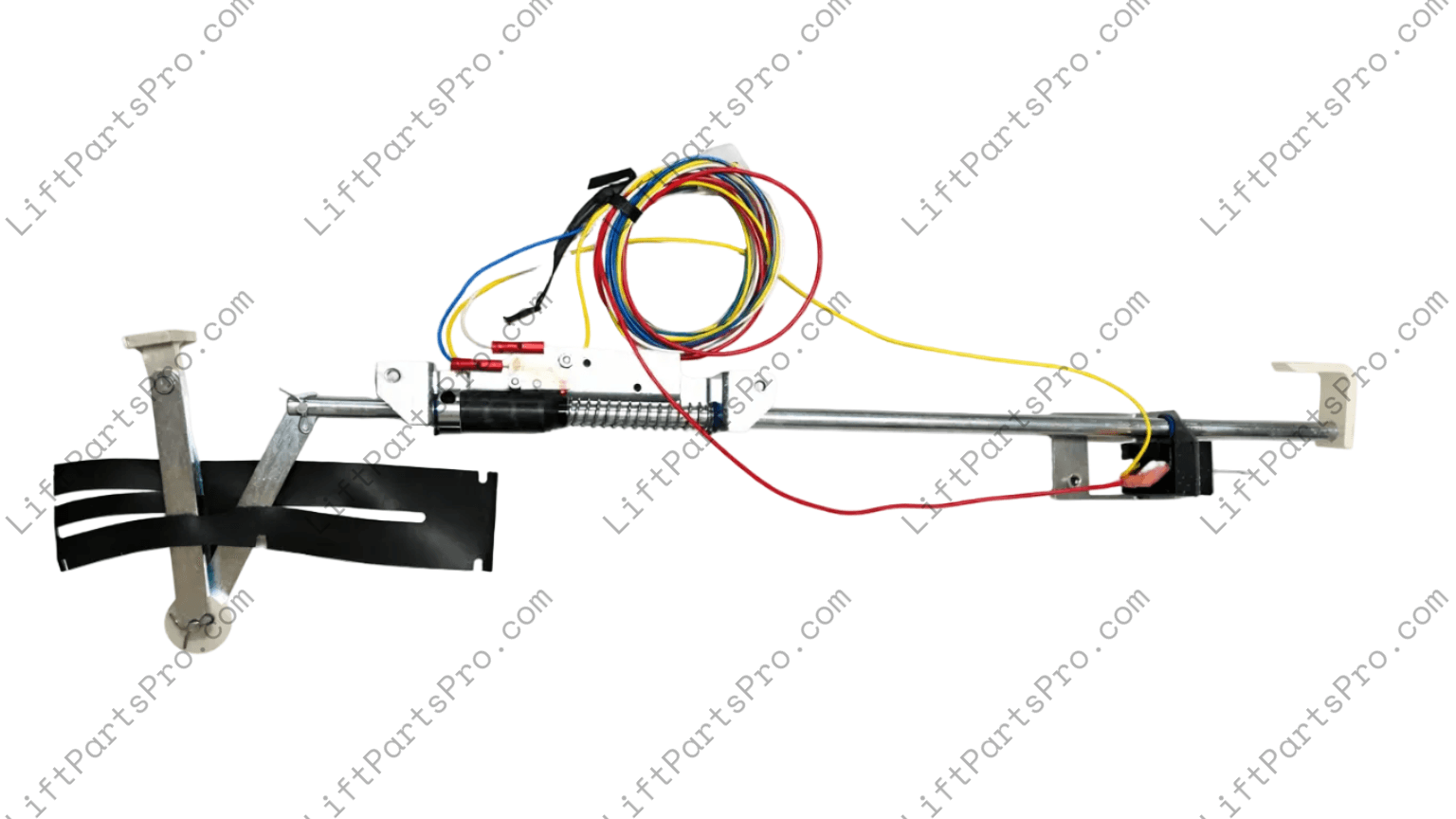

Available in both left-hand and right-hand configurations, this lock replaces legacy part numbers 59487 (left-hand) and 59486 (right-hand).
Hand orientation is determined by standing outside the lift cab and facing inward: Left-hand units mount on the left side of the gate, while right-hand units mount on the right. This component is intended strictly for landing gate applications and should not be confused with the platform interlock assembly, which serves a different function within the lift system.

• Application: Porch-Lift landing gate lock assembly
• Handing: Available in left-hand and right-hand configurations
• Legacy Compatibility: Replaces 59487 (LH) and 59486 (RH)
• Included Components: Hook (latch), gate contacts, spring bracket assembly
• Mechanical Features: Folding elbow assembly with rubber gasket
• Electrical: Integrated wiring harness
• Mounting Position: Determined by gate side when facing the lift from outside
• Function: Secures landing gate and interfaces with lift safety system

For optimal performance and safety, this lock assembly should be installed and serviced by qualified personnel familiar with accessibility lift systems and applicable safety standards.
