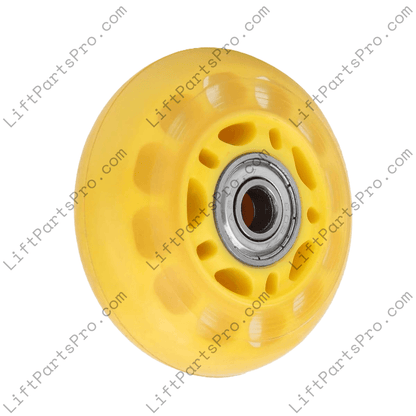

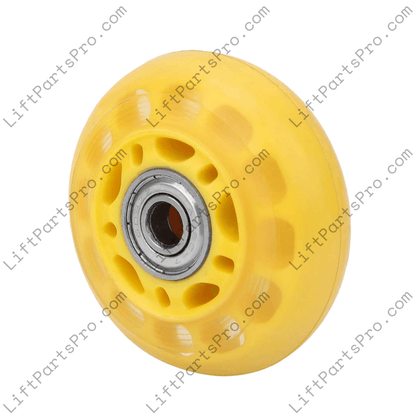

Yellow Roller Wheel for Savaria Concord Weight Rack

Counterweight guide roller designed for use in select Savaria and Concord elevator models, including many Eclipse series lifts; replaces #227108.

This replacement roller wheel is built to support the weight rack mechanism in residential lift systems. Commonly used in Savaria and Concord Eclipse elevators, the roller fits into the counterweight assembly where it guides and stabilizes the movement of the weight rack. With an outer diameter of approximately 64mm and a width of 24mm, this polyurethane caster is equipped with a 608ZZ bearing for stable rotation around an 8mm bore. Its polyurethane outer tread provides long-lasting wear and pressure resistance, making it ideal for continuous lift operation.

For best performance and consistent wear distribution, it's recommended to replace all rollers within the counterweight assembly at the same time.

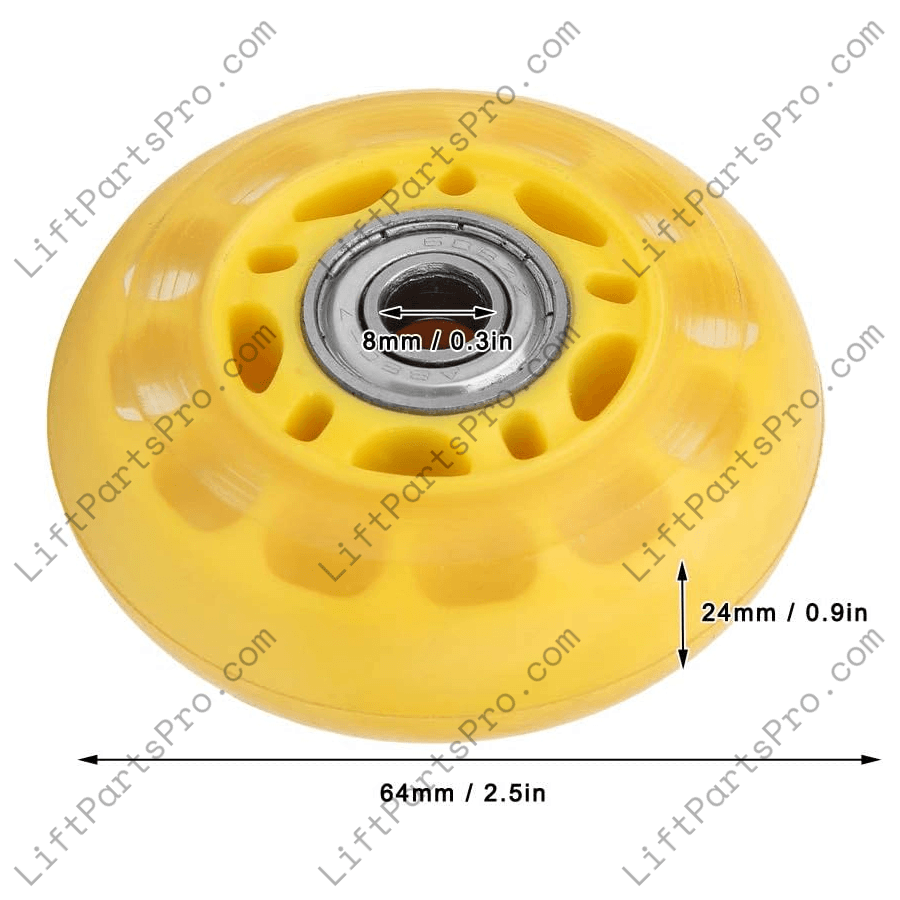

• Outer Diameter: Approx. 64mm (2.5 inches)
• Thickness: Approx. 24mm (0.9 inches)
• Bearing: 608ZZ (8mm / 0.3 inch bore)
• Material: Polyurethane tread
• Application: Counterweight guide roller for lift systems

Ensure your lift continues to perform reliably by replacing worn counterweight rollers with quality components. For safety and optimal performance, installation should always be handled by qualified personnel familiar with accessibility lift systems.
