White round replacement push button for elevator call stations - Windsor Elevator Cabs

This white, round push button is a standard SPDT replacement call‑button suited for Windsor elevator panels, rated for 3A / 125VAC.

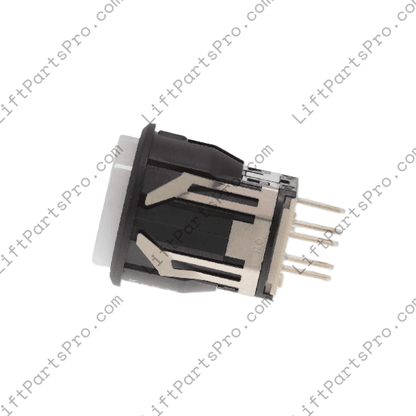

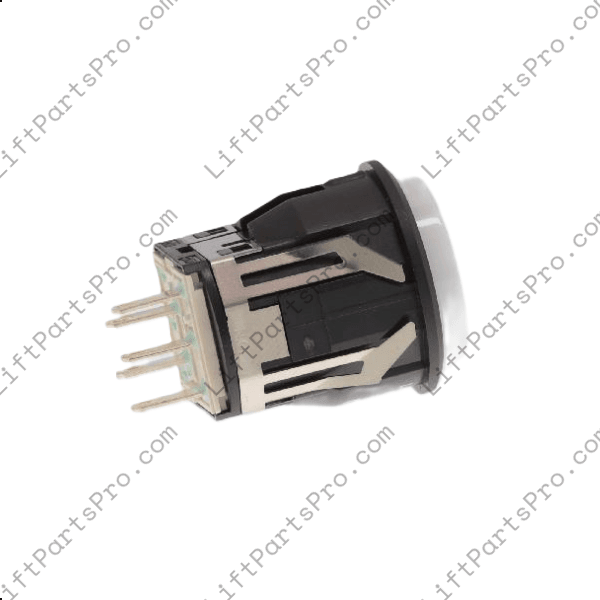

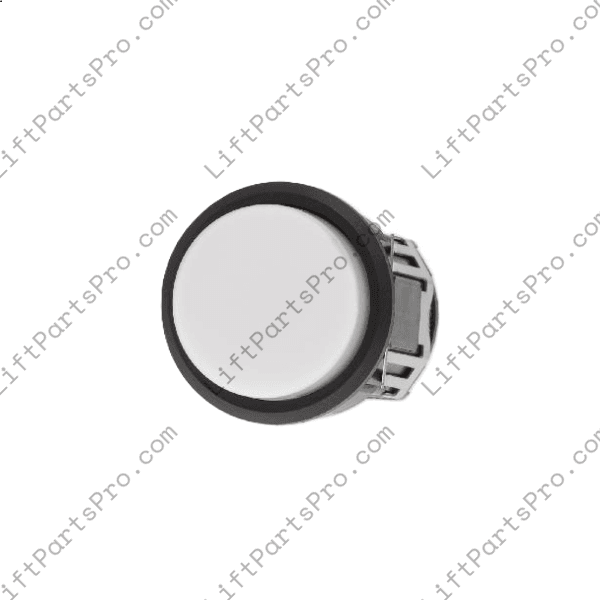

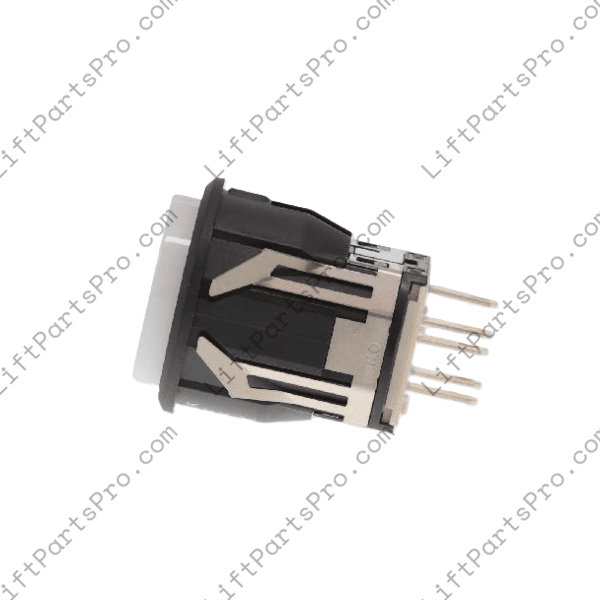

This non‑illuminated white push button is a popular generic replacement for Windsor elevator call buttons. It is not restricted to a single model or series, which makes it useful across multiple Windsor systems. It mounts via snap‑in panel installation and uses a momentary SPDT contact arrangement, making it a reliable swap‑in for worn or damaged buttons in existing elevator cabs.

Specifications:

• Circuit: SPDT (single pole, double throw)
• Contact function: On‑momentary (spring return)
• Current rating: 3 A (AC/DC)
• Voltage rating: 125 VAC, 30 VDC
• Actuator style: Round button
• Cap color: White
• Mounting: Snap‑in, panel mount
• Panel cutout: ~22.0 mm diameter
• Mechanical life: ~1,000,000 cycles
• Electrical life: ~100,000 cycles
• Operating temp: –25 °C to +70 °C
• Housing material: Reinforced polyamide (UL94 V‑0 rated)

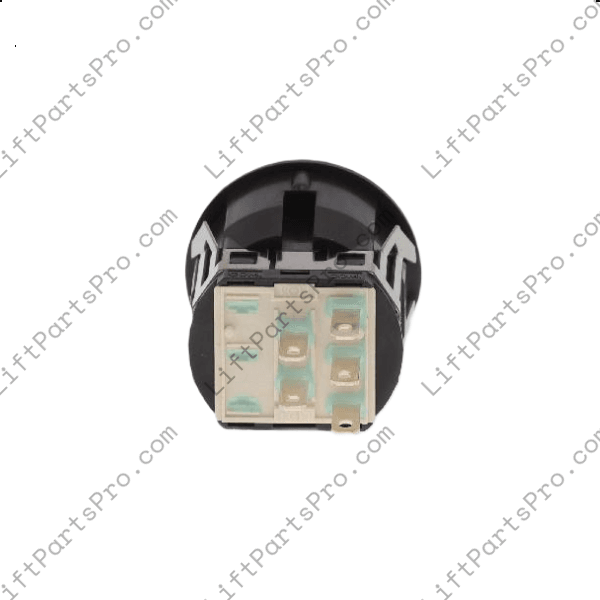

• Termination: Solder tabs or quick‑connect lugs (0.110″ / 2.8 mm)

For safe and reliable service, this button should be installed by qualified elevator maintenance personnel using proper procedures and tools.
