WECO Modern Infrared Safety Light Curtain / Door Edge Detector
WECO Modern Infrared Safety Light Curtain / Door Edge Detector
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
SKU: LR.SV.CG.24VDC
Condition: New
Couldn't load pickup availability
Upgrade legacy door detector systems with this advanced light ray kit, a compact safety sensor designed to replace older Weco models (917 / 917Q) or Savaria detectors (P/N 105274). This slim infra-red transmitter‑receiver duo fits seamlessly into Savaria and Concord systems—Orion, Eclipse, Infinity—or anywhere a 2 m safety light curtain is called for.
This infrared safety barrier (door‑edge photocell) casts 94 non‑parallel beams across your elevator opening. When any beam is interrupted, the system triggers a safety response—keeping your doors from closing on passersby or objects.

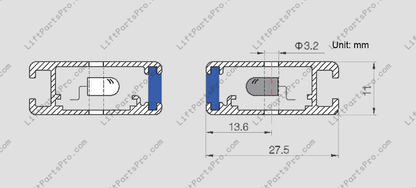

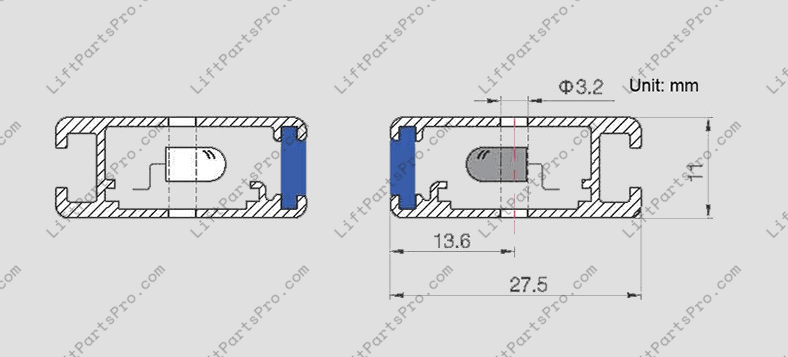

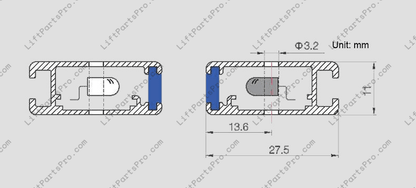

- Slim profile—just 11 × 28 × 2000 mm, ideal for space‑tight installations.
- Dense beam pattern—94 non‑parallel pulses from 32 diode pairs, delivering precise coverage.
- Fast response time—65 ms ensures near‑instant detection and safe actuation.
- Reliable under sunlight—handles up to 100,000 Lux (comparable to direct sun).
- Robust tolerance—vertical offset: ±15 mm; horizontal: ±4 mm—plenty of alignment leeway.

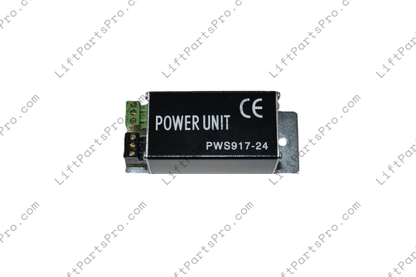

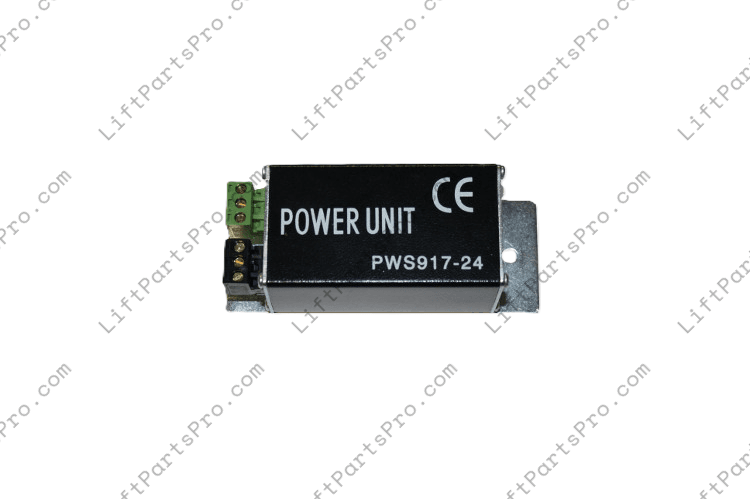

- A full kit—includes transmitter and receiver bars, two 3.5 m traveling cables, plus a 24VDC or 120VAC transformer/control box.
- Status indicators—Green and red LEDs show Normal, Interrupted, or Faulty states.
Specifications at a Glance
| Feature | Detail |
|---|---|
| Description | Slimline elevator sensor w/ "C Groove" |
| Dimensions | 11 × 28 × 2000 mm |
| Beams / Diodes | 94 beams, 32 pairs |
| Response Time | 65 ms |
| Ambient Light Tolerance | ≥ 100,000 Lux |
| Vertical Tolerance | ±15 mm |
| Horizontal Tolerance | ±4 mm |
| Power Supply | 24VDC or 120VAC transformer + control unit |
| Indicators | Green / Red LEDs (Normal – Interrupted – Fault) |
Includes

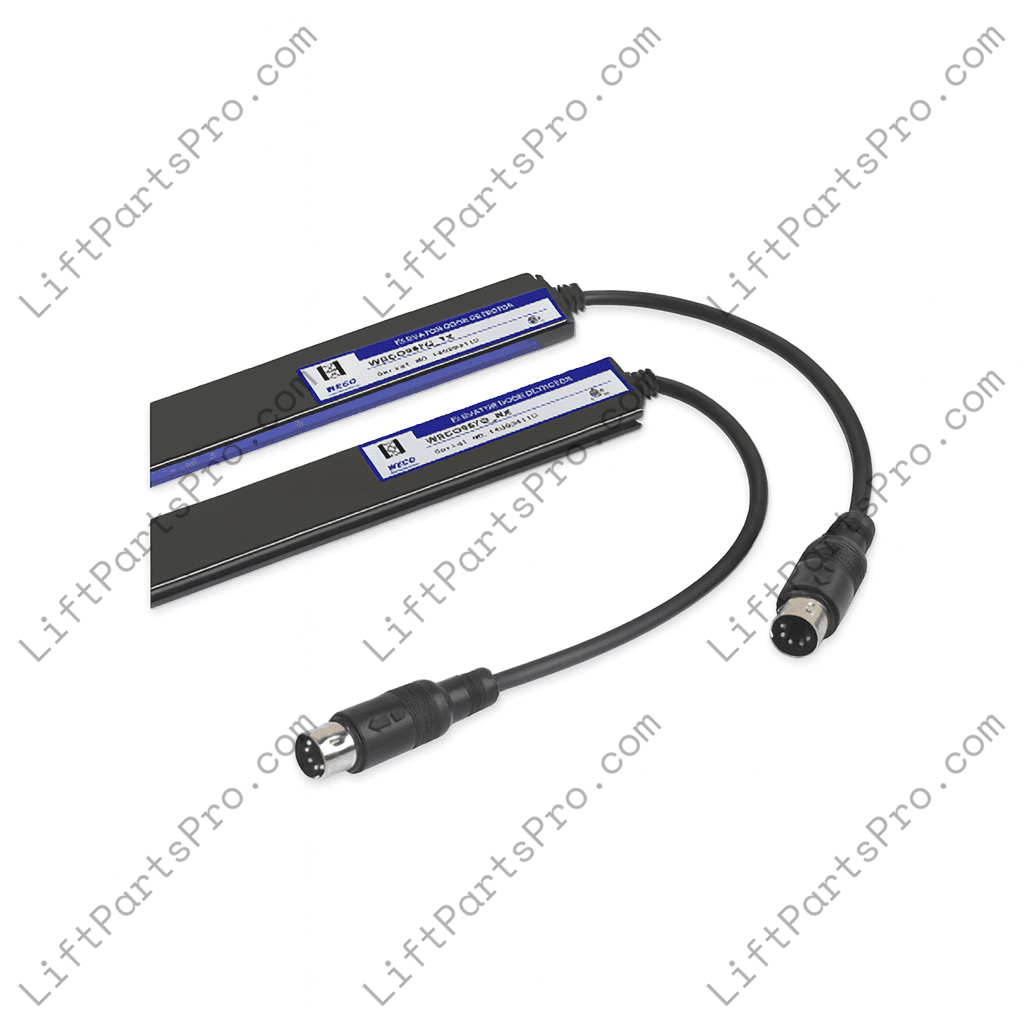

- (1) Transmitter bar (TX)
- (1) Receiver bar (RX)

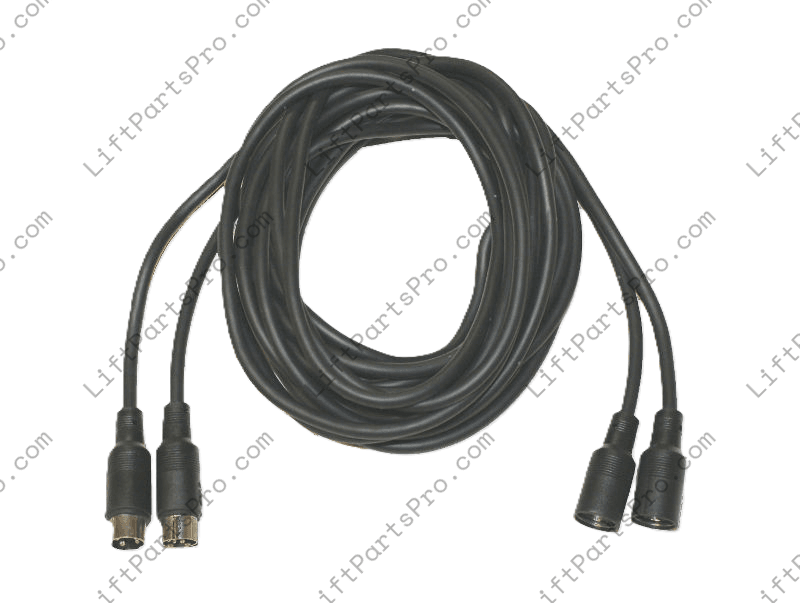

- (2) 3.5 m traveling cables
- (1) 24 V DC control/power module
- Installation accessories and manual
Fitment Notes
Specifically engineered as a drop-in replacement for legacy Weco 917/917Q detectors and Savaria part 105274, featuring the “C-groove” housing standard found in Orion, Eclipse, Infinity, and similar models. Compare bar dimensions and connector style before ordering, but this set is often a direct swap.
FAQ
-
Is this the same as a 'light curtain'?
Yes—this infrared light curtain (or safety edge detector) performs the protective function of detecting hands, fingers, or objects—and stopping the door from closing—just like traditional safety strips. -
Will it work on my Savaria Orion/Eclipse/Infinity?
Yes—assuming your old part uses the 2000 mm C-groove form factor, this unit is built to fit.
