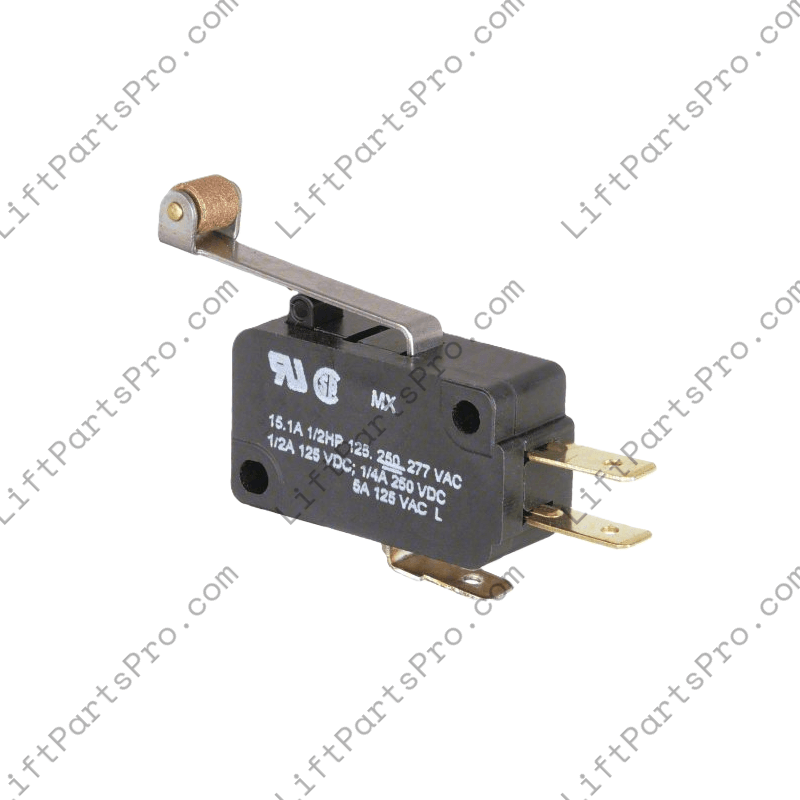

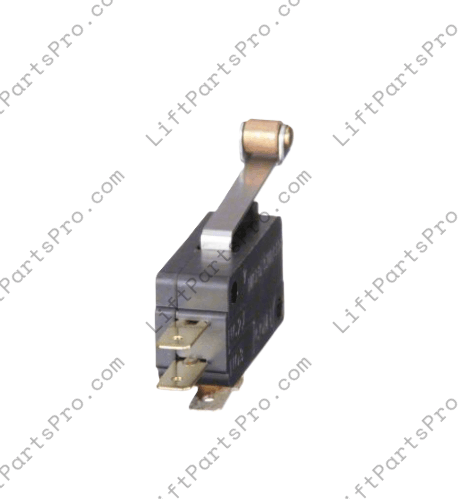

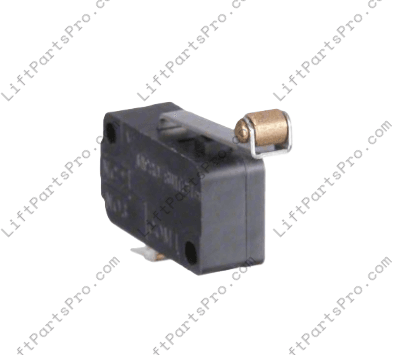

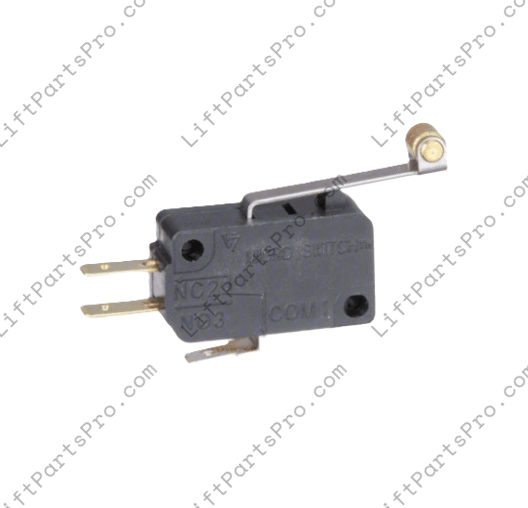

Waupaca Autogate Gate Operator Micro Limit Switch

This roller-actuated microswitch replaces those used in Waupaca Autogate gate operators. Commonly installed as part of the operator's travel limit system, it is actuated by the adjustable switch cam assembly to detect gate travel limits during operation. This replacement is compatible with 32", 36", 40", 43", and 50" Waupaca Autogate operators and is designed to provide dependable, repeatable switching performance in industrial gate applications.

Built with a durable thermoplastic housing and precision roller lever actuator, this snap-action switch is engineered for long service life in demanding environments. Quick-connect terminals simplify replacement, while the SPDT contact configuration supports reliable position sensing. Waupaca Autogate operators use two of these switches per machine, so verify the required quantity before ordering.

• Compatible with Waupaca Autogate 32", 36", 40", 43", and 50" gate operators
• Roller lever snap-action microswitch
• SPDT contact configuration
• 15A AC contact rating
• Roller lever actuator
• Quick-connect terminals
• Chassis mount design
• Thermoplastic housing
• Mechanical life rated up to 10 million operations
• Operating temperature: -40°C to 85°C
• Quantity used per operator: 2 (One near the Gate Switch; One near the motor side of the screw)

For dependable operation and proper fit, replacement components should be installed by qualified personnel in accordance with the equipment manufacturer's procedures. Verifying compatibility before installation helps ensure reliable performance and long service life.
