Variable Speed Inverter Drive, 1HP, 115/230 VAC - Garaventa / Genesis
Variable Speed Inverter Drive, 1HP, 115/230 VAC - Garaventa / Genesis
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
SKU: SID.GV.24D
Condition: New
Couldn't load pickup availability

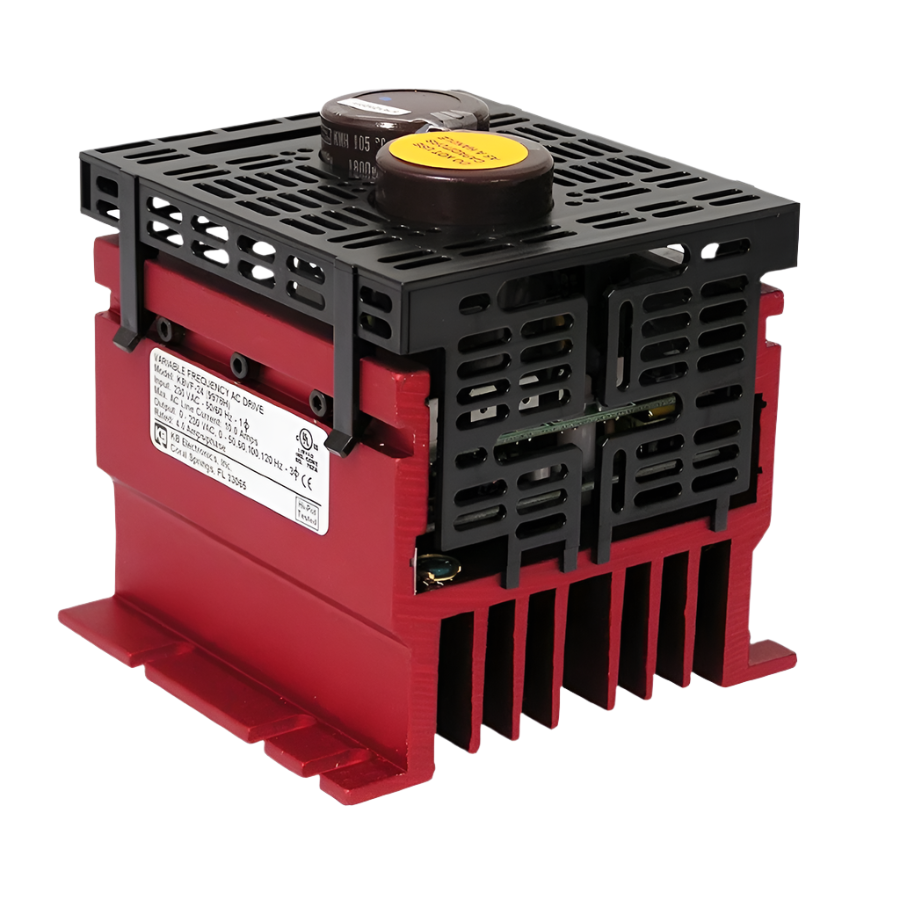

This speed inverter drive has undergone a manufacturer design update. The current model now includes heat-dissipating fins on the underside, making it taller than the original version.
While functionally identical and a fully compatible replacement, the updated design may not fit into installations with strict height constraints.
If vertical clearance is limited, you may need to transfer the internal components from the new drive into your original drive’s lower-profile housing.

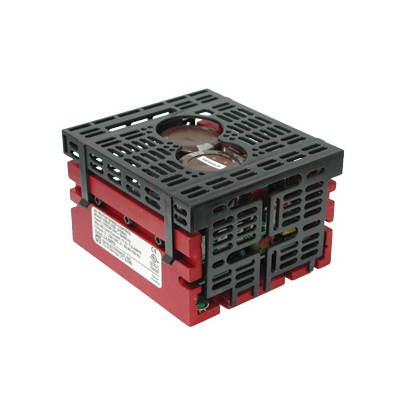

Please review all photos for a visual comparison of both versions before purchasing.
Compatible with many Garaventa Genesis Xpress II Lifts
This Variable Frequency Drive (VFD) delivers precise motor speed control, enhancing the efficiency and performance of your lift system. This inverter is engineered to align with the operational requirements of many Genesis Xpress II models; replacing #10108R
Please verify compatibility by reviewing the specifications below before purchasing.
Key Specifications:
- Input Voltage: 115/230 VAC, single-phase, 50/60 Hz
- Output Voltage: 230 VAC, three-phase
- Power Rating: 1.0 HP (746 Watts)
- Starting Torque: 200%, providing robust performance during startup
- Enclosure: IP20-rated chassis mount
- Dimensions: 4.3" H x 4.7" W x 5.0" D
- Weight: Approximately 2 lbs
- Carrier Frequency: Operates at 16 kHz for high motor efficiency and low noise
Features:
- Sensorless Flux Vector Control: Offers excellent speed regulation from zero to full load over a wide frequency range
- Electronic Inrush Current Limit (EICL) Protection: Eliminates harmful inrush AC line current during power-up
- Ride-Through Capability: Maintains holding torque at zero speed
- Regeneration Protection: Safeguards against regenerative overvoltage conditions
- Comprehensive Protection: Includes undervoltage, overvoltage, and short circuit protection
Note: This VFD is designed as a compatible replacement part. It is essential to verify that the specifications align with your lift's requirements before making a purchase.
