Variable Speed Inverter Drive, 2HP, 208-230VAC - Garaventa / Genesis

Variable Speed Inverter Drive, 2HP, 208-230VAC - Garaventa / Genesis

$653.00 USD
$653.00 USD
Sale Special Order
Shipping calculated at checkout.

🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.

SKU: SID.GV.26D

Condition: New

This KBVF-26D adjustable frequency board is compatible with many Garaventa/Genesis units, including select Xpress II models and other brands that require the specifications listed below.

Note: Replaces 05771-B and 05771 when following Important Installation Note below.

Product Description:

The Inverter Drive is a versatile and reliable solution for controlling standard 208-230 Volt AC 3-phase induction motors. Designed to enhance performance in various applications, it offers precise speed control and efficient operation.

Key Features:

  • Input Voltage: 115/230 VAC, single-phase
  • Output Voltage: 208-230 VAC, 3-phase
  • Horsepower Rating: Up to 1.5 HP (1.13 kW)
  • Switching Frequency: 16 kHz for quiet motor operation
  • Compact Design: Features a rugged U-frame chassis with an industry-standard mounting footprint
  • Adjustable Features: Includes adjustable RMS current limit and slip compensation with auto-tune and boost for excellent load regulation over a 30:1 speed range
  • High Starting Torque: Power Start™ delivers over 200% motor starting torque to ensure startup of high frictional loads

Important Installation Notes:

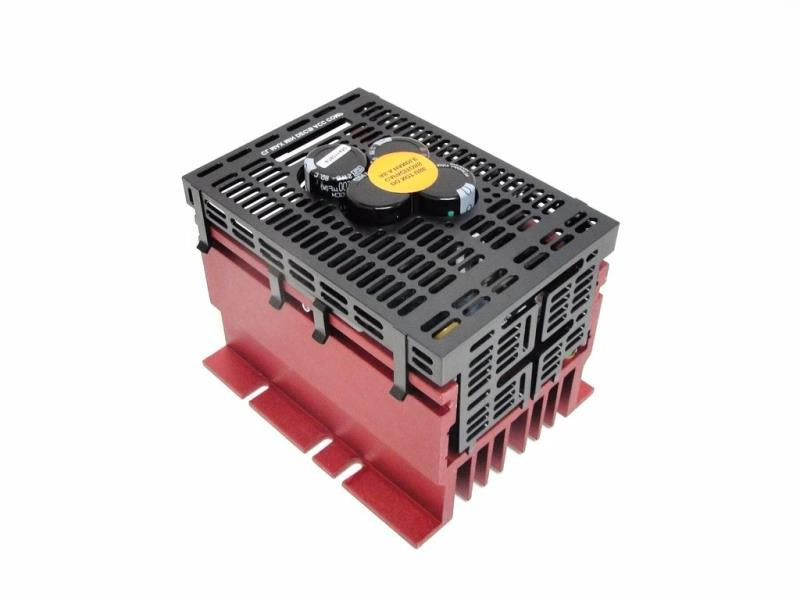

This speed inverter drive has undergone a manufacturer design update. The current model now includes heat-dissipating fins on the underside, making it taller than the original version.

While functionally identical and a fully compatible replacement, the updated design may not fit into installations with strict height constraints.

If vertical clearance is limited, you may need to transfer the internal components from the new drive into your original drive’s lower-profile housing.

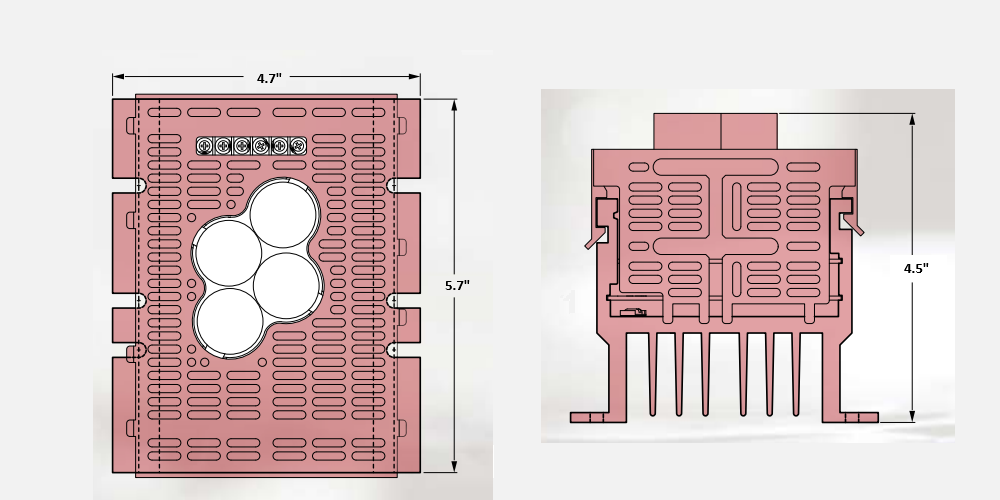

Please review all photos for a visual comparison of both versions before purchasing.

By choosing the Inverter Drive, you're investing in a high-quality component designed to deliver reliable performance and adaptability for your specific needs.
