Universal Elevator Cab Ceiling LED Light Kit - 120VAC to 12VDC
Universal Elevator Cab Ceiling LED Light Kit - 120VAC to 12VDC
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
SKU: LC.LED.12V.2
Condition: New
Couldn't load pickup availability
Illuminate your lift with professional-grade reliability. This Universal LED Cab Light Kit is an all-in-one solution for adding clean, flicker-free light to nearly any elevator or vertical platform lift — whether it’s a custom build, modernization, or upgrade.
Engineered for flexibility and ease of installation, this kit includes:
- LED puck lights (300 lumens each, warm white)
- White trim rings with spring clips for easy mounting
- UL-rated 12V DC power supply for hardwire or plug-in use
- Pre-wired 6-ft 2510 connectors for fast hookup
Each kit includes:
| Variant | LED Pucks | Trim Rings | Power Supply | Wiring |
|---|---|---|---|---|

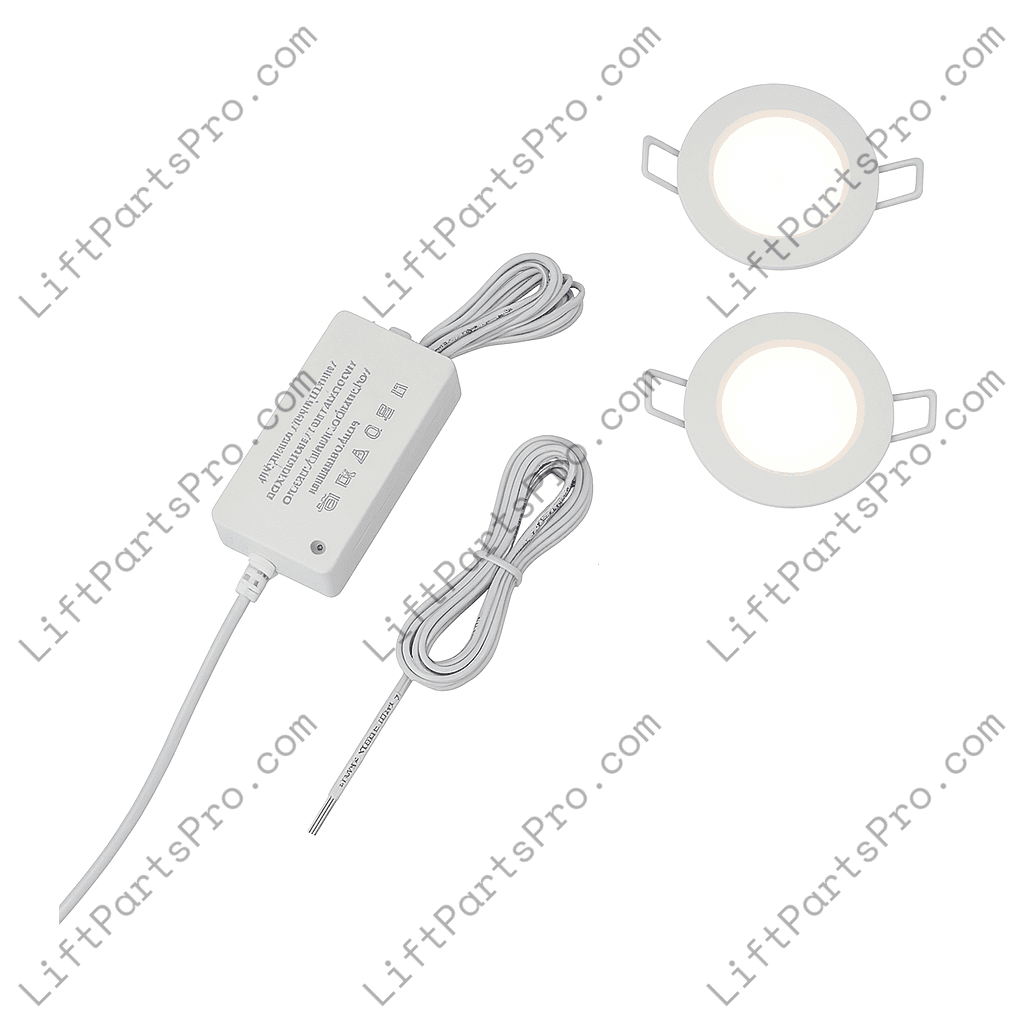

| 2-Light Kit | 2 | 2 | 1 | 2x 6' wire harness |

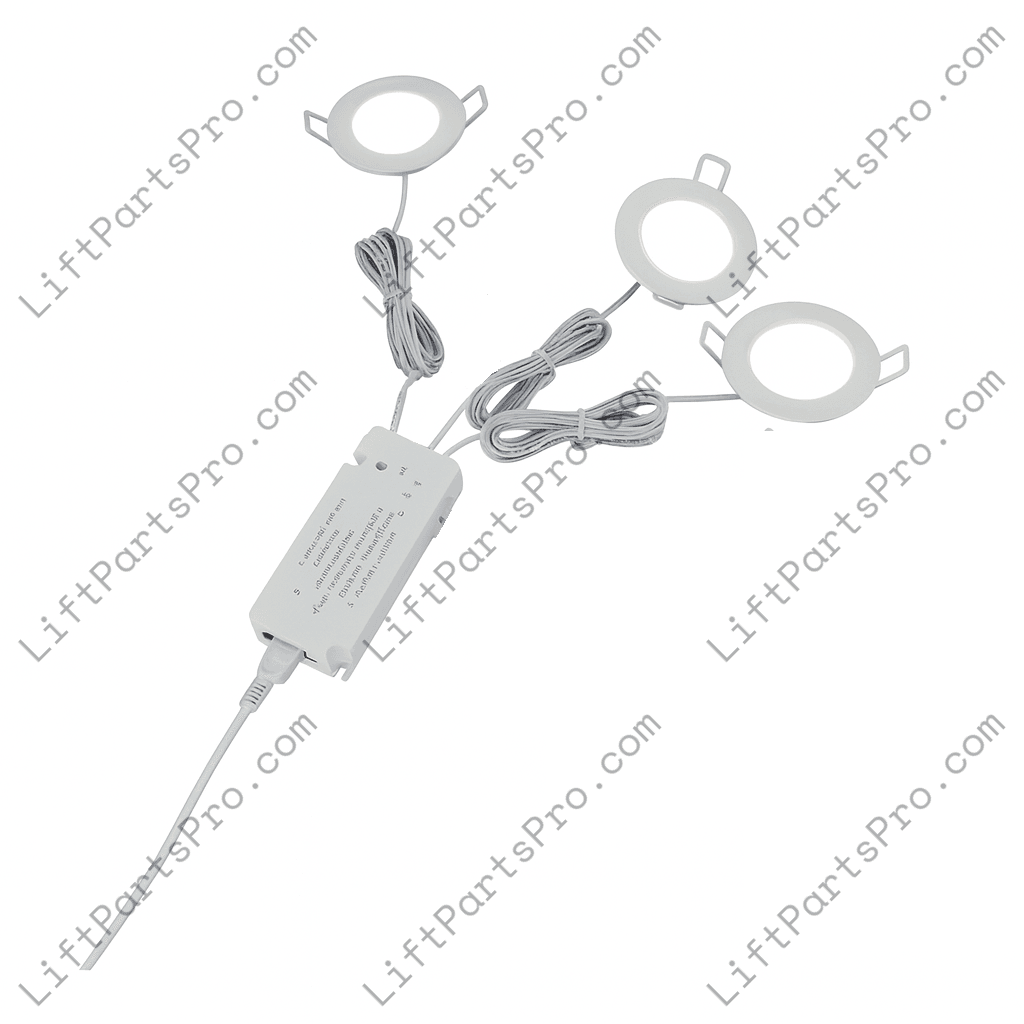

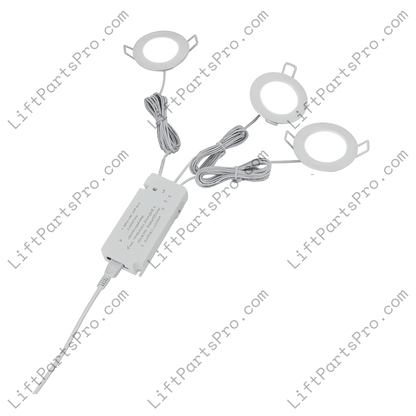

| 3-Light Kit | 3 | 3 | 1 | 3x 6' wire harness |

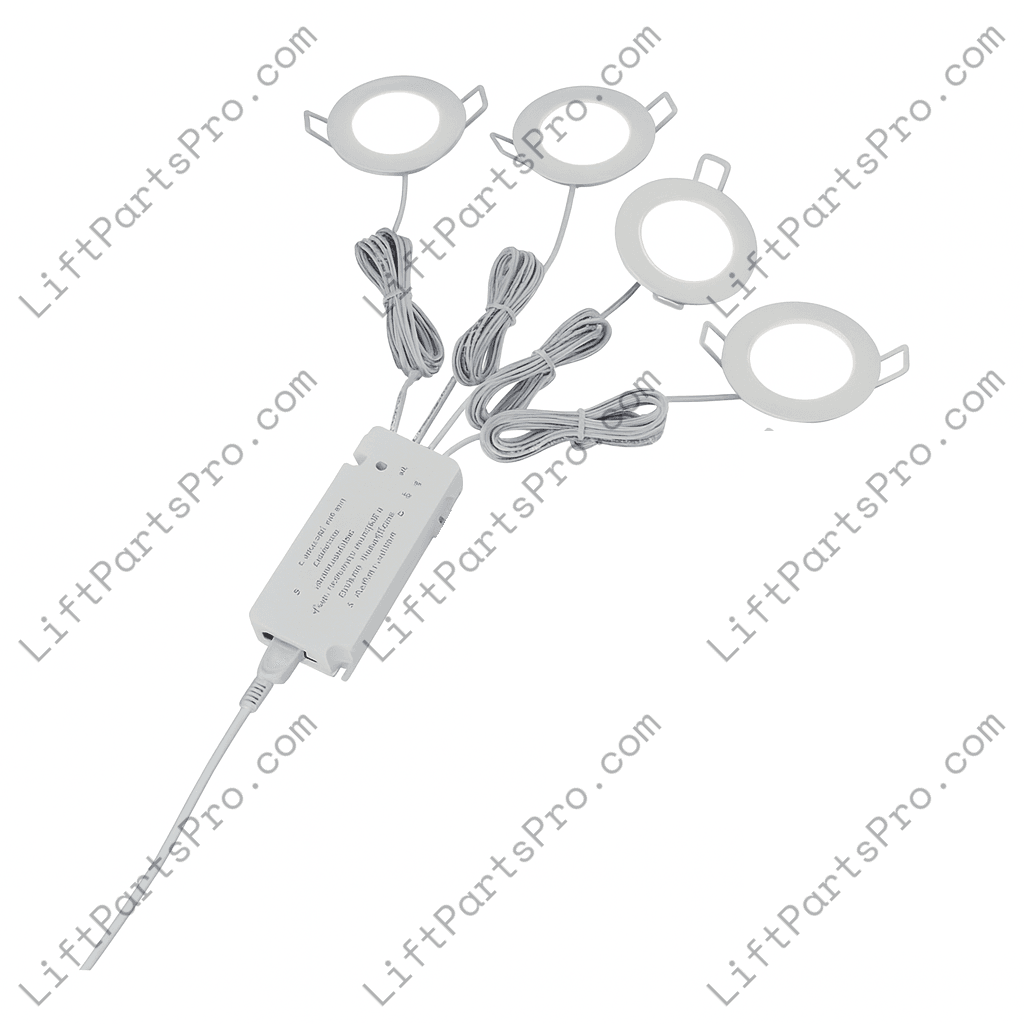

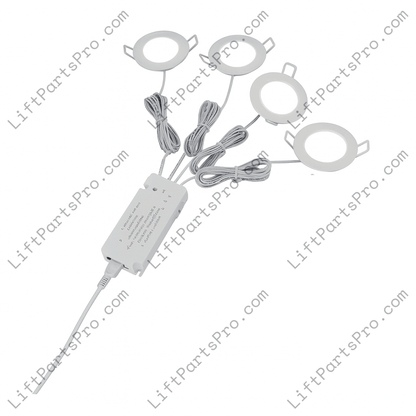

| 4-Light Kit | 4 | 4 | 1 | 4x 6' wire harness |

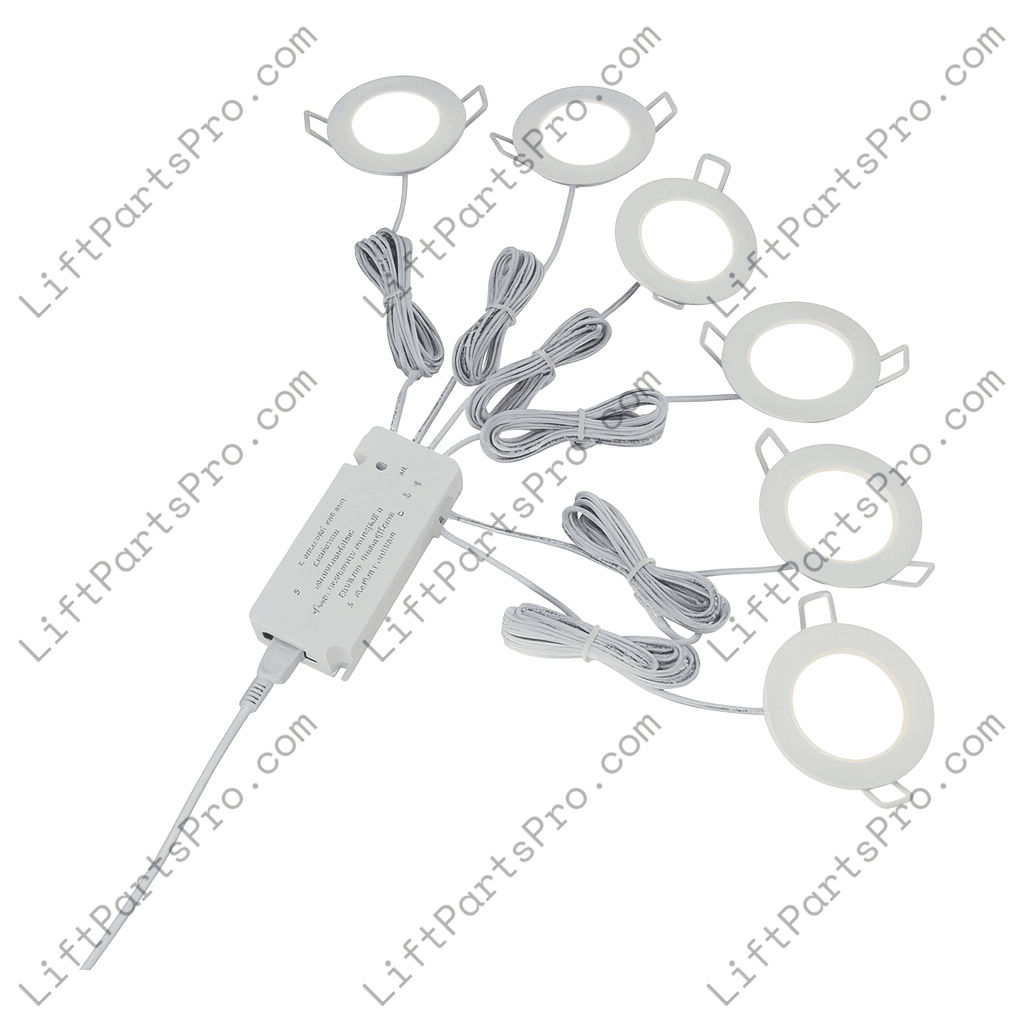

| 6-Light Kit | 6 | 6 | 1 | 6x 6' wire harness |
No extra parts. No guesswork. Just pick your light count and install.
Specifications

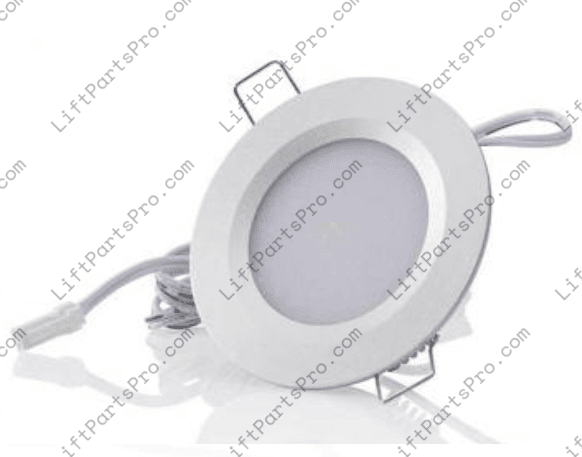

LED Puck Lights
- Lumen Output: 300 lumens per light
- Color Temperature: 3000K Warm White
- Wattage: 3W per puck
- Voltage: 12V DC
- Trim Color: White
- Dimensions: 2.75" ⌀ x 0.51" thick (70mm x 13mm)
- Cut-Out Range: 2.17"–2.36" (55–60mm)

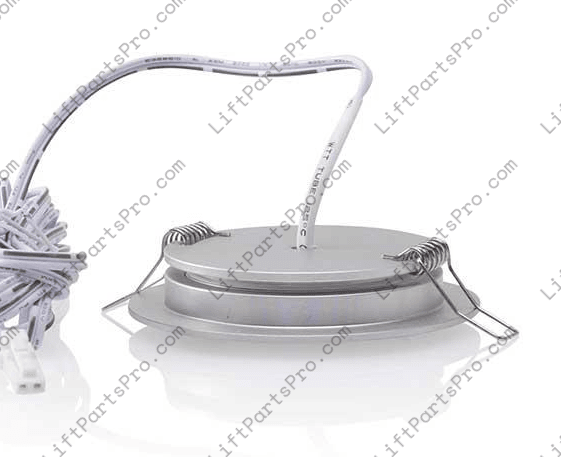

- Construction: Aluminum housing w/ spring clips
- Connection: 6-foot 2510 wire harness (female connector)

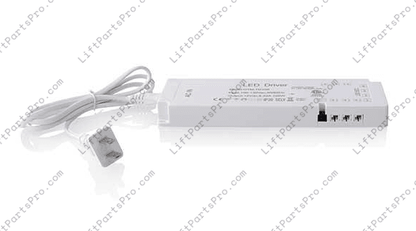

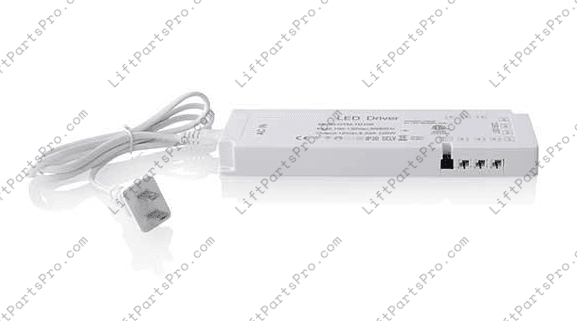

Power Supply
- Input: 100–130VAC
- Output: 12VDC / 24W
- Connection: Standard 2-prong wall plug (can be clipped for hardwire installs)
- Efficiency: Up to 83%
- Power Factor: > 0.6
- Dimming: Compatible w/ 12V PWM systems
- Protections: Short-circuit, overload, over-temp
- Flicker-Free: Yes
- Warranty: 3 years (manufacturer-backed)
Perfect for:
- Elevator cab lighting (residential or commercial)
- Porch lifts and vertical platform lifts
- Dumbwaiters and utility lifts
- Retrofit lighting upgrades
- Custom lift builds or enclosures
This lighting kit is suitable for most residential elevators, LU/LA lifts, and platform lifts. However, if installing in a commercial elevator, we recommend that the installer be familiar with ASME A17.1 code requirements and verify compliance with the local Authority Having Jurisdiction (AHJ).
