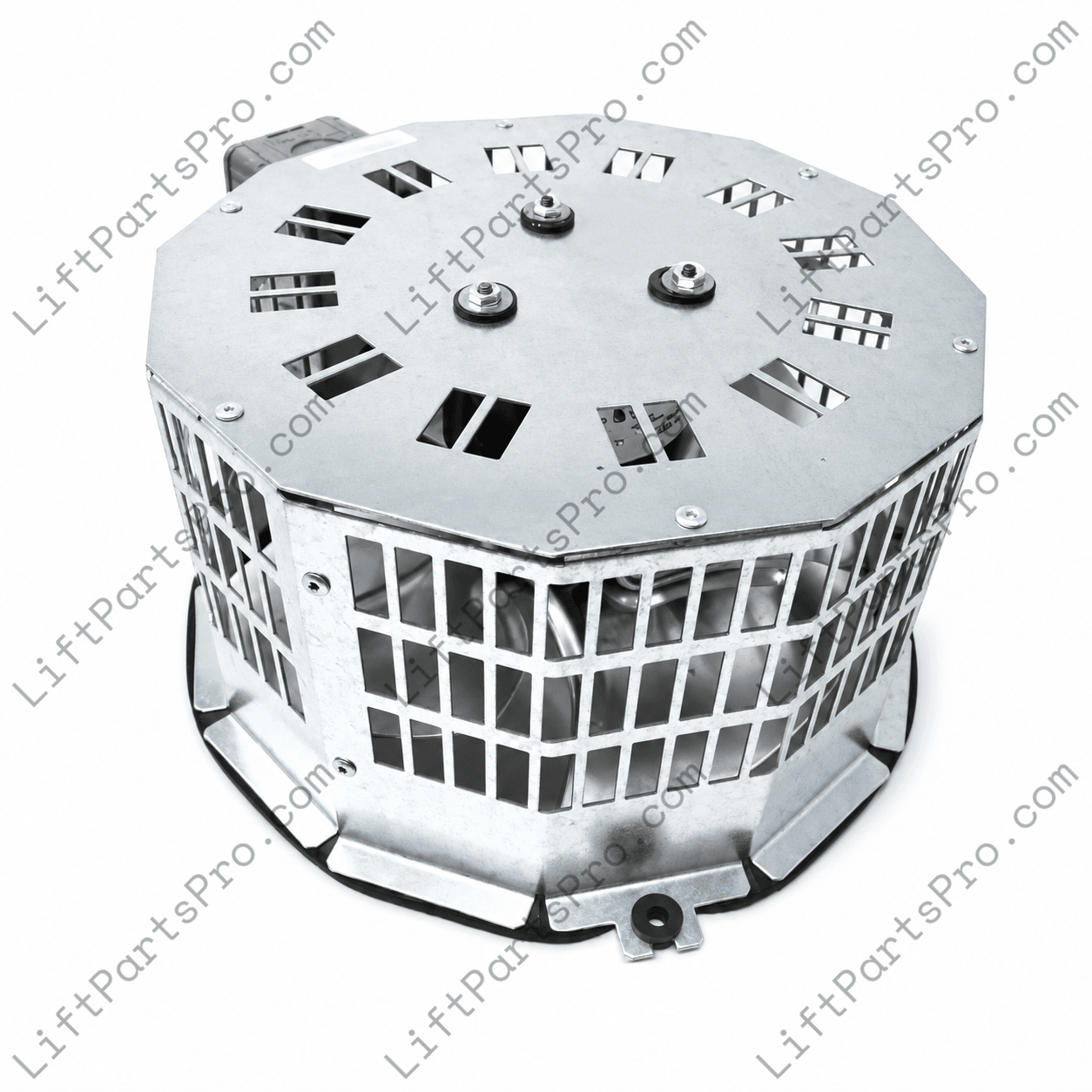

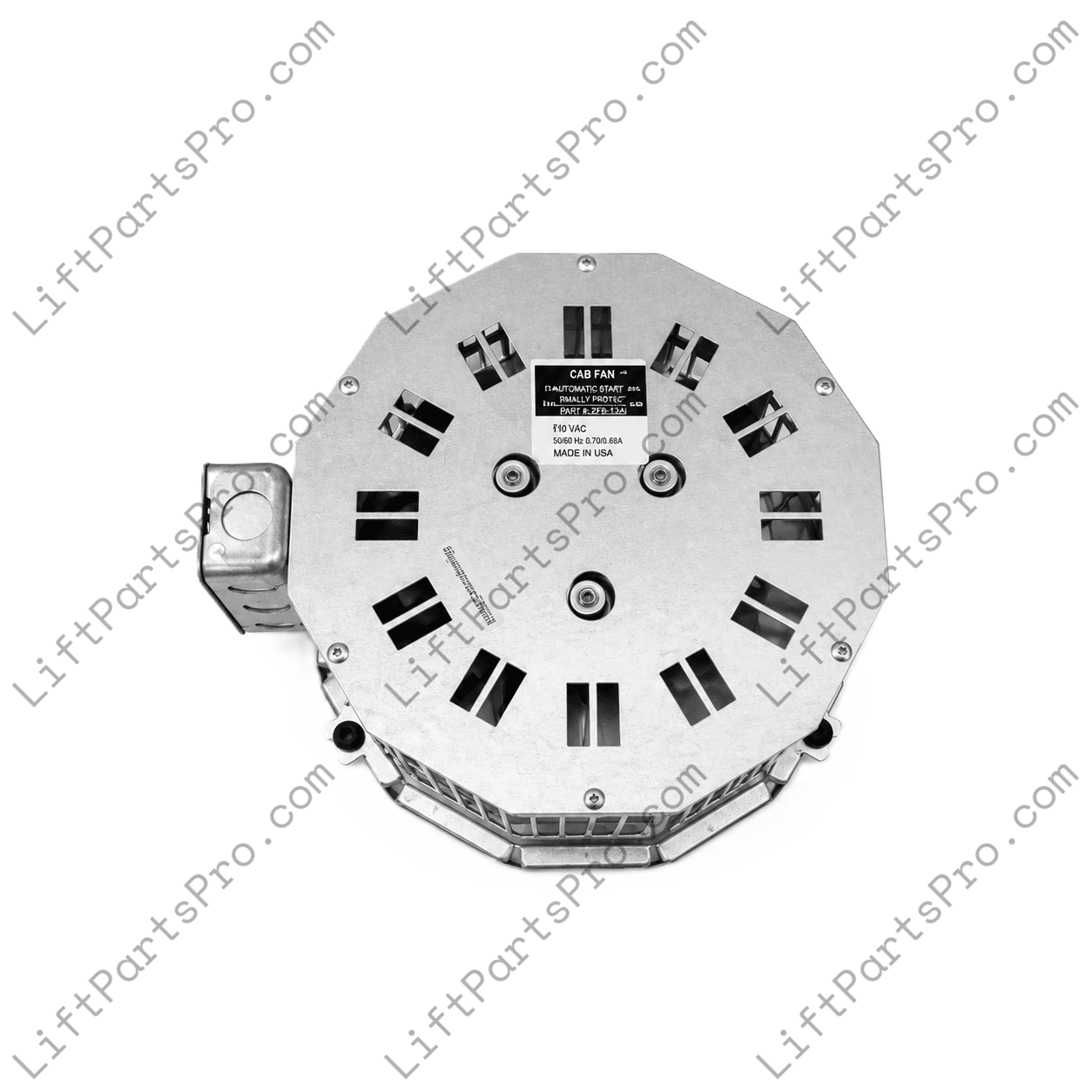

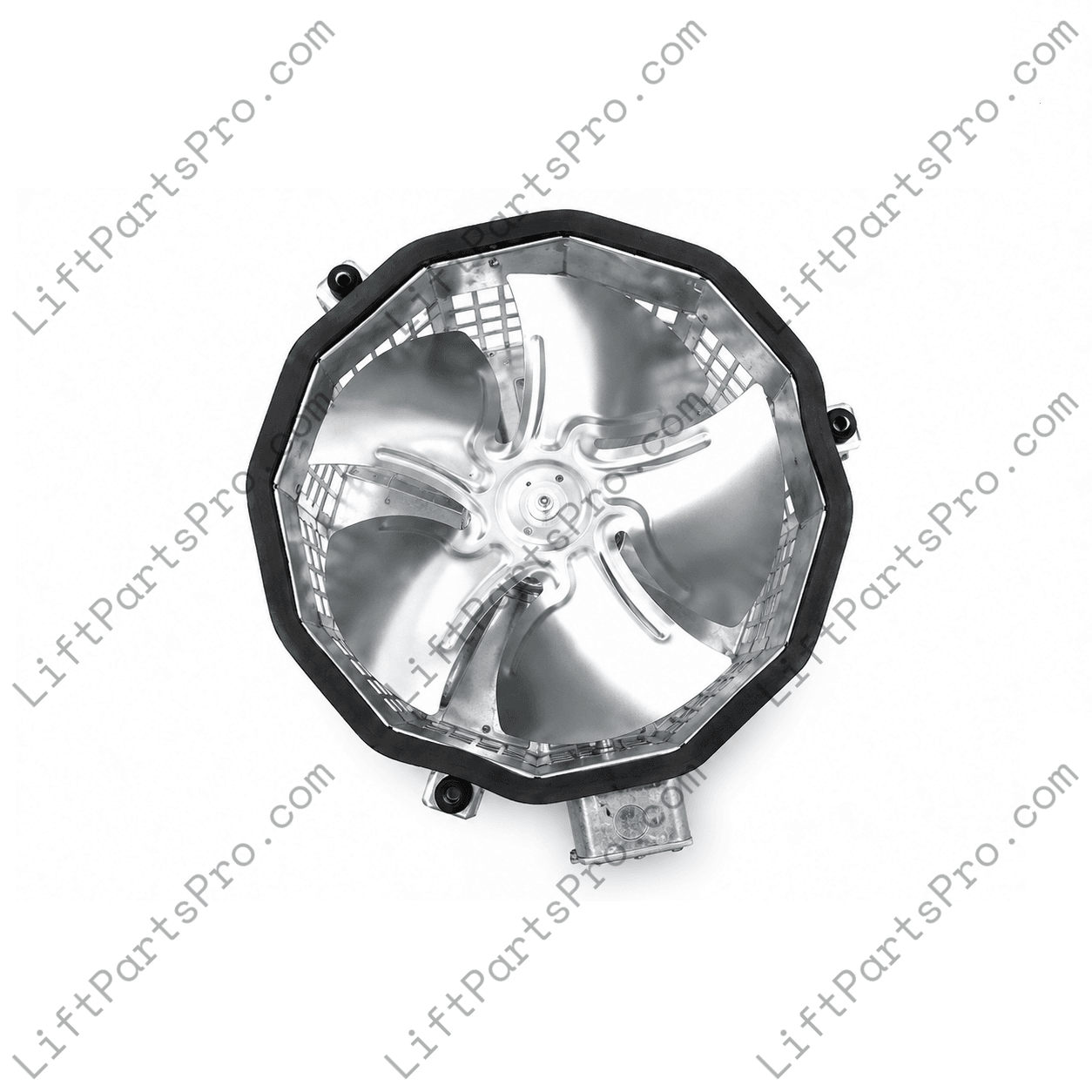

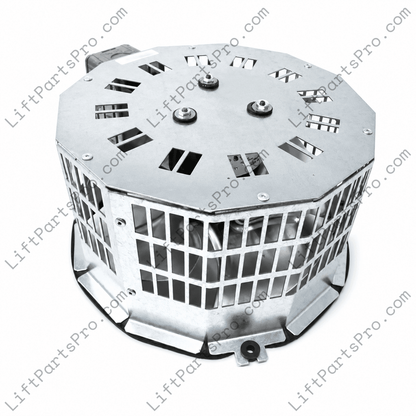

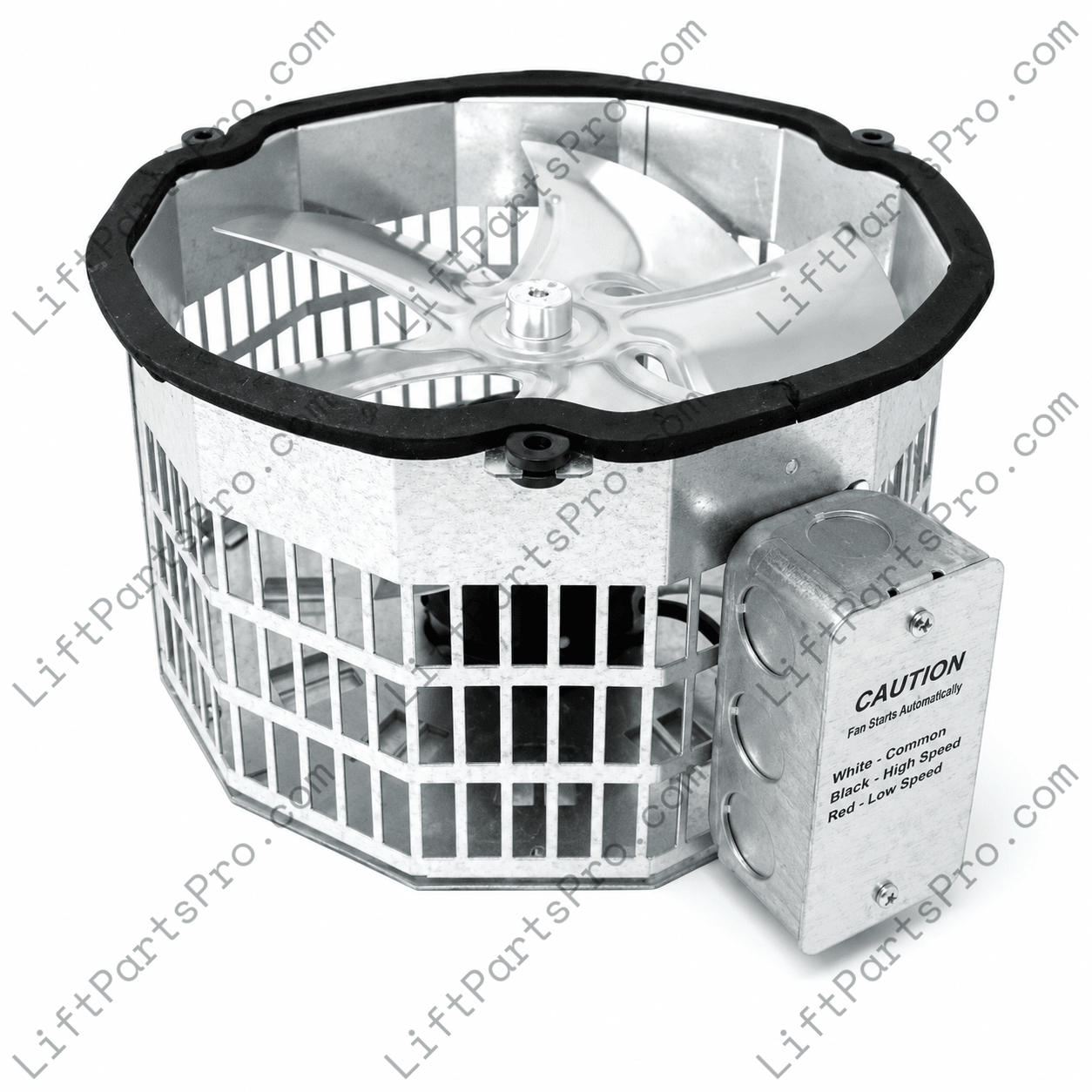

Two-Speed Elevator Cab Exhaust Fan, 350/255 CFM, 10-Inch Mount

Designed for reliable air circulation in elevator cabs, this two-speed exhaust fan is a popular choice for both new installations and replacement applications. It provides 350 CFM on high speed and 255 CFM on low speed, offering flexible airflow while maintaining quiet operation.

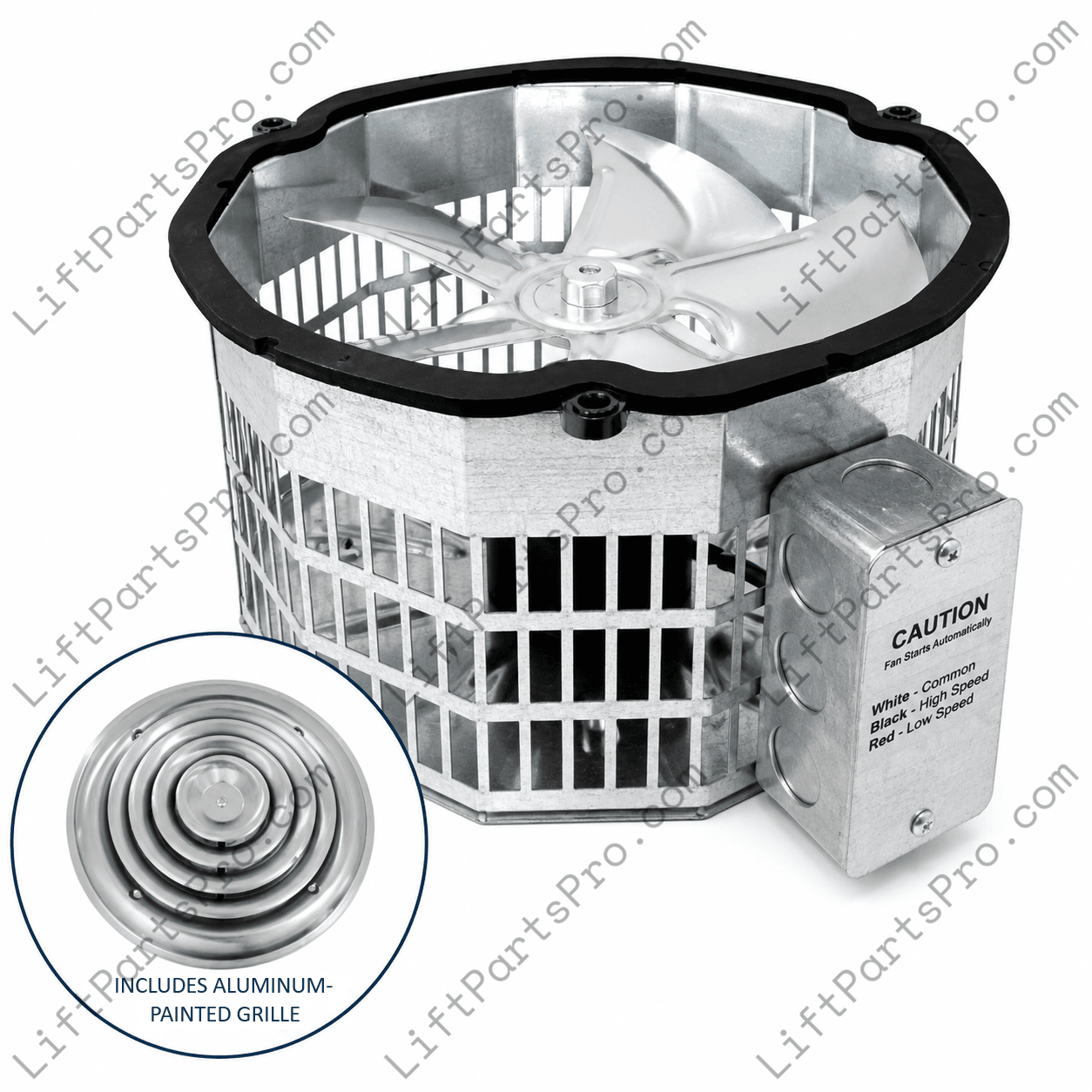

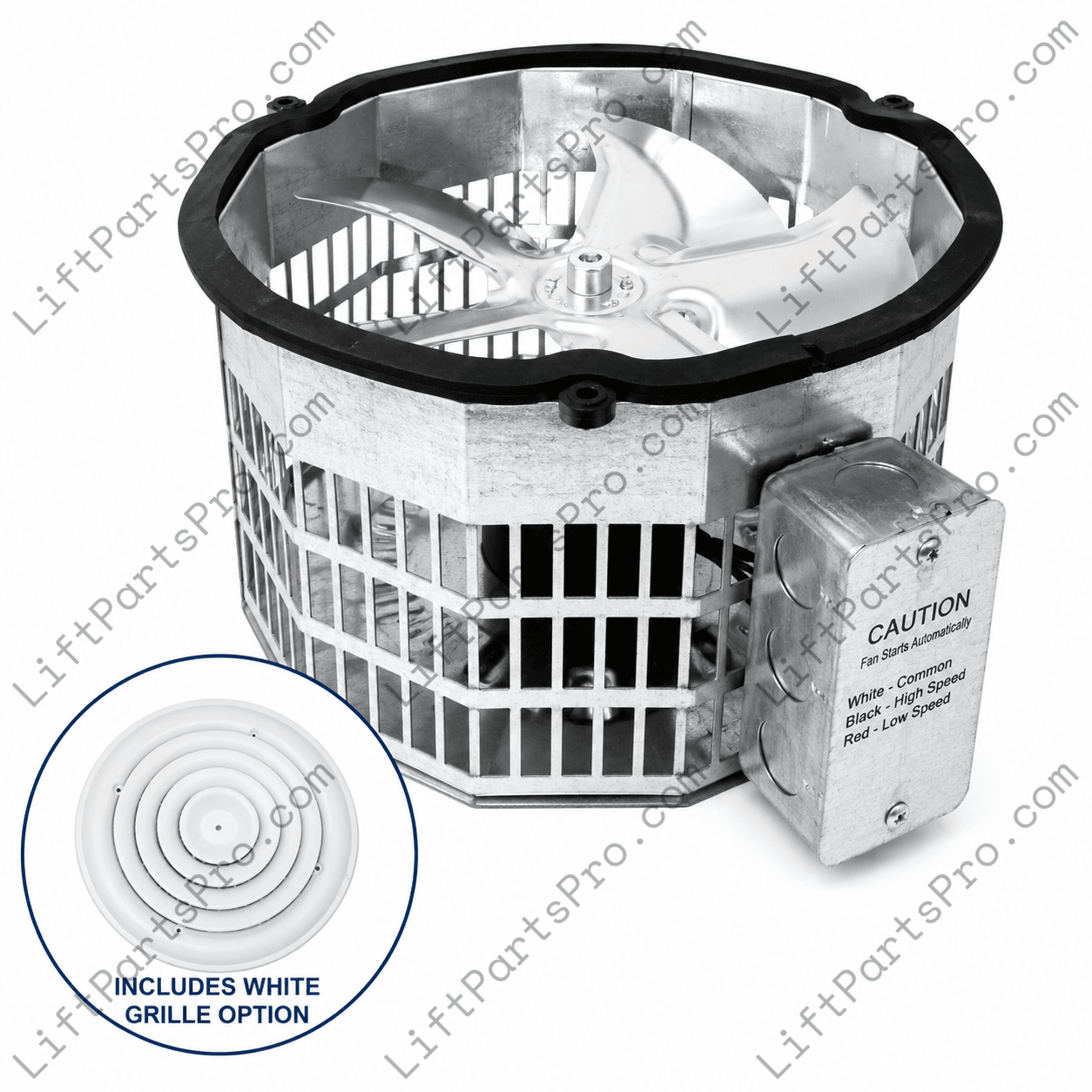

The fan is available as a fan-only assembly or can be ordered with either a standard white grille or an aluminum-painted grille. Both grille options feature a 14-inch outside diameter and include an internal adapter ring, allowing installation over either a 10-inch or 12-inch ceiling opening.

Built for long service life, the motor is sealed, self-lubricating, and rubber-mounted to minimize vibration and operating noise. The durable galvanized steel fan cage measures 6 inches in height and is engineered to withstand heavy weight and impact in demanding elevator environments. The fan itself requires a 10-inch mounting hole, making it suitable for many standard elevator cab ventilation applications.

• Two-speed elevator cab exhaust fan
• Airflow: 350 CFM (high), 255 CFM (low)
• Requires a 10-inch mounting hole
• Fan cage height: 6 inches
• Available as fan only or with a grille
• Grilles feature a 14-inch outside diameter
• Internal adapter ring allows grille installation over 10-inch or 12-inch openings
• Sealed, self-lubricating motor
• Rubber-mounted motor for reduced vibration and quieter operation
• Durable galvanized steel fan cage
• Suitable for elevator cab ventilation and replacement applications

For dependable operation and long-term performance, this exhaust fan should be installed and inspected by qualified personnel using appropriate installation practices. Proper installation helps ensure reliable ventilation and optimal equipment performance.
