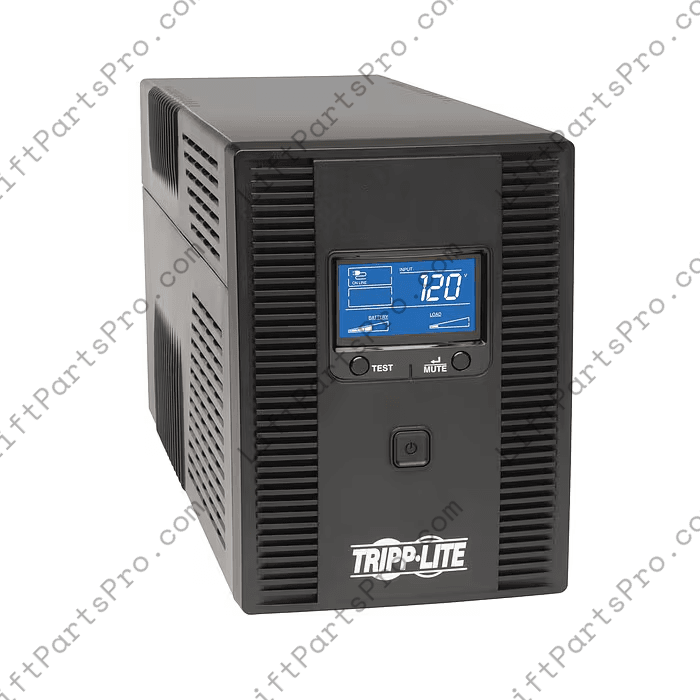

Tripp-Lite Elevator Emergency Lowering UPS Backup – 120 V, 1500VA

TrippLite 120 V 1.5 kVA/810 W line‑interactive UPS backup ideal for elevator emergency lowering systems and other lift‑system power‑fail support.

This line‑interactive UPS system offers reliable backup power and voltage regulation for emergency lowering systems and many 120‑volt elevator/lift applications. The OMNI1500LCDT model provides 1.5 kVA (810 W) capacity at 120 VAC, with automatic voltage regulation (AVR) to correct brownouts and overvoltages (from ~92 V to ~150 V) without drawing from the battery.

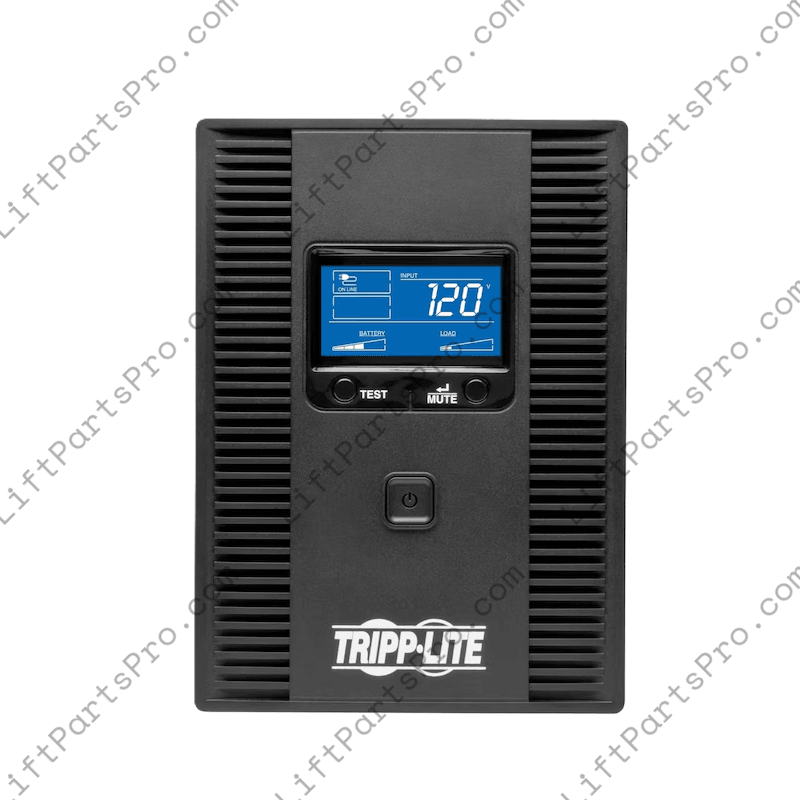

The unit includes a tower form‑factor, LCD display panel for monitoring input/output voltage, load percentage, battery status, runtime and alarms.
With 10 NEMA 5‑15R outlets (5 outlets with full battery backup + surge suppression, and 5 outlets surge only) the unit is versatile enough to support essential lift controls while protecting auxiliary equipment.

Although not OEM‑specific, this UPS proves a solid emergency lowering battery / backup option in a wide variety of elevator brands and models that rely on 120‑volt power systems. It is especially popular for ThyssenKrupp LEV units, but its broad compatibility makes it a suitable addition to your parts inventory for lift‑system power‑backup needs.

Specifications

• Output capacity: 1500 VA / 810 W
• Nominal output voltage: 120 V AC (single phase)
• Topology: Line‑interactive with Automatic Voltage Regulation (AVR) (boosts undervoltages and cuts overvoltages)
• Input voltage range for AVR: approx. 92 V to 150 V

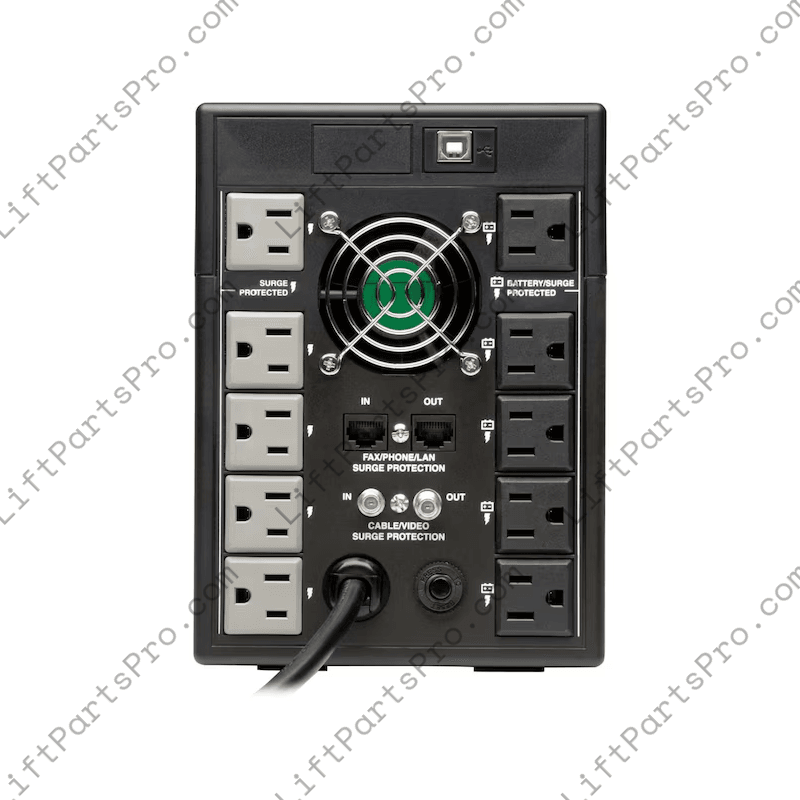

• Outlets: 10 × NEMA 5‑15R (5 with battery + surge, 5 surge only)
• USB port for monitoring (HID enabled) included
• Runtime at full load (810 W): approx. 1.8 minutes
• Runtime at half load (≈405 W): approx. 7.5 minutes

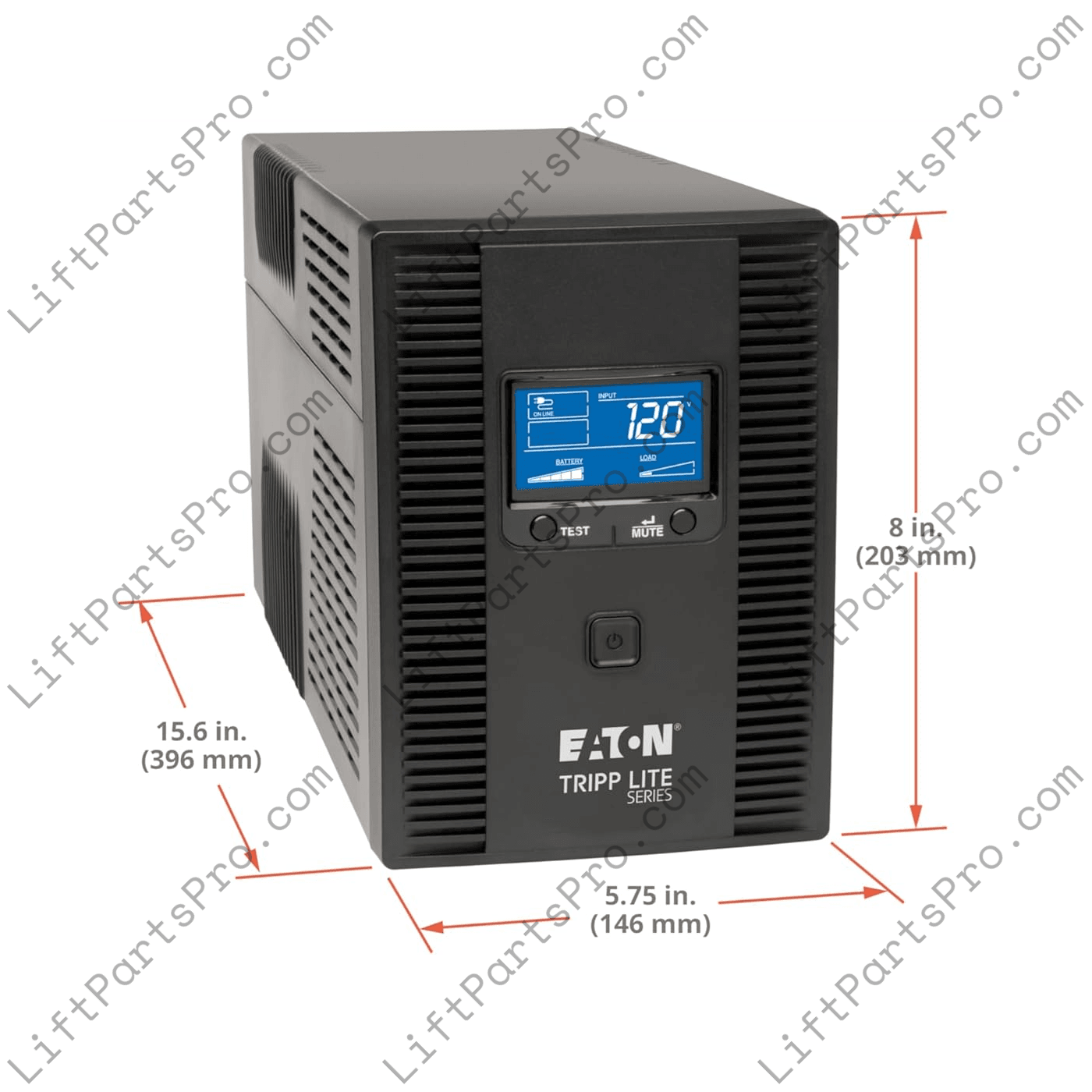

• Dimensions (approx.): 15.6 in depth × 5.75 in width × 8 in height
• Weight: approx. 22.7 lb
• Battery type: Internal, user‑replaceable VRLA
• Certifications / Compliance: ENERGY STAR 2.0 certified, RoHS, UL 1778 compliant


This UPS presents a dependable backup power solution built to support emergency lowering systems and lift‑power applications where 120‑volt power continuity is critical. It is recommended that installation and integration be performed by qualified service personnel in accordance with all applicable codes and system requirements. Reliable power backup helps maintain system readiness and peace of mind.
