Transformer - 115/230 VAC - 36 VAC - 100 VA - Porch-Lift and Others

Transformer - 115/230 VAC - 36 VAC - 100 VA - Porch-Lift and Others

Regular price $112.23 USD
Regular price $150.00 USD Sale price $112.23 USD
Sale Special Order
Shipping calculated at checkout.

This item is still available for order. We're awaiting restock. Contact us for lead time.

SKU: BB.PLS.36.100

Condition: New

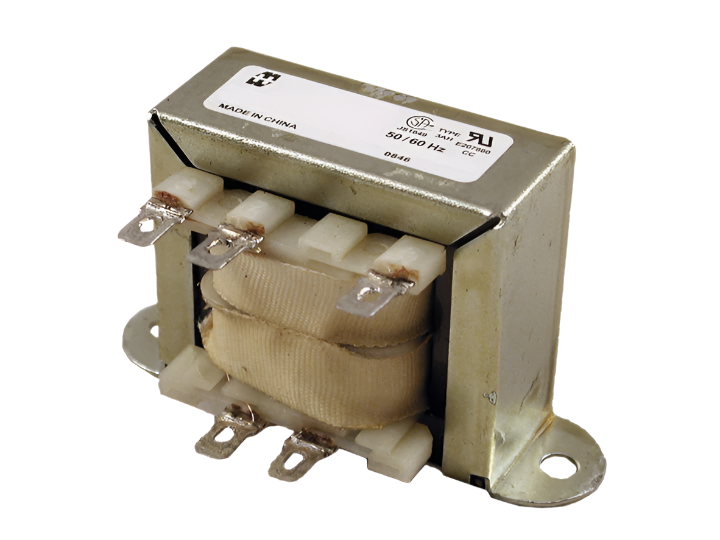

Image is a representation of the transformer series. Refer to product specifications below.

Compatible with: Porch-lift Vertical Platform Lifts (VPLs) and other lift systems requiring similar specifications.

Product Overview: This buck-boost transformer is designed to adjust voltage levels in lift systems, ensuring optimal performance and longevity. It serves as a suitable replacement for obsolete transformers in various lift models.

Key Specifications:

  • Power Rating: 100.8 VA
  • Primary Voltage: 115/230V AC
  • Secondary Voltage: 36V Center-Tapped
  • Secondary Current: 2.8 A
  • Mounting Style: Chassis mount
  • Length: 4.03"
  • Height: 2.56"
  • Depth (w/o Terminals): 2.25"
  • Depth (w/ Terminals): 2.62"

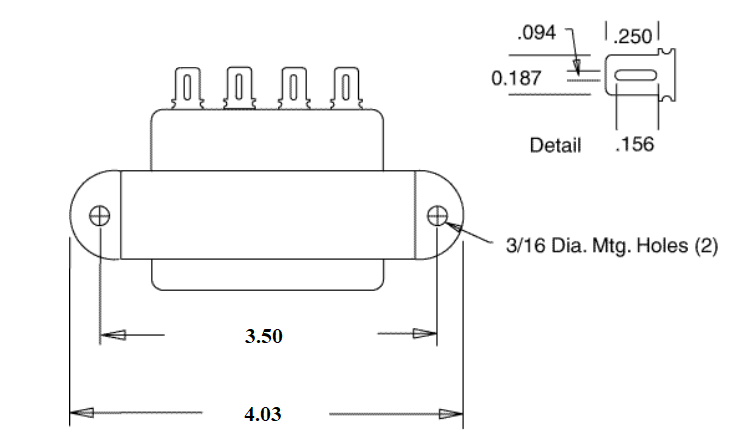

⚠ Important Installation Notes: Please be aware that this transformer may not be a direct plug-and-play replacement for the original component. Differences in dimensions, terminal layouts, and mounting patterns may exist. However, the functional connections (primary and secondary) remain consistent, and the voltage, amperage, and VA ratings match the original specifications. Carefully mapping the original connections to this transformer will ensure proper functionality. (Please see images for mounting pattern.)

Disclaimer: Installation should be performed by qualified personnel. Ensure all connections are verified for compatibility before powering the system.
