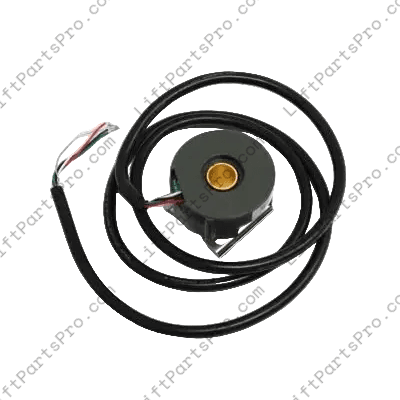

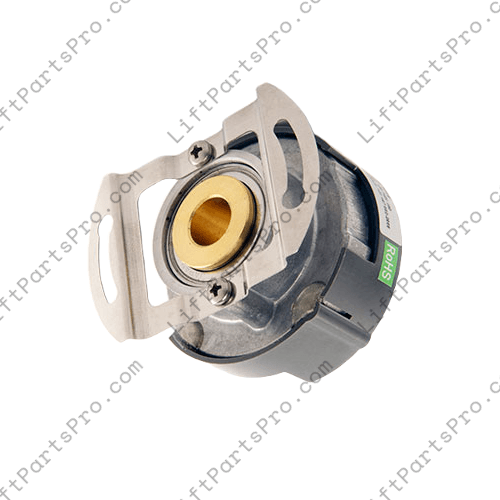

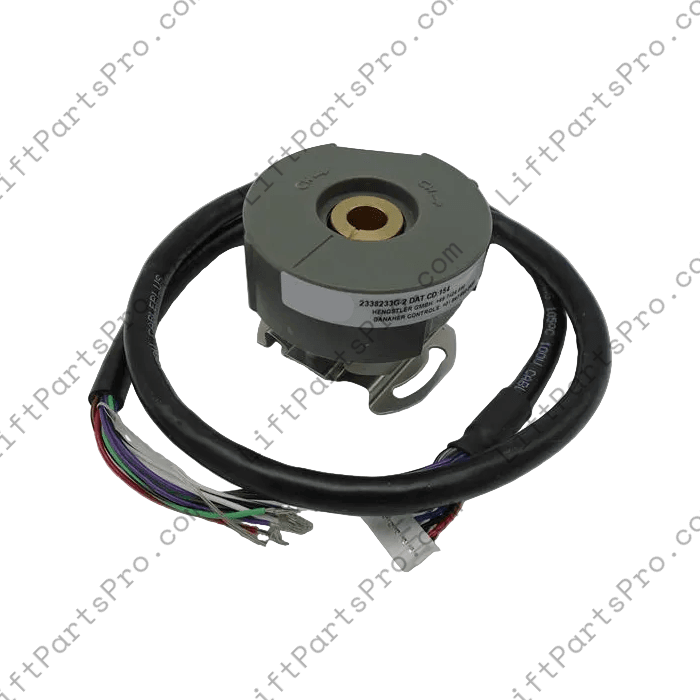

TKE / Dover Dynapar Door Operator Encoder

Elevator door operator closed-loop encoder with 2000 pulses per revolution and 5V operation, commonly used as a replacement encoder for select TKE and Dover door operator systems.

Elevator door systems rely on accurate position feedback to ensure smooth, controlled movement and reliable operation. This door operator encoder provides precise rotational feedback used by the controller to monitor door position and movement throughout the open and close cycle. Designed for closed-loop control applications, it converts shaft rotation into digital pulses that allow the operator system to maintain consistent speed, positioning, and synchronization.

This encoder is widely used as a replacement component in select TKE and Dover door operator assemblies. Its 2000 pulses-per-revolution output supports fine motion resolution, helping maintain proper door timing and positioning in automated elevator door systems. The unit operates on a low-voltage 5V supply and integrates into door operator control circuits where accurate feedback is required for dependable door performance.

Built for industrial motion control environments, this encoder is suited for use in commercial elevator equipment where consistent feedback signals are essential to door operator functionality.

• Component type: Incremental rotary encoder
• Application: Elevator door operator position feedback
• Resolution: 2000 pulses per revolution (PPR)
• Electrical supply: 5 VDC
• Control type: Closed-loop feedback device
• Typical use: Elevator door operator systems
• Compatible equipment: Select TKE and Dover door operators

Proper installation and system verification should always be performed by qualified elevator personnel using appropriate procedures and safety practices.
