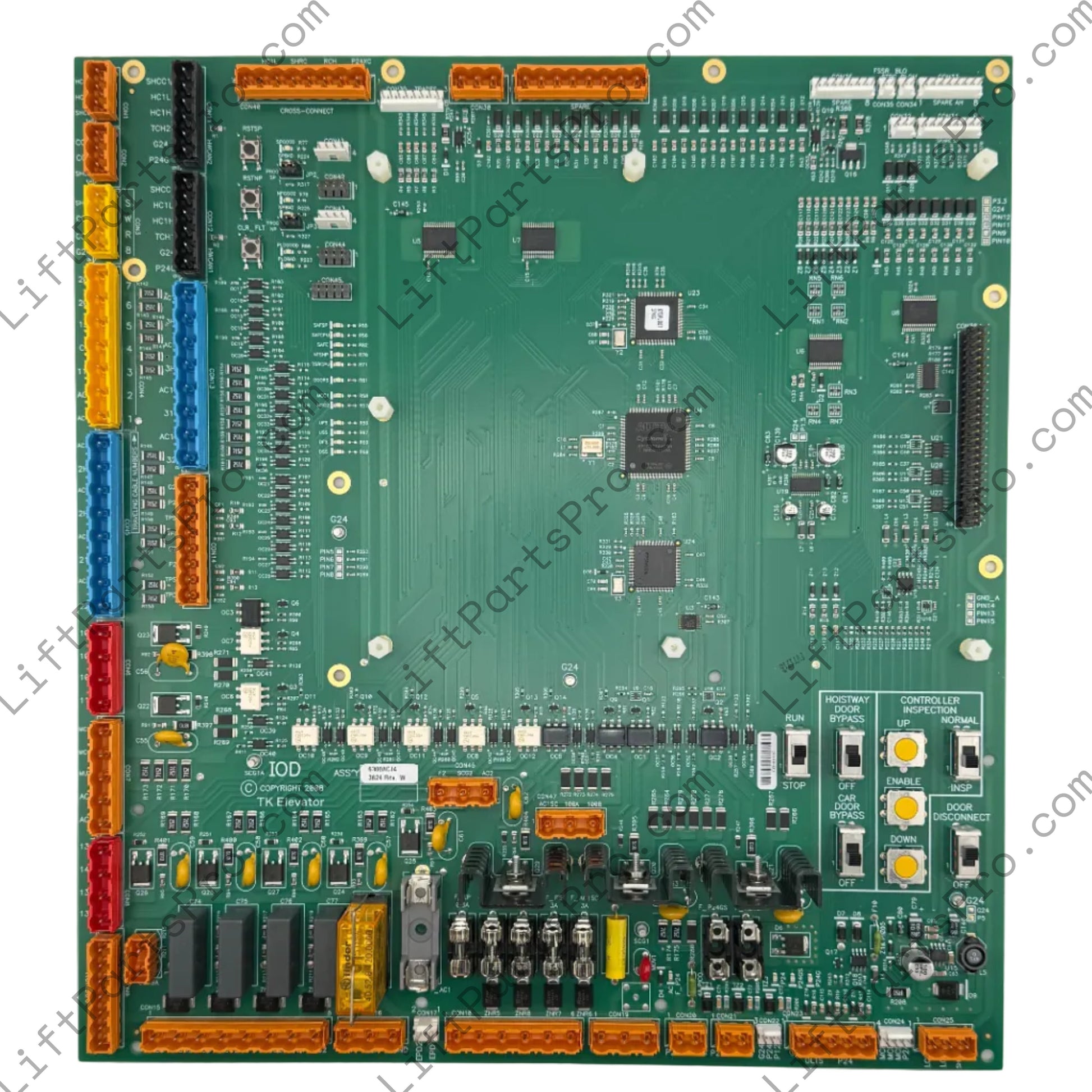

ThyssenKrupp TAC32 IOD Circuit Board 6300ACJ4 9722841 - REV W

This IOD printed circuit board assembly is designed for use in ThyssenKrupp/TKE and Dover TAC32 elevator control systems. The board is supplied without the fuse kit and is intended as a replacement component within compatible TAC32 controller applications.

The PCB is marked 6300ACJ4. Related and legacy IOD board references include 6300ACJ1, 6300ACJ2, and 6300ACJ3, which are useful identifiers when matching boards found in existing elevator equipment.

Reference numbers 9722841 and 9873215 are also associated with this IOD assembly family; 9873215 identifies the configuration that combines the 6300ACJ4 IOD board with the separate fuse kit.

• Component type: IOD input/output printed circuit board assembly
• Elevator control system: TAC32
• Equipment family: ThyssenKrupp / TKE / Dover

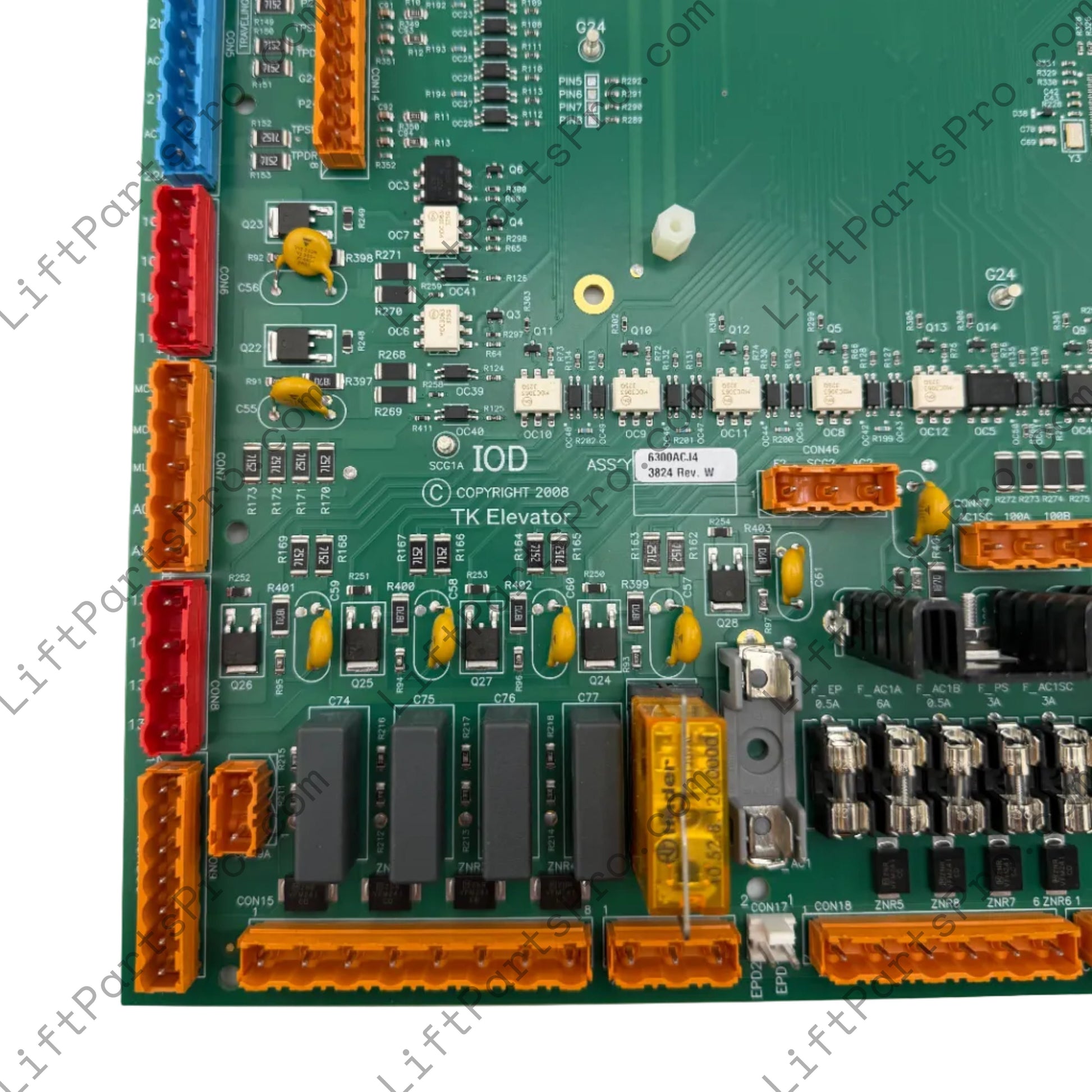

• Printed board number: 6300ACJ4 - Revision W
• Related board references: 6300ACJ1, 6300ACJ2, 6300ACJ3
• Reference number: 9722841
• Fuse-kit assembly reference: 9873215
• Configuration: Circuit board only
• Fuse kit: Not included
• Application: Elevator controller I/O circuitry

Elevator control boards should be matched to the existing equipment and installed by qualified elevator personnel in accordance with applicable procedures, codes, and system requirements.
