ThyssenKrupp TAC20 Finder Ice Cube Guided Relay 24VDC 8 Amp
ThyssenKrupp TAC20 Finder Ice Cube Guided Relay 24VDC 8 Amp
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: RLY.IC.TAC20
Condition: New
Couldn't load pickup availability

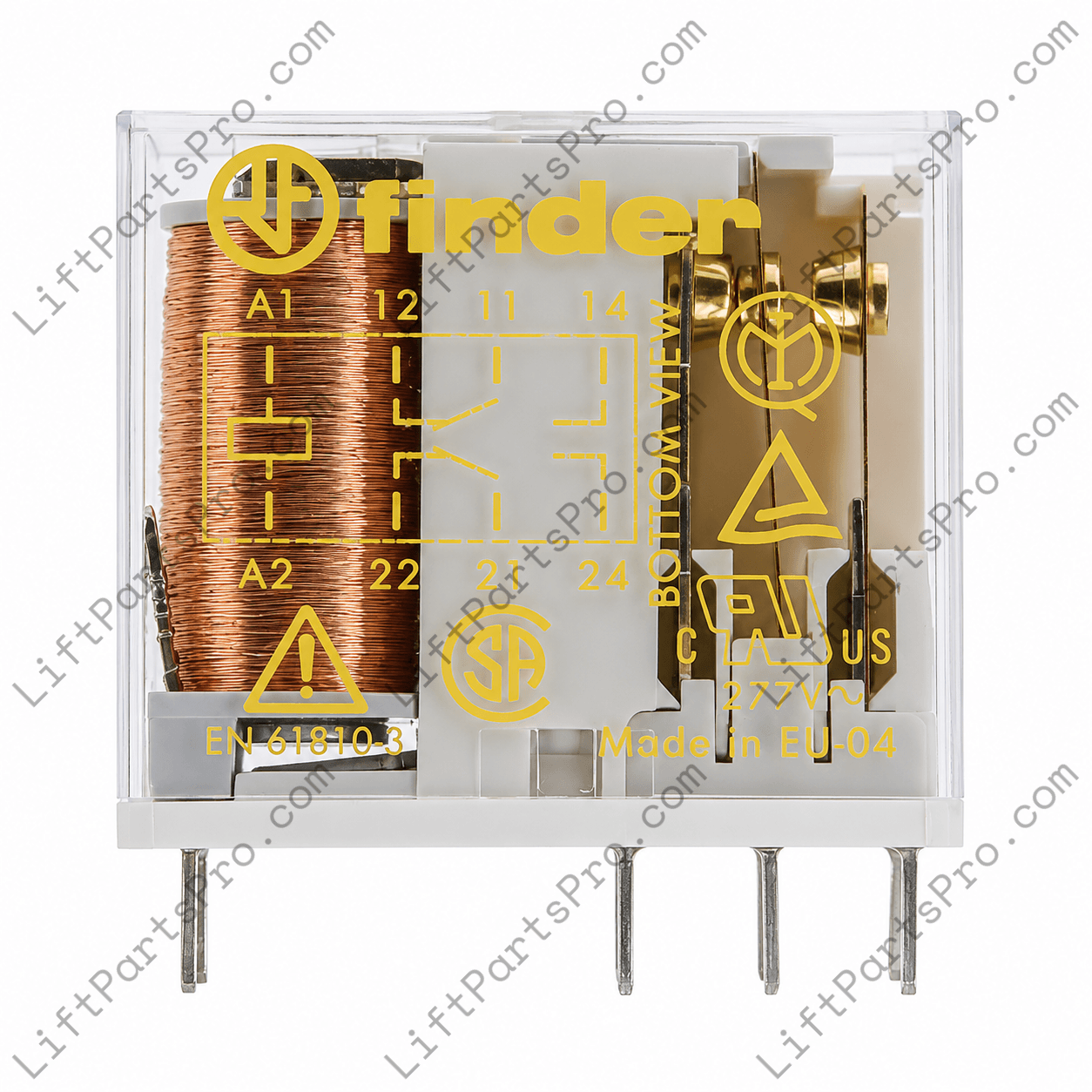

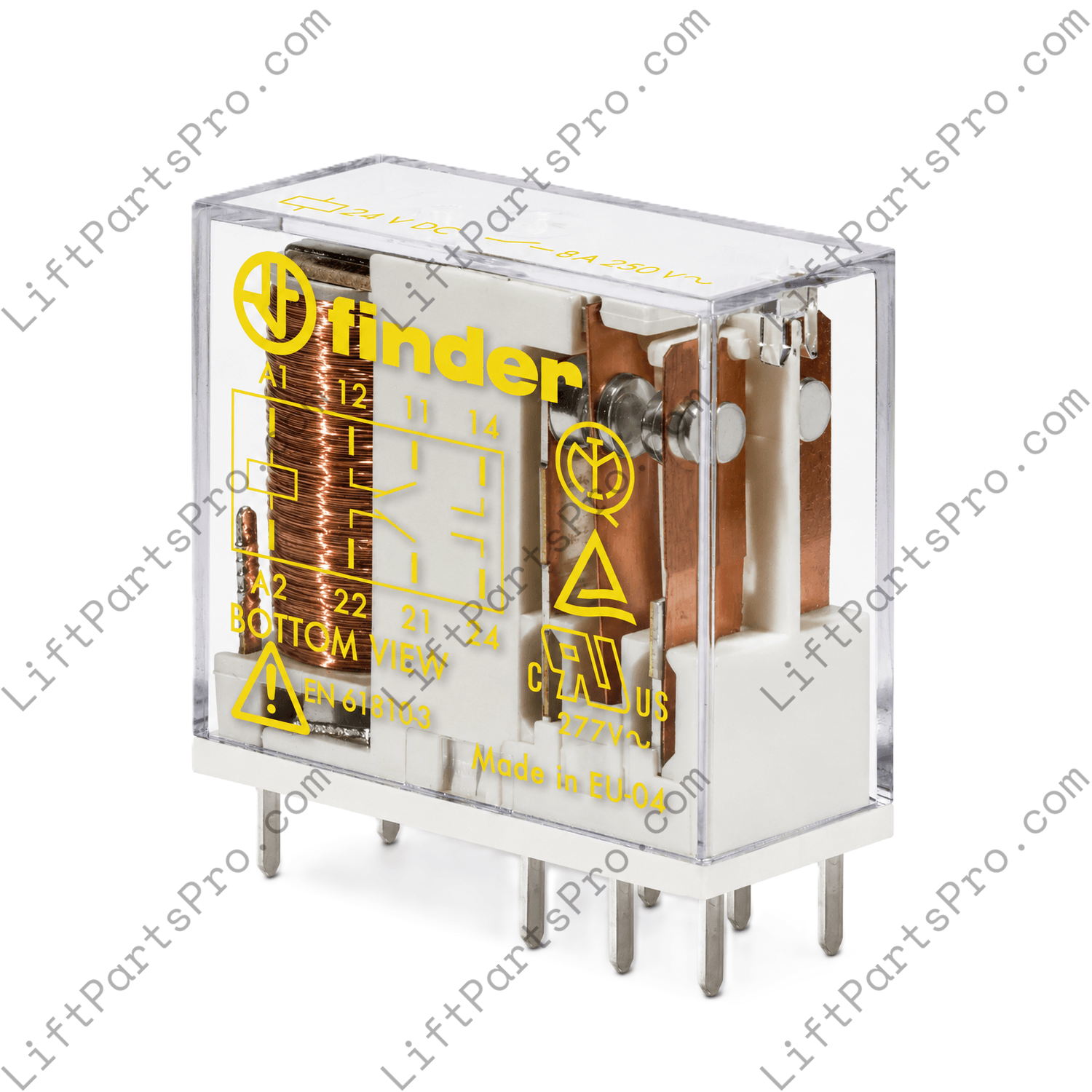

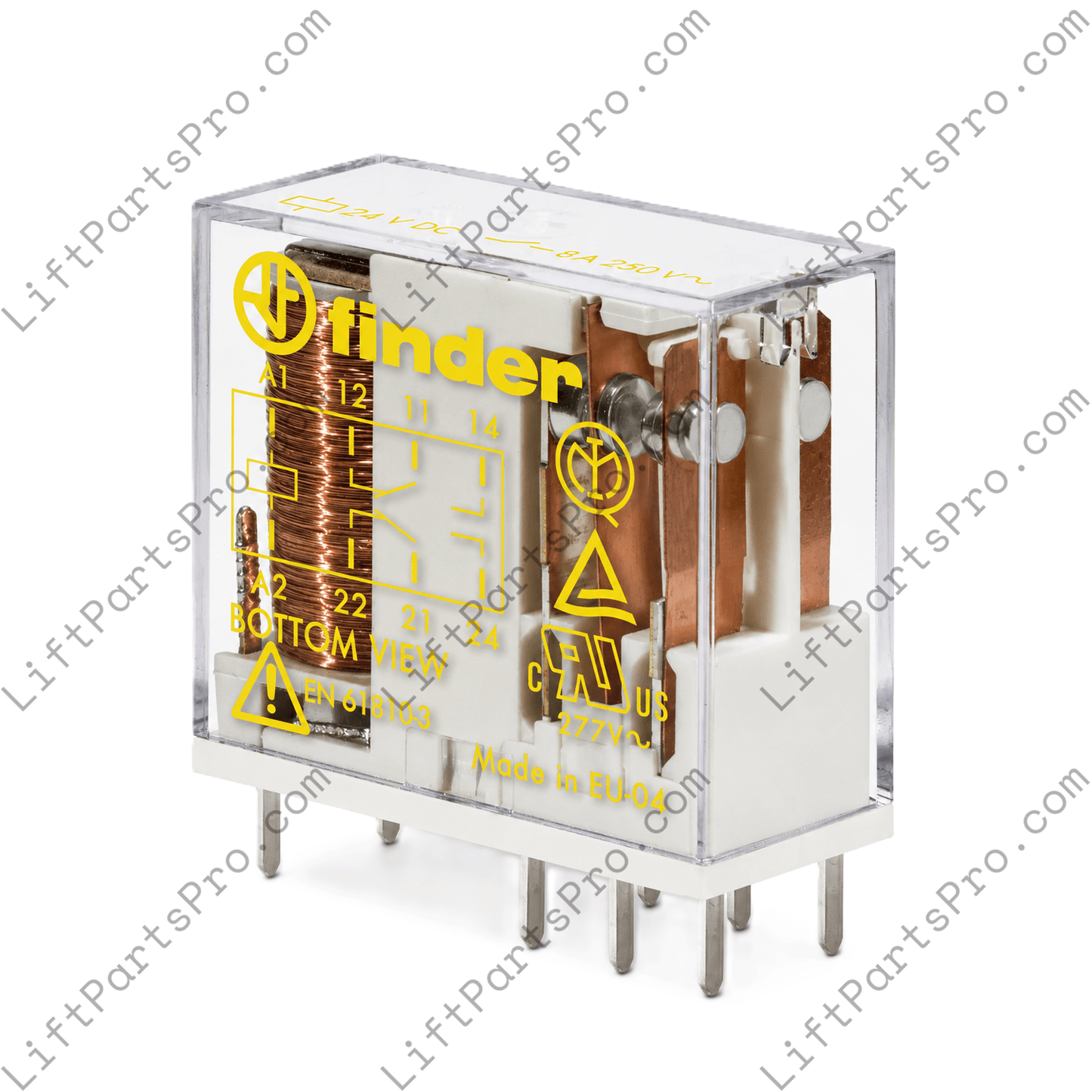

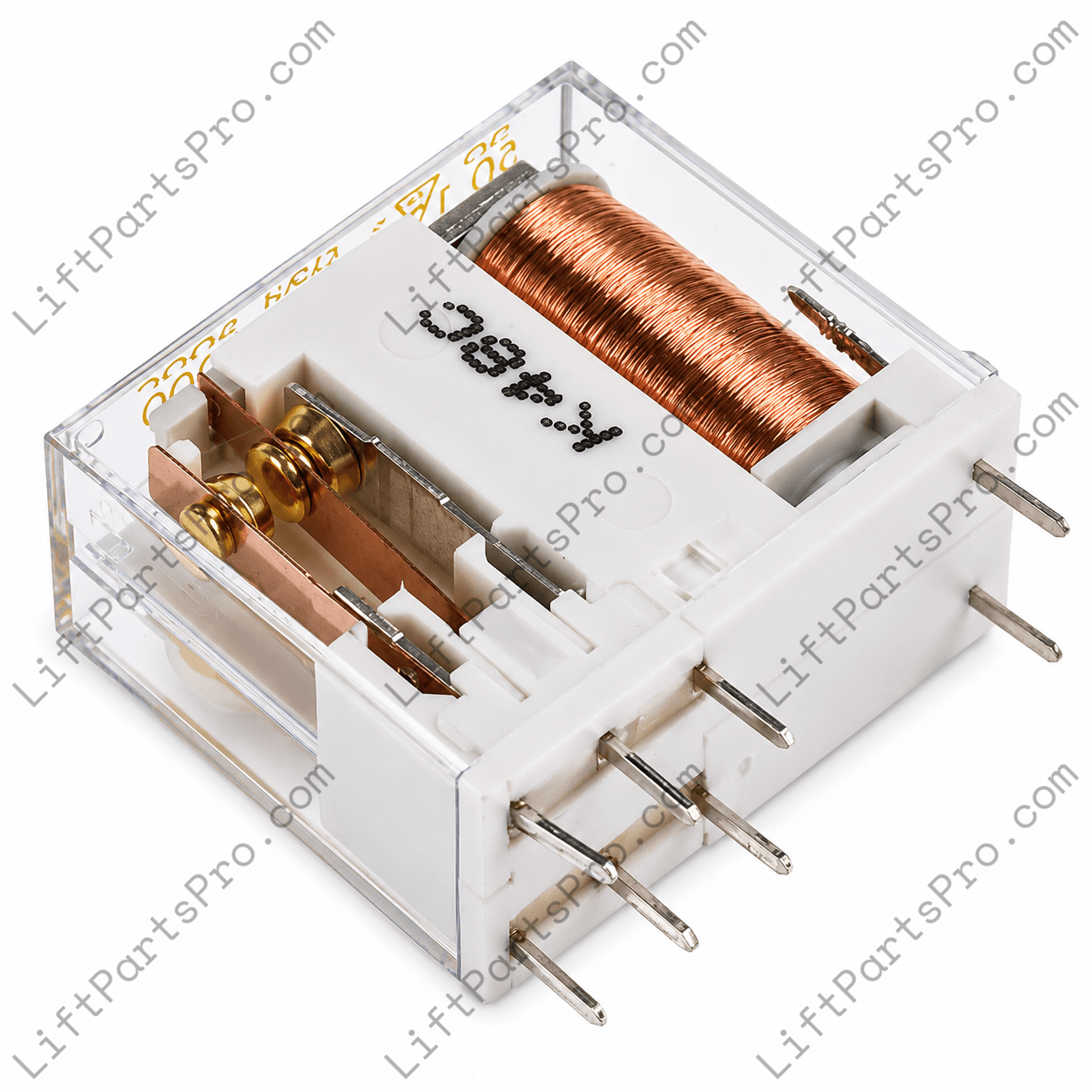

This Finder ice cube relay is commonly used in ThyssenKrupp elevator systems equipped with TAC20 controllers. Designed for dependable control circuit operation, this compact plug-in relay provides consistent electrical switching in elevator applications requiring a 24VDC coil relay.
The relay features a durable industrial design with dual contacts and is built for compatibility with standard relay sockets used in controller assemblies. Its clear enclosure allows internal contact visibility, making it a recognizable component within many elevator control cabinets.
- Product Type: Plug-in electromechanical forcibly guided relay
- Common Name: Ice cube relay
- Controller Compatibility: ThyssenKrupp TAC20 elevator controllers
- Coil Voltage: 24VDC

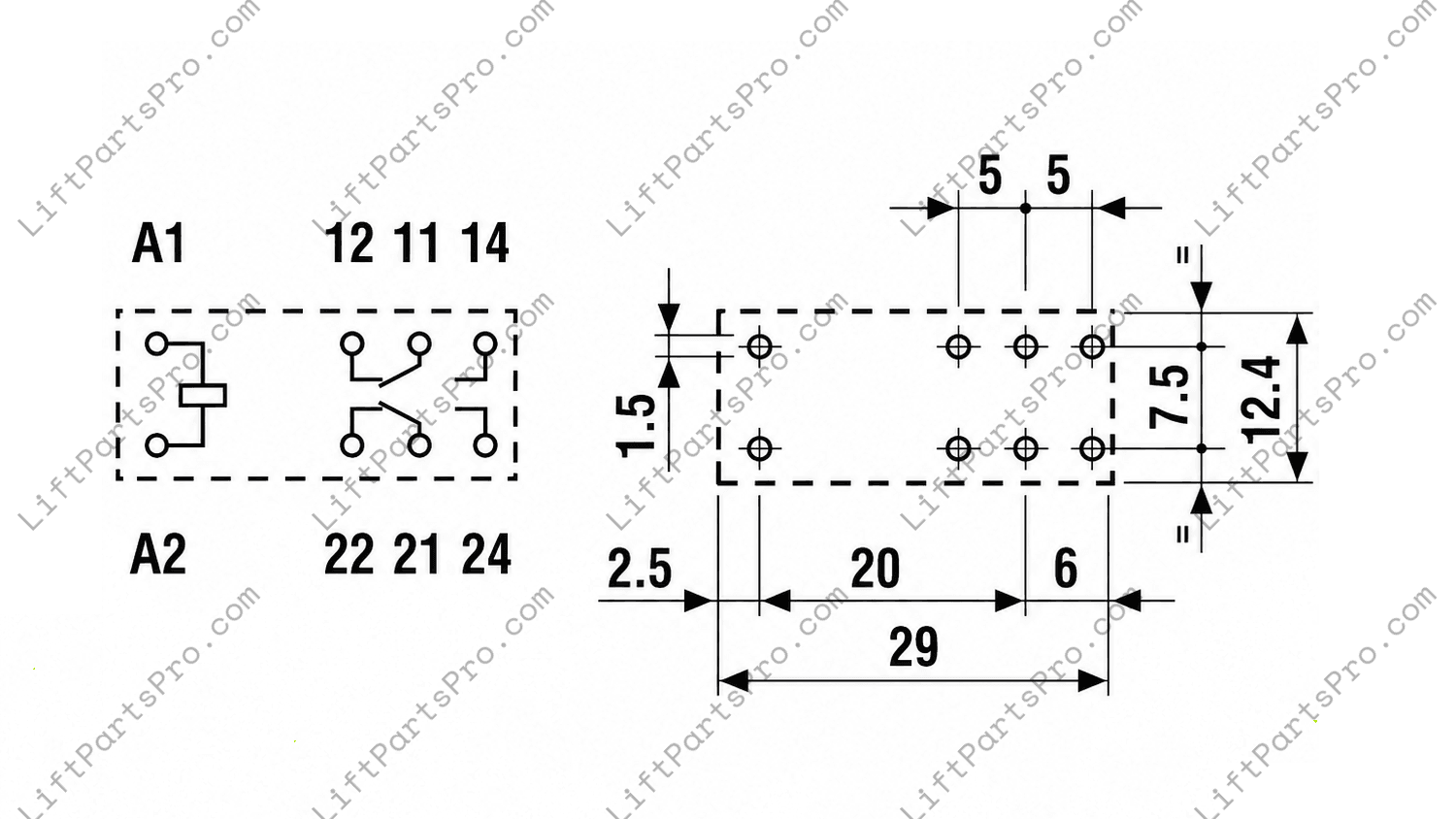

- Contact Configuration: DPDT (2 Form C)
- Contact Rating: 8 Amp
- Number of Poles: 2
- Mounting Style: Socket mount
- Enclosure Style: Transparent relay housing
- Application: Elevator control circuit switching
- Cross Reference: AAA613DG54
Elevator components should be selected and installed according to applicable requirements by qualified personnel. Proper installation helps support safe, reliable equipment operation and long-term system performance.
