ThyssenKrupp Signa4 Elevator Hall Station Trim Frame 12-1/4"
ThyssenKrupp Signa4 Elevator Hall Station Trim Frame 12-1/4"
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: FP.TK.FS4
Condition: New
Couldn't load pickup availability

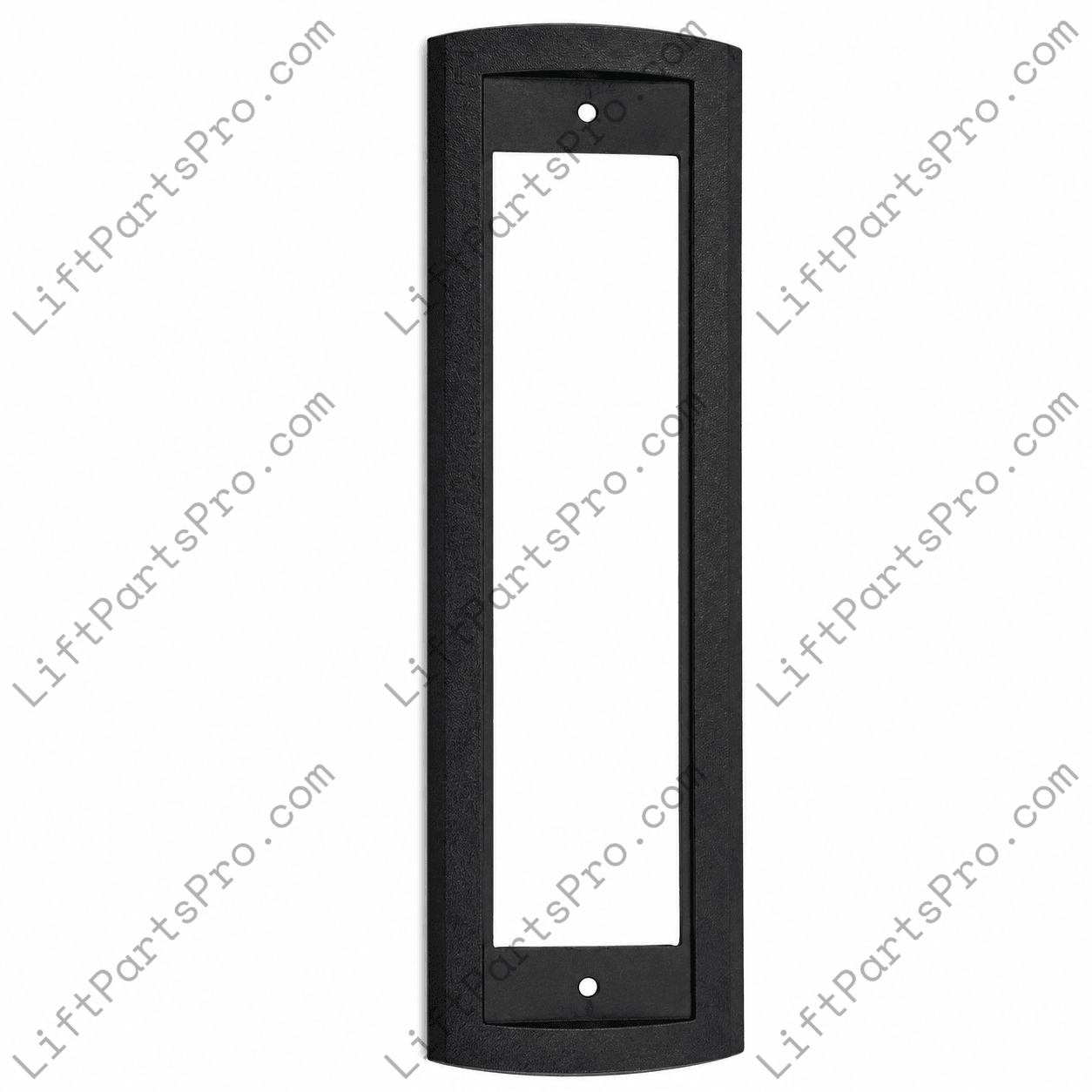

Designed as the surrounding frame for Signa4 elevator hall station fixtures, this trim provides the structure used to hold and align the hall station faceplate and associated fixture components. It is commonly found on ThyssenKrupp/TKE and Dover Signa4 installations, including fire service hall station configurations, and may also be encountered on TAC elevator systems equipped with Signa4 signal fixtures.

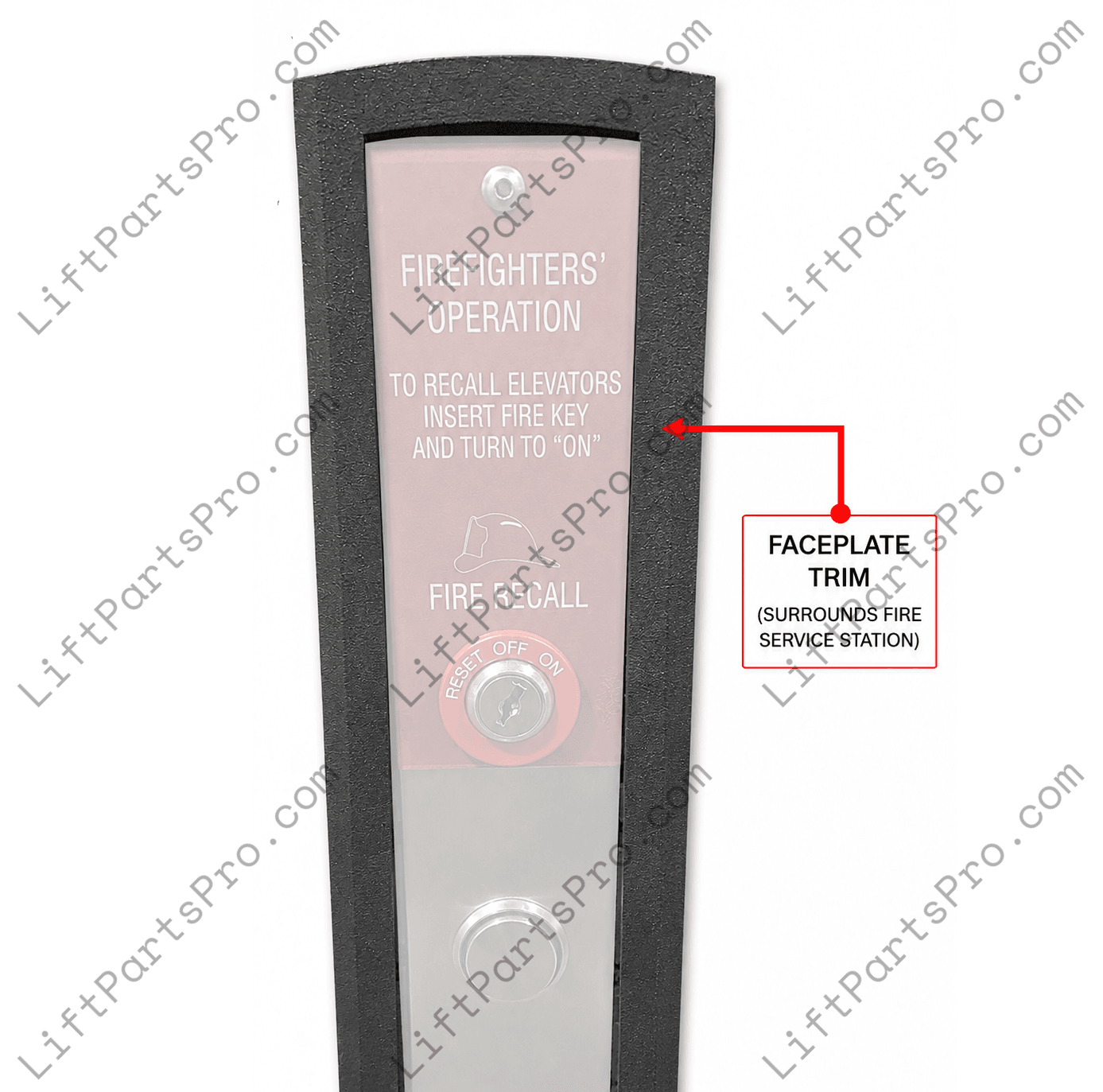

The frame interfaces with the hall station assembly containing the faceplate, pushbuttons, keyswitches, bezels, grounding components, and related internal contact or fixture hardware. Its 12-1/4" x 3-1/2" dimensions make it suitable as a replacement when matching an existing Signa4 hall station trim by size and configuration.
- Component type: Elevator hall station trim frame #141HH1
- Overall length: 12-1/4"
- Overall width: 3-1/2"
- Fixture family: Signa4 signal fixtures
- Common application: Hall station and fire service hall station assemblies
- Elevator compatibility: ThyssenKrupp/TKE and Dover applications
- Related systems: TAC elevators equipped with compatible Signa4 fixtures
- Installation location: Elevator landing hall station
Elevator signal fixture components should be installed and inspected by qualified elevator personnel in accordance with the applicable equipment requirements, job specifications, and local codes.
