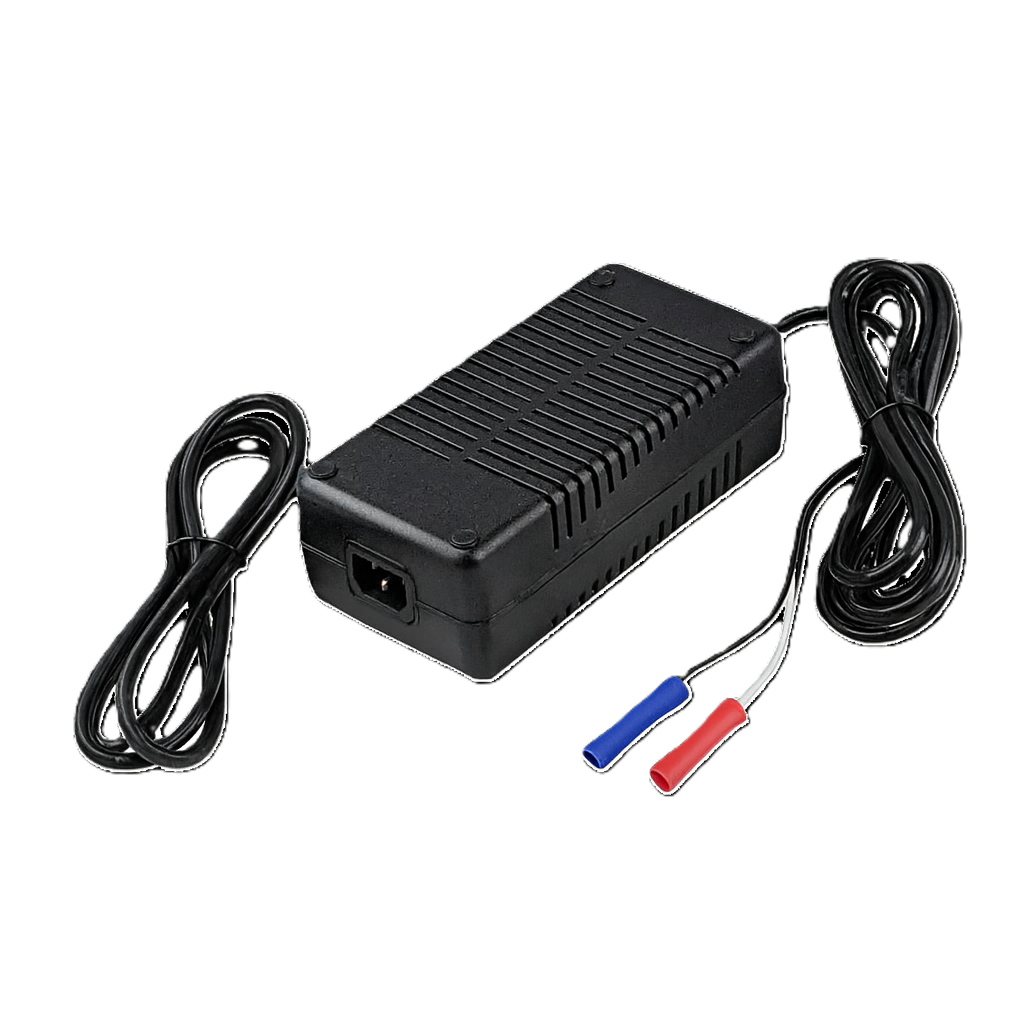

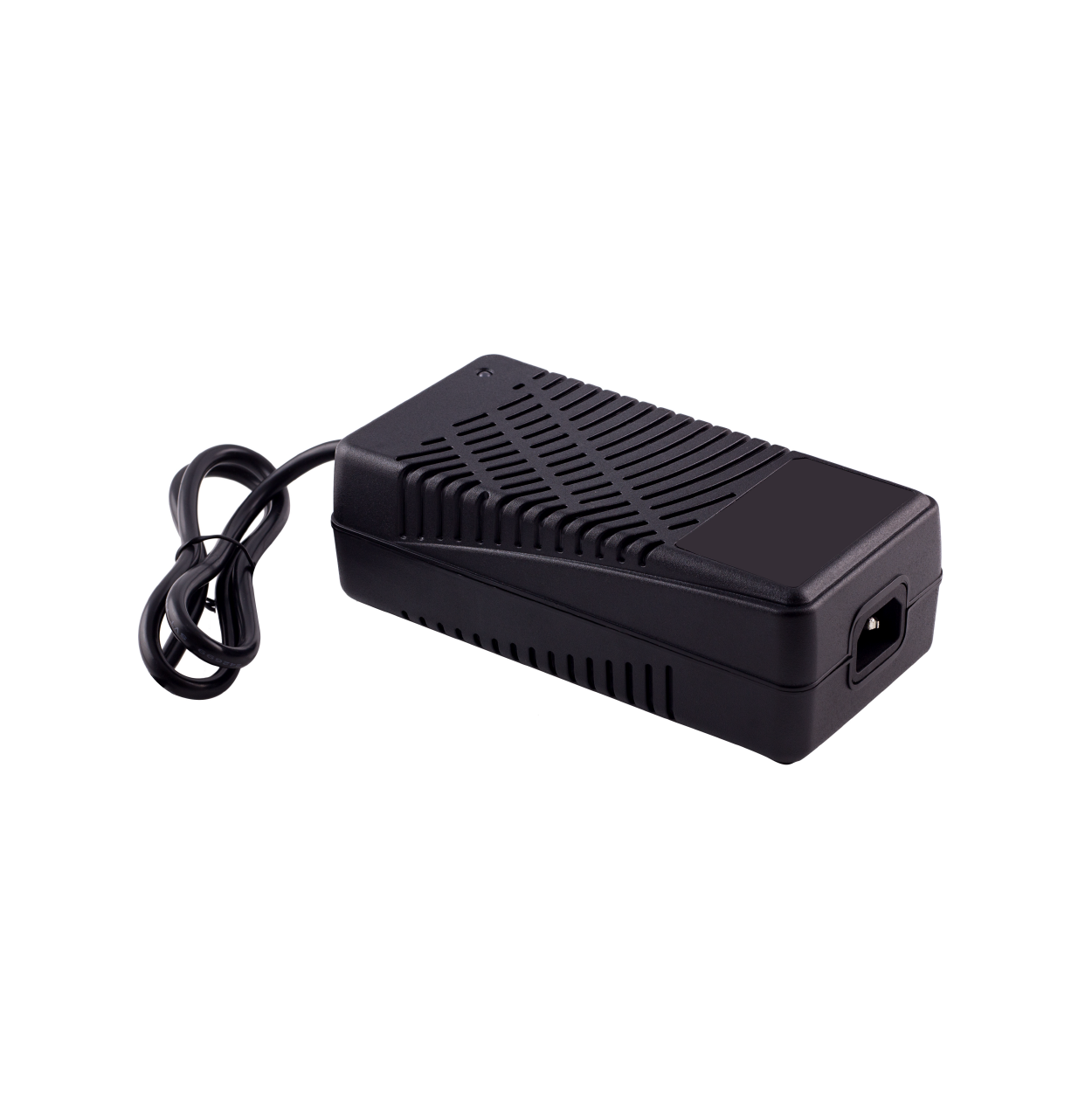

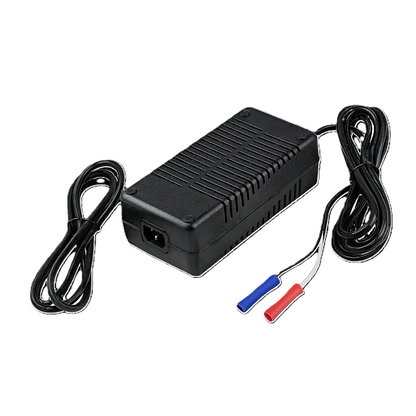

ThyssenKrupp Porch-Lift 24VDC 4-amp Constant-Current Charger

Premium 24 V, 4 A automatic switch-mode battery charger with UL/cUL/CE safety ratings—replaces OEM H53186 in Porch Lift units from 2000 onward.

This automatic, switch-mode 24 V, 4 A battery charger is engineered to replace the legacy OEM board in ThyssenKrupp Access PLS units produced since 2000. Utilizing advanced switch-mode technology, it delivers efficient, lightweight performance, with universal input voltage support for 100–240 VAC applications worldwide. The charger incorporates multi-stage charging, including desulfation, constant current, constant voltage, and true float modes to optimize battery health and longevity. Its two-color LED provides intuitive status feedback—orange during charging and green when fully charged—allowing it to remain safely connected indefinitely without battery damage. Featuring safety protections such as reverse-polarity, over-voltage, over-current, short-circuit, and soft-start/stop behavior, this unit ensures reliable, trouble-free operation in both on-board and off-board configurations.

Specifications

• 24 VDC output at 4 A constant current (equivalent to 8 A tapered charging rate)
• Universal input: 90–264 VAC, 47–63 Hz (100–240 VAC nominal)
• Charger dimensions: approx. 165 mm × 80 mm × 52 mm (6.5″ × 3.2″ × 2.0″)
• Weight: approx. 1.5 lbs (0.68 kg)
• Safety certifications: UL, cUL, CE; EMI compliant to CISPER/EN55011/EN55022 Class B
• Multi-stage charging: deep-discharge pulse, constant current, constant voltage, true float
• LED indicator: orange during charging, green at float (fully charged)
• Safety features: reverse-polarity, over-voltage, over-current, short-circuit protections, soft-start/stop, onboard inhibit/interlock
• No battery drain when idle; can charge batteries deeply discharged to 0.5 V

This charger is designed with safety and longevity in mind, delivering reliable performance and protecting battery health when installed by qualified personnel. For optimal results and secure operation, ensure installation and integration are handled by trained technicians.
