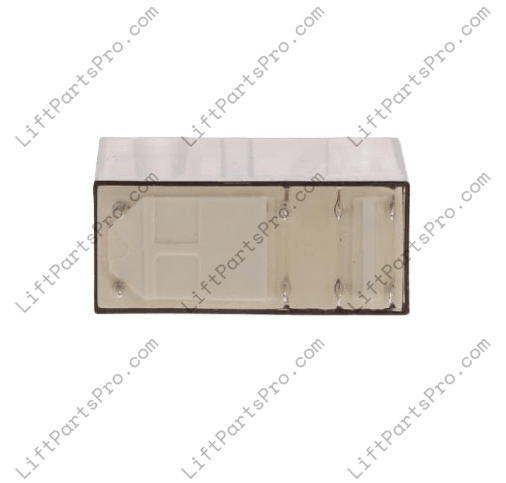

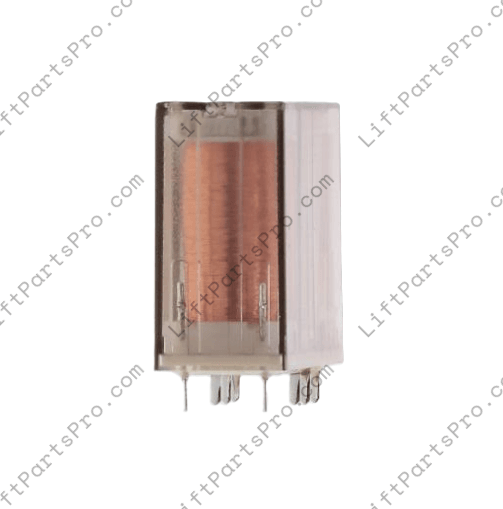

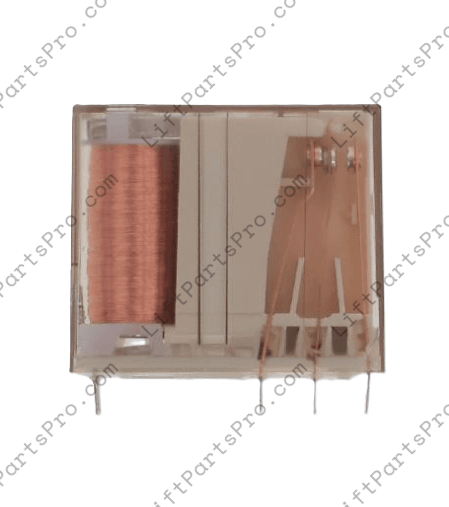

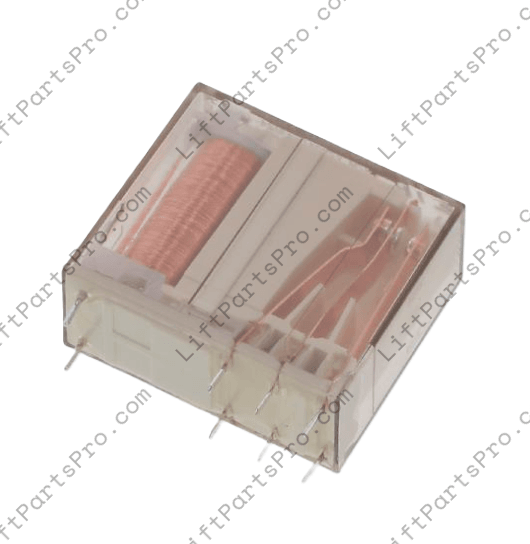

ThyssenKrupp LEV Elevator Controller Relay 2125801
ThyssenKrupp LEV Elevator Controller Relay 2125801
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
SKU: RLY.LEV.DZ
Condition: New
Couldn't load pickup availability
24V DC DPDT plug-in relay used as a door zone and brake relay in select ThyssenKrupp LEV elevator systems, replacing legacy 2125801 contact blocks.
This industrial control relay is designed for dependable switching in elevator door zone and brake circuits. Commonly installed in select ThyssenKrupp LEV applications, it serves as a direct replacement for legacy 2125801 contact blocks where reliable signal and load control is required. Featuring a 24V DC coil and dual changeover contacts, this relay supports consistent performance in low-voltage control panels and elevator controller assemblies. Its plug-in configuration allows straightforward integration into compatible relay sockets used in existing systems.
Specifications:
- Coil Voltage: 24V DC
- Contact Configuration: DPDT (2 Form C / 2 Changeover)
- Contact Rating: Up to 8A at 250VAC
- Contact Material: Silver alloy
- Mounting Style: Plug-in
- Application: Door zone and brake relay circuits
- Compatible Equipment: Select ThyssenKrupp LEV elevator systems
- Replaces Legacy Part: 2125801
Proper installation and verification by qualified elevator personnel helps ensure safe and reliable system operation. Always confirm compatibility with your specific equipment before placing the unit into service.
