ThyssenKrupp ISIS Elevator Push Button Assembly Blank Actuator

Designed as a direct replacement push button assembly for ThyssenKrupp ISIS elevator fixtures, this assembly includes a blank actuator, retaining ring, and DMG contact block #18080540.REDBL.

The actuator incorporates the magnetic target required for ISIS touch-sensitive hall call stations and car operating panels, making it suitable for maintaining the original functionality and appearance of existing installations.

The blank actuator provides a clean, unmarked face for applications where custom engraving is not required. Paired with the included DMG contact module, the assembly delivers dependable operation in both hall call and COP environments. Its modular design simplifies replacement of worn or damaged button components while preserving compatibility with ThyssenKrupp ISIS fixtures.

Specifications

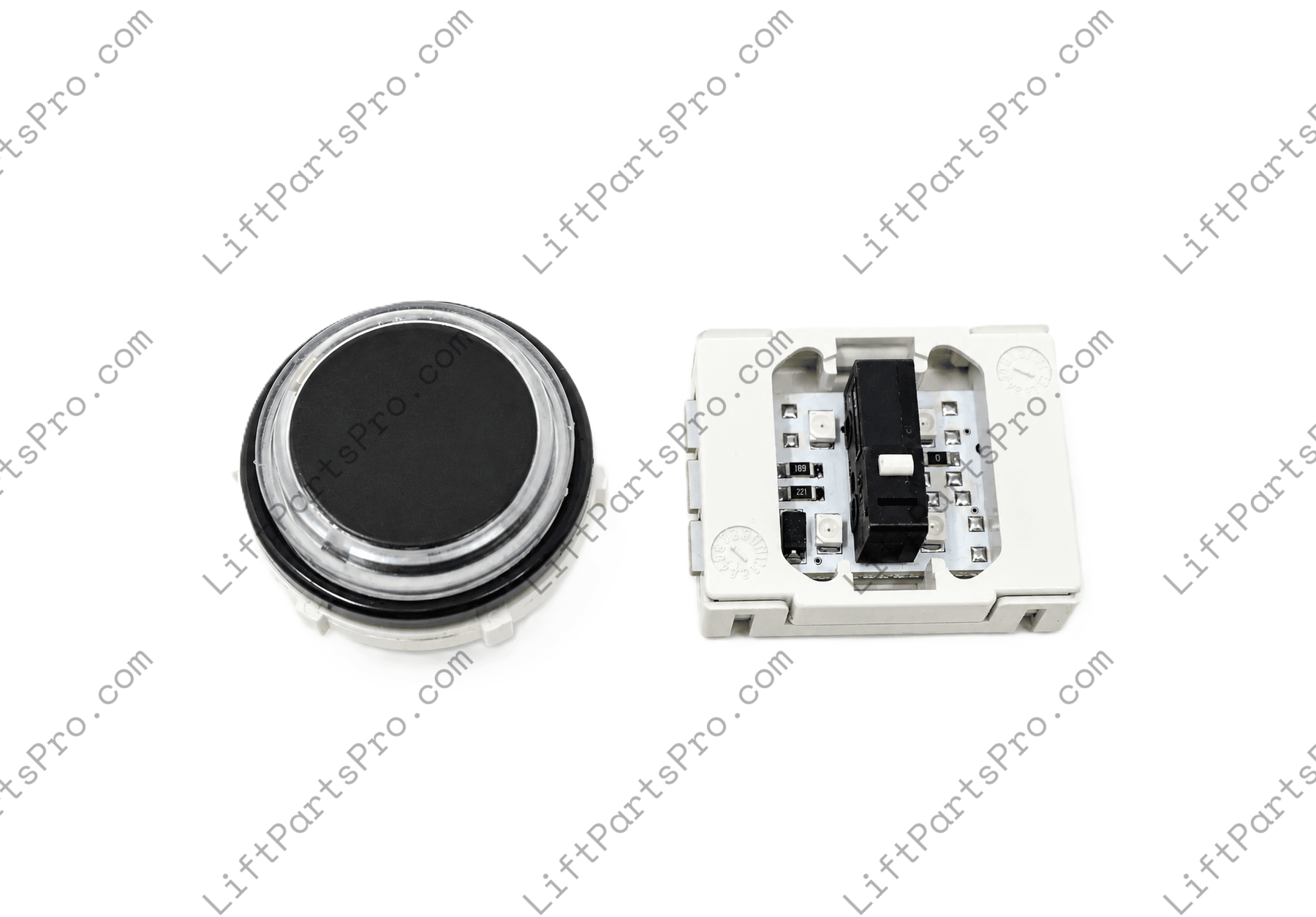

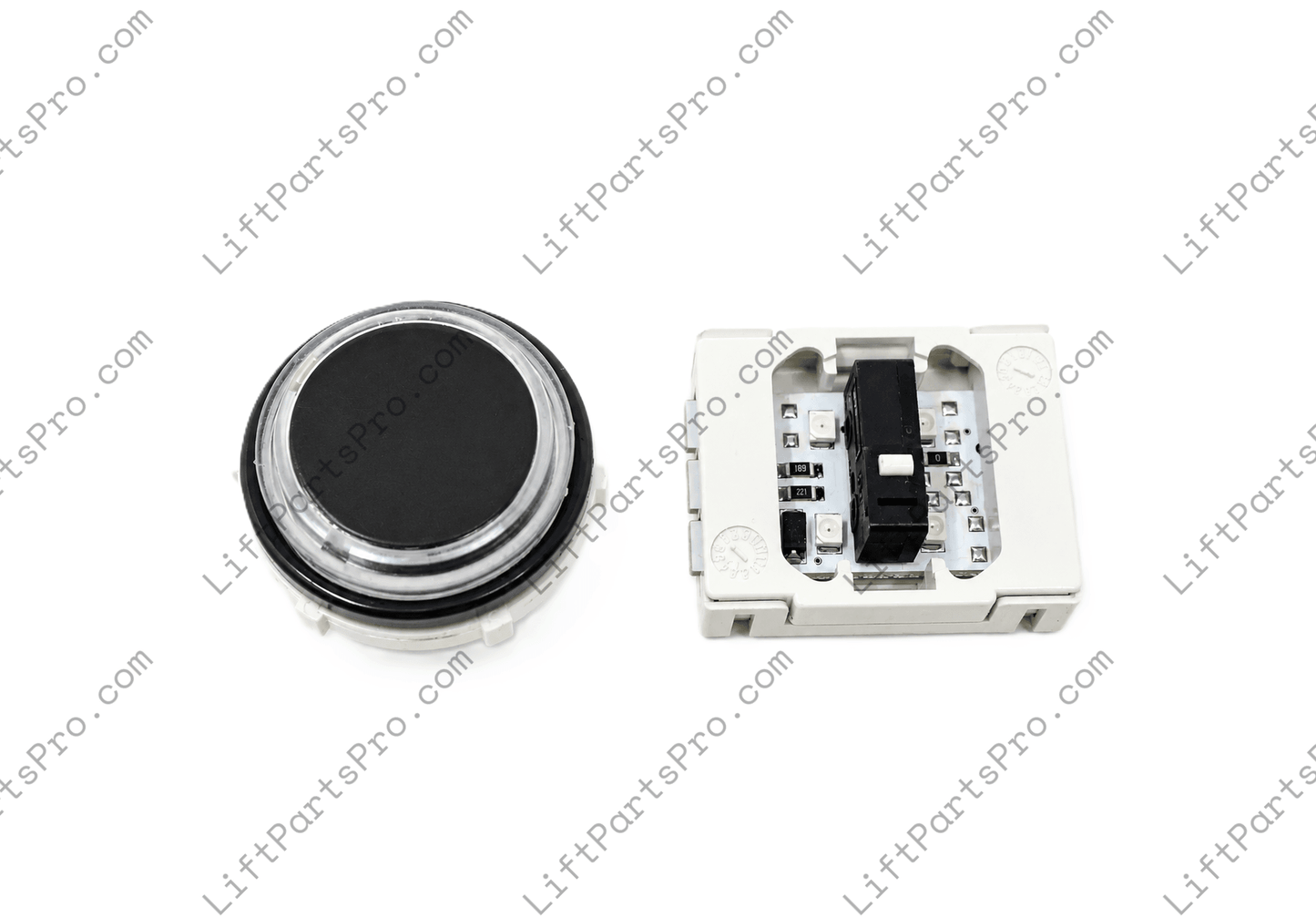

• Complete push button assembly
• Application: ThyssenKrupp ISIS hall call stations and car operating panels

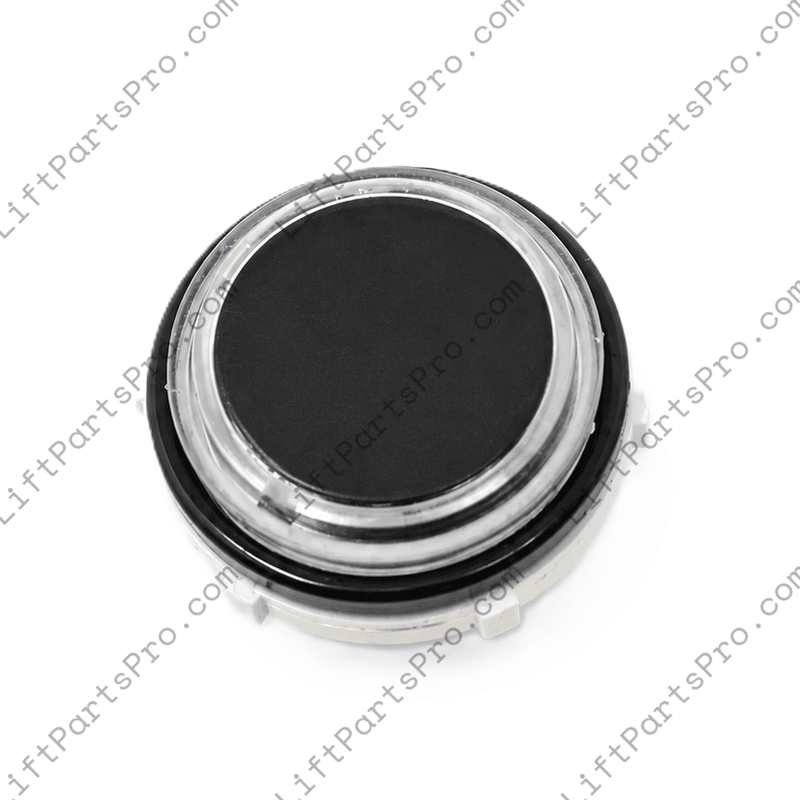

• Actuator style: Blank, unmarked

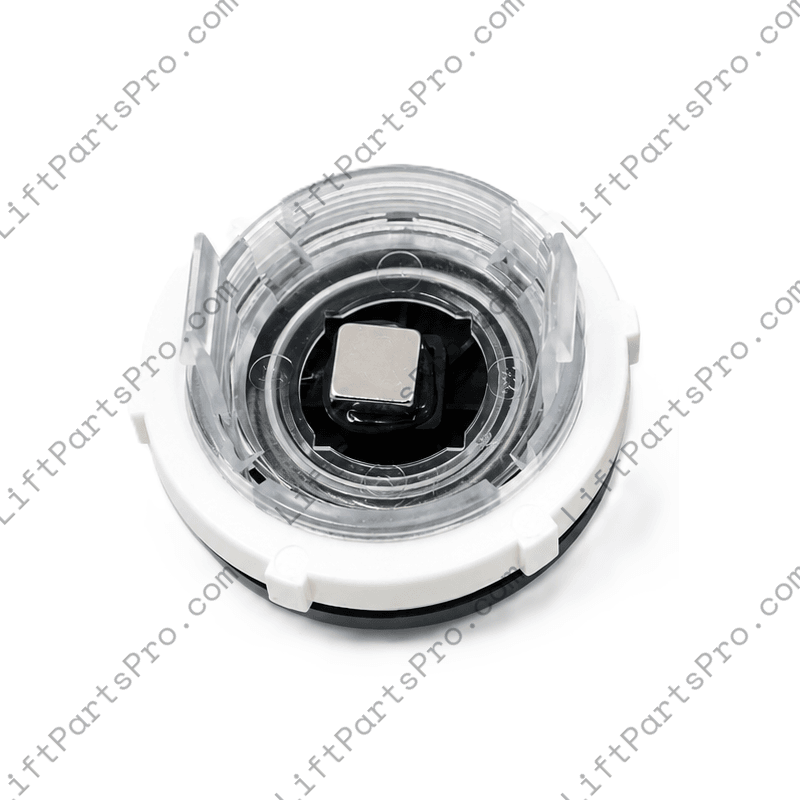

• Actuator feature: Integrated rear-mounted magnet
• Includes retaining ring

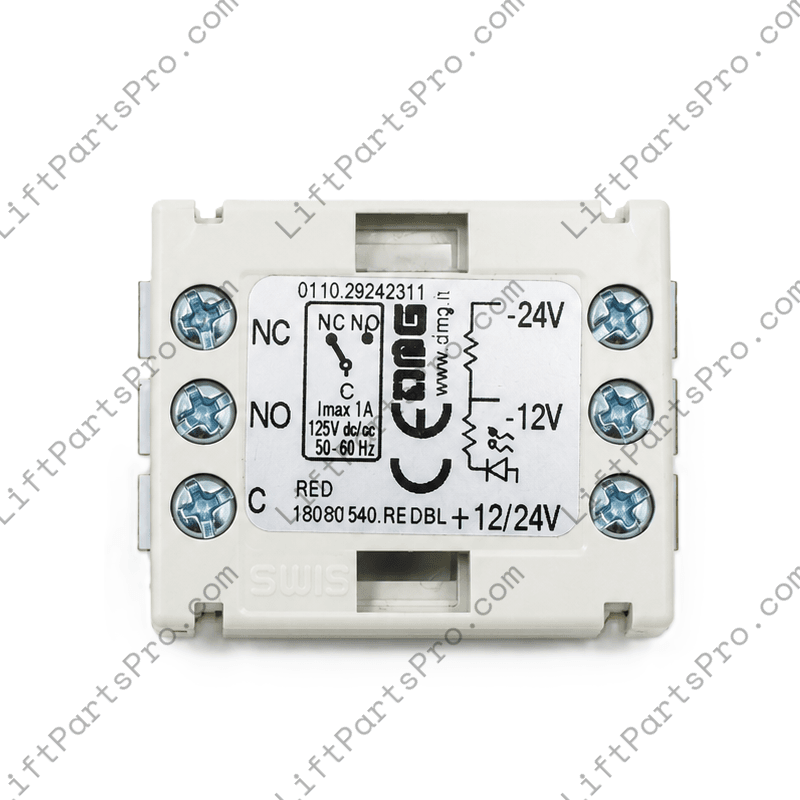

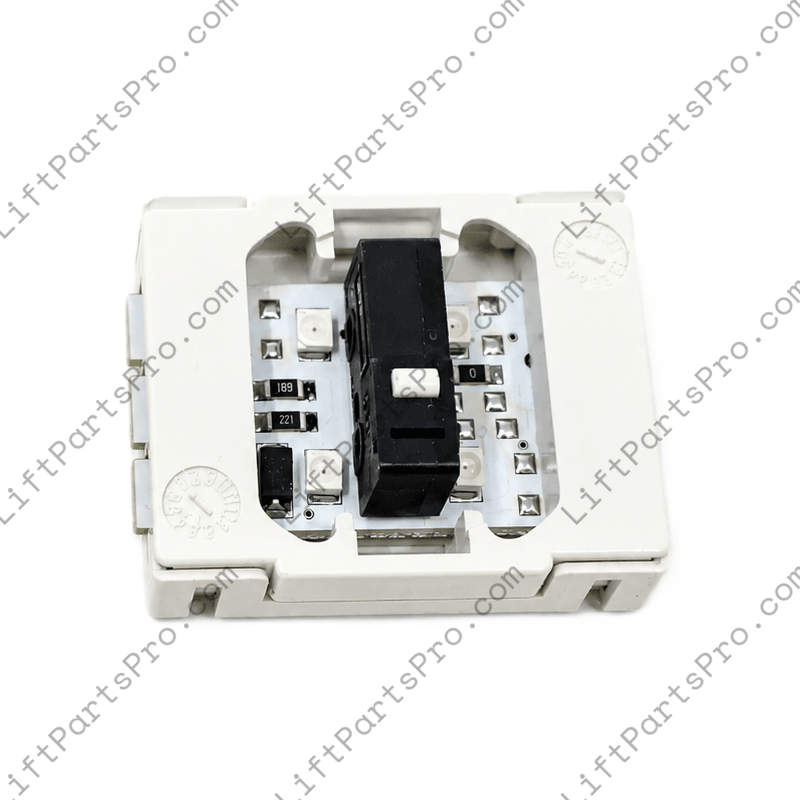

• Includes illuminated DMG contact block 18080540.REDBL
• Contact configuration: 1C (NC/NO)
• Rated voltage: 12/24 VDC
• Maximum switching current: 1 A
• Terminal type: Screw terminals
• Suitable for elevator hall call and COP button replacement applications

For reliable performance and code compliance, elevator push button components should always be installed and inspected by qualified elevator personnel. Proper installation helps ensure consistent operation and long-term service within the intended application.
