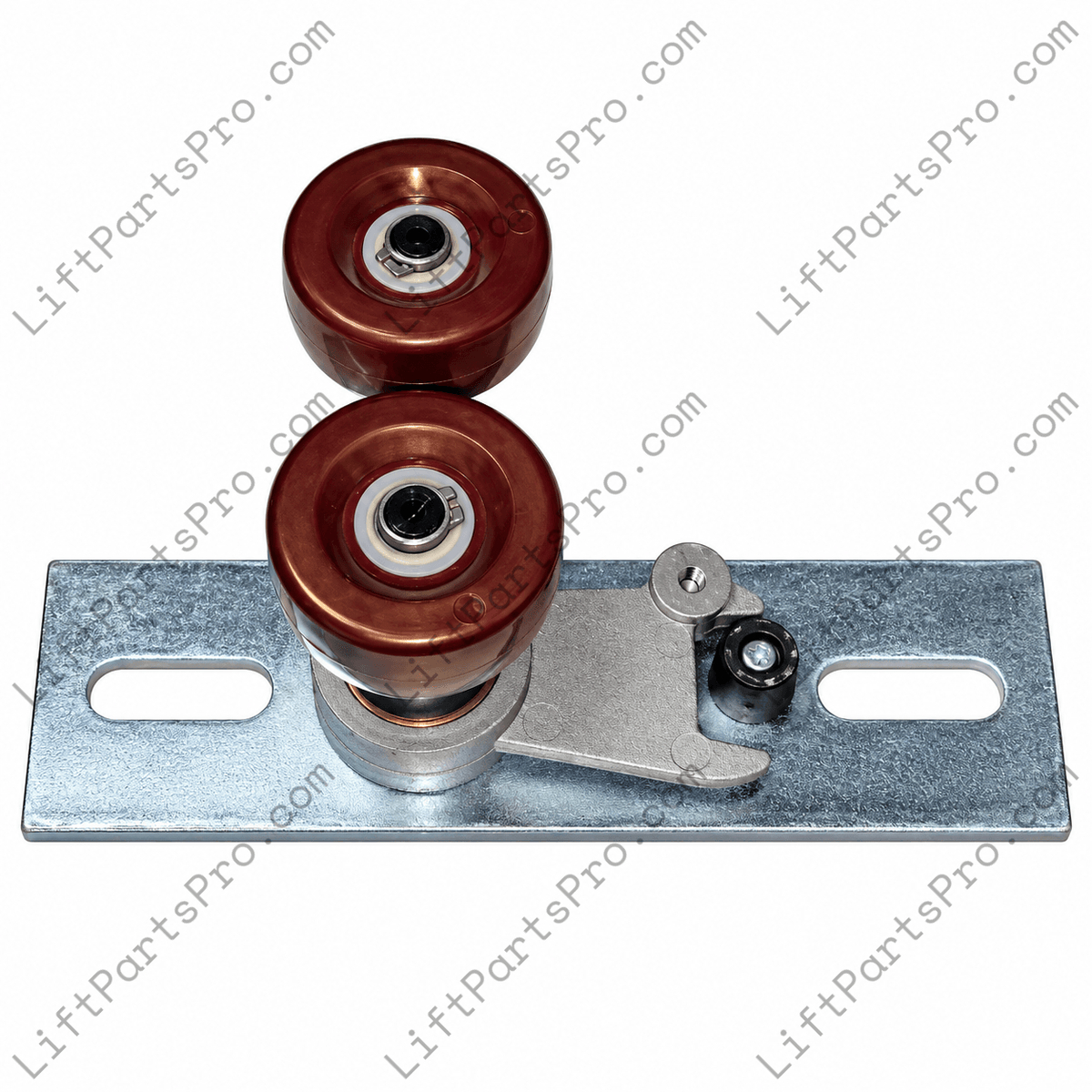

ThyssenKrupp Dover RH Elevator Door Pickup Roller Assembly 47526

This complete right-hand pickup roller assembly replaces legacy Dover and ThyssenKrupp part #47526. Designed for use with compatible elevator door and gate equipment, the assembly combines the pickup roller, roller crank mechanism, and mounting base into a complete replacement unit. It may also be referred to as a door pickup roller, roller crank assembly, roller arm assembly, or door clutch roller assembly.

The polyurethane roller provides the contact surface for the pickup mechanism, while the steel mounting base supports the crank and roller hardware. This assembly is supplied in the right-hand configuration for direct identification when replacing an existing #47526 assembly.

• Configuration: Right hand (RH)
• Legacy / obsolete part number: 47526
• Roller diameter: 1-5/8"
• Roller material: Polyurethane
• Mounting base material: Steel
• Component type: Pickup roller crank assembly
• Application: Elevator door / gate equipment
• Equipment compatibility: Select Dover and ThyssenKrupp elevator door systems
• Assembly type: Complete roller and mounting base assembly

Elevator door and gate components should be properly matched to the existing equipment before installation. Installation, adjustment, and inspection should be performed by qualified elevator personnel in accordance with applicable requirements and equipment specifications.
