ThyssenKrupp Dover H1848 Horizontal OFF/ON Hall Call Key Switch
ThyssenKrupp Dover H1848 Horizontal OFF/ON Hall Call Key Switch
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: PB.TKD.1848
Condition: New
Couldn't load pickup availability

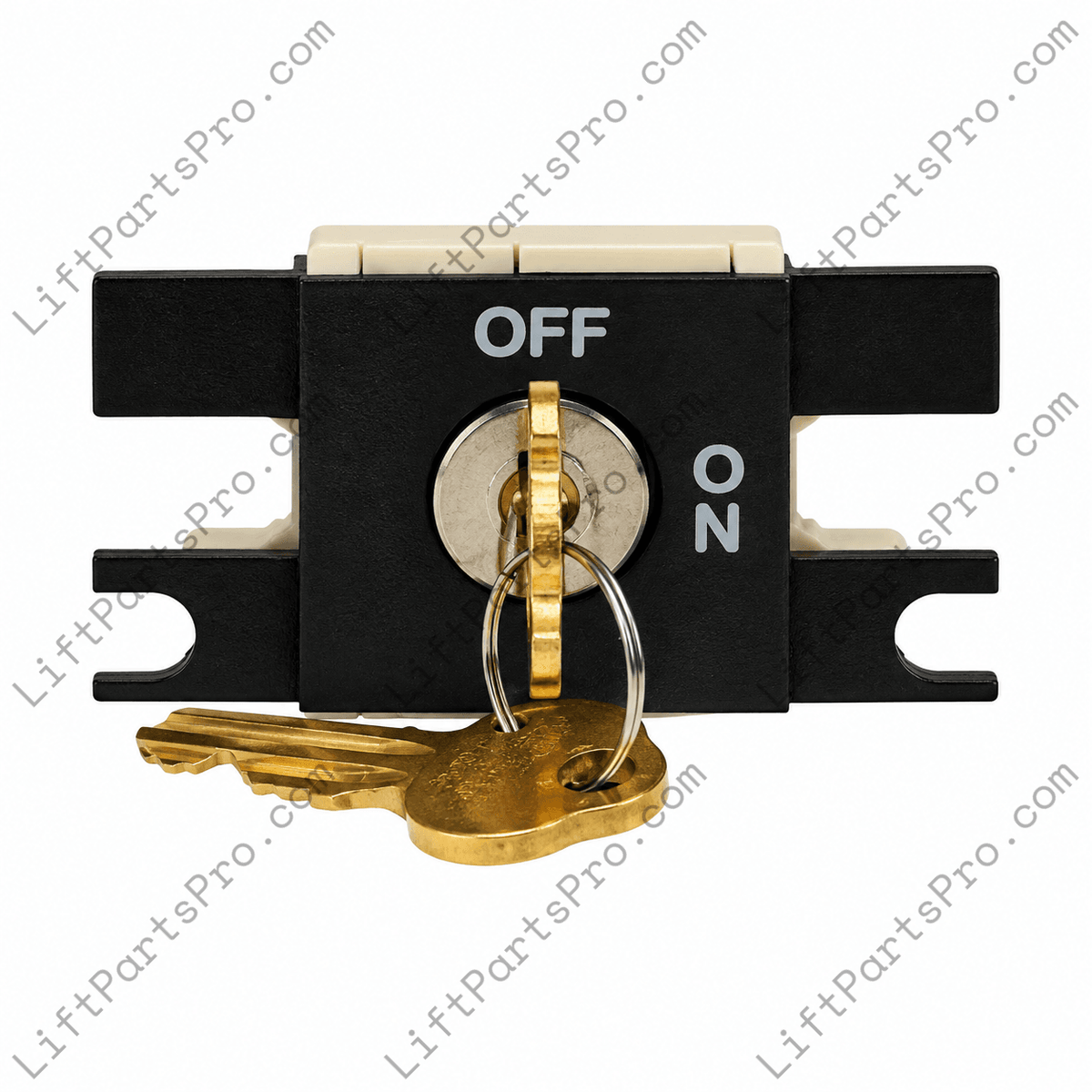

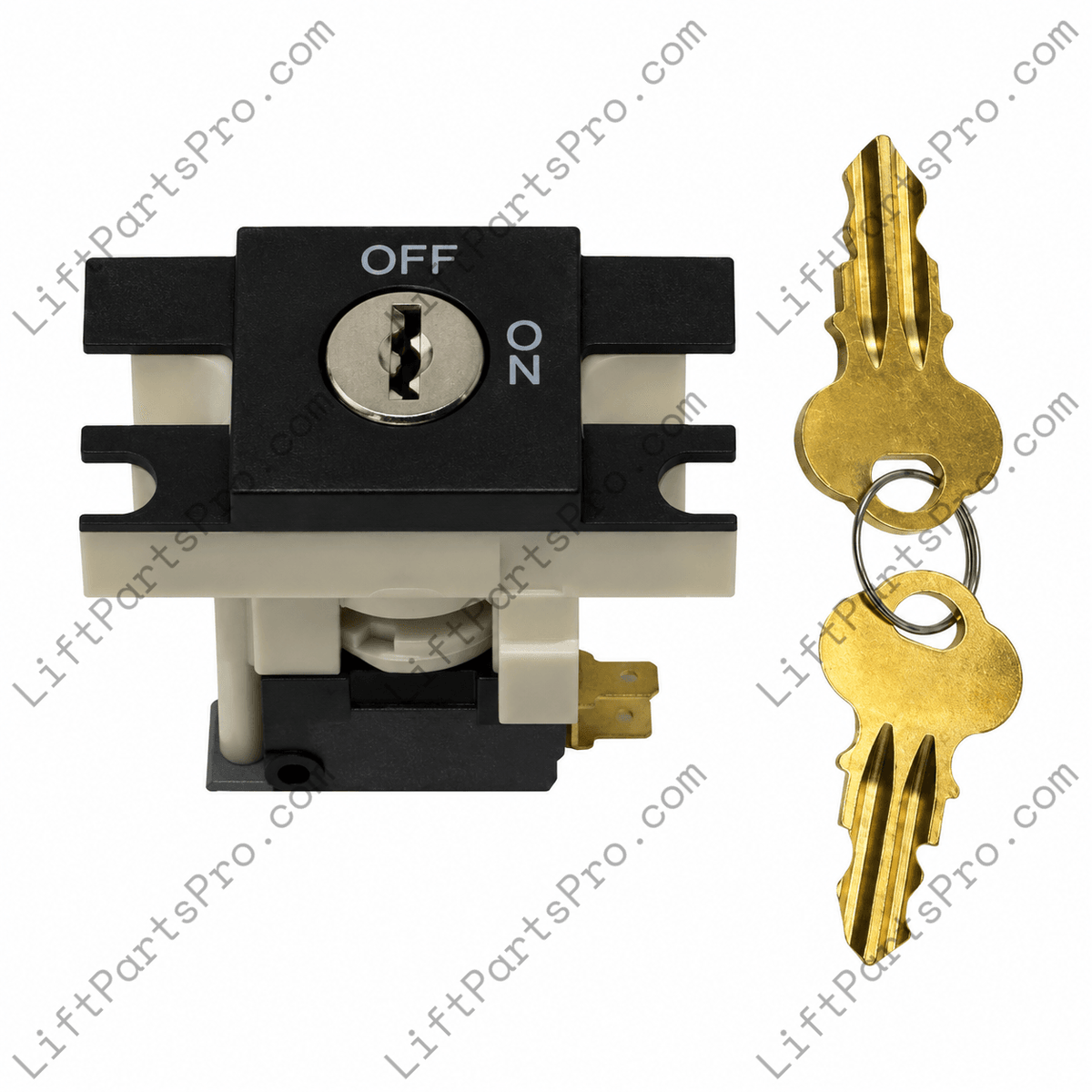

Designed for use in select ThyssenKrupp Dover elevator signal fixtures, this keyed switch is used for terminal hall call registration. The assembly features a horizontal OFF/ON configuration with two-position, spring-return operation. It can also be identified by legacy part number #171AR12, making it useful when replacing older Dover hall registration components.
- Application: Terminal hall call registration
- Equipment compatibility: Select ThyssenKrupp Dover elevators
- Switch type: Key-operated
- Positions: 2-position OFF/ON
- Operation: Spring return
- Orientation: Horizontal
- Key type: #H1848
- Keys included: 2
- Legacy part number: #171AR12
- Fixture location: Hall call / hall registration station
Elevator electrical and signal components should be installed and inspected by qualified elevator personnel in accordance with applicable codes, equipment requirements, and established maintenance procedures.
