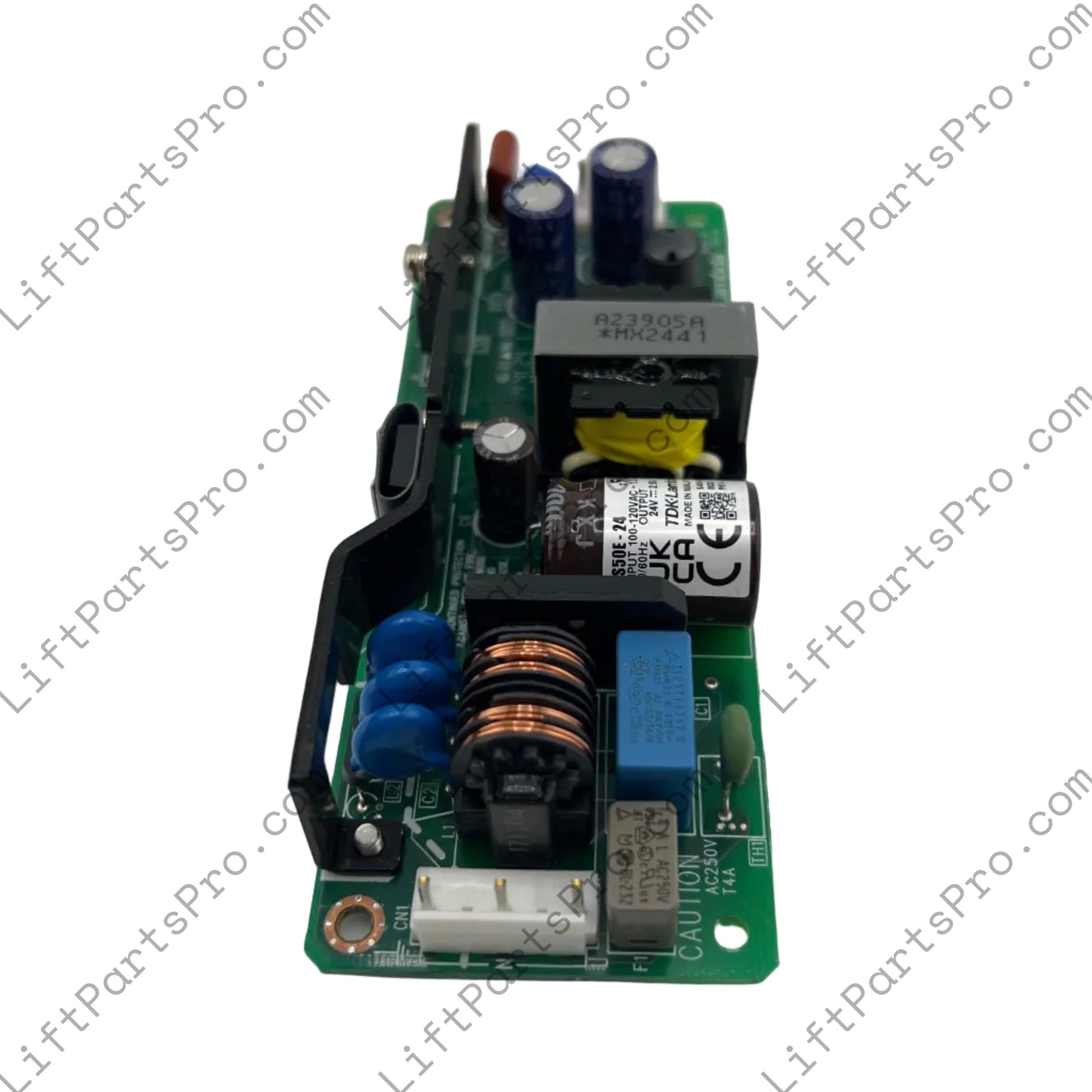

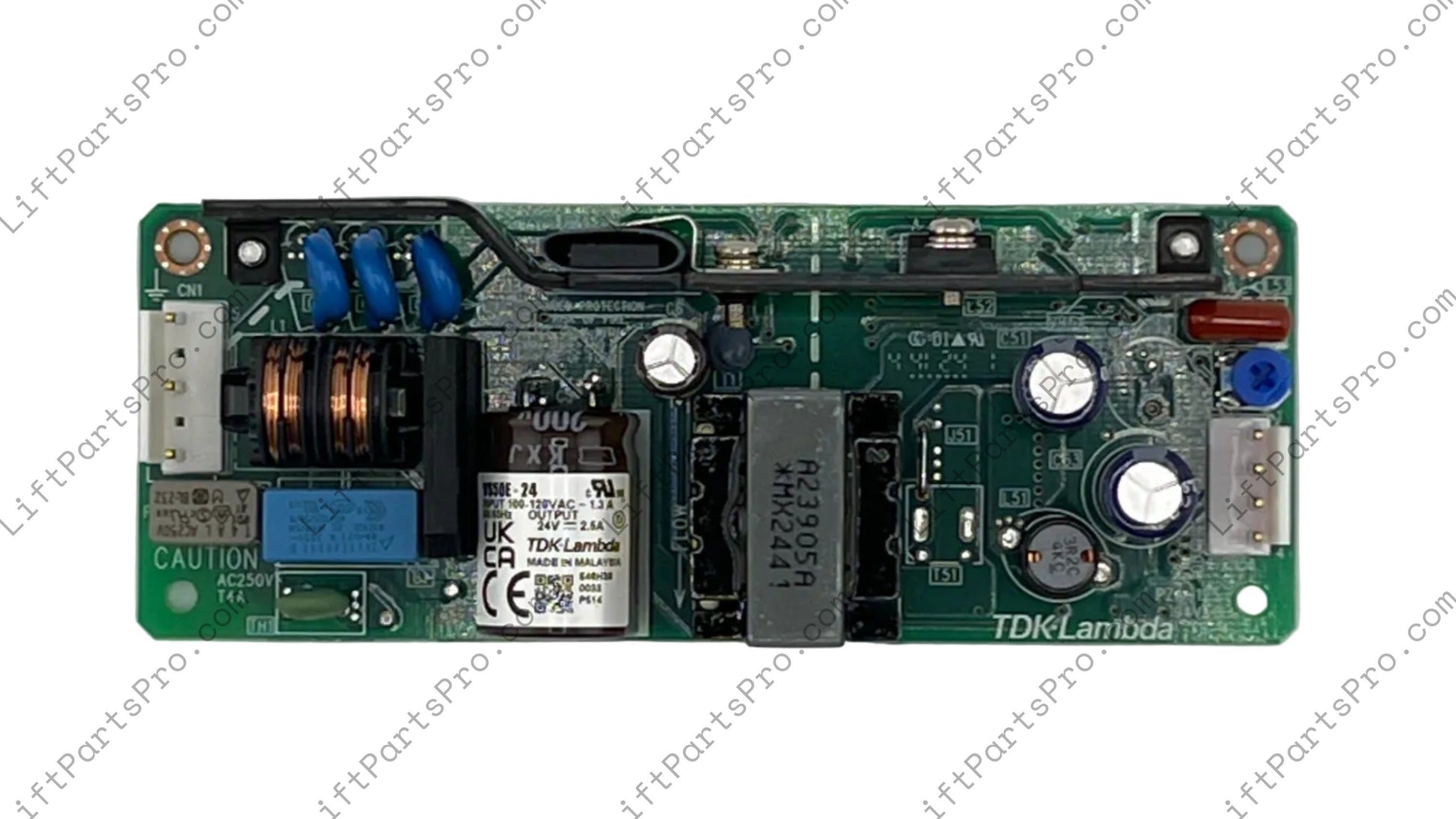

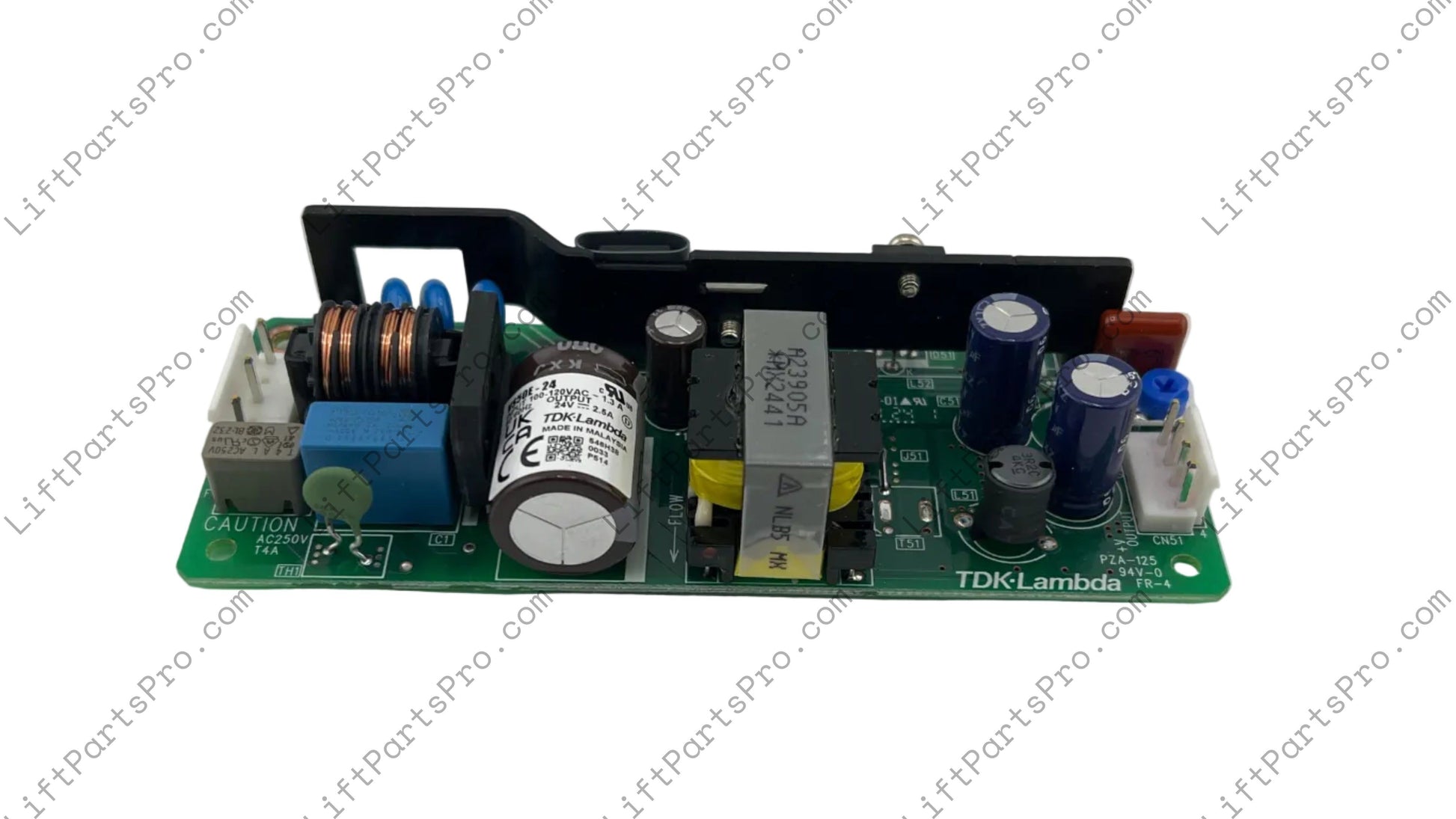

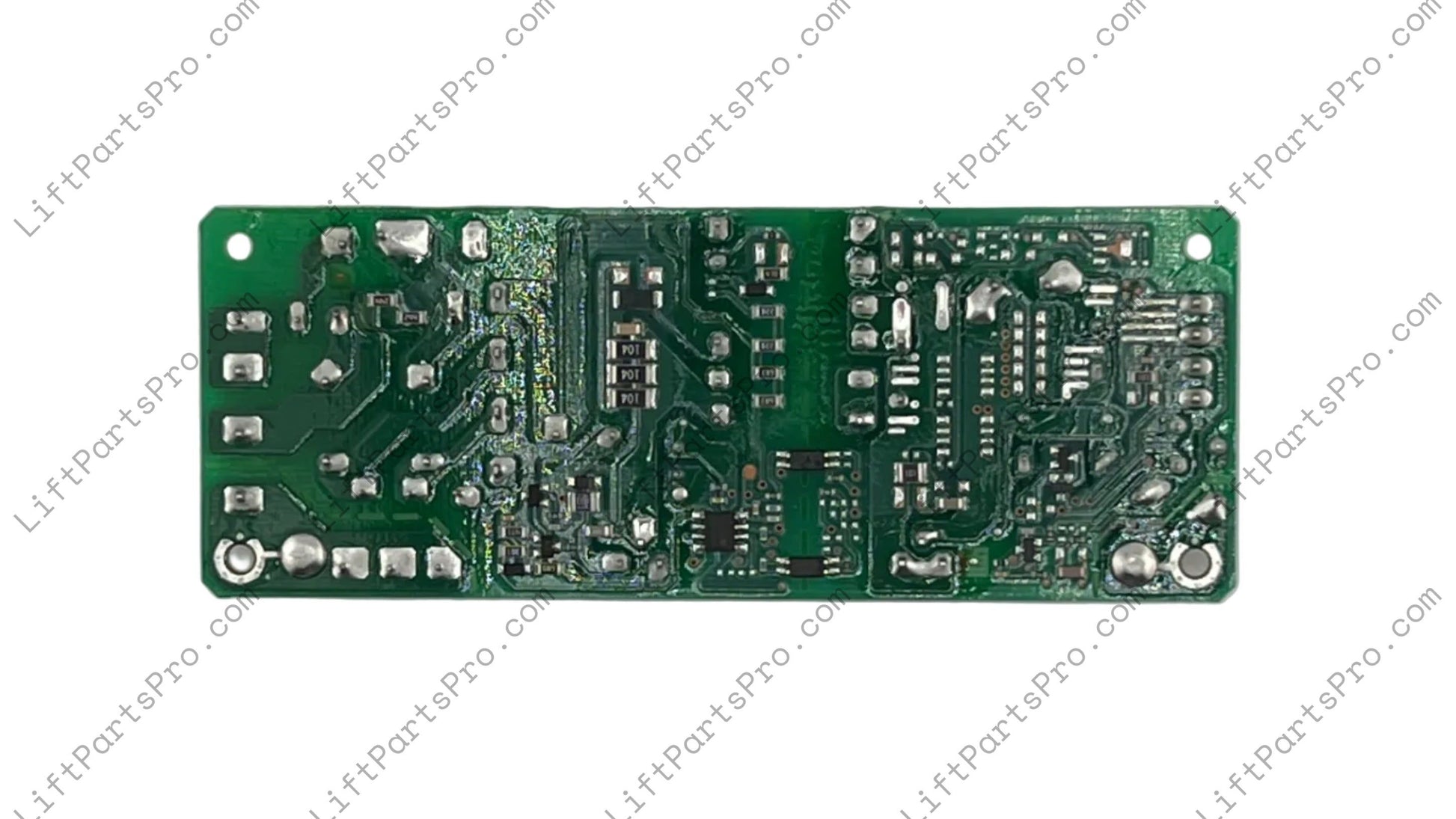

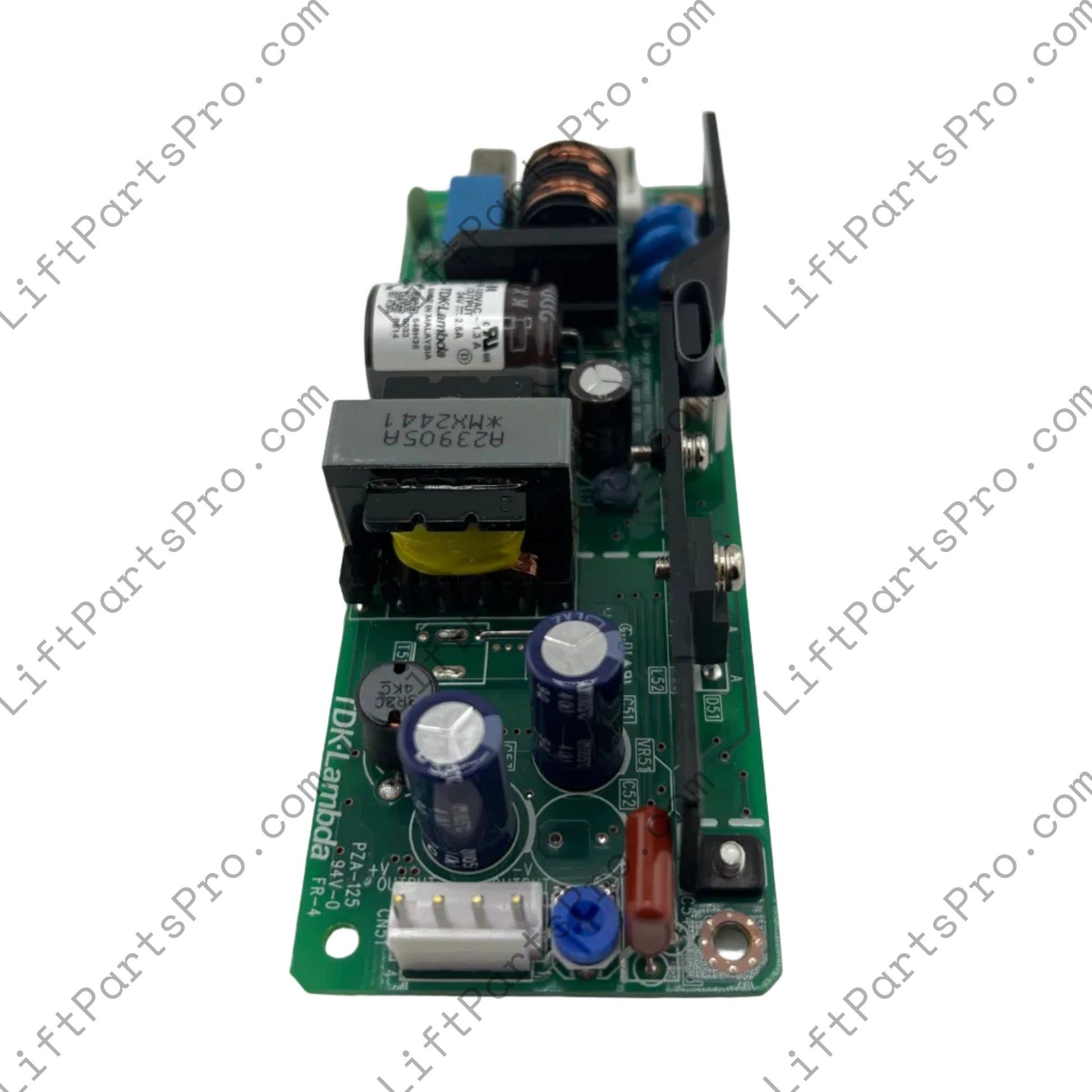

ThyssenKrupp Access LEV 24 VDC Power Supply Circuit Board

Compatible with TK Access LEV elevator units originally equipped with power boards 2125201 or 2125203.

Modern 24VDC power supply board compatible with Thyssenkrupp LEV elevator systems utilizing legacy third-generation charger boards.

Form Factor Notice

Please note: This PCB is smaller and more compact than the original.

• Original Size: Approx. 7.7" x 2" x 1"
• Replacement Size: Approx. 5.2" x 0.9" x 2"
  (Measurements are for general guidance)

While electrically identical, mounting modifications may be required. Most customers report a simple reorientation or minor bracket adjustment is all that’s needed.

This is a 60W open-frame AC-DC power supply delivering a regulated 24VDC output at up to 2.5A. Engineered for industrial applications, it serves as a suitable replacement for aging charger circuit boards in select Thyssenkrupp LEV elevator systems. Its compact form factor and reliable performance make it suitable for maintaining consistent power delivery in elevator control systems.

• Input Voltage Range: 85 to 132 VAC
• Output Voltage: 24VDC (adjustable between 21.6 to 26.4VDC)
• Maximum Output Current: 2.5A
• Maximum Output Power: 60W
• Efficiency: 85% typical
• Form Factor: Open frame

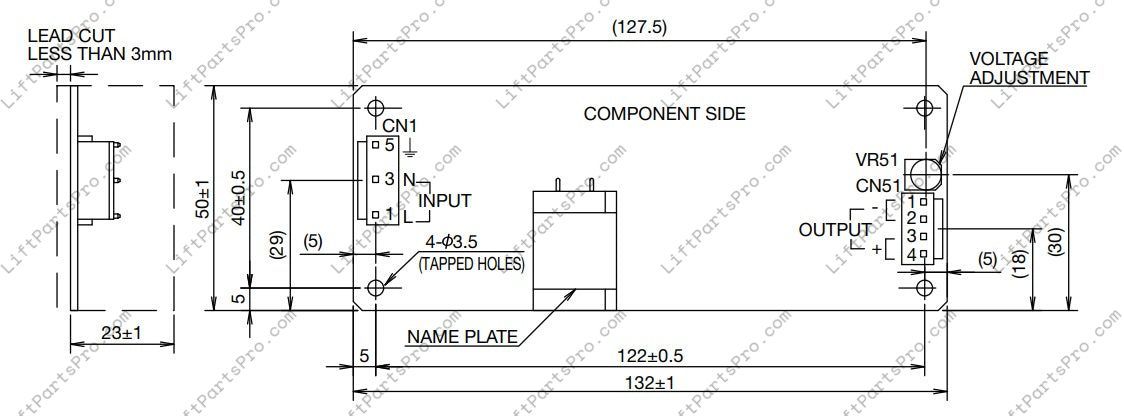

• Dimensions: 132mm (L) x 50mm (W) x 23mm (H)
• Weight: Approximately 150g
• Operating Temperature Range: -10°C to +70°C
• Cooling Method: Convection
• Safety Approvals: UL60950-1, EN60950-1, CSA60950-1, UL62368-1, EN62368-1, CSA62368-1, EN50178 (OV II)

Please ensure that the specifications and dimensions align with your system requirements before installation.
