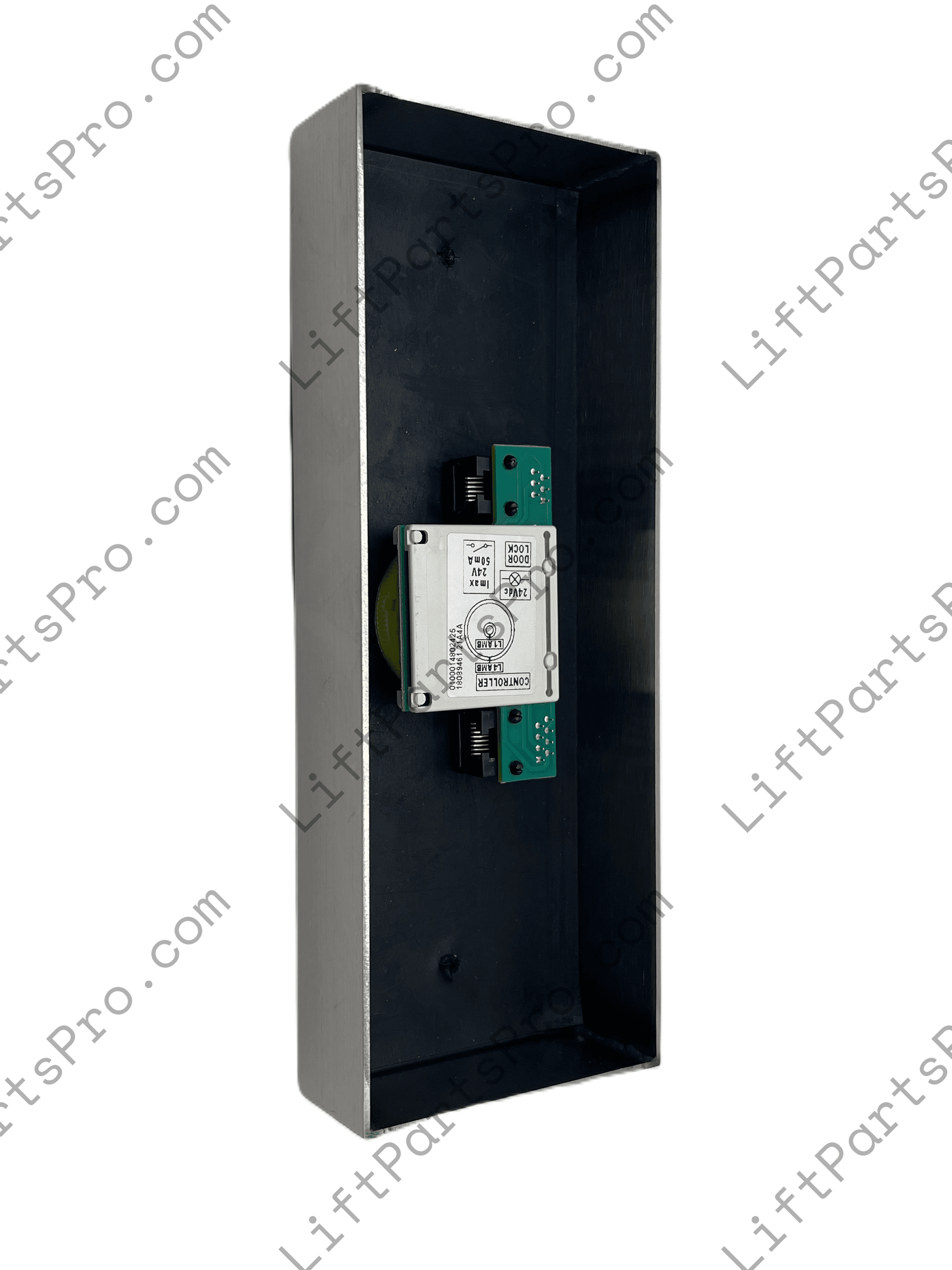

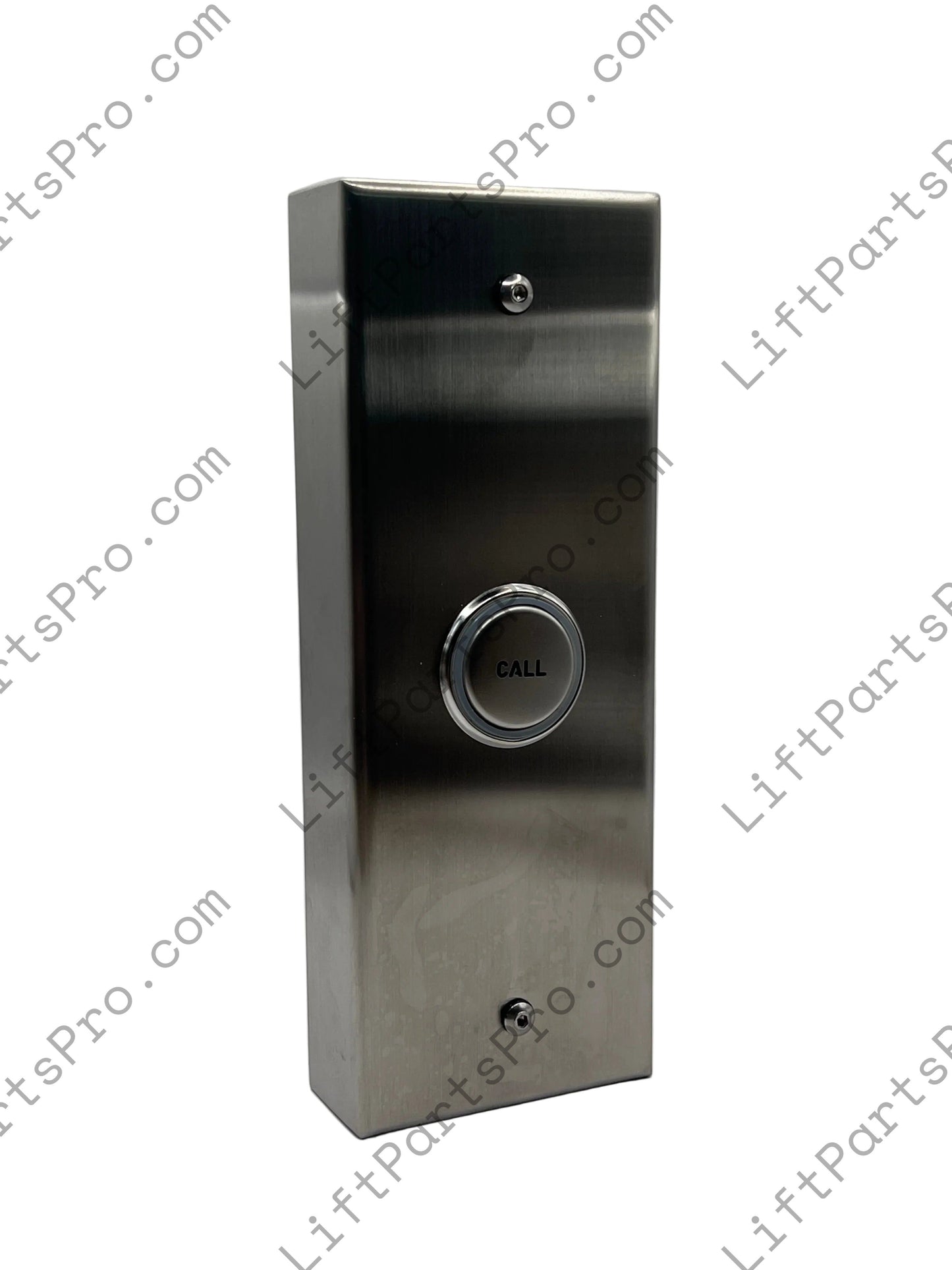

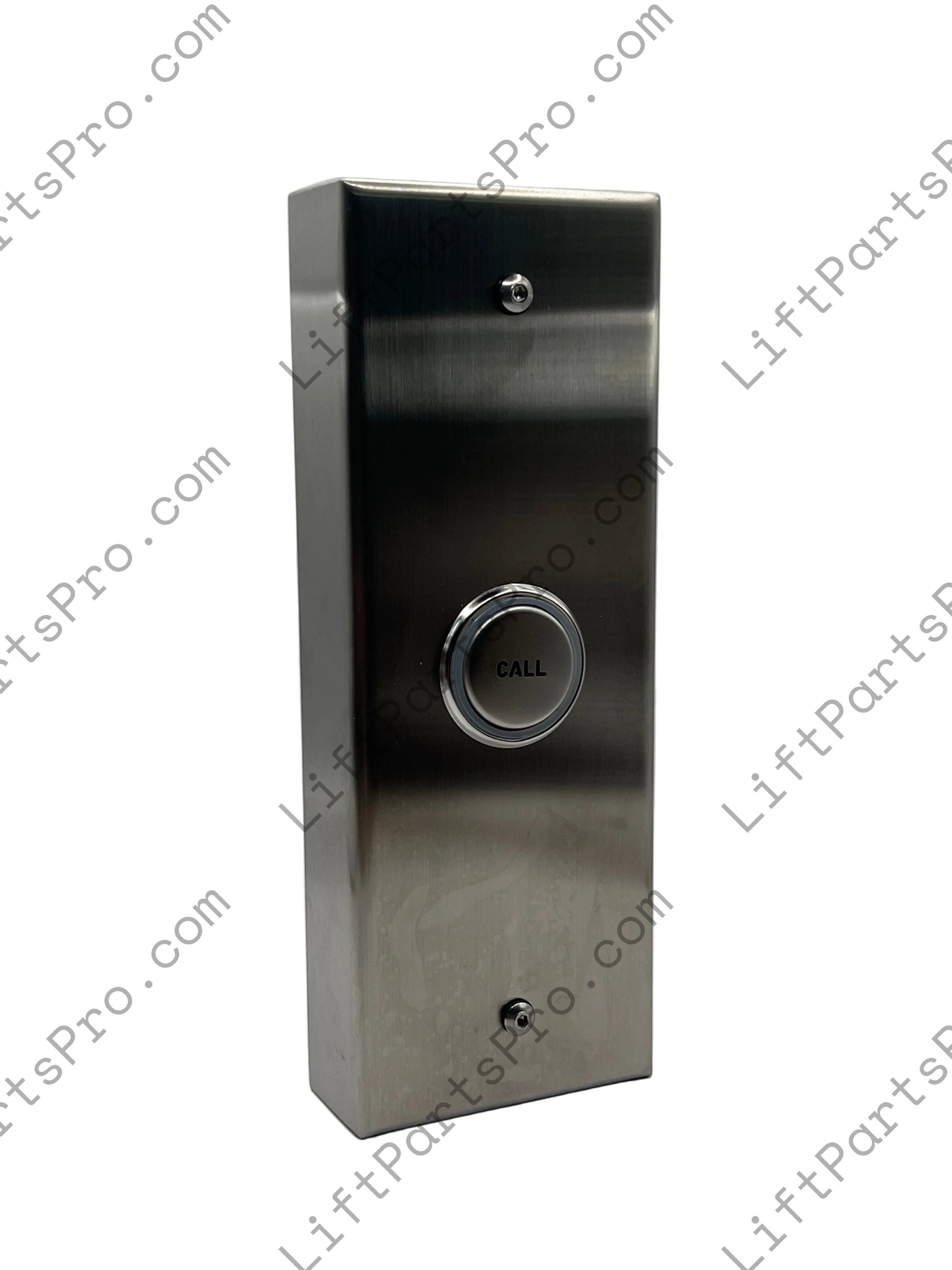

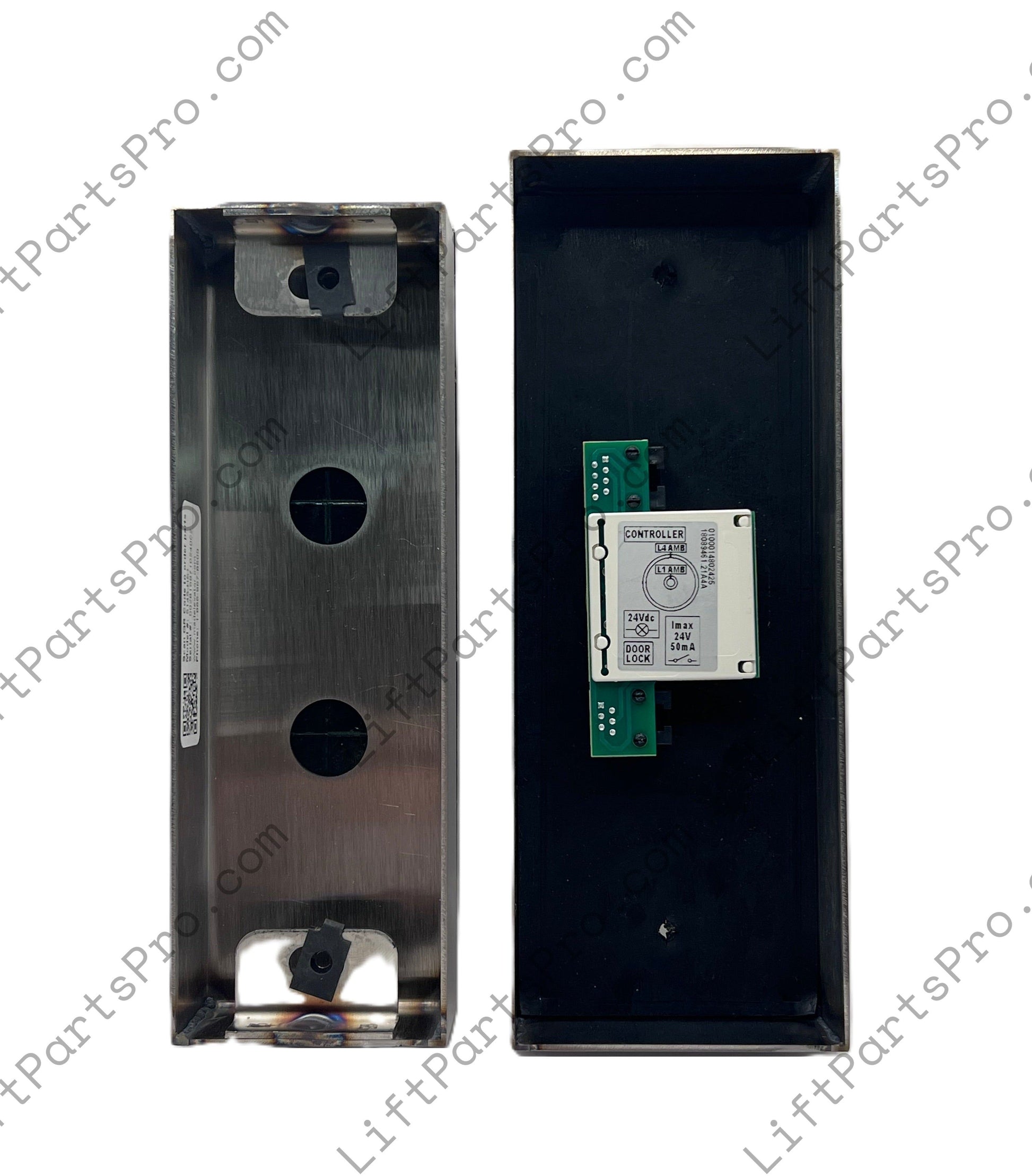

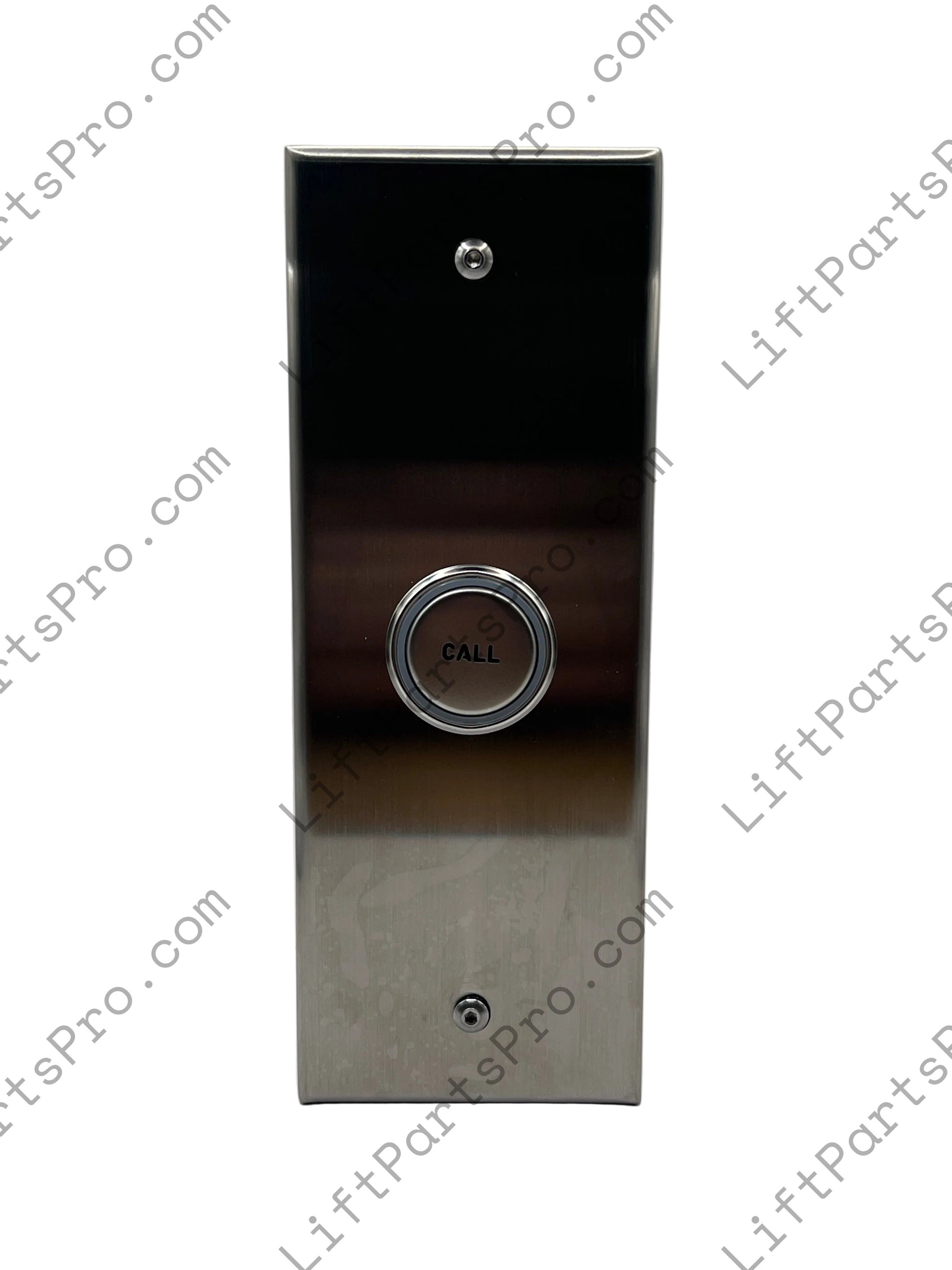

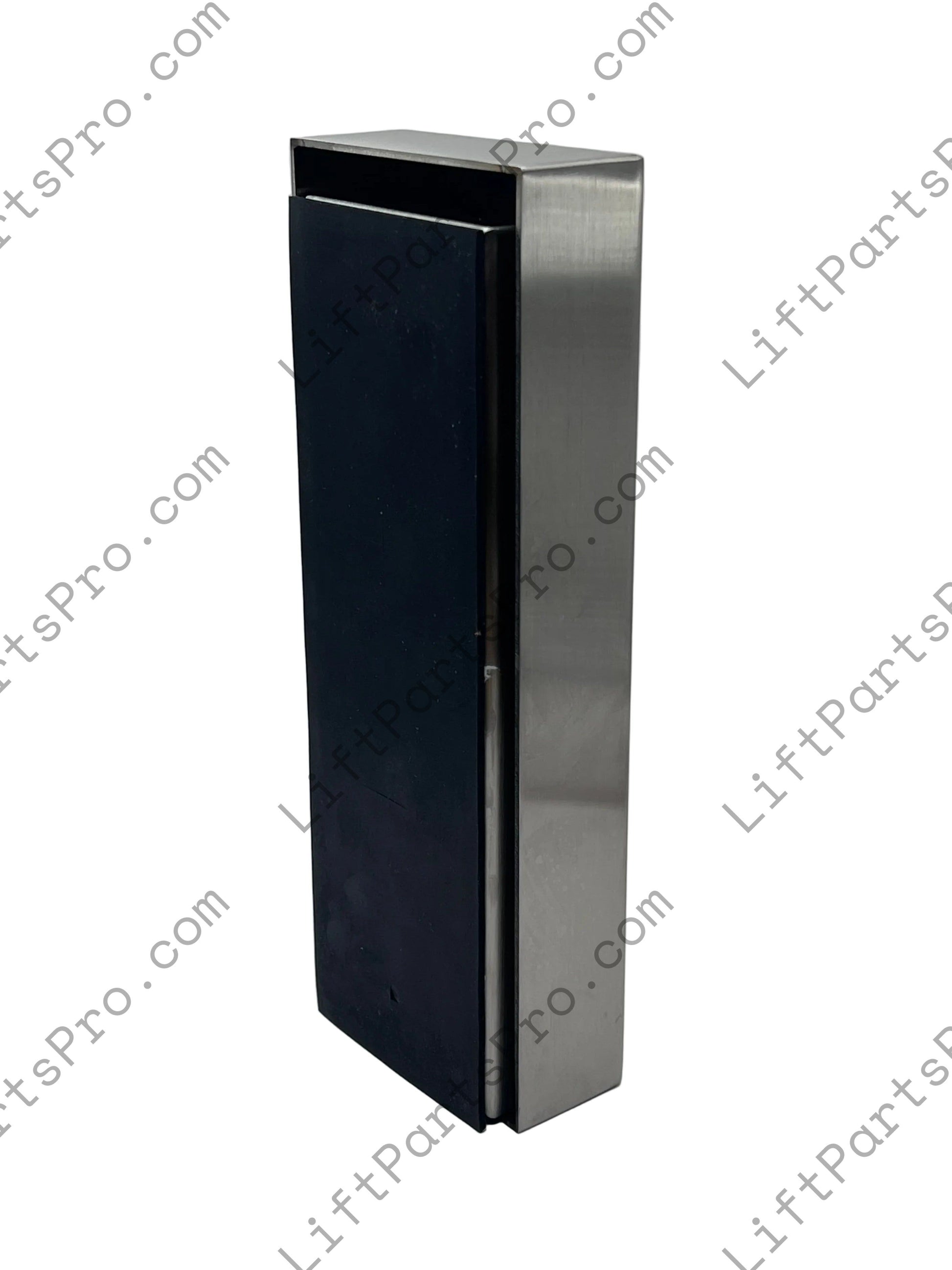

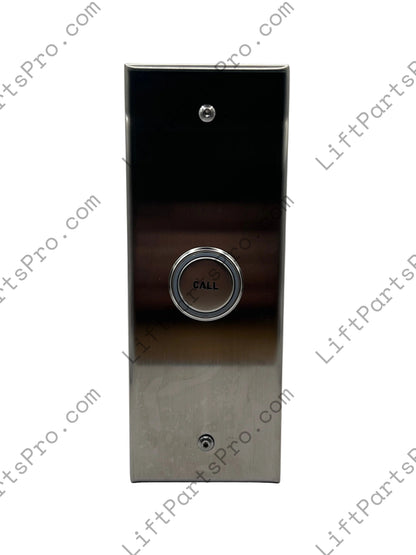

Stainless Steel Hall Call Assembly for REI Residential Elevators

Surface-mounted stainless steel hall call control box with amber-lit button, neoprene gaskets, and RJ45 connectors for REI elevator systems.

This stainless steel hall call assembly is engineered for use with Residential Elevator Incorporated (REI) elevator systems.
Designed for surface mounting, it features a rugged 16-gauge #316 stainless steel enclosure and faceplate for corrosion resistance and long-term durability.
The assembly includes moisture-resistant sealing elements, such as a neoprene gasket cover, a rubber O-ring, and a wall gasket, ensuring reliable performance in varied environmental conditions.

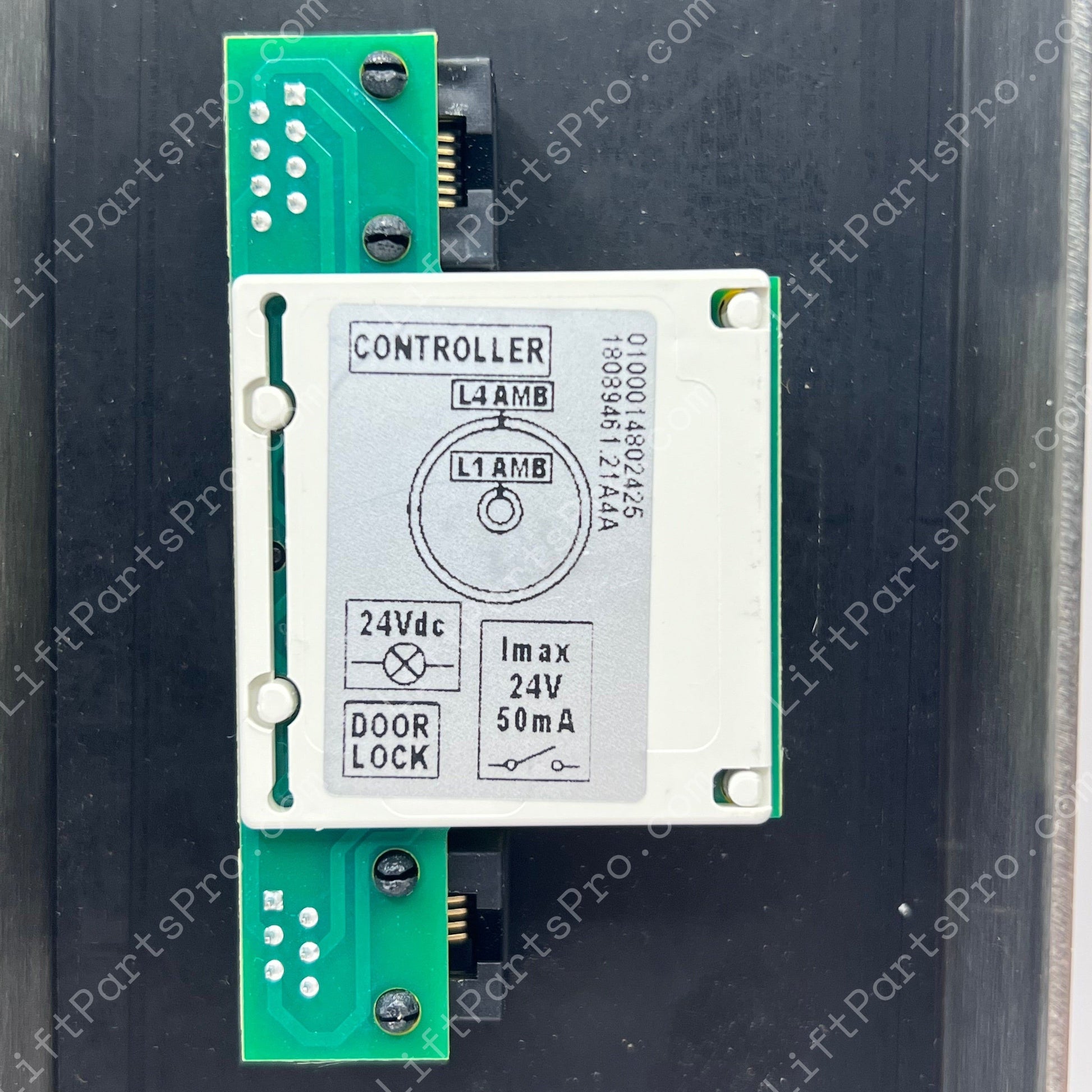

The round call button is amber-illuminated and operates on 24VDC, offering clear visual feedback. Dual RJ45 connectors simplify integration with both the controller and the door lock, making installation efficient for qualified technicians.

• Dimensions: 8" L x 3" W x 1.25" D
• Material: 16-gauge #316 stainless steel (box and faceplate)
• Mounting: Surface-mounted
• Sealing: 1/16" neoprene gasket cover, 1/16" wall gasket, rubber O-ring
• Button: Round stainless steel, amber LED, 24VDC
• Connectivity: 2 x RJ45 connectors (controller and door lock)

Ensure proper operation and long-lasting performance by having this component installed by a qualified elevator technician. All safety procedures should be followed according to applicable codes and standards.
