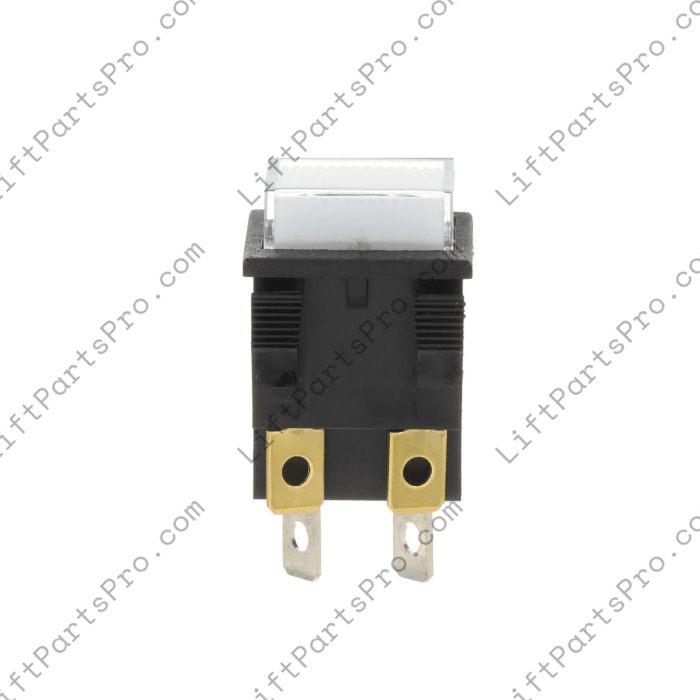

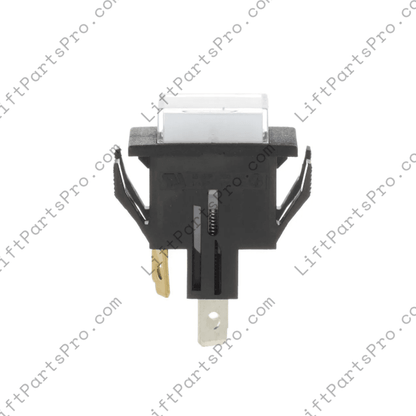

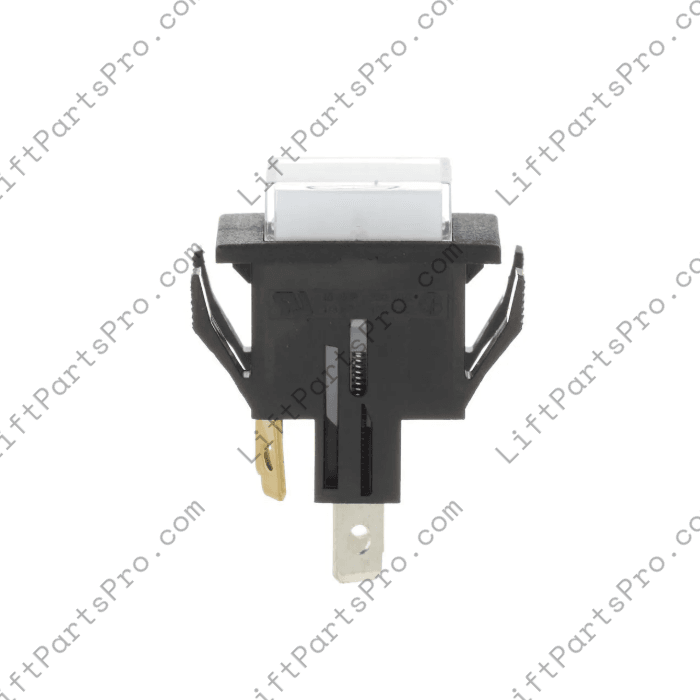

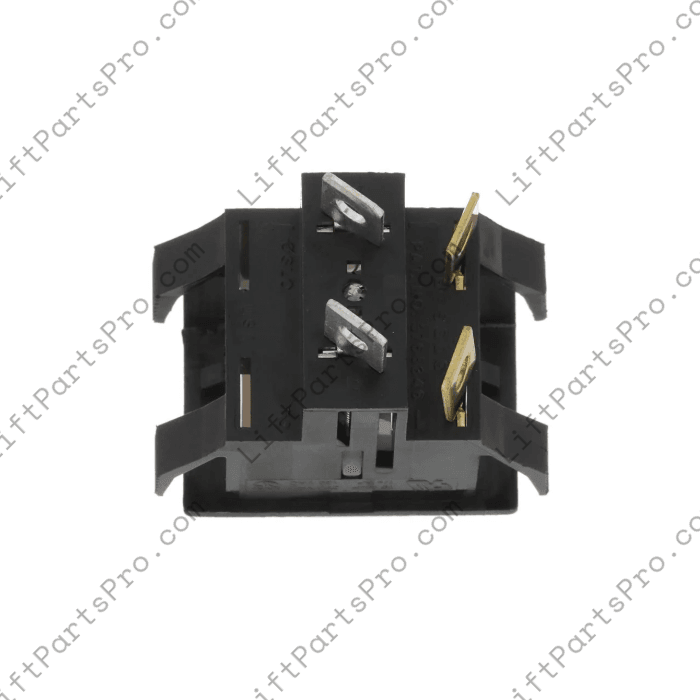

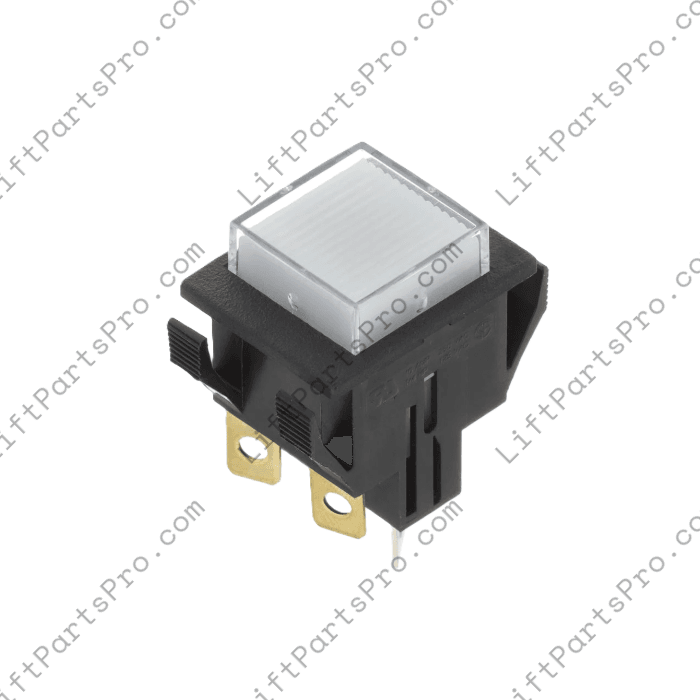

Square Call / Floor Pushbutton Switch for Savaria & Concord Elevators

Illuminated 28 V square push button switch designed for Savaria & Concord lift control panels, replaces OEM #100592 in hall call or COP stations.

This illuminated square pushbutton switch is designed for elevator and lift control panels, including hall‑call and car operating panel (COP) applications in Savaria and Concord systems.
This button features a matte black housing with a clear lens and is optimized for 28 V AC/DC illumination. It fits a rectangular panel cut‑out and is compatible as a direct replacement for OEM part number 100592.
Suitable for either hall call buttons or floor selection buttons, this rugged, snap‑in switch offers high reliability, quick‑connect termination, and electrical ratings that meet elevator industry control requirements.

Specifications

• Contact arrangement: SPST‑Normally Open (momentary)
• Current rating: 10 A AC/DC
• Illumination voltage: 28 V AC/DC nominal
• Panel cut‑out: Rectangular ~ 27.94 mm × 22.35 mm
• Termination style: Quick connect terminals (0.250" / 6.3 mm)
• Mechanical life: 100,000 cycles
• Electrical life: 25,000 cycles
• Actuator: Square flush‑mount with clear lens, illuminated when energized
• Housing finish: Matte black
• Replacement for OEM #100592 in Savaria / Concord elevators
