Sprecher + Schuh Motor Relay Contactor Assembly for Lift Systems

Block of two 24VAC contactors & interlock for up/down control in select Porch-Lift, Windsor, Stair-Glide, & Cheney Handi-Lift systems, replacing #M05451.

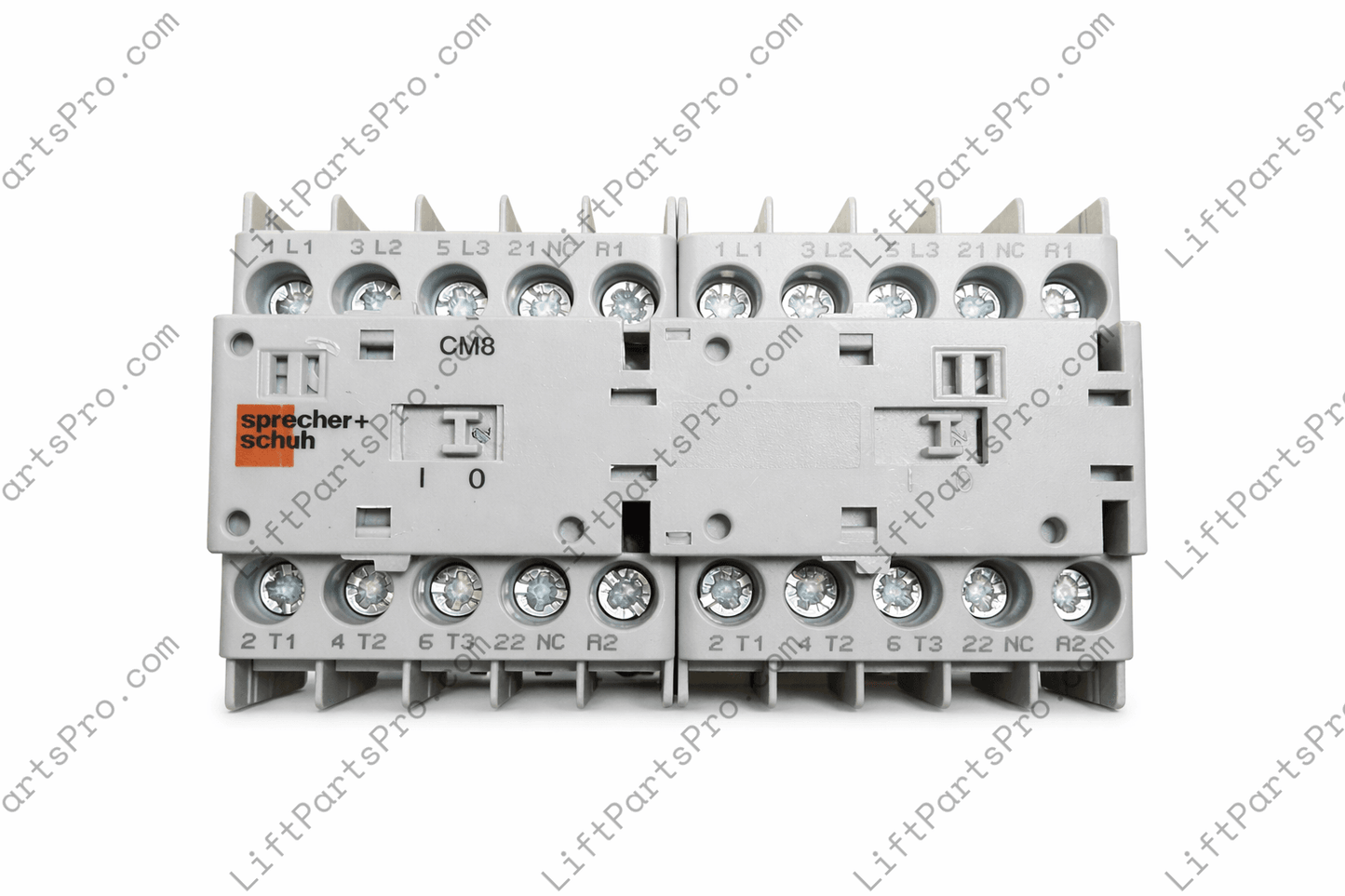

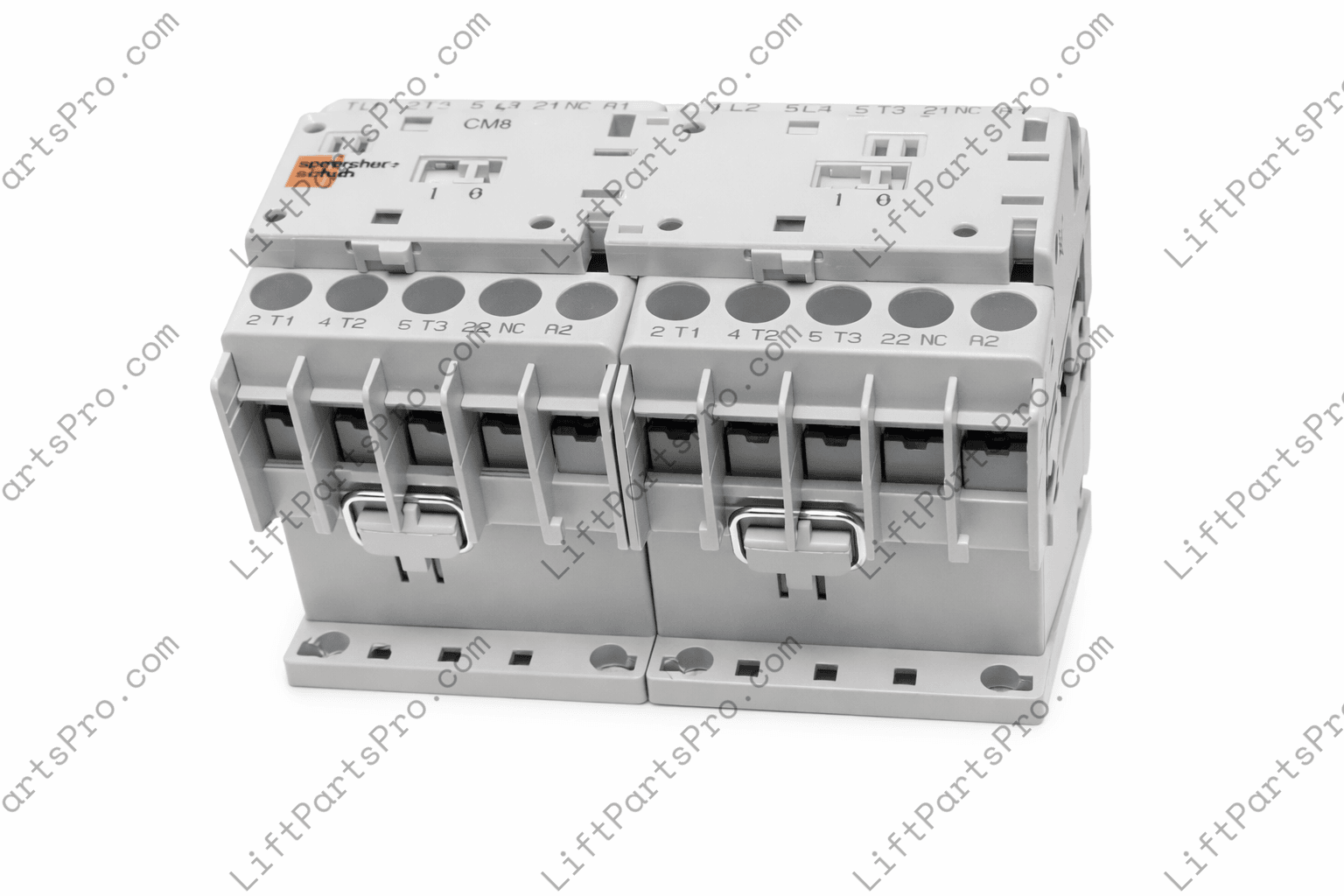

This motor relay contactor assembly combines two industrial-grade 24 VAC miniature motor contactors configured for up/down control, bridged by a mechanical interlock for coordinated operation.
Each contactor offers a compact, reliable solution for switching and controlling motor loads up to 12 A in electromechanical lift applications.
The mechanical interlock ensures the two contactors operate in complementary fashion for safe directional control.
This assembly is commonly used as the up and down relay module in a variety of porch-lift, stair-glide, Cheney Handi-Lift, and other platform lift systems, matching legacy relay configurations while providing robust performance.

Specifications

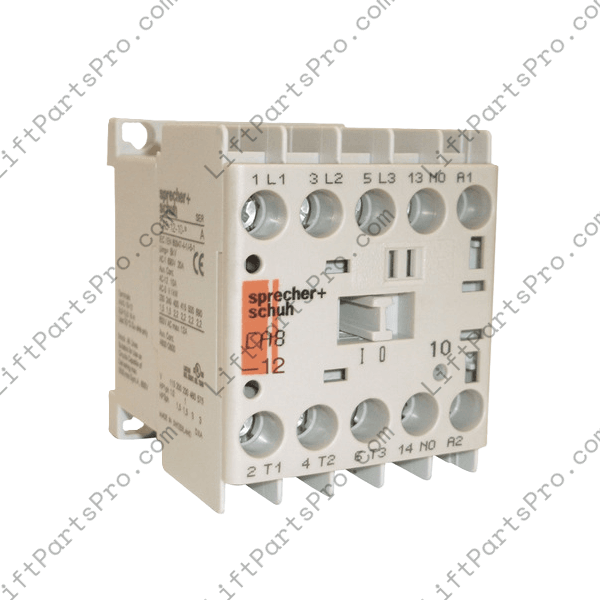

• Qty 2 compact miniature motor contactors with 24 VAC coil voltage, 3 poles, rated 12 A motor control

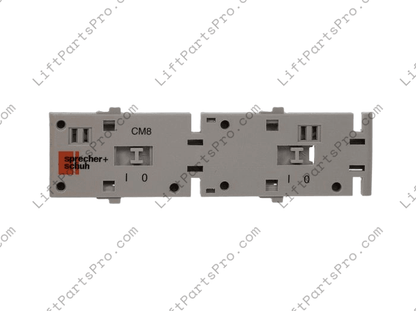

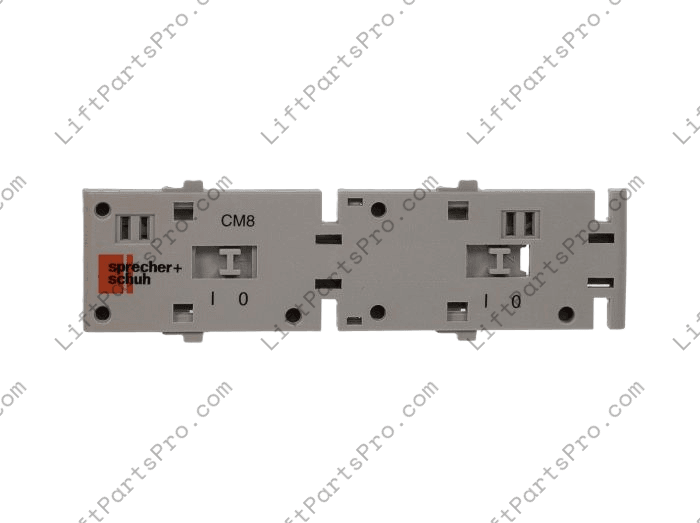

• Mechanical interlock accessory to link two contactors for coordinated switching
• DIN-rail or panel mountable compact housing
• Designed for motors ≤7.5 HP (460 V) per contactor family rating
• Coil frequency: 50/60 Hz
• Assembly replaces legacy up/down relay configurations in select accessibility lifts

This assembly is built from industrial contactor components matched for common accessibility lift relay functions. It is supplied as individual modular components assembled for your application and should be installed by qualified technicians familiar with lift control circuits and safety standards. Use in accordance with applicable electrical codes and industry practices.
