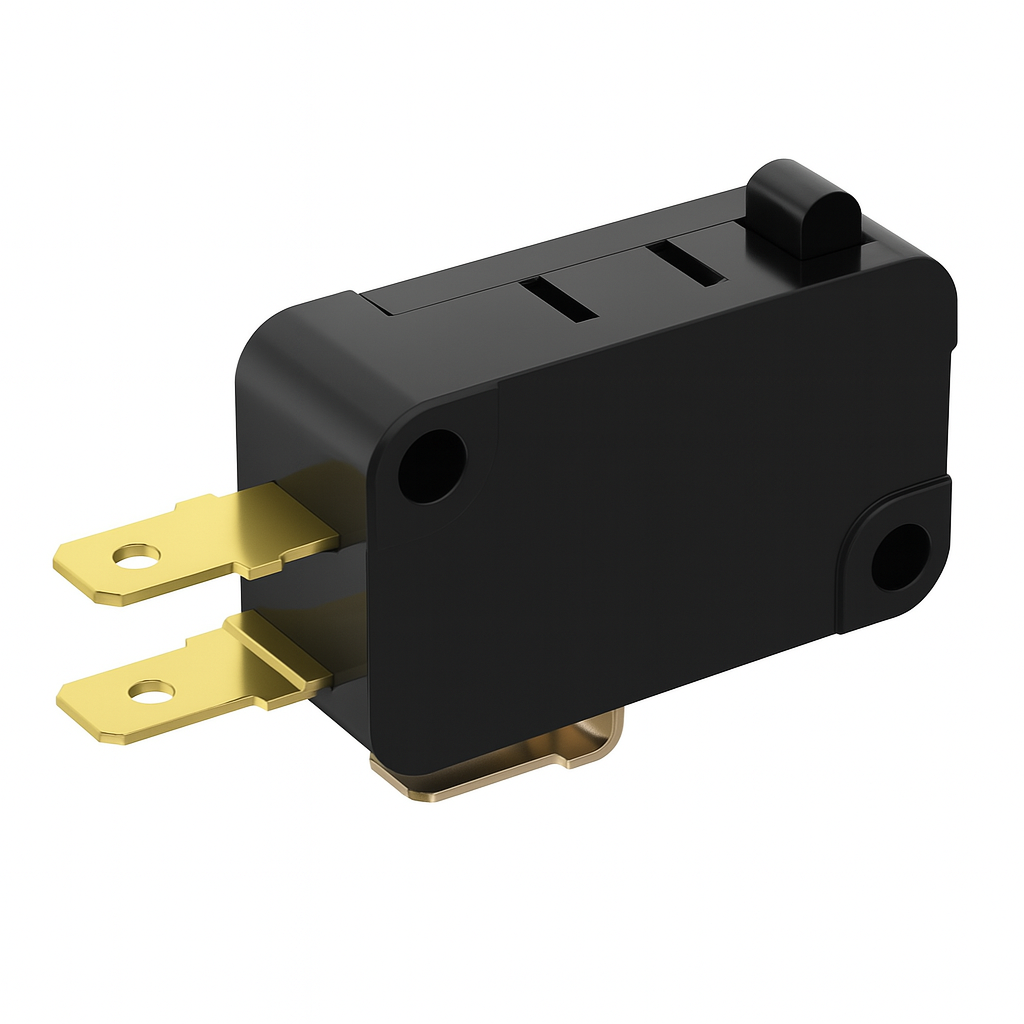

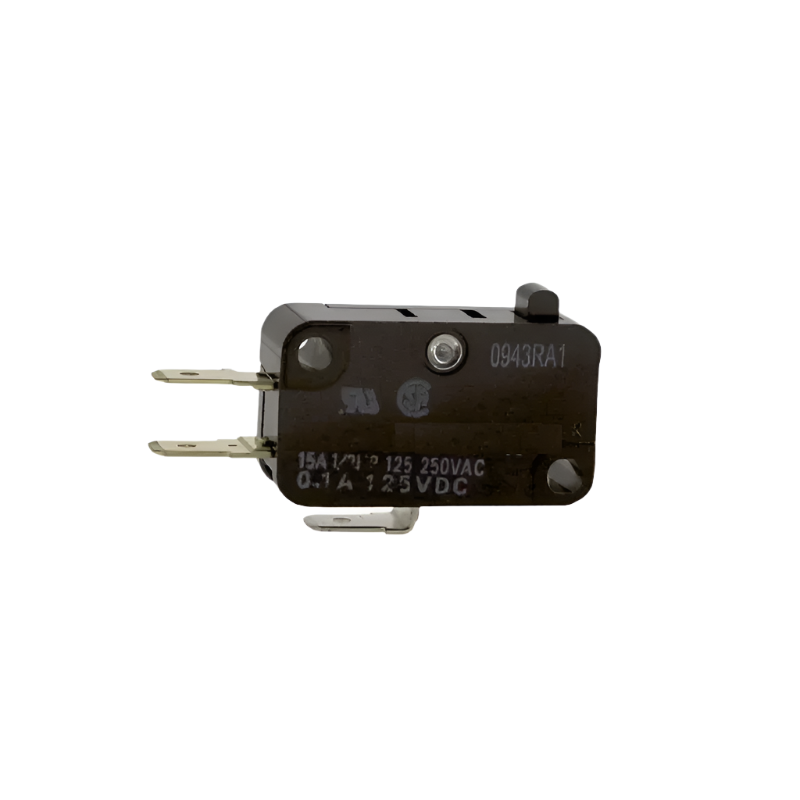

Omron SPDT snap-action switch for use in Porch-Lift door systems and American Stair-Glide safety limit switch positions.
This compact, high-reliability snap-action switch delivers precise contact response and long mechanical life, making it ideal for accessibility lift applications. Commonly installed in Porch-Lift units as a door position switch and in American Stair-Glide chairlifts as a safety limit sensor, it responds quickly and consistently to actuator motion. The housing is constructed from thermoset resin for durability, and the quick-connect #187 terminals allow easy integration during service or replacement.
Rated for both AC and DC loads, the switch performs reliably in both low- and high-voltage circuits. It is suitable for general-purpose lift control where space and reliability are critical.

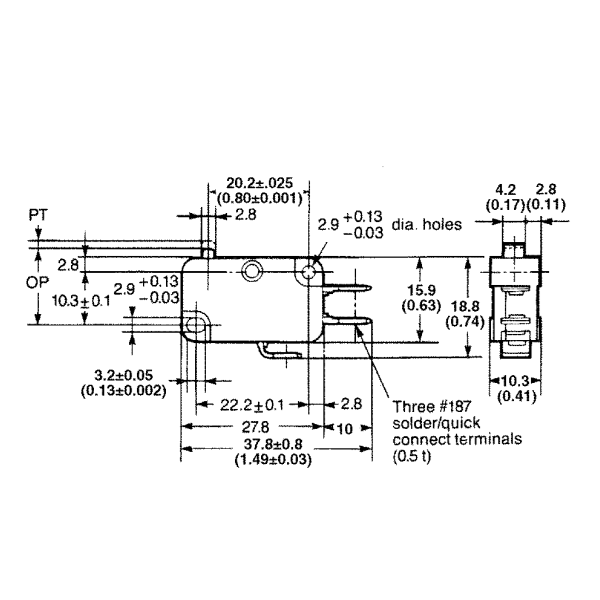

- Contact Type: SPDT (Single-Pole Double-Throw)
- Rated Load: 15 A @ 250 VAC; 0.1 A @ 125 VDC
- Operating Force: 1.96 N (200 gf)
- Release Force: 0.49 N (50 gf)
- Pretravel: 1.2 mm
- Overtravel: 1.3 mm
- Differential Travel: 0.3 mm
- Operating Position: 14.7 ± 0.4 mm
- Housing Material: Thermoset resin
- Terminal Style: Quick-connect #187
- Mounting: Two M3 screws (not included)
- Protection Rating: IP40
This replacement switch is built to support safety-critical signaling in vertical and inclined platform lifts. Always ensure installation is handled by qualified technicians in accordance with lift system specifications.
