Automatic Grease Lubricator for NWOV, VPL & Wheelchair Lifts

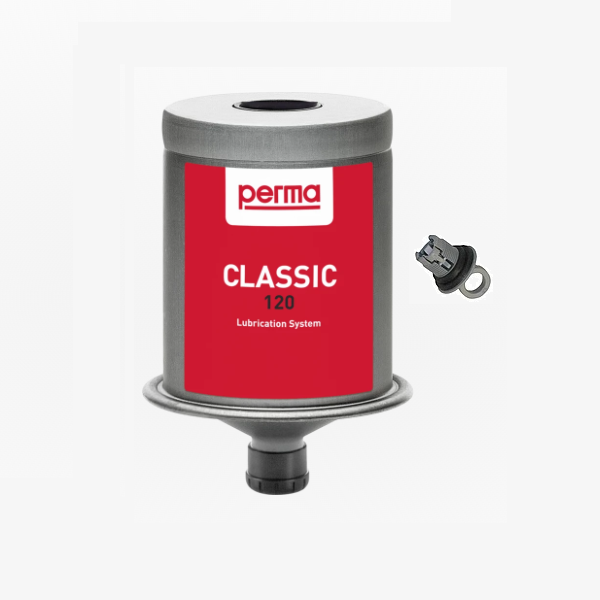

This automatic single-point grease canister is commonly used on National Wheel-O-Vator (NWOV) equipment and is also found on a variety of other vertical platform lifts, wheelchair lifts, elevators, and accessibility lift systems. The self-contained lubricator cartridge provides a controlled supply of multipurpose grease to a single lubrication point without requiring an external power source.

The metal-bodied lubricator uses an electrochemical drive system to gradually advance an internal piston and dispense grease. A gray 12-month activator screw is included, providing a nominal 12-month discharge period at 68°F (20°C). Actual lubricant delivery rate varies with operating temperature and application conditions.

• Replaces NWOV Legacy #V1317
• Type: Automatic single-point grease lubricator
• Lubricant capacity: 120 cc / 4.06 fl. oz.
• Lubricant: Multipurpose SF01 grease
• Housing: Metal
• Activation system: Electrochemical gas generator

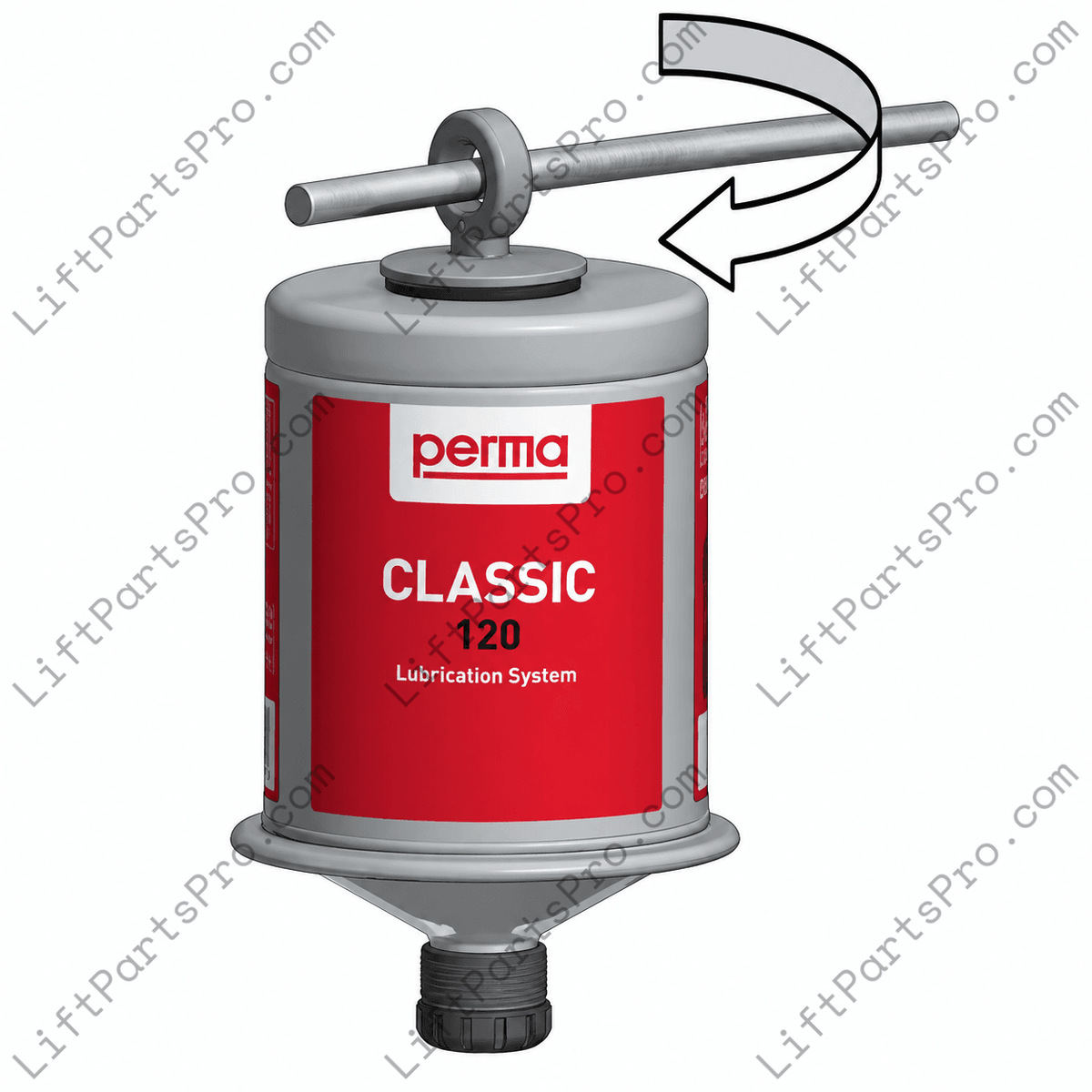

• Activator: Gray, 12-month
• Nominal discharge period: 12 months at 68°F / 20°C
• Operating temperature: 32°F to 104°F / 0°C to 40°C
• Maximum pressure: 4 bar / 58 psi
• Connection: R1/4 outside thread
• Approximate dimensions: 70 mm diameter x 99 mm
• Application: Single-point automatic lubrication
• Common equipment: National Wheel-O-Vator (NWOV), vertical platform lifts, wheelchair lifts, accessibility lifts, and other compatible lift equipment

Lift lubrication components should be selected for the specific equipment and lubrication point being serviced. Installation and replacement should be performed by qualified personnel in accordance with applicable equipment requirements and maintenance procedures.
