Savaria K2 Stairlift Chassis ON/OFF Round Rocker Switch
Savaria K2 Stairlift Chassis ON/OFF Round Rocker Switch
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: RS.SAV.K2
Condition: New
Couldn't load pickup availability

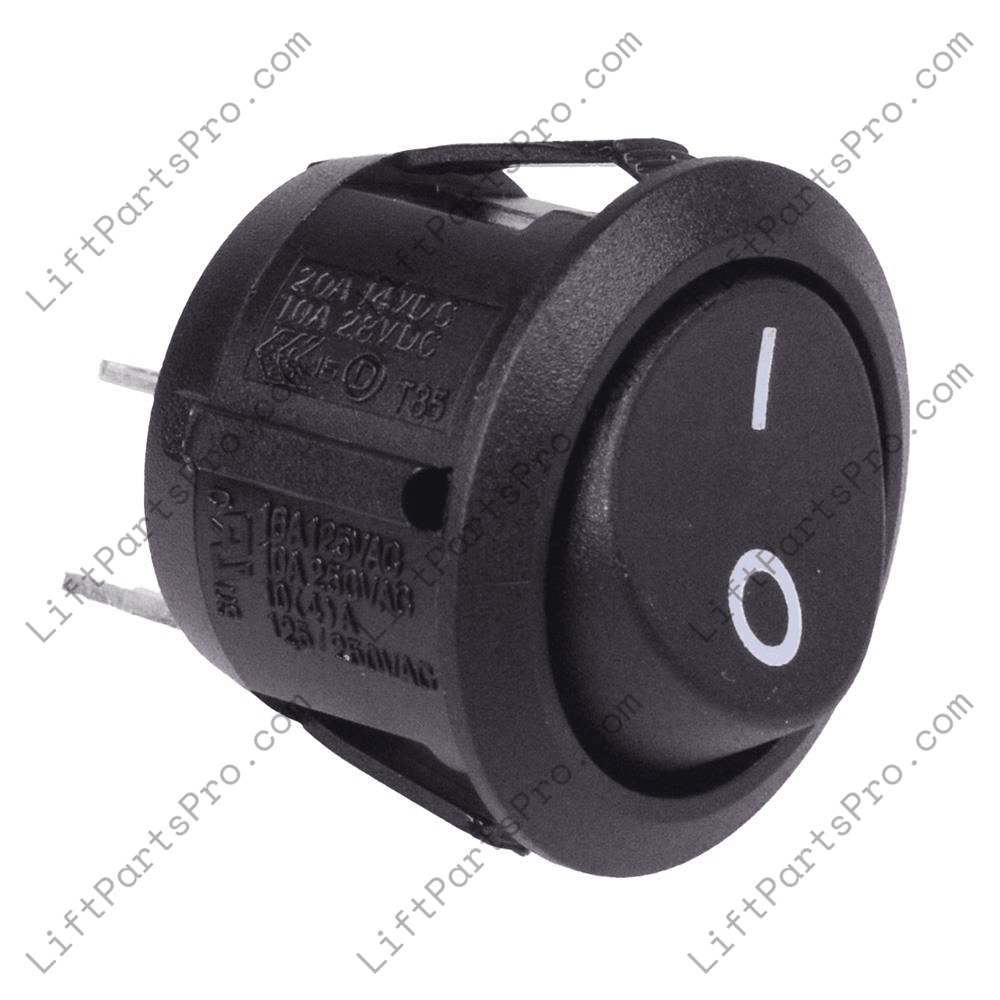

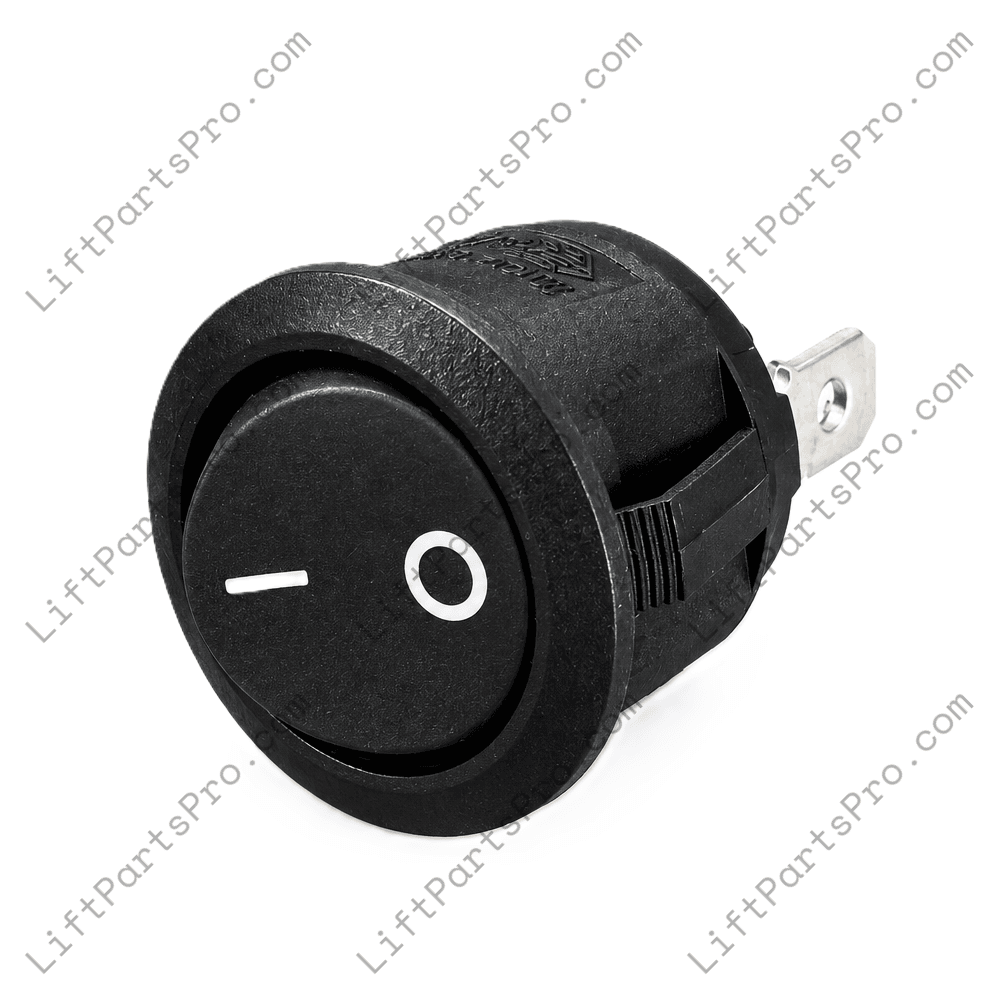

This compact panel-mount rocker switch provides the chassis ON/OFF power control used on select Savaria K2 stairlift and stairway lift carriages.

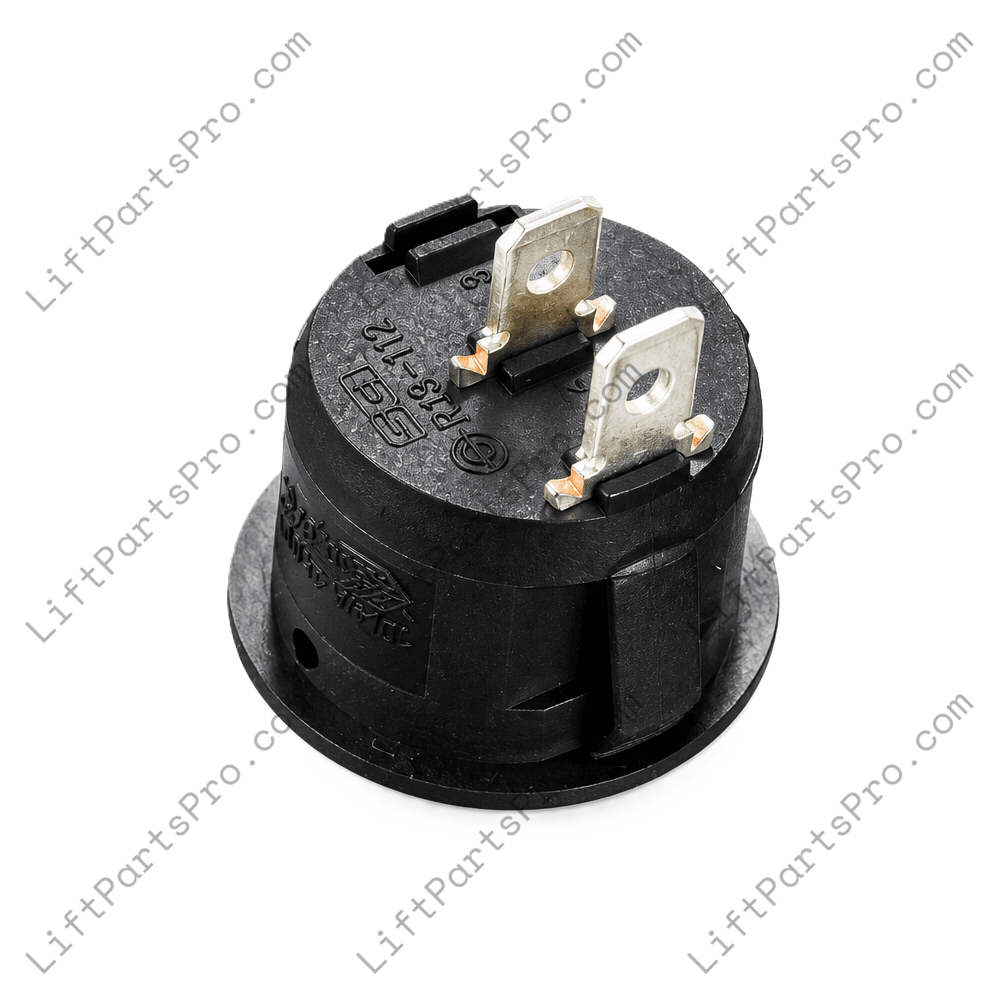

Its round snap-in body and two-terminal SPST configuration make it suitable for replacing the corresponding carriage-mounted power switch. The black nylon housing and actuator are designed for compact equipment applications, with silver-plated copper-alloy terminals and silver-alloy contacts.
- Switch function: SPST ON/OFF
- Circuit configuration: 2-pole / 2-terminal
- Mounting style: Round snap-in panel mount
- Nominal panel cutout diameter: 20.2 mm
- Bezel diameter: 23.0 mm
- Terminal width: 4.75 mm
- Frame material: Nylon 66
- Terminal material: Silver-plated copper alloy
- Contact material: Silver alloy
- Electrical rating: 16A at 125VAC; 10A at 250VAC
- DC rating: 10A at 28VDC; 6A at 14VDC
- Maximum contact resistance: 50 mΩ
- Minimum insulation resistance: 100 MΩ at 500VDC
- Dielectric strength: 1500VAC for 1 minute
- Operating temperature: -25°C to +85°C
Stairlift electrical and chassis components should be installed by qualified personnel familiar with accessibility lift equipment. Confirm equipment compatibility and proper fit before installation, and complete all work in accordance with applicable safety practices and service requirements.
