Savaria Elevator Emergency E-stop Twist-Release Pushbutton

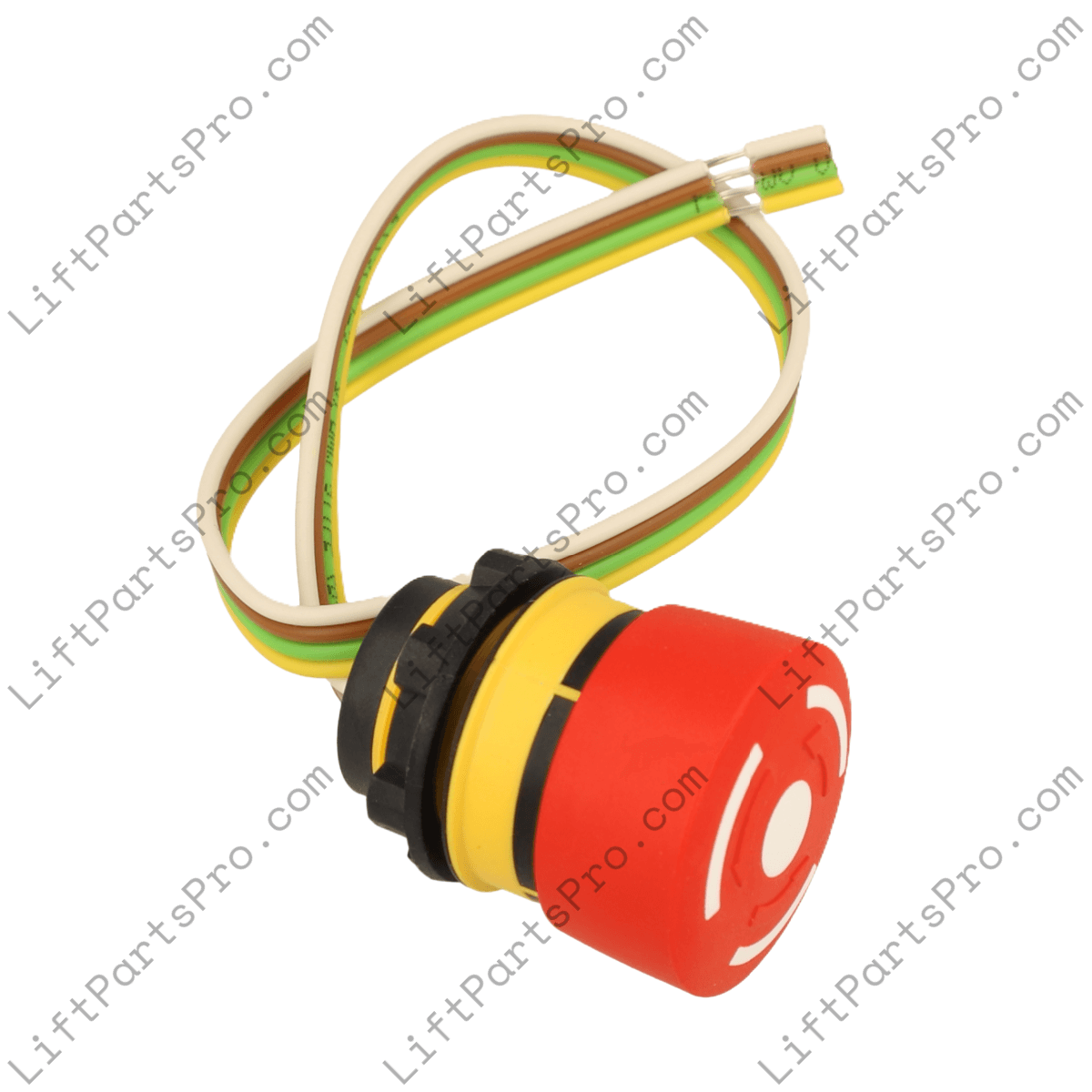

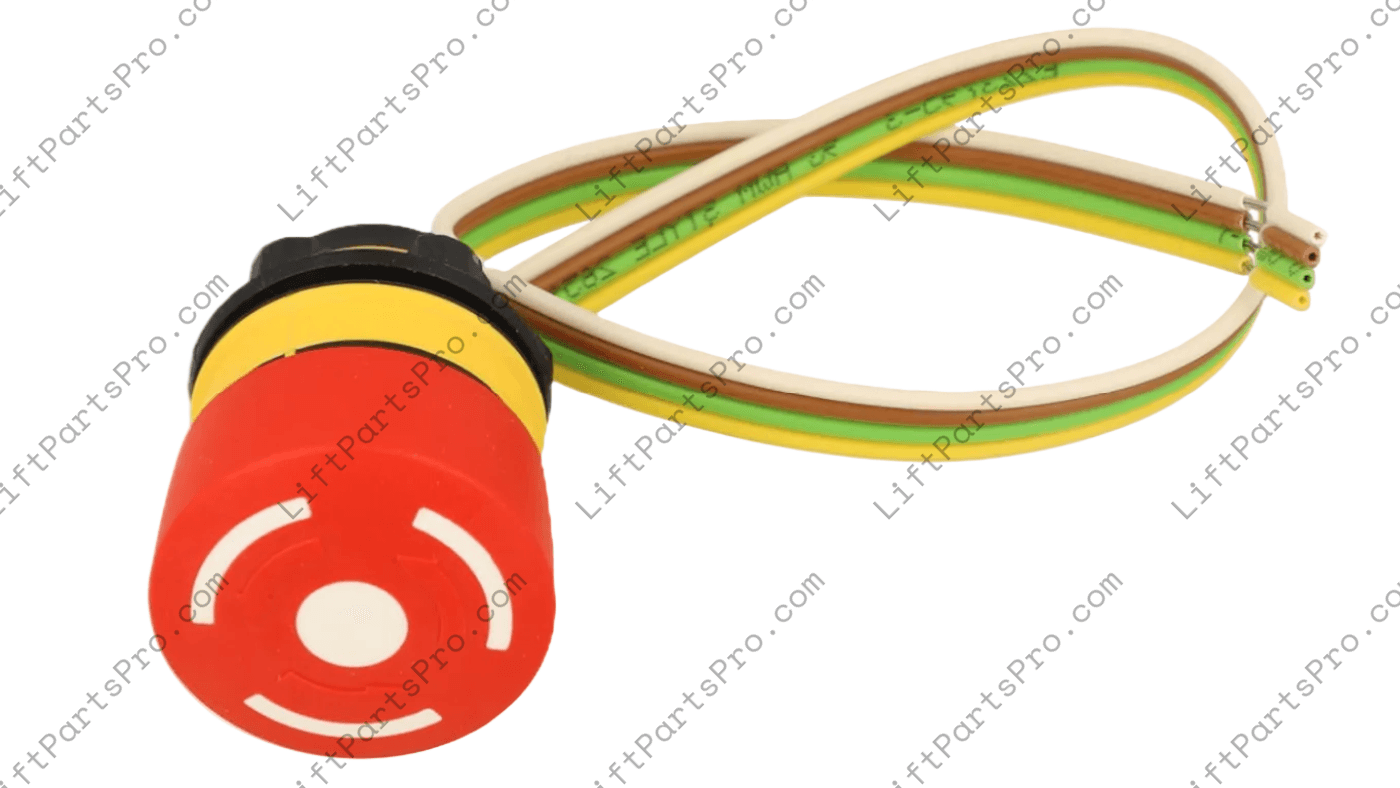

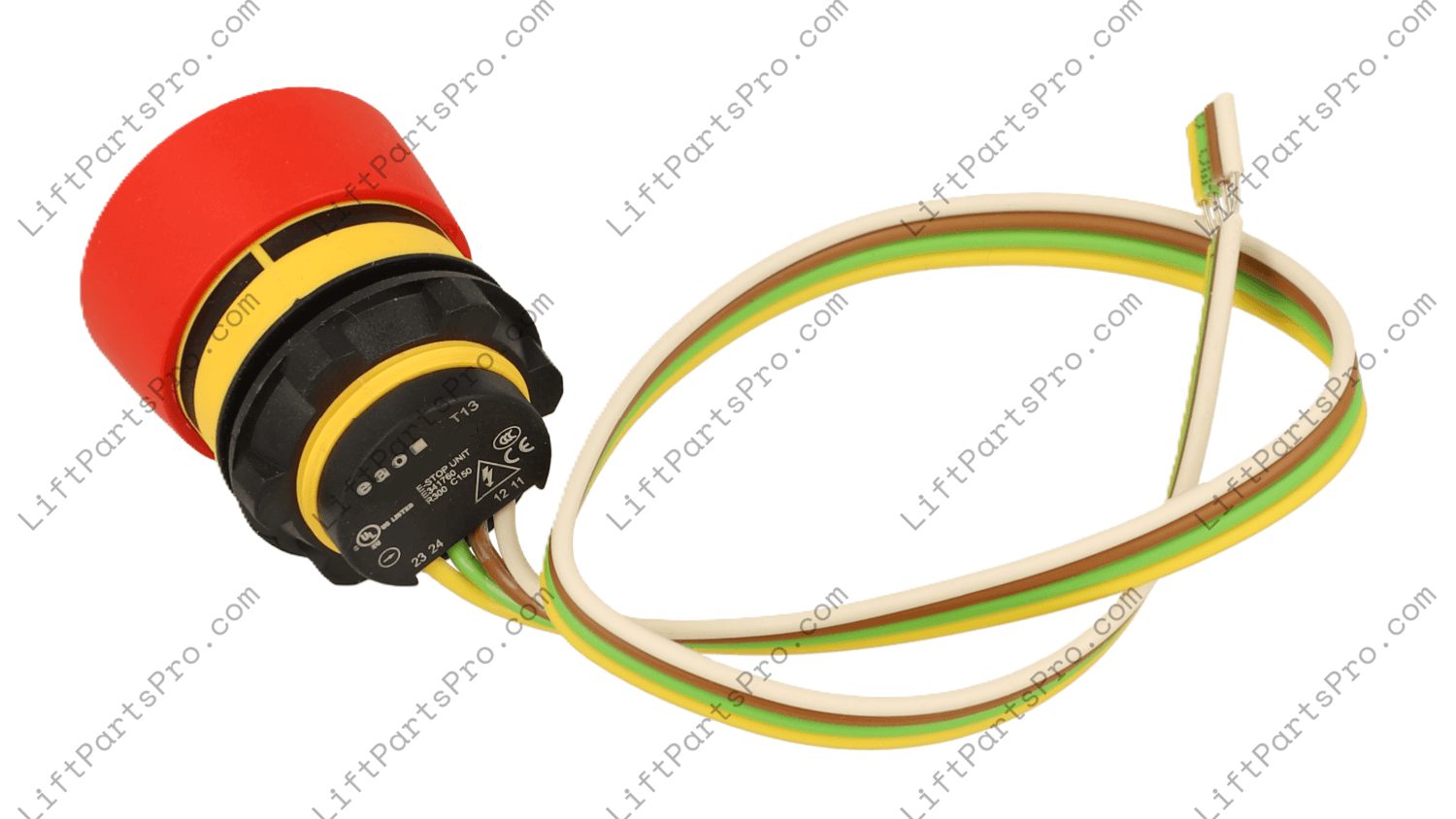

This non-illuminated emergency E-Stop pushbutton is designed for use in select Savaria elevator control panels, replacing part 104783. Built on a 22.3 mm industrial mounting platform, it features a red mushroom actuator with a maintained, twist-to-release mechanism. Once pressed, the button remains latched in the stop position until manually reset by rotating the actuator, making the twist function a critical identification feature for buyers seeking the correct maintained emergency stop configuration.

This version also serves as the current recommended replacement for an earlier, now-obsolete configuration within the same series. While preserving the same panel cutout size and functional performance, the updated design reflects current production standards and internal component refinements. It installs in compatible applications without modification when replacing like-for-like assemblies.

• Series: 84 industrial control series
• Function: Maintained emergency stop
• Reset Method: Twist-to-release
• Actuator Style: Mushroom head
• Actuator Color: Red, White
• Illumination: Non-illuminated

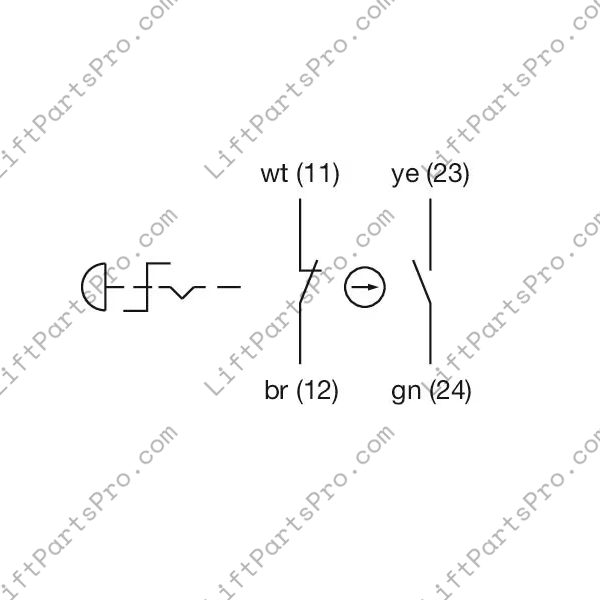

• Contacts: 1 NC / 1 NO
• Voltage: 250 VAC/DC (EN IEC 60947-1)

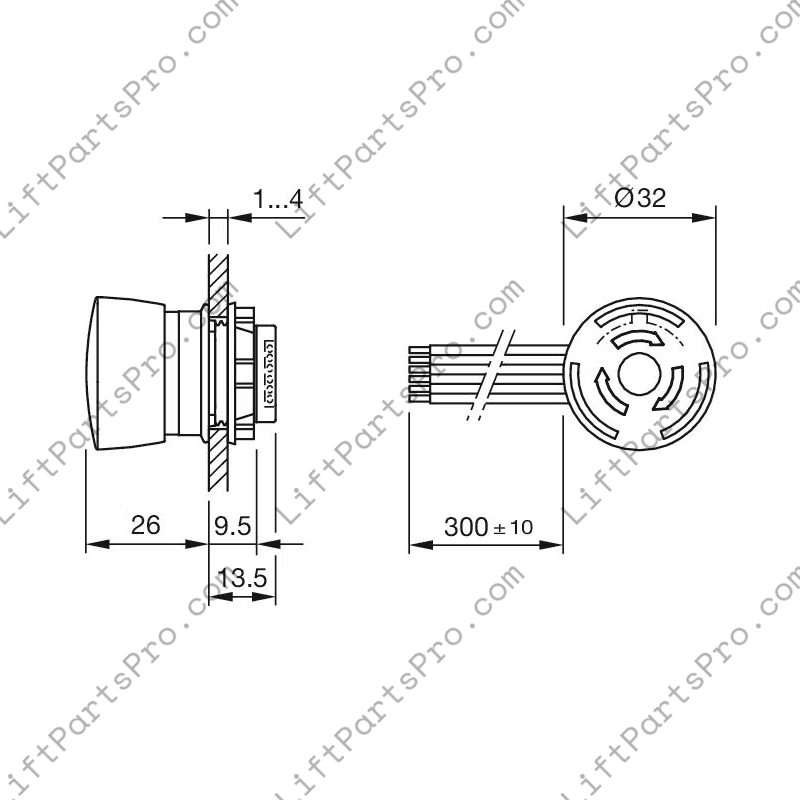

• Mounting Diameter: 22.3 mm
• Front Protection Rating: IP65
• Terminal Type: Flat Ribbon Cable, 300mm
• Panel Thickness Range: 1–6 mm
• Housing Material: Industrial thermoplastic
• Mechanical Life: Up to 1 million operations
• Operating Temperature Range: -25°C to +55°C

All safety-critical control components should be installed and inspected by qualified elevator service personnel in accordance with applicable codes and manufacturer specifications to ensure proper performance and system reliability.
