Savaria Concord Elevator Cab Ceiling LED Puck Light

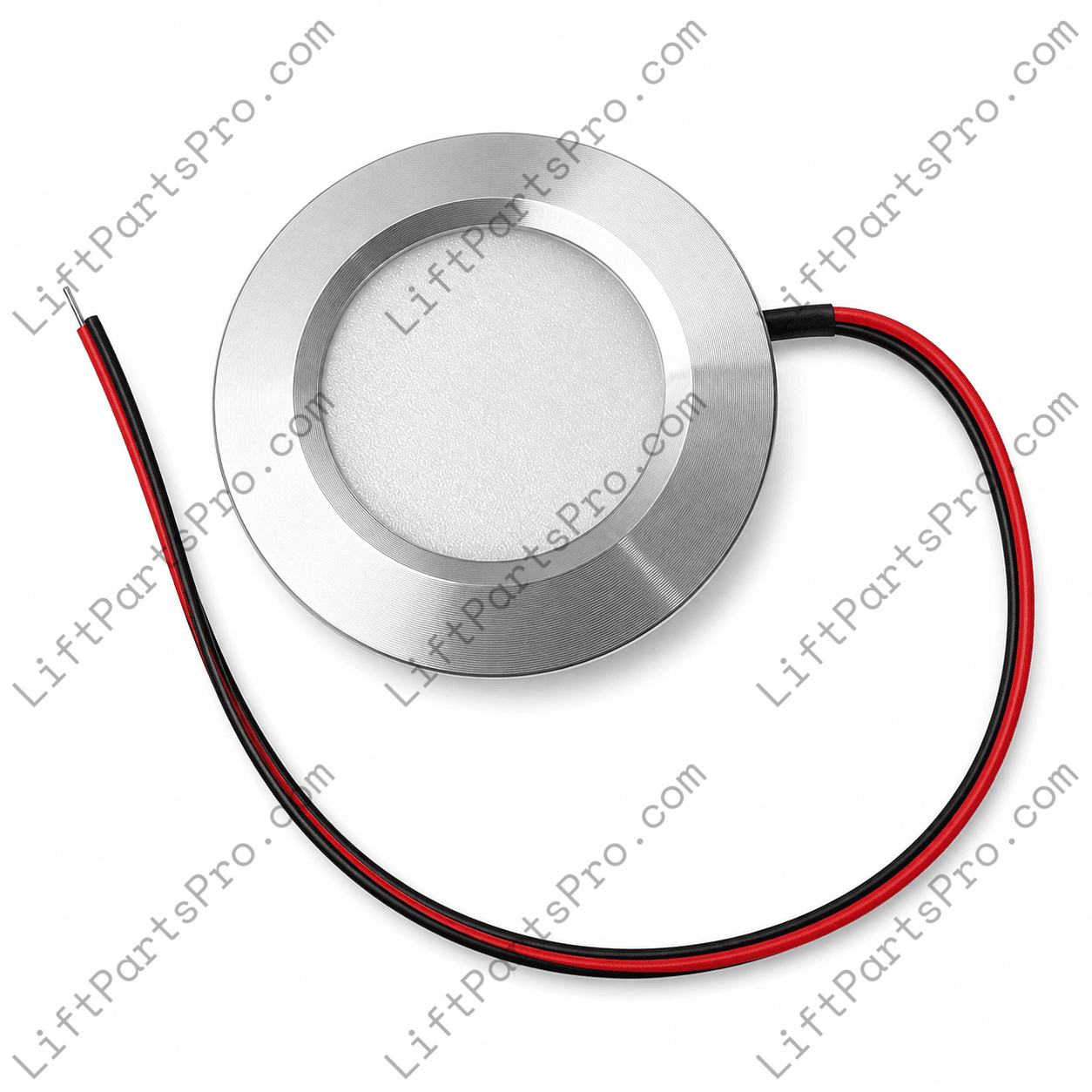

Designed as an aftermarket replacement for many Savaria Concord elevator cab ceiling lights, this recessed LED puck light is a close dimensional match for fixtures found in select Eclipse, MRL, Orion, VueLift, Zenith, and Infinity elevator models. Its low-profile design, brushed aluminum trim, and natural white 4000K output provide a clean, modern appearance while maintaining the professional look expected in passenger elevator interiors.

This energy-efficient 3W LED produces approximately 150–300 lumens through a wide 120° beam angle for even light distribution throughout the cab. Constructed from durable aviation-grade aluminum, the fixture is built for long service life with an expected lifespan of up to 30,000 hours. A CH-2 spring wire connector is included to simplify installation across a variety of compatible elevator models.

Before ordering, verify that your existing fixture dimensions and system voltage match this light. The 68 mm trim diameter, 55 mm body diameter, and 14 mm overall height are intended to closely match many Savaria Concord applications, but compatibility should always be confirmed prior to purchase. If replacing only one or two failed lights, be aware that the new fixture may differ slightly in color temperature or trim appearance from aged existing lights. For the most consistent brightness, color, and overall cab appearance, replacing all fixtures at the same time is recommended.

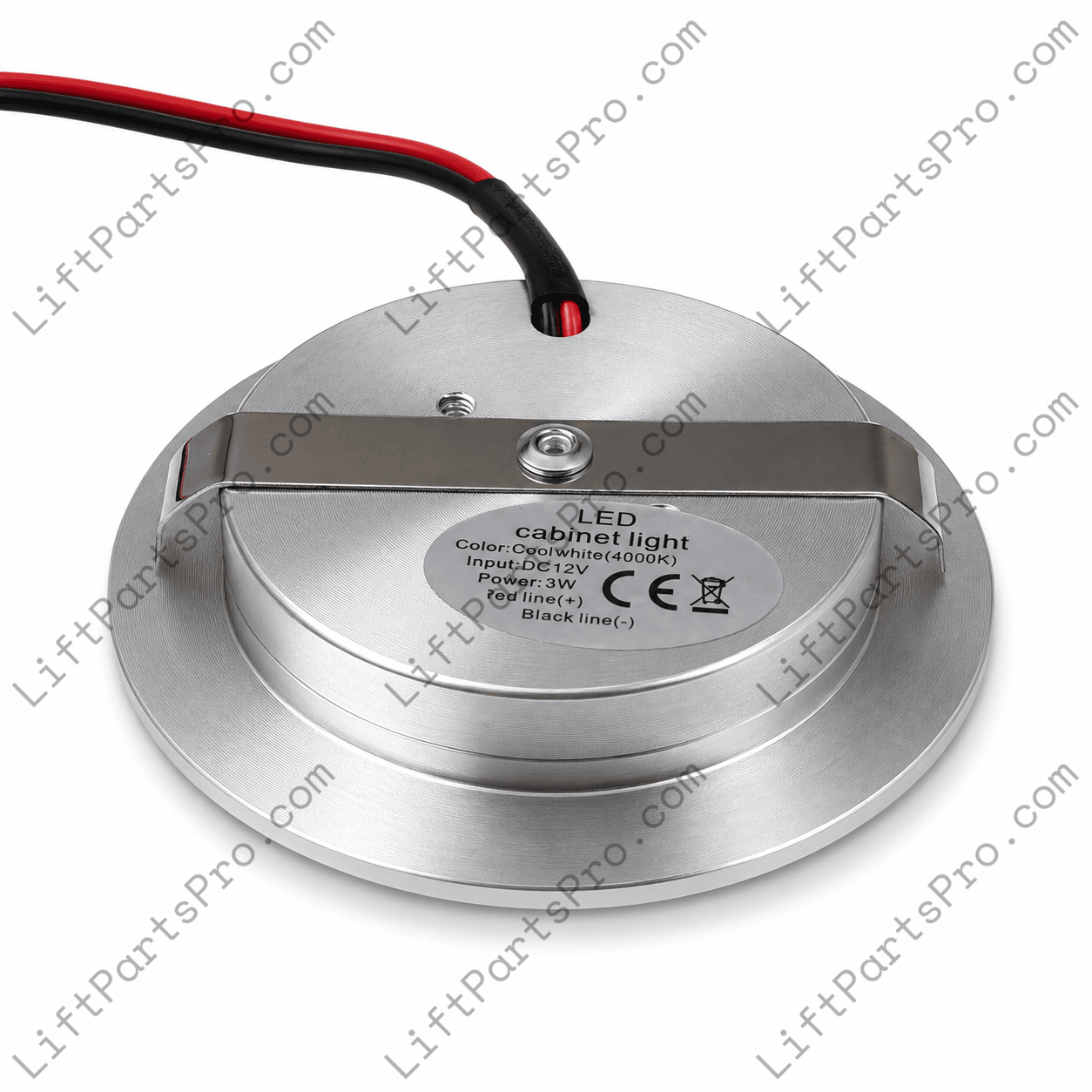

• Universal 12V DC power compatibility
• 3W integrated LED
• Light output: 150–300 lumens
• Natural White 4000K color temperature
• 120° beam angle
• Aviation-grade aluminum housing

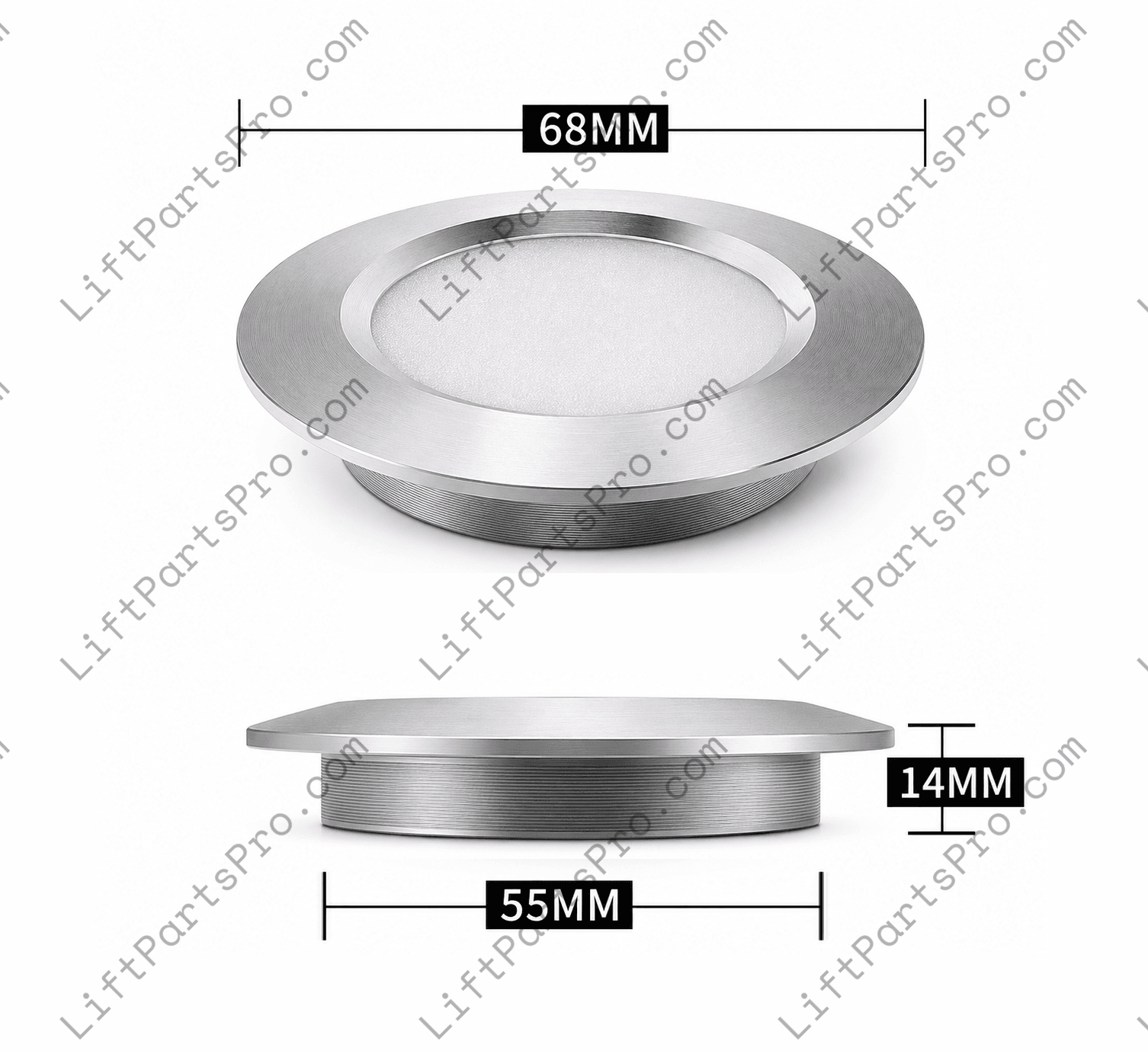

• Outside diameter: 68 mm (2.68 in)
• Body diameter: 55 mm (2.17 in)
• Overall height: 14 mm (0.55 in)

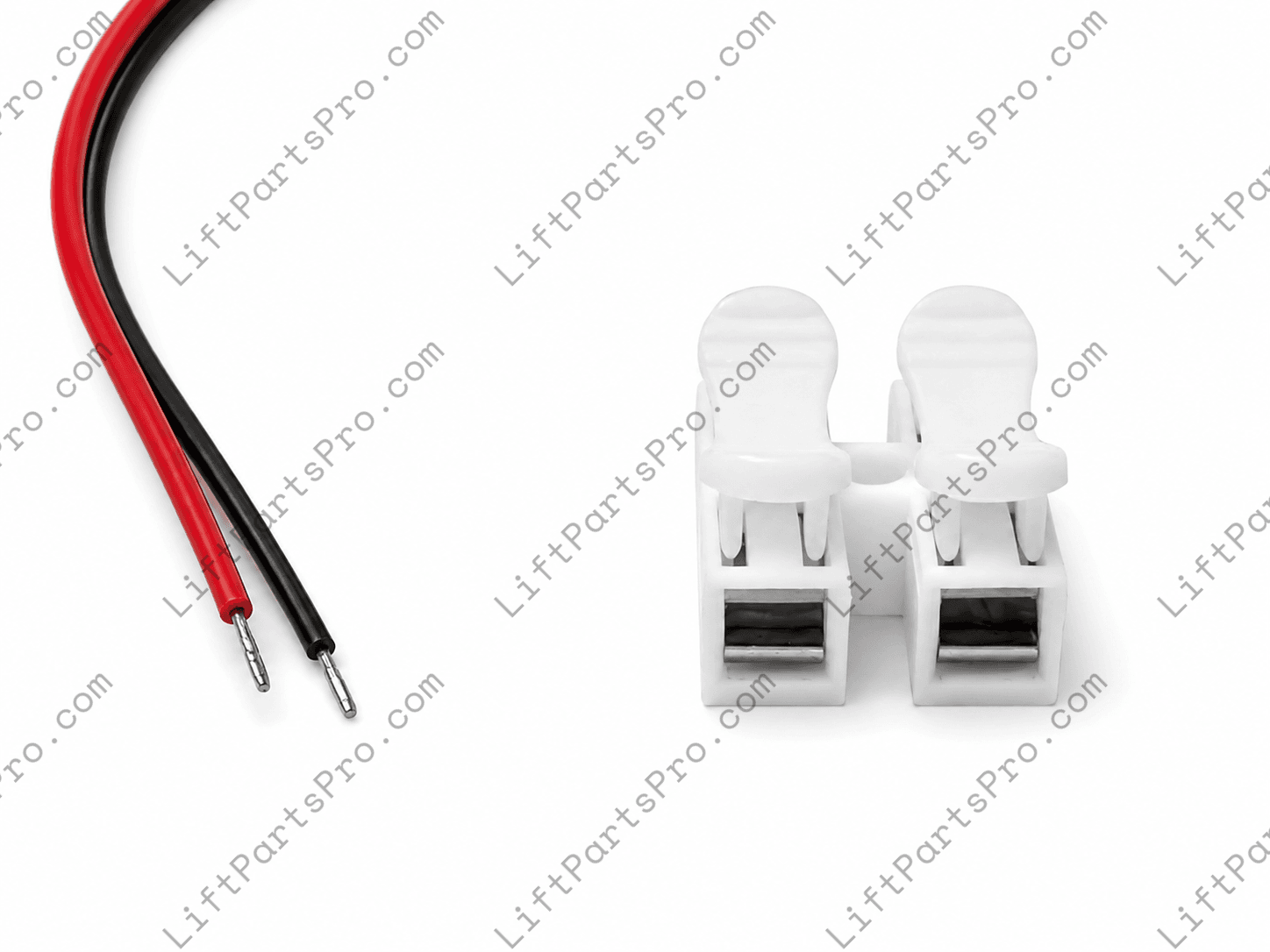

• Includes CH-2 spring wire connector
• Rated lifespan: Up to 30,000 hours
• Aftermarket replacement for many Savaria Concord elevator cab lighting applications

For reliable performance and proper operation, this fixture should be installed by qualified elevator personnel in accordance with applicable codes and manufacturer requirements. Confirm all dimensions, voltage, and compatibility before installation to ensure the replacement is appropriate for your specific elevator application.
