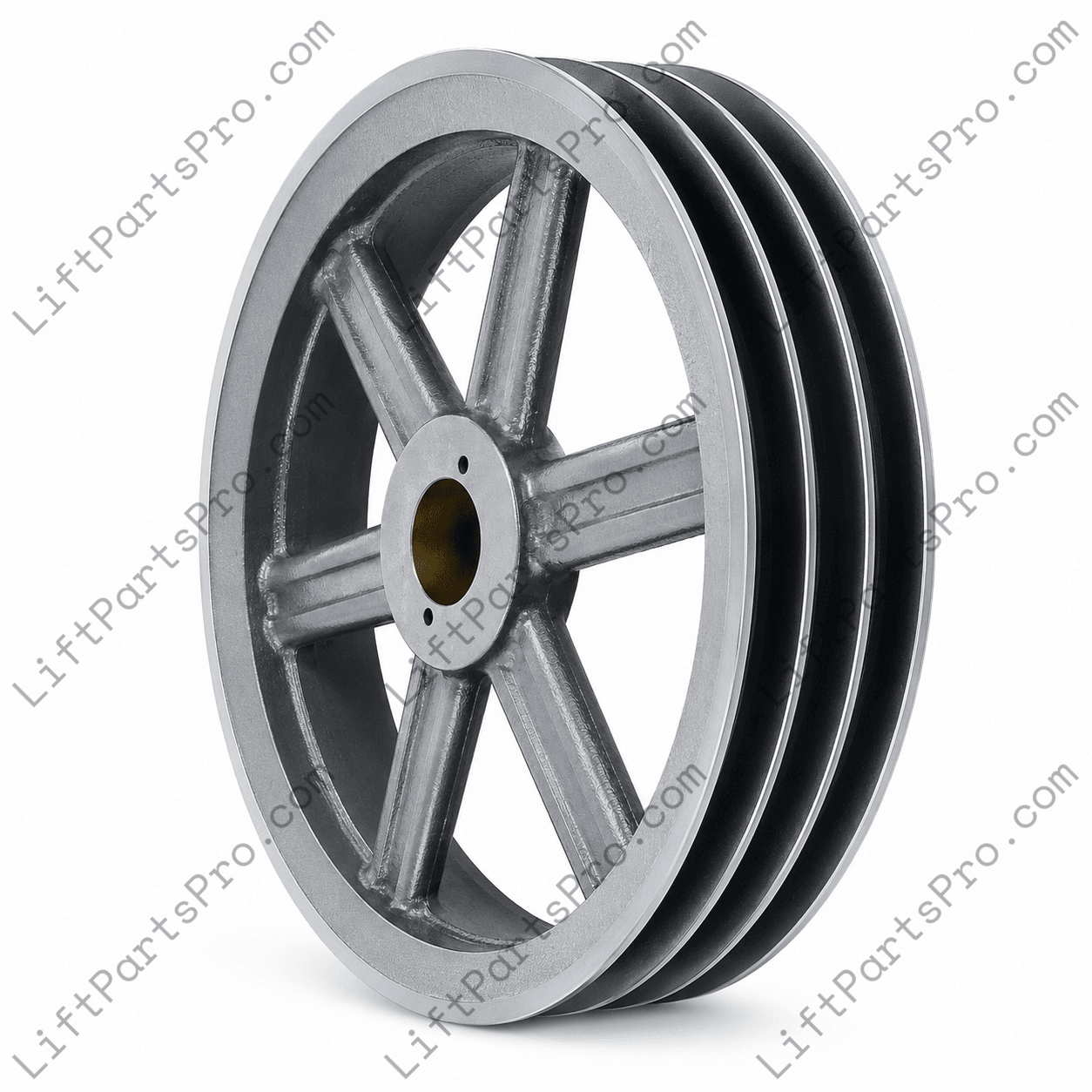

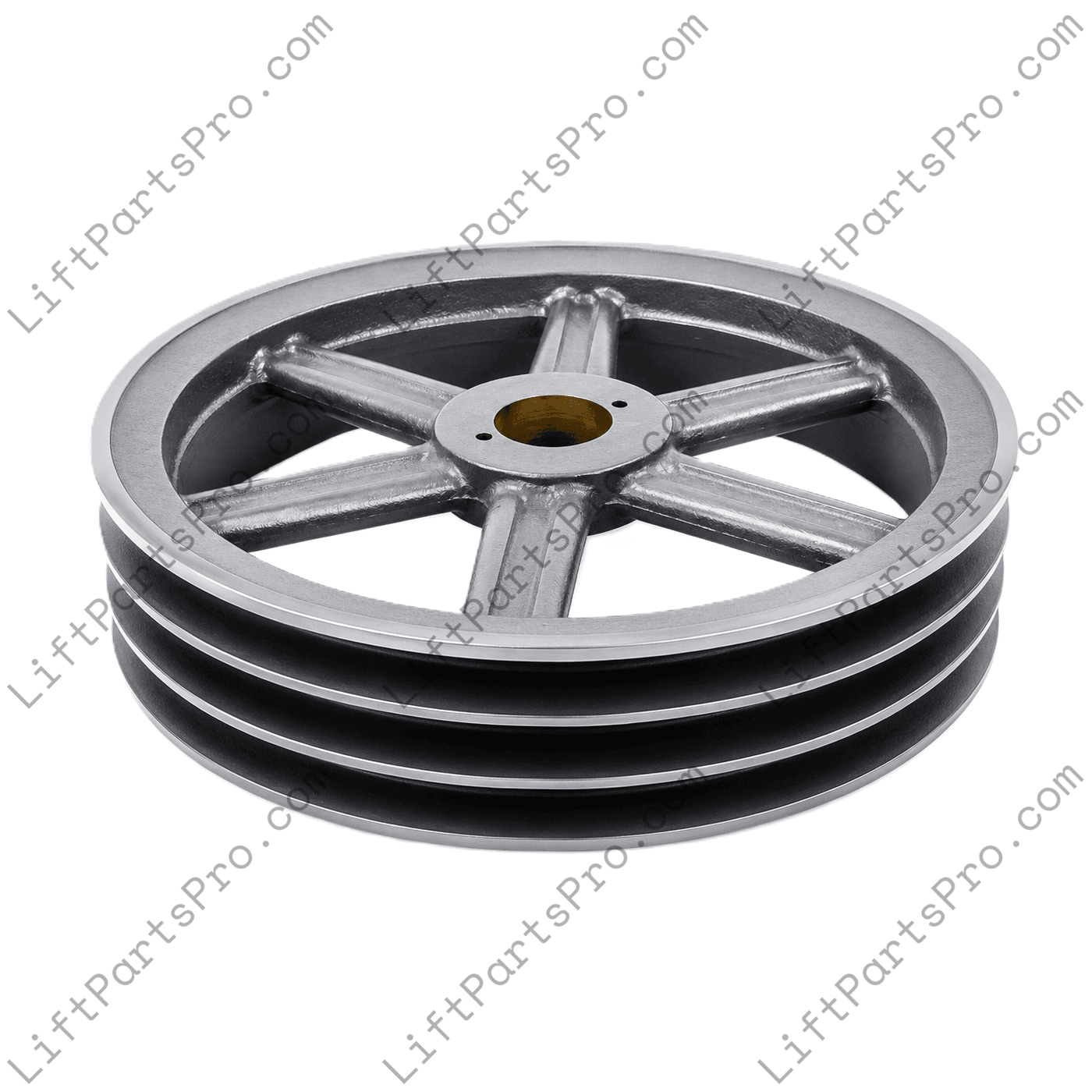

Savaria Concord 3-Belt Sheave Pulley
Savaria Concord 3-Belt Sheave Pulley
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: SHV.CNC.8
Condition: New
Couldn't load pickup availability
Designed for use in select Savaria and Concord ACME screw lift drive systems, this 3-groove cast iron sheave pulley supports reliable belt engagement and smooth power transmission in ACME screw lift applications.
Manufactured from fine-grain cast iron and statically balanced for consistent rotation, this pulley is compatible with B, BX, and 5L V-belts commonly found in accessibility lift drive assemblies.
The multi-groove design distributes load evenly across three belts while supporting dependable performance in demanding lift environments. This sheave utilizes an H-style bushed mounting configuration for adaptable shaft compatibility.
- 3-groove V-belt sheave pulley
- Compatible with B, BX, and 5L belt sections
- Outside diameter: approximately 7.75"–8"
- Pitch diameter: approximately 7.4"
- H-style bushed design
- Cast iron construction
- Statically balanced machined sheave
- Length through bore: approximately 1.15"
- Belt top width compatibility: 5/8"
- Used in select Savaria and Concord ACME screw lifts
All replacement lift components should be installed and inspected by qualified personnel familiar with accessibility lift equipment and applicable safety standards. Proper fitment and system verification are recommended before returning equipment to service.
