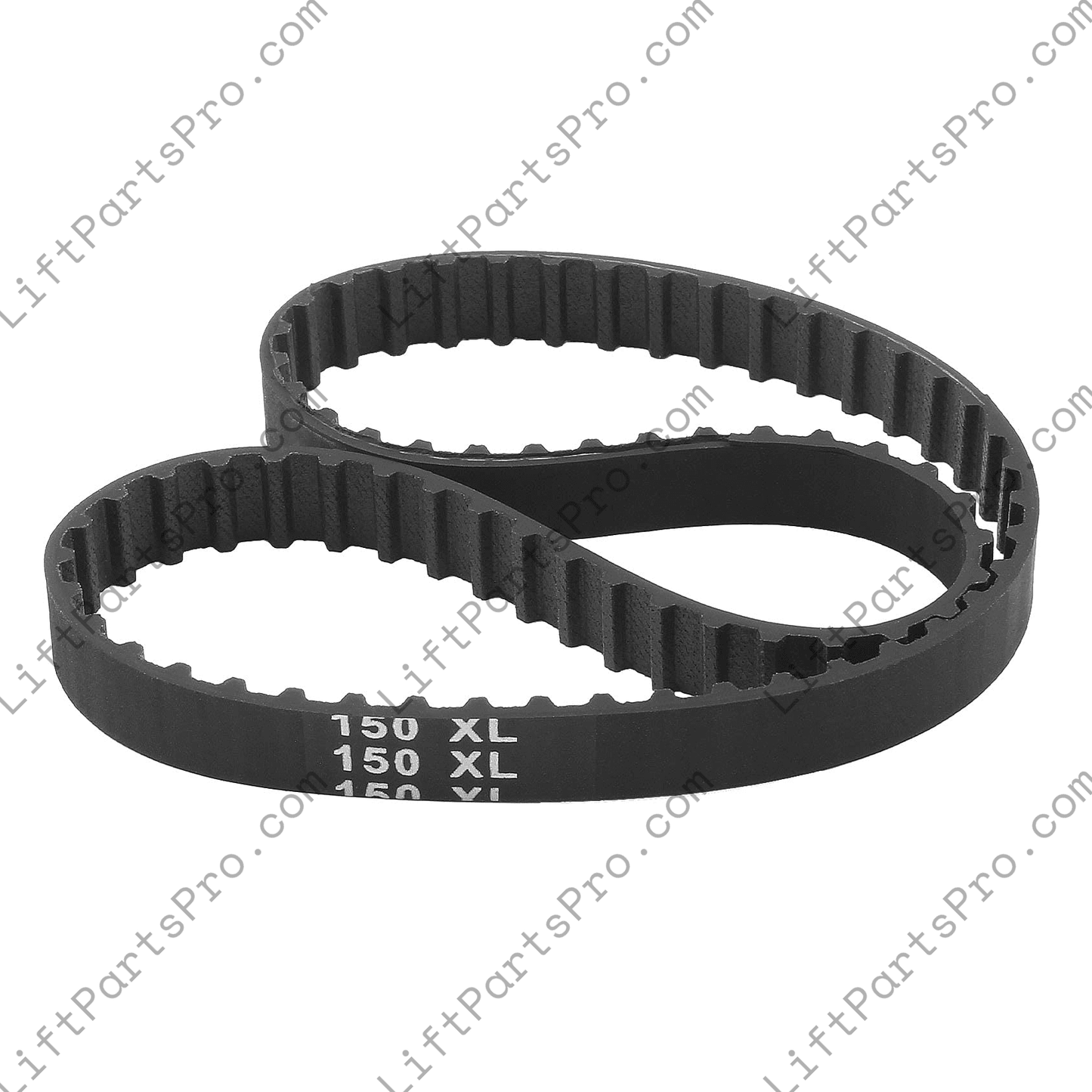

Timing Belt – Cogged XL150 Profile, 15 in – Savaria / Witstrans Replacement

High‑precision 150XL cogged timing belt, 15 in length, ideal for Savaria #103803 & Witstrans applications in lift operators (≤ 160 °F).

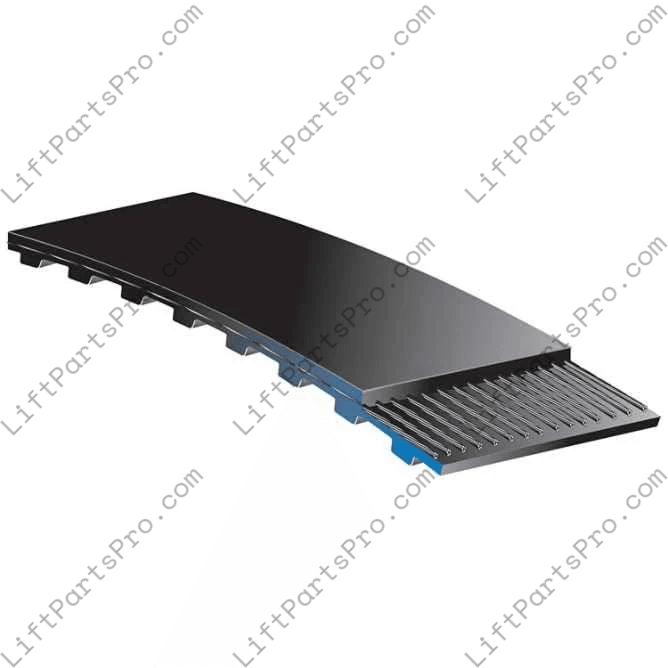

This cogged XL‑pitch timing belt is designed as a direct replacement for Savaria’s #103803 (often labeled “Witstrans 150XL”) and is commonly used in Commander gate operators in many Savaria lifts. The belt features a trapezoidal tooth profile, durable neoprene elastomer body, and fiberglass tensile cords for dimensional stability, wear resistance, and long life. It’s optimized for synchronous drives in elevator and lift control systems where precise timing is essential.

Specifications

• Belt series / profile: XL (0.200 in / 5.08 mm pitch)
• Number of teeth: 75
• Pitch (tooth spacing): 0.200 in (5.08 mm)
• Pitch (belt length): 15.000 in (381.0 mm)
• Overall width: ~0.375 in (9.5 mm)
• Material: Neoprene (rubber body)
• Tensile cord / reinforcement: Fiberglass (glass fiber)
• Tooth facing: Nylon fabric (wear surface)
• Temperature rating: approx. –22 °F to +212 °F (–30 °C to +100 °C)
• Resistance characteristics: Oil- and heat-resistant design

This belt matches the dimensional and performance parameters of the original Witstrans 150XL series and ensures reliable meshing with mating pulleys in Savaria lift systems.

For use in Commander gate operators and other Savaria lift drive systems, this belt delivers compatible geometry and strength to maintain synchronization of drive components.

As with all our lift component parts, always have a qualified technician verify fit, alignment, and drive conditions before operation. Proper installation by trained personnel helps ensure safe, reliable performance.
