500VA UPS Battery Backup for Savaria & TK Access LEV Lifts

This standby uninterruptible power supply provides battery-backed AC power for compatible accessibility lift and home elevator control systems. It is commonly found in select Savaria and Concord equipment, including Eclipse applications, as well as ThyssenKrupp Access LEV home elevators.

Available in both 120VAC and 230VAC configurations, this listing allows the appropriate UPS to be selected according to the electrical requirements of the lift.

Both versions provide a 500VA / 300W power rating and use a maintenance-free sealed lead-acid battery. The compact tower-style enclosure is designed for installations where this style of UPS was originally incorporated into the lift or elevator system.

Because the two variants use different input voltages and electrical connections, they are not interchangeable solely on the basis of their 500VA power rating. The voltage and connection requirements of the existing equipment should be confirmed before ordering.

• Replaces: Savaria/Concord #105652 and TK LEV #2154901
• Power Capacity: 500VA / 300W
• Available Voltage Configurations: 120VAC and 230VAC
• Output Waveform: Stepped approximation to a sine wave
• Typical Transfer Time: 6 ms
• Maximum Transfer Time: 10 ms
• Battery Type: Maintenance-free sealed lead-acid
• Battery Voltage: 12VDC
• Typical Battery Recharge Time: Approximately 8 hours
• 120VAC Input Connection: NEMA 5-15P
• 120VAC Output Connections: 6 NEMA 5-15R outlets
• 120VAC Battery-Backed Outlets: 3
• 120VAC Surge-Only Outlets: 3

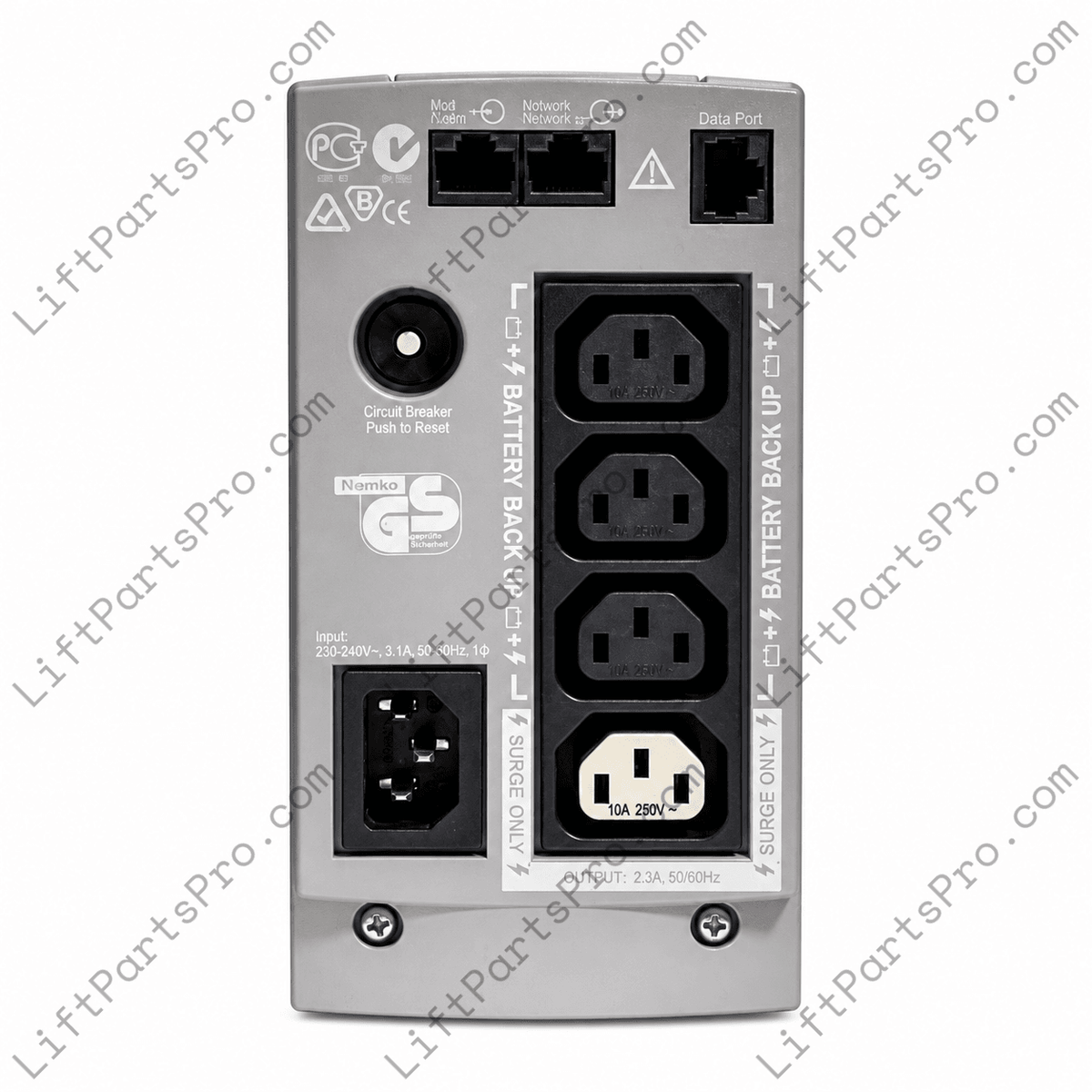

• 230VAC Input Connection: IEC 60320 C14
• 230VAC Output Connections: 4 IEC 60320 C13 outlets
• Form Factor: Tower
• Height: 6.50 in. (16.5 cm)
• Width: 3.58 in. (9.1 cm)
• Depth: 11.18 in. (28.4 cm)
• Operating Temperature: 32–104°F (0–40°C)
• Applications: Select accessibility lifts and home elevator systems

Correct voltage, electrical connections, and equipment compatibility should be verified before installation. UPS replacement and installation should be performed by qualified personnel in accordance with the lift manufacturer's requirements and all applicable electrical and safety standards.
