Durable 18mm photoelectric sensor for Inclinator elevators, replacing #27304348. Detects up to 15 ft using retroreflective infrared technology. Requires integration into existing wiring.

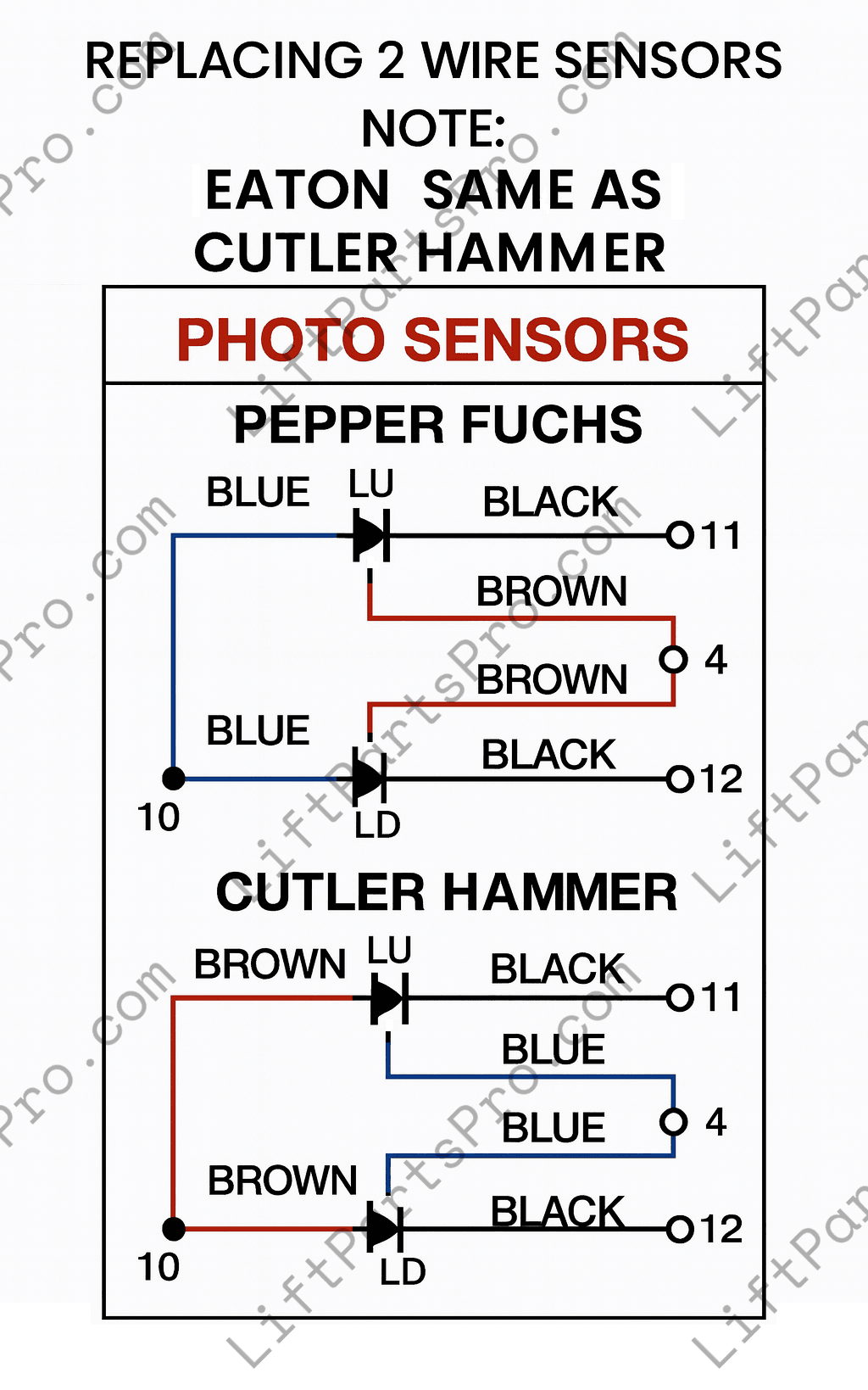

This photo eye replaces legacy two-wire sensors commonly found in older systems. It features a modern four-wire configuration, and the included wiring diagram (shown in product images) provides clear guidance for adapting it to existing setups.

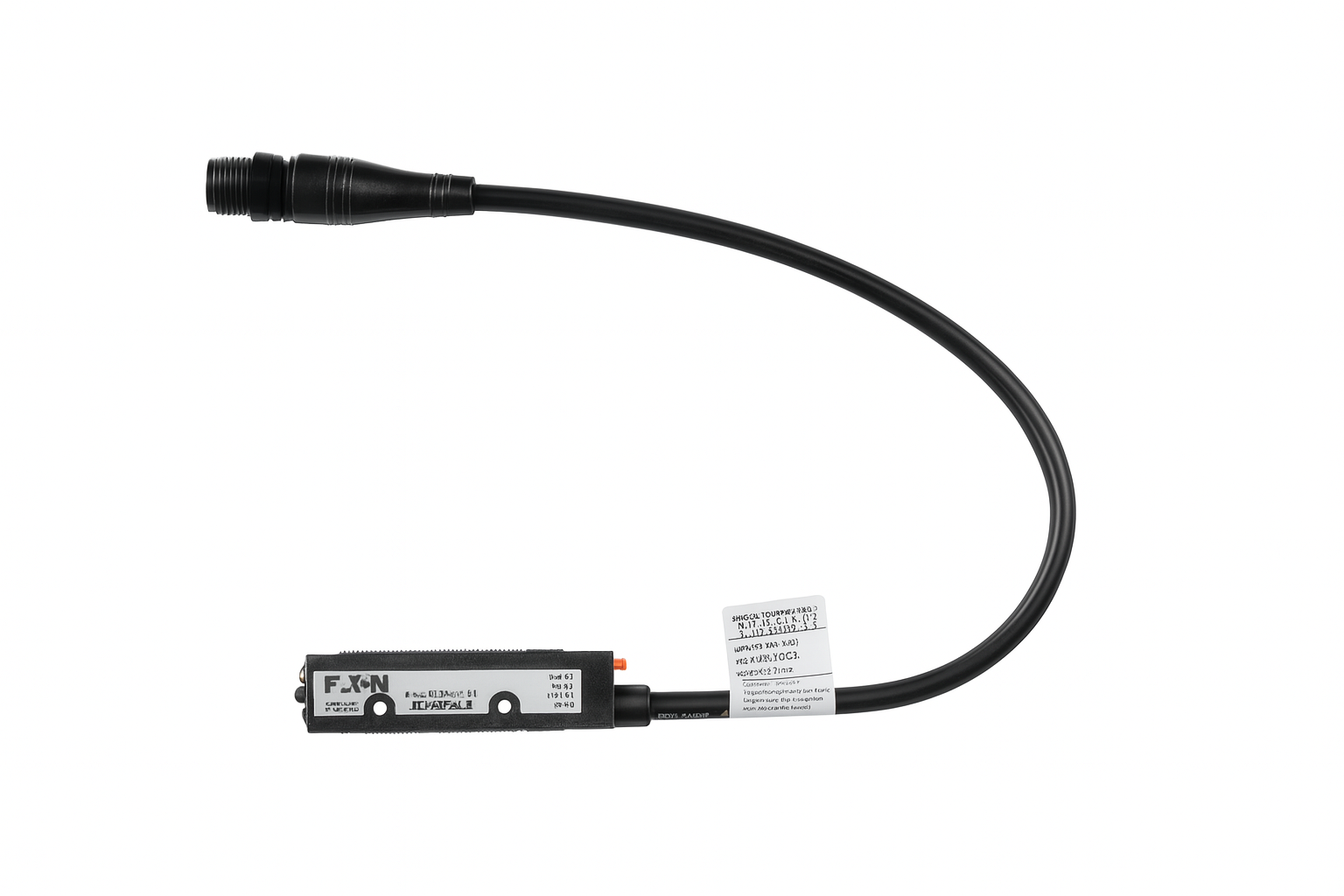

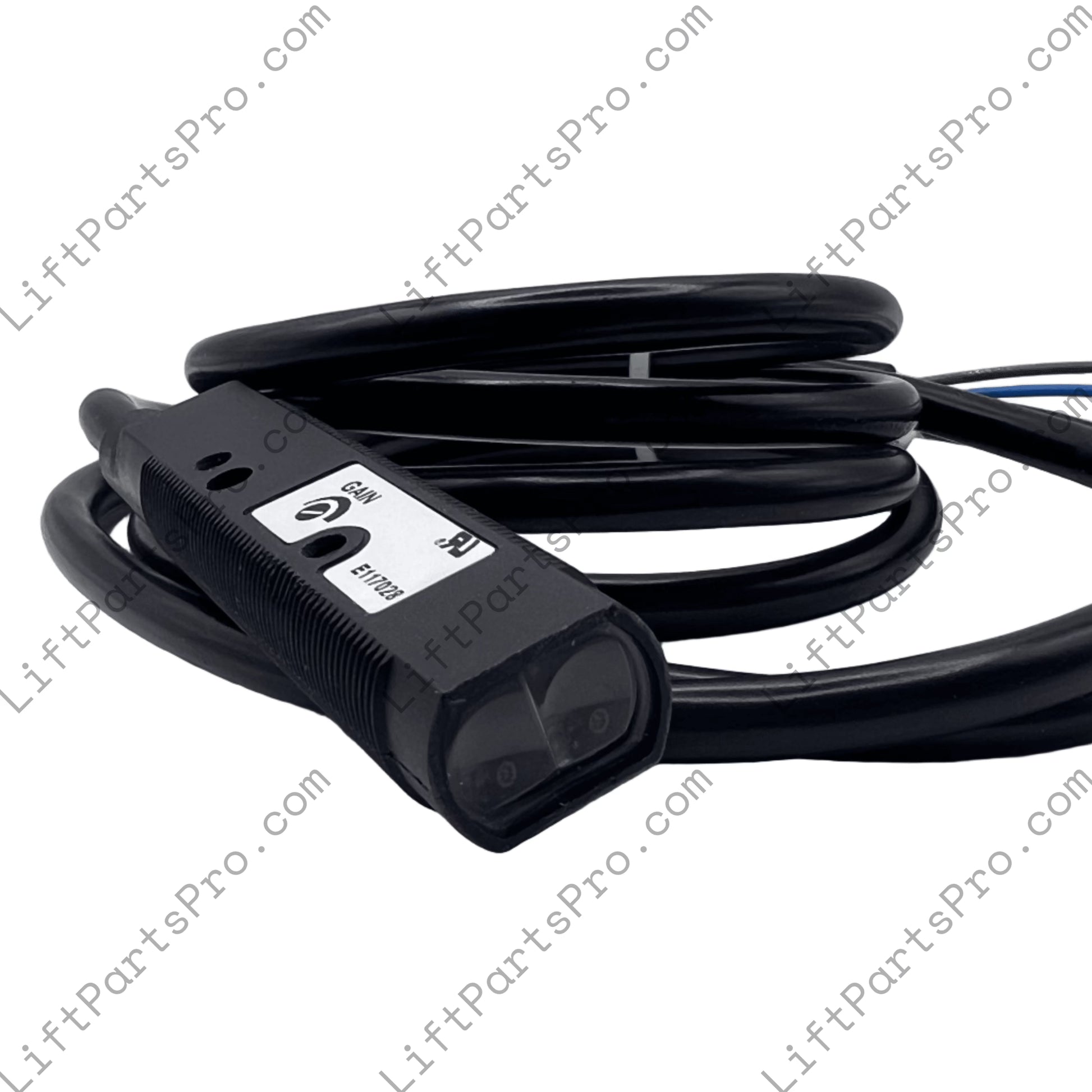

This replacement photo eye serves as a non-polarized, retroreflective infrared sensor designed to replace HIH Photo Leveling Eyes commonly found in Inclinator elevator systems. Often referred to as a photoelectric sensor, optical switch, or I/R detector, it uses forward-viewing infrared to detect reflective surfaces up to 15 feet away. Its solid-state relay output provides fast 3 ms response time, ideal for precise leveling applications. The robust housing includes an LED indicator and is rated for wet or dusty environments. This sensor is supplied with a pre-attached cable and must be wired into the elevator's existing electrical harness by a qualified technician.
- Sensor type: retroreflective / prism tubular photoelectric (forward viewing)
- Sensing distance: 15 ft (≈ 4.57 m)
- Input voltage: 20–132 VAC or 15–30 VDC
- Output / contact rating: isolated solid‑state relay, 80 mA at 132 VAC / 110 mA at 132 VDC

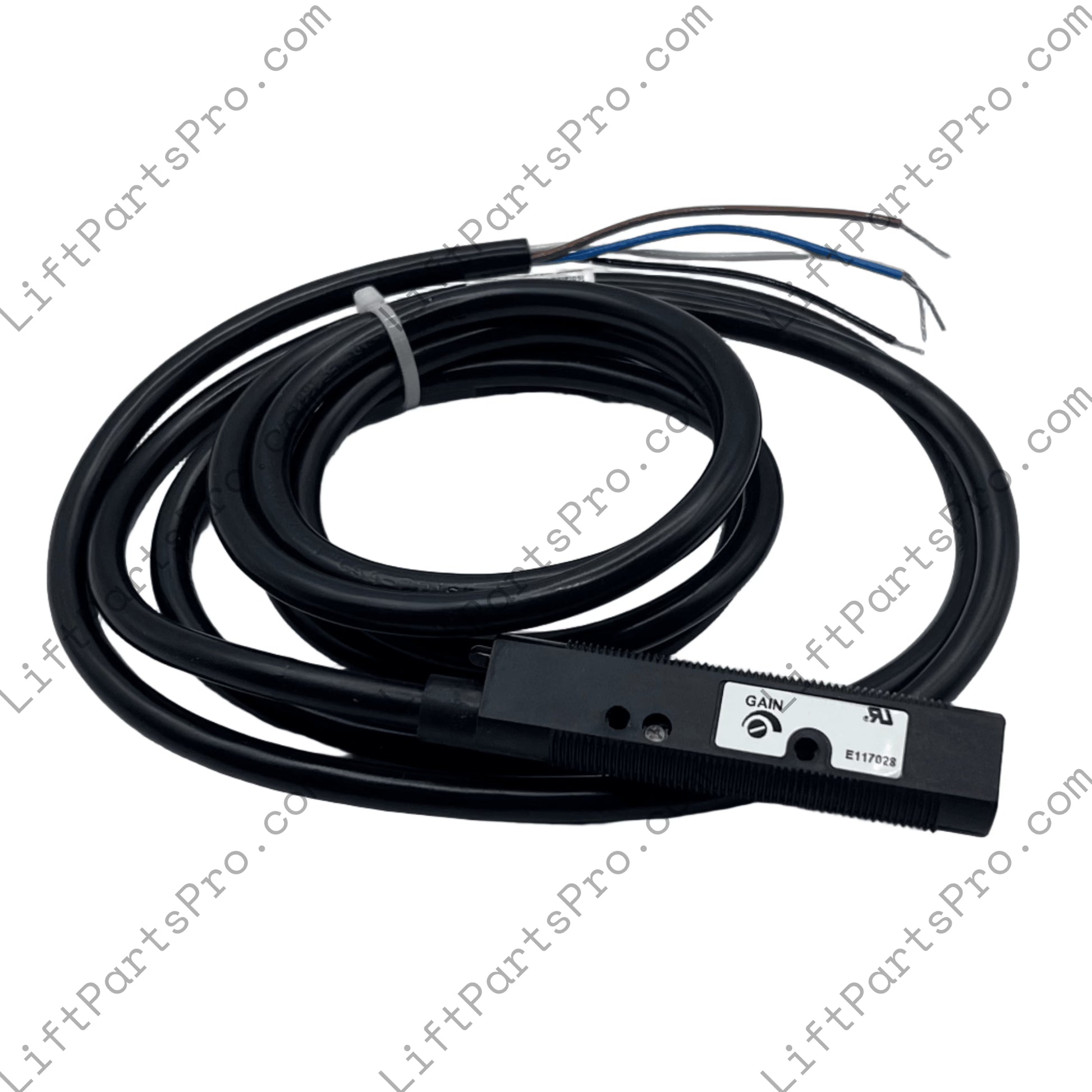

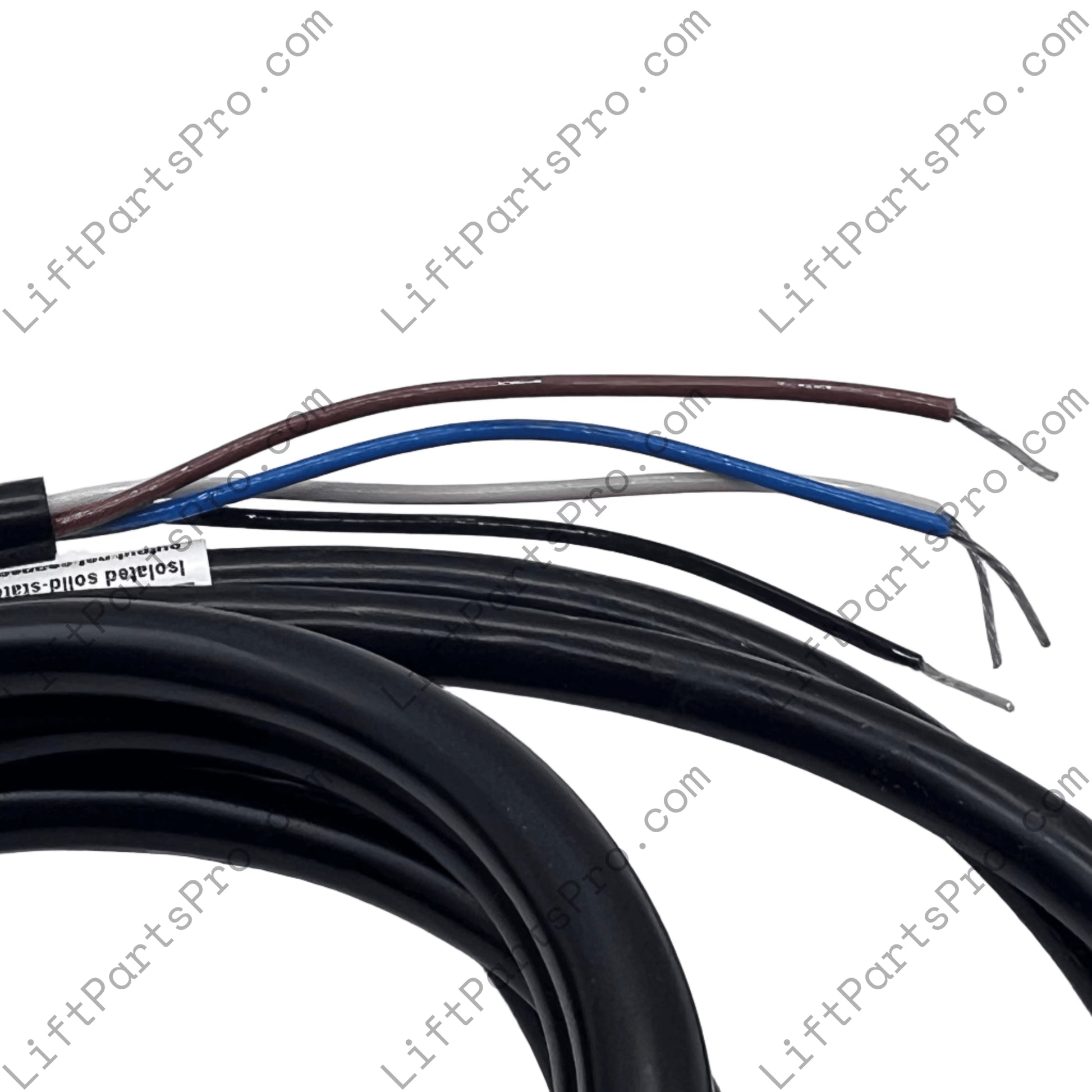

- Cable: 6.6 ft (2 m), PVC jacket
- Response time: ≈ 3 ms
- Enclosure / housing materials: lens in polycarbonate; body in structural polyurethane; cable jacket PVC
- Operating temperature range: –13 °F to 131 °F (approx)
- Environmental / protection ratings: supports NEMA 1, 3, 4, 4X, 6, 6P, 12, 13

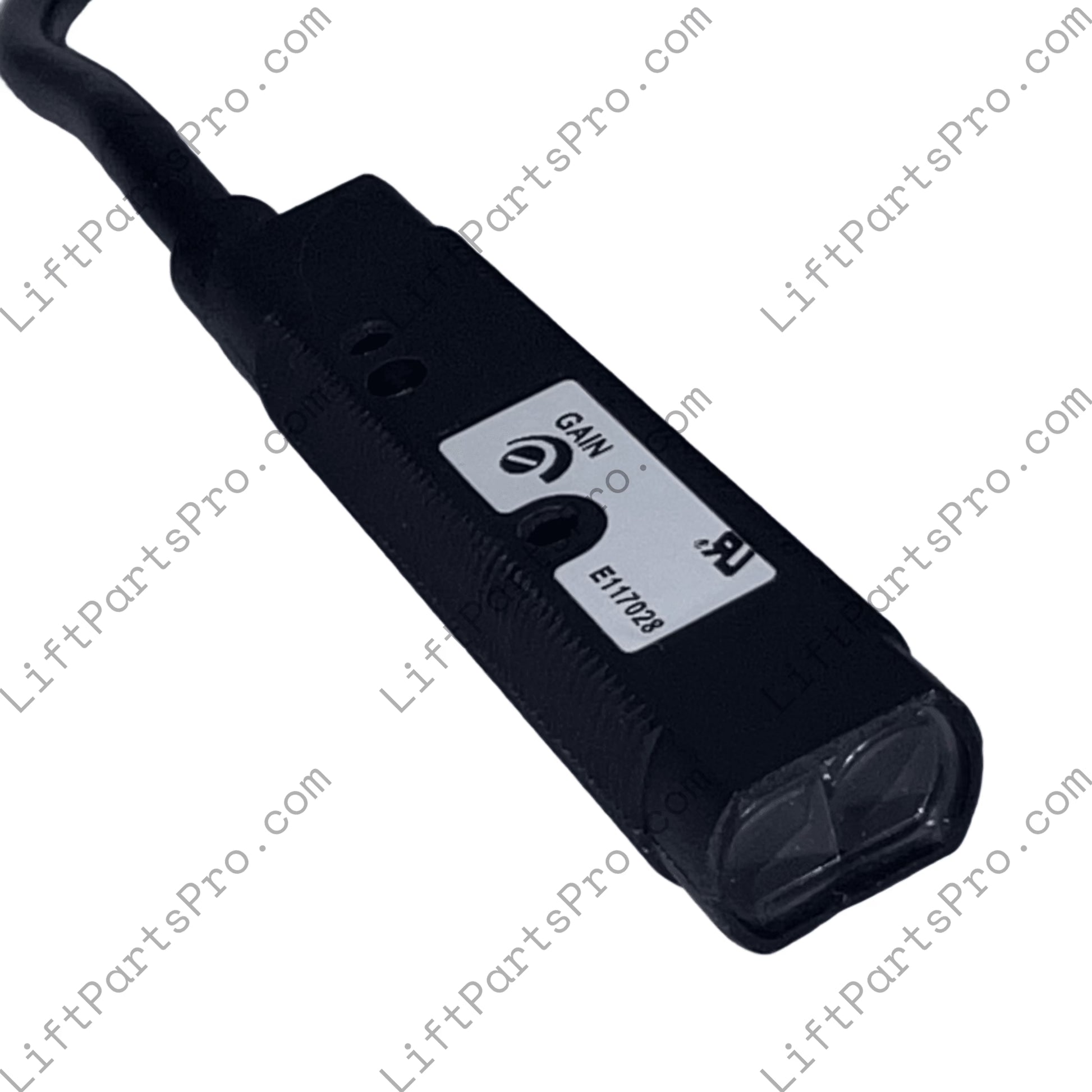

- LED indicator: output status red LED
- Dimensions (approx): 0.47 in depth × 0.71 in width × 2.75 in height
- Weight: ~0.2875 lb
- Replacement for Part Number 27304348
All elevator components should be installed by licensed professionals familiar with accessibility lift systems. Proper integration ensures long-term safety and reliable operation.
