Replacement Pan Switch Assembly for Savaria Telecab

This replacement microswitch and actuator assembly is designed to serve as a pan switch for many Savaria Telecab vertical lift models. Includes the Omron snap-action switch and reverse hinge lever actuator.

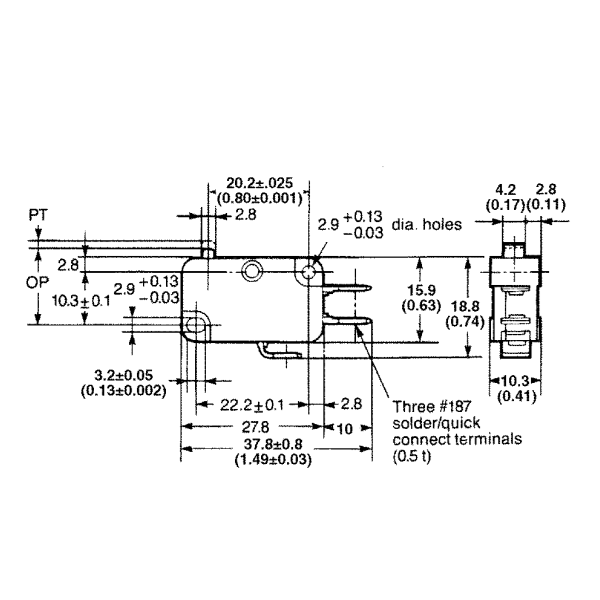

This preassembled unit combines a high-reliability Omron switch with a rugged stainless-steel lever arm. The switch features a thermoset housing with quick-connect terminals and SPDT contacts, delivering consistent electrical performance even in demanding mechanical environments. The actuator arm is engineered for reverse-motion triggering, offering generous overtravel and high resistance to shock and vibration—ideal for elevator-style platform lifts.

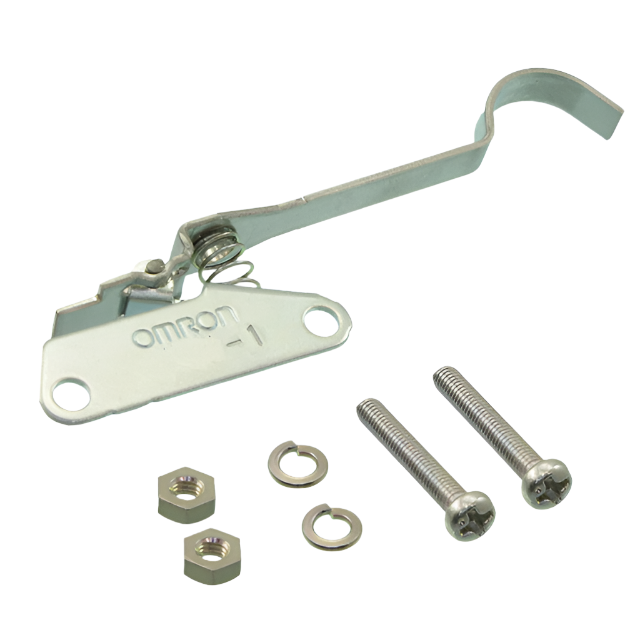

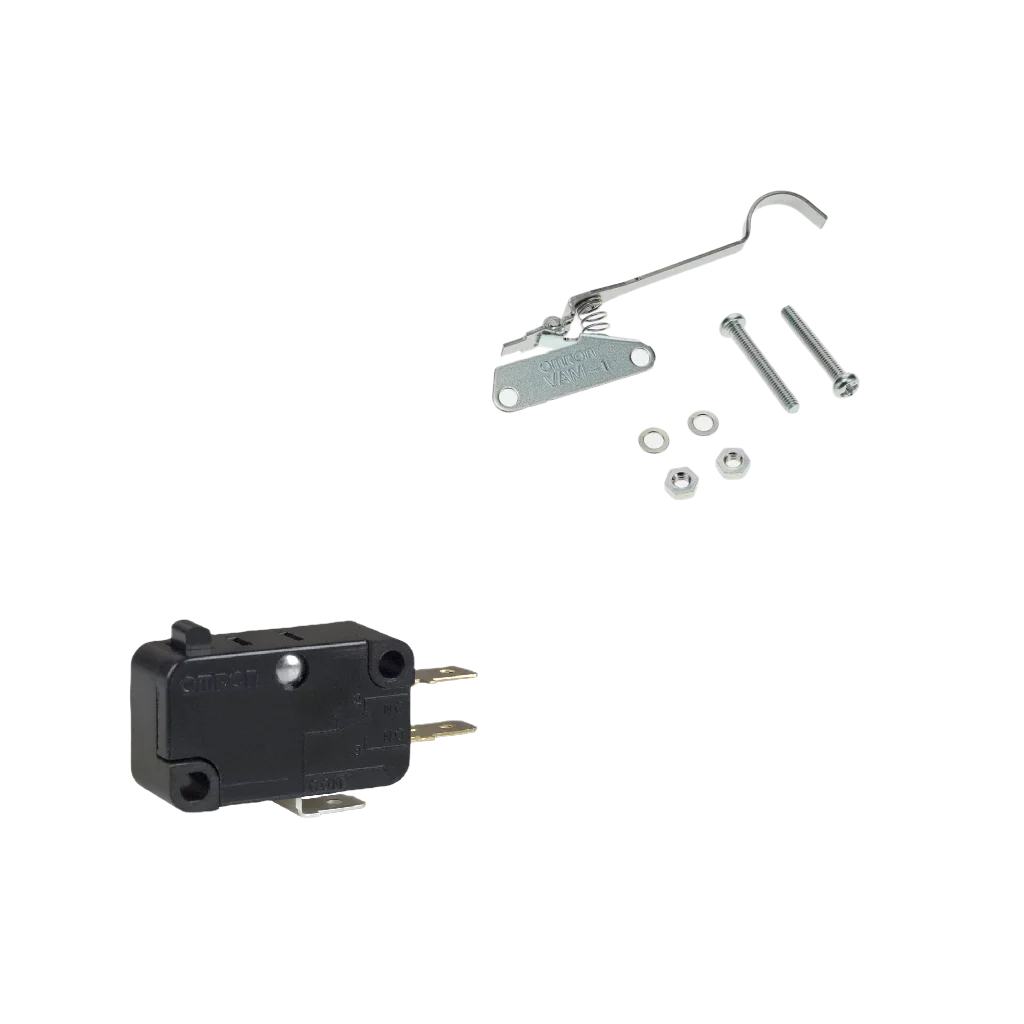

The kit includes the fully assembled switch and actuator arm, plus mounting screws, washers, and nuts. Suitable for most Savaria Telecab configurations; users should verify actuator shape and dimensions against existing hardware to ensure compatibility.

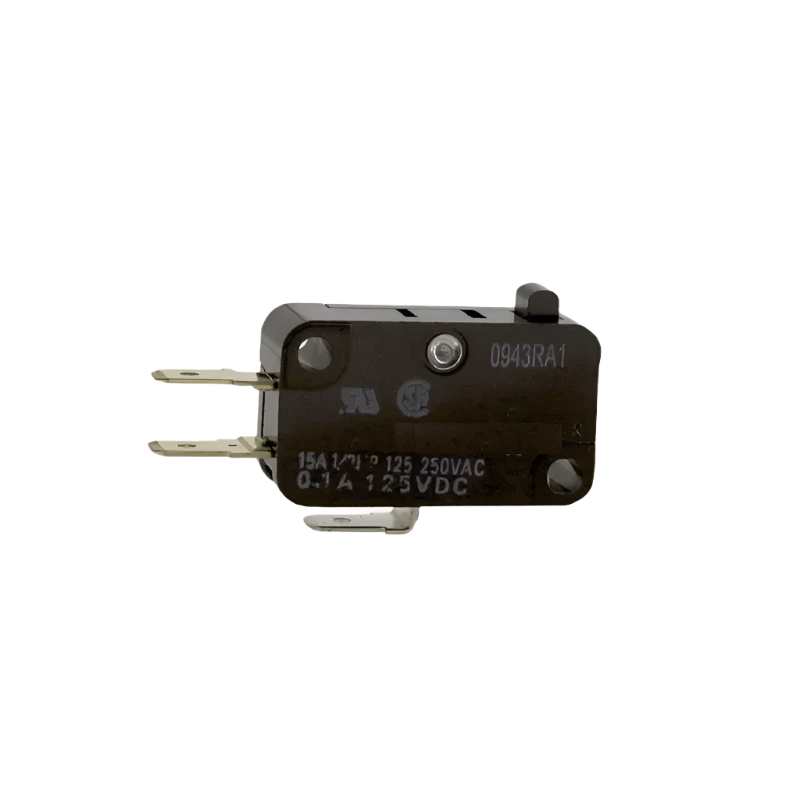

• Rated Load: 15 A @ 250 VAC, 0.1 A @ 125 VDC
• Contact Type: Single-Pole Double-Throw (SPDT)
• Operating Force: 2.94 N (300 gf)
• Overtravel: 5 mm (minimum)
• Differential Travel: 6 mm (maximum)
• Free Position: 47 mm
• Operating Position: 30 ± 5 mm
• Housing Material: Thermoset resin

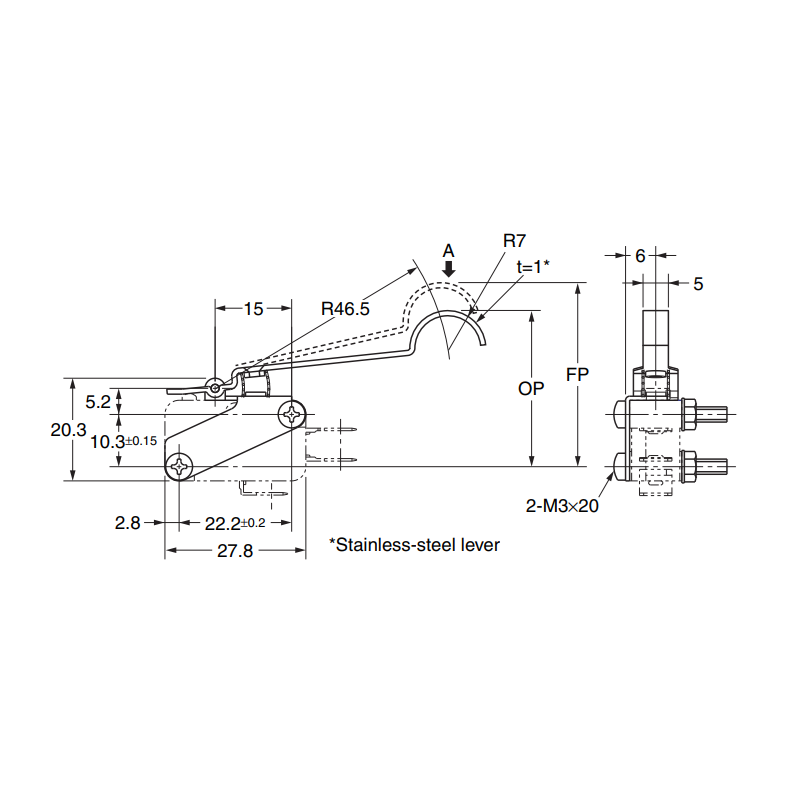

• Actuator Material: Stainless steel (hinged lever with radius tip)
• Mounting: 2 × M3 screws (included)
• Terminals: Quick-connect (#187 series)

This part is built to meet stringent electrical and mechanical standards for long service life and consistent actuation. For optimal performance and safety, installation should be performed by qualified personnel familiar with lift system components. Always confirm the fit and function before applying power.
