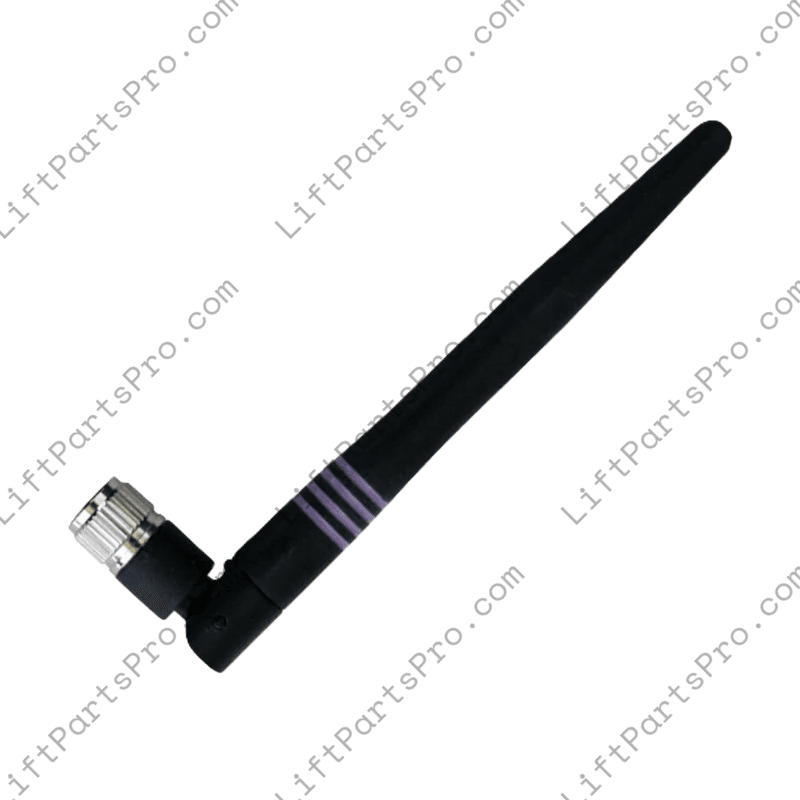

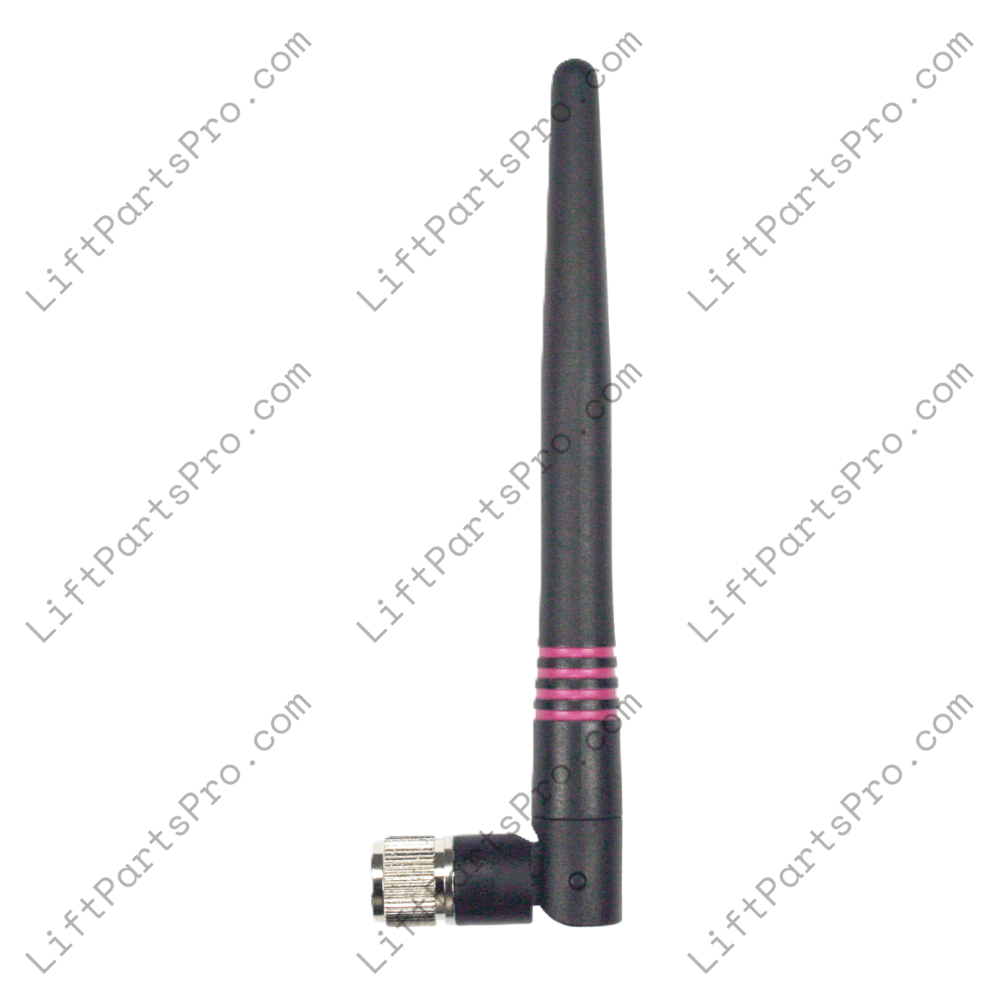

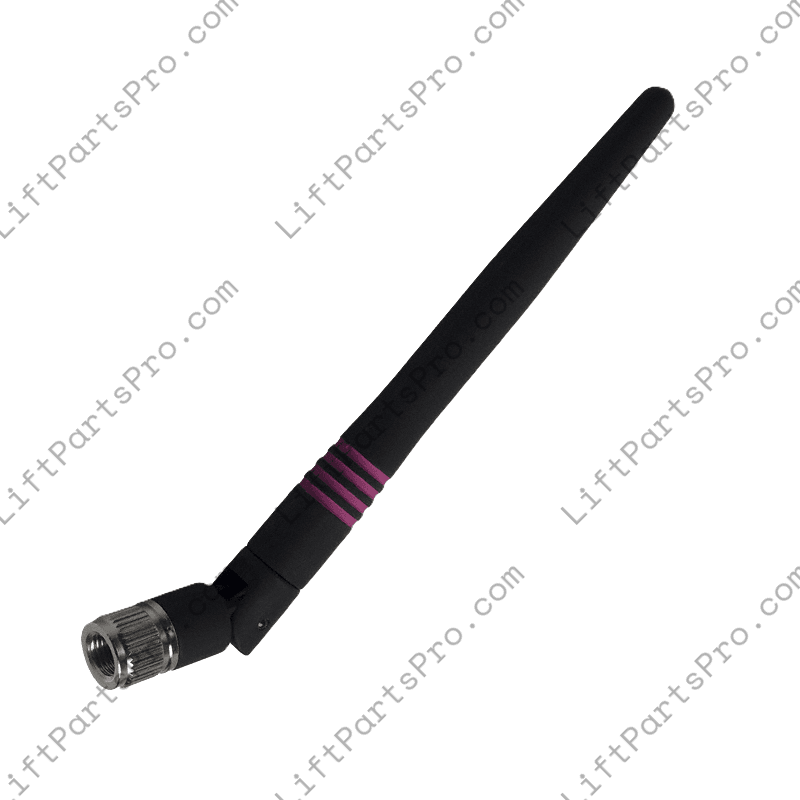

Replacement Antenna for Bruno Stairlifts

Stair lift remote antenna for Bruno curved lifts—a 2.4 GHz tilt‑and‑swivel whip ensuring reliable remote control signal reception.

Specifications:

• Frequency range: 2.4 GHz – 2.5 GHz (centered at 2.4 GHz)
• Gain: 2.2 dBi
• VSWR: 1.9 or less
• Termination: RP‑SMA male connector
• Antenna type: Whip, single‑band, tilt/swivel “terminal/duck” style
• Mounting: Connector‑mount (stud/screw/lug) external mounting
• Height/Length: Maximum 4.449 in (113 mm)
• Impedance: 50 Ω
• Weight: Approximately 10.75 g (~0.38 oz)
• Directionality: Omnidirectional
• Communication standards: Bluetooth, Thread, Wi‑Fi, Zigbee (2.4 GHz ISM band)

This antenna is designed for dependable remote‑control signal reception on stairlifts like Bruno’s CRE‑2110. Built as a tilt‑and‑swivel 2.4 GHz whip that mounts via RP‑SMA connector, it ensures a secure and responsive connection within the tight confines of curved stairlift rails. Its flexible articulation helps align reception optimally, while the compact form integrates seamlessly with the lift’s profile.
