Regen Drive - Harmar, AmeriGlide, and Others

Compatible with AmeriGlide and Harmar Vertical Platform Lifts (VPLs) and Dumbwaiters, particularly the Hercules models

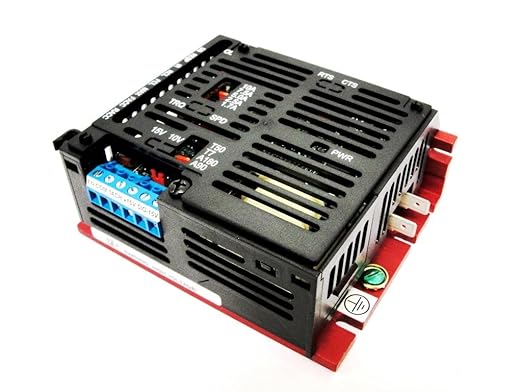

Overview: This reversing power supply is an ultra-compact, full-wave regenerative drive designed to operate DC permanent magnet (PM) or shunt motors in a bidirectional mode. Its four-quadrant operation provides forward and reverse torque in both speed directions, allowing for precise control in applications such as vertical platform lifts and dumbwaiters.

Key Features:

• Versatile Motor Compatibility: Capable of controlling DC PM or shunt motors ranging from 1/10 to 2 horsepower, depending on input voltage and auxiliary heat sinking. ​
• Selectable Operating Modes: Offers speed or torque control modes to suit various application requirements. ​
• Enhanced Safety and Reliability: Features overspeed protection circuits and KB's Auto Inhibit® function to ensure smooth starting and prevent potential damage. ​
• Compact Design: The ultra-compact chassis allows for easy integration into existing systems without requiring significant space. ​

Specifications:

• Input Voltage: 115/230 VAC, 50/60 Hz​
• Output Voltage: 0 to ±90 VDC (with 115 VAC input) or 0 to ±180 VDC (with 230 VAC input)​
• Current Rating: Up to 11.0 ADC with auxiliary heatsink​
• Horsepower Range: Up to 1.0 HP at 90 VDC and 2.0 HP at 180 VDC with auxiliary heatsink
• Operating Temperature: 0 to 50°C ambient​
• Speed Range: 50:1​
• Load Regulation: ±1% of base speed​

Applications: Ideal for use in AmeriGlide and Harmar vertical platform lifts and dumbwaiters, especially the Hercules models, where precise motor control and reliability are essential.

⚠ Note: For optimal performance, ensure proper installation and configuration as per the manufacturer's guidelines. Recommended to take a photo of original wiring configuration as reference for this replacement.
