Red Ring Micro‑Motion III Push Button – Otis Replacement
Red Ring Micro‑Motion III Push Button – Otis Replacement
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
SKU: PB.OTIS.RED
Condition: New
Couldn't load pickup availability
Highly visible, flat flush Red LED pushbutton button for Otis elevators; direct replacement for AAA23500CC1 & AAA23500AK1, with “AAA CH1” marking.
This pushbutton is a sturdy, flat (flush) target OTA Micro‑Motion III style pushbutton, featuring Red LED illumination. It is compatible with 24‑V Otis control systems and is used in hall call or car operator panel (COP) fixtures.
Specifications:

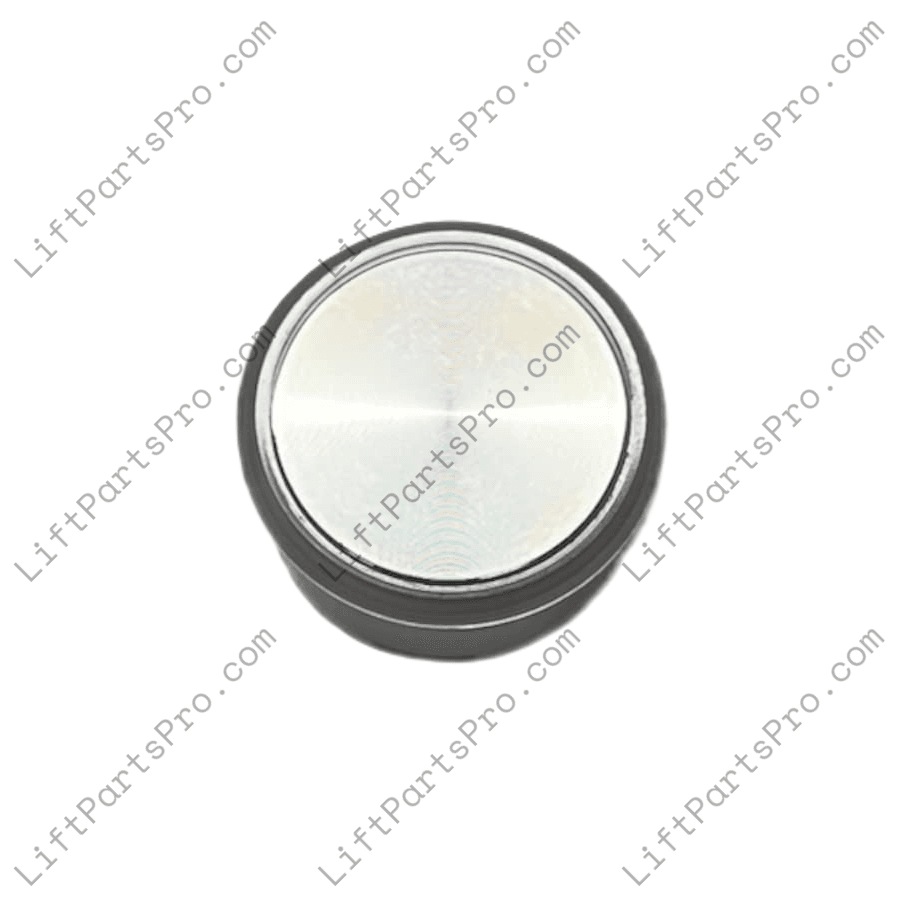

- Target/profile: flat flush design (no projection)
- LED color: red illumination
- Voltage rating: 24 V DC nominal (used with AMP style connector)

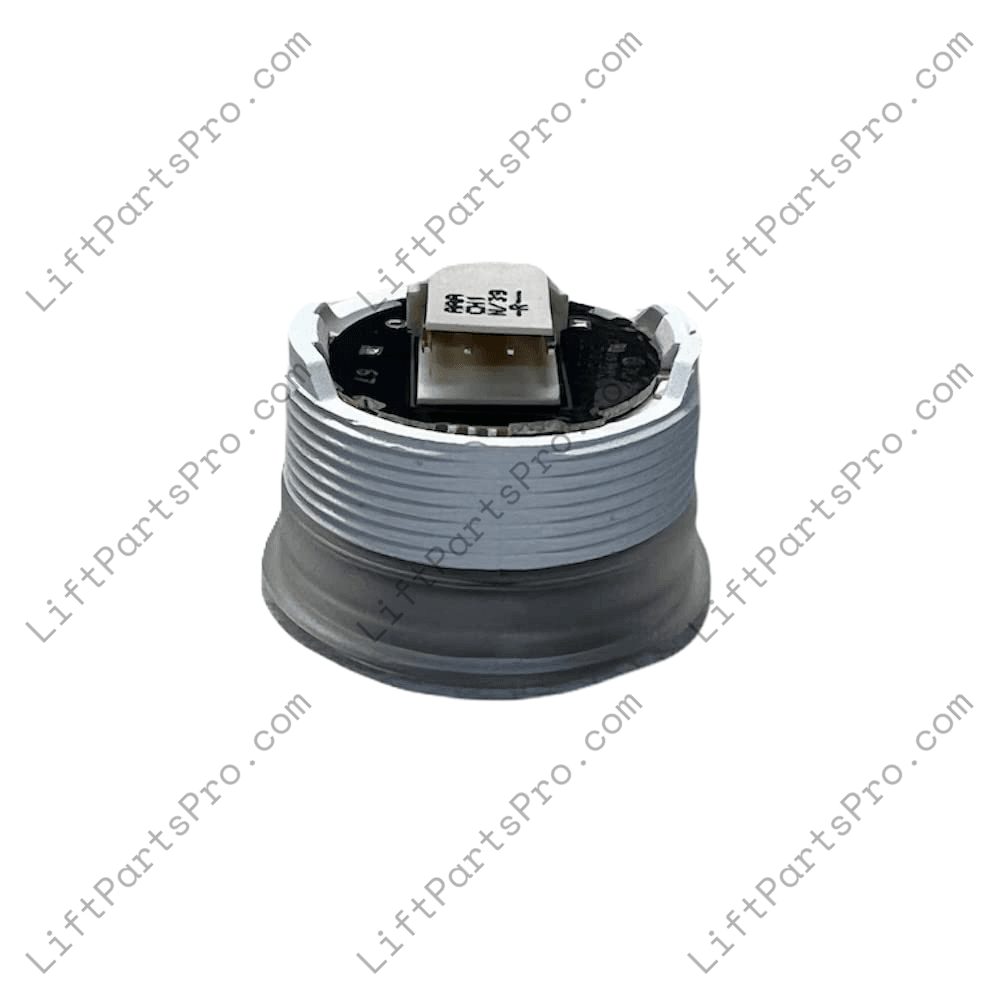

- Connector type: 4‑position AMP plug connector
- Finish: brushed stainless steel (SS4) with red lighted clear ring body (halo)
- Supersedes part numbers: AAA23500CC1 and AAA23500AK1

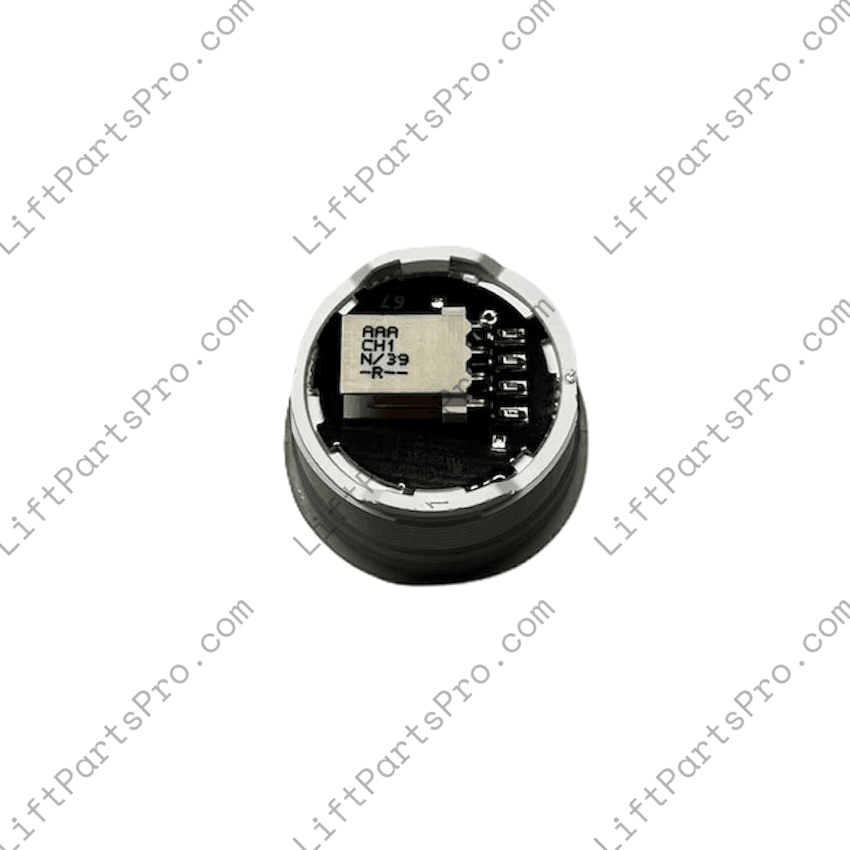

- “AAA CH1” marking on rear for identification
We recommend this pushbutton for replacement in Otis lifts (hall call or COP) that currently use the AAA23500CC1 or AAA23500AK1, or where the “AAA CH1” marking is found.
Please note: installation should be done by qualified elevator technicians. Proper mounting, wiring, and sealing are essential for both safety and reliable operation.
