Recessed Residential Elevator Flush Frame - ASME 17.1-2016 Compliant

Code-compliant 30 x 80 recessed door flush frame with 3/4" ASME setback for improved child safety. Primed finish, left or right hand. Many options available.

This recessed residential door frame, manufactured by Porta, is designed for fast, clean installation in residential elevator applications.

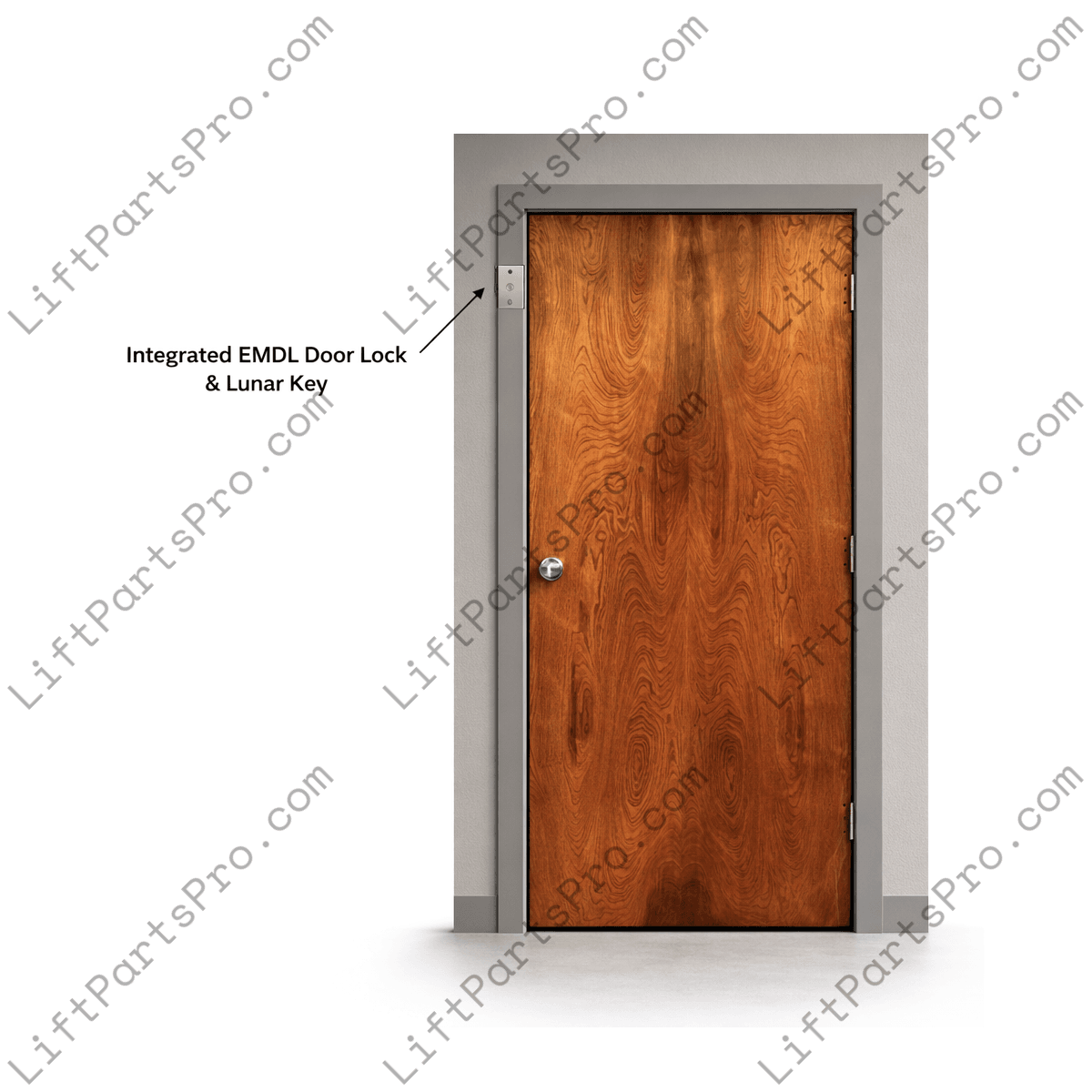

It features an integrated EMDL door lock and a primed surface ready for final finishing. This variant fits standard 30" × 80" rough openings and is available in either left- or right-hand swing orientation.
It includes a keeper plate, ball latch, and pre-drilled mortise, and excludes all optional electronic features like call buttons, position indicators, or keyed switches.

• 3/4" setback clearance per ASME 17.1-2016 section 5.3.1.7.2

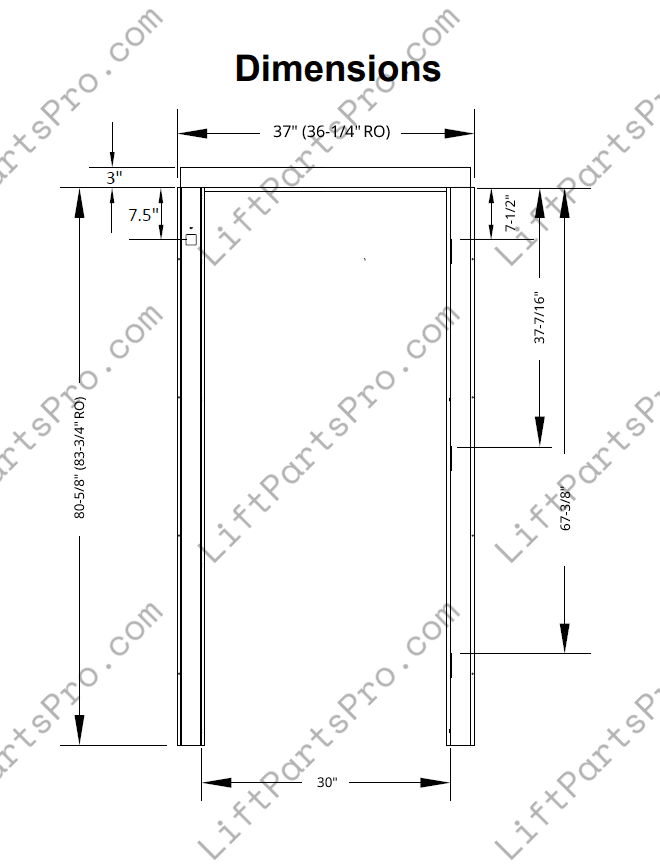

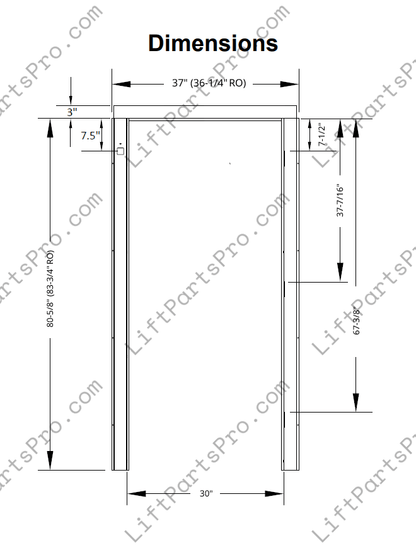

• Sized for 30" width × 80" height rough openings
• Left- or right-hand swing configuration
• Integrated EMDL door lock included

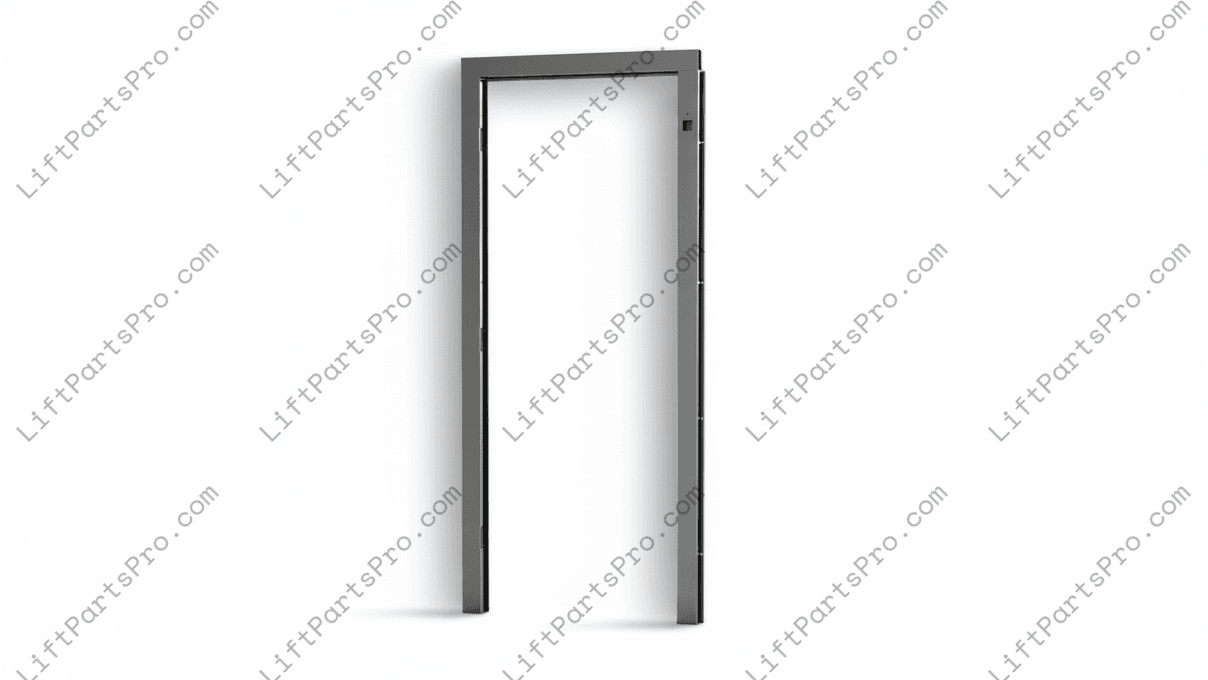

• 3-piece frame design for efficient installation
• Includes keeper plate, ball latch, and mortise prep
• Primed surface ready for paint

Other options such as additional sizing, position indicators, call buttons, keyed switches, and custom powder-coating are available upon request. Please contact us if you require a fully equipped or alternate configuration.

This product contains integrated safety hardware and should be installed only by qualified elevator professionals. All installations must comply with applicable codes and should be inspected for safety and proper function.

Frequently Asked Questions

What sizes are available for this door frame?
This listing includes the 30" × 80" configuration. Other sizes such as 36" × 80", 30" × 96", and 36" × 96" may be available upon request.

Is this door frame code compliant?
Yes. The recessed frame meets ASME 17.1-2016 section 5.3.1.7.2, providing the required 3/4" setback clearance for residential elevator installations.

Is the door frame handed?
Yes. This model is available in both left-hand and right-hand configurations. Be sure to select the correct handing when ordering. (i.e., Left Hand configuration swings out from the cab with the hinges at the right and the handle at the left).

Does this include call buttons, indicators, or key switches?
No. This variant excludes all optional electronics. If you need position indicators, call buttons, or a key switch, please contact us for a fully equipped model.

What components are included with the frame?

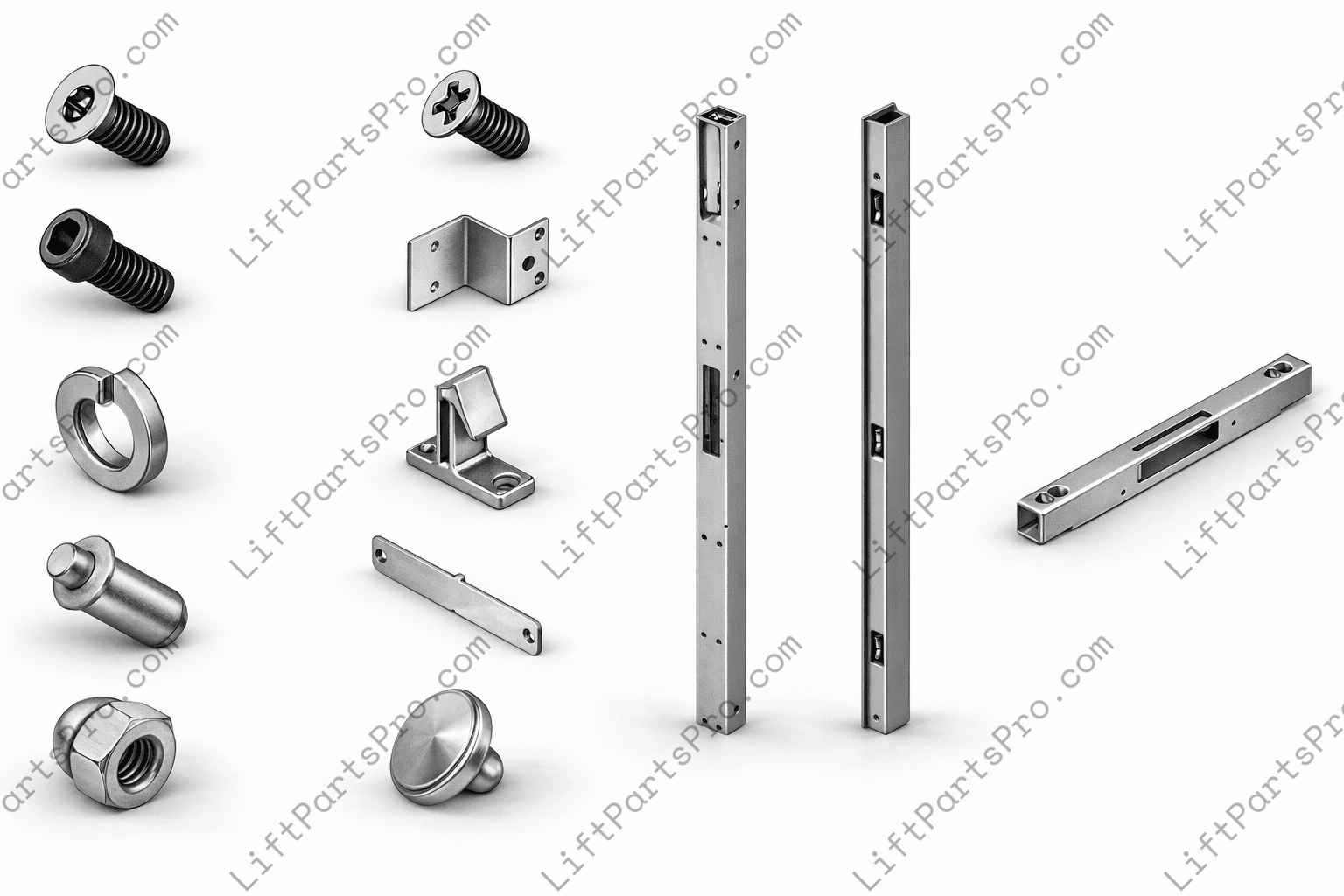

The three-piece frame comes with an integrated EMDL door lock, ball latch, keeper plate, and pre-drilled mortise prep. It arrives primed and ready for final painting. (Additional hardware components are pictured within this listing.)

Is this frame compatible with standard doors and hinges?
Yes. It’s designed for use with a 3-1/2" × 1-3/4" hinge and standard swing door profiles.

Can the frame be trimmed to fit?
Yes. The jambs extend below the floor slab and can be trimmed to accommodate different finished floor heights, while maintaining proper air clearance beneath the door.

Who should install this product?
Installation should only be performed by a qualified elevator technician who understands safety device functionality and local code requirements.
