RAM Trus-T-Lift Up/Down Toggle Switch Lever

This modular switch system is commonly used as the UP/DOWN control switch on RAM vertical platform lifts, including the Trus-T-Lift TTL750. Choose the complete switch assembly or individual components for replacement and repair applications.

The complete assembly consists of a black 3-position momentary toggle operator, two normally open contact blocks, and a three-position contact block holder. The toggle is spring-return from either operating direction to the center position, making it suitable for momentary UP/DOWN lift controls.

Available variants include the Complete UP/DOWN Toggle Switch Assembly, Normally Open Contact Block, 3-Position Momentary Toggle Switch, and 3-Block Contact Holder.

• Application: UP/DOWN control switch for RAM vertical platform lifts
• Compatible lift: Commonly used on RAM Trus-T-Lift models including TTL750

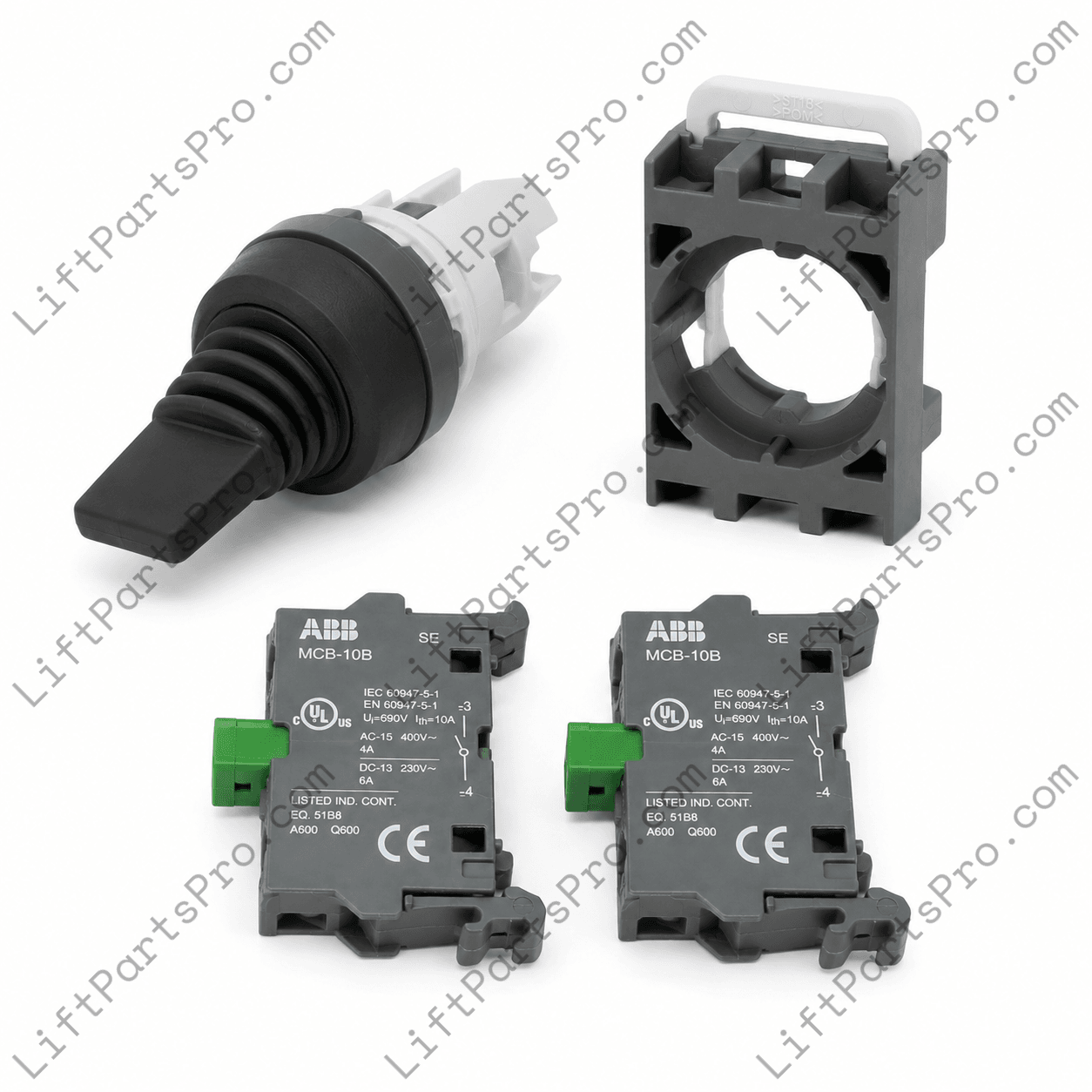

• Complete assembly: Toggle operator, 2 normally open contact blocks, and contact holder

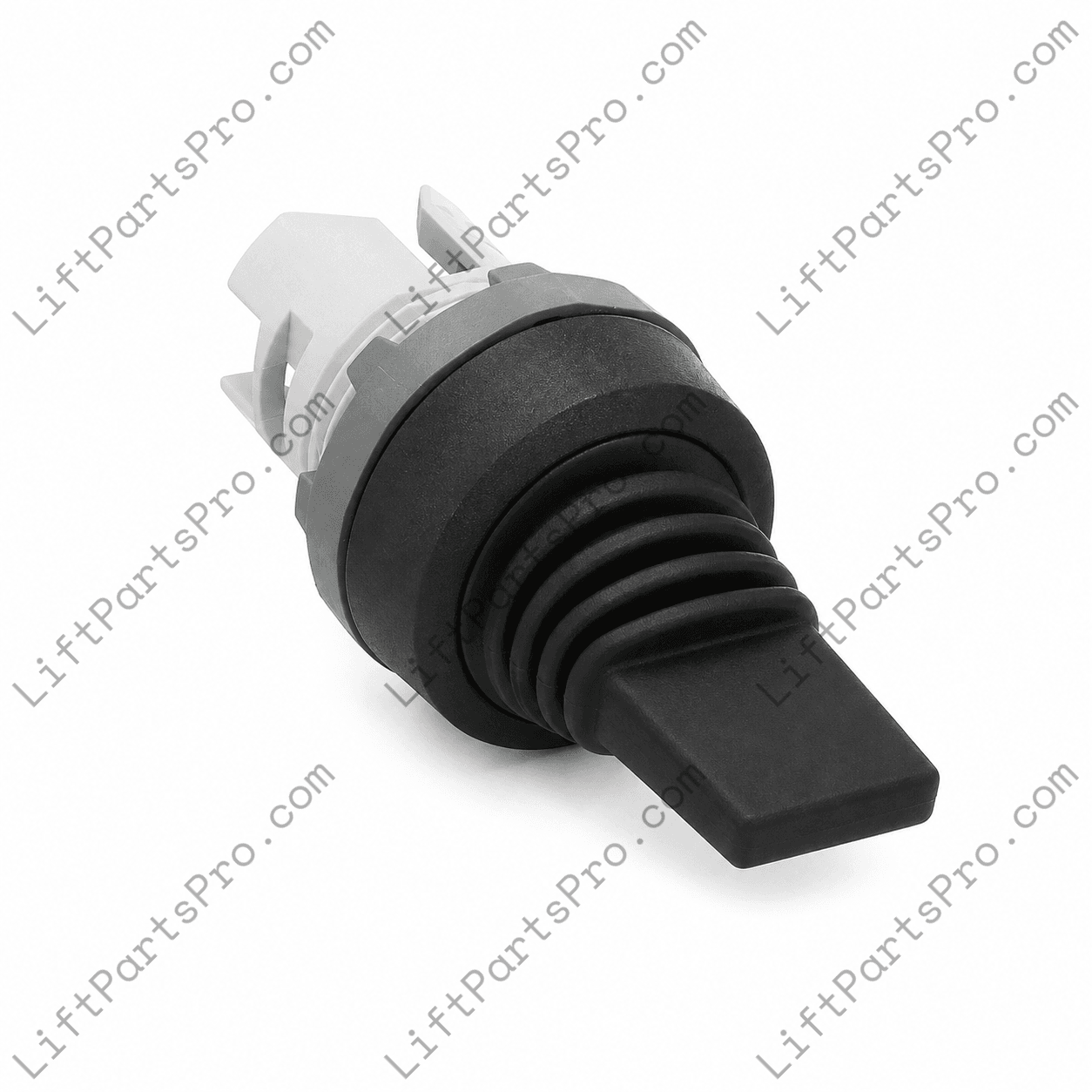

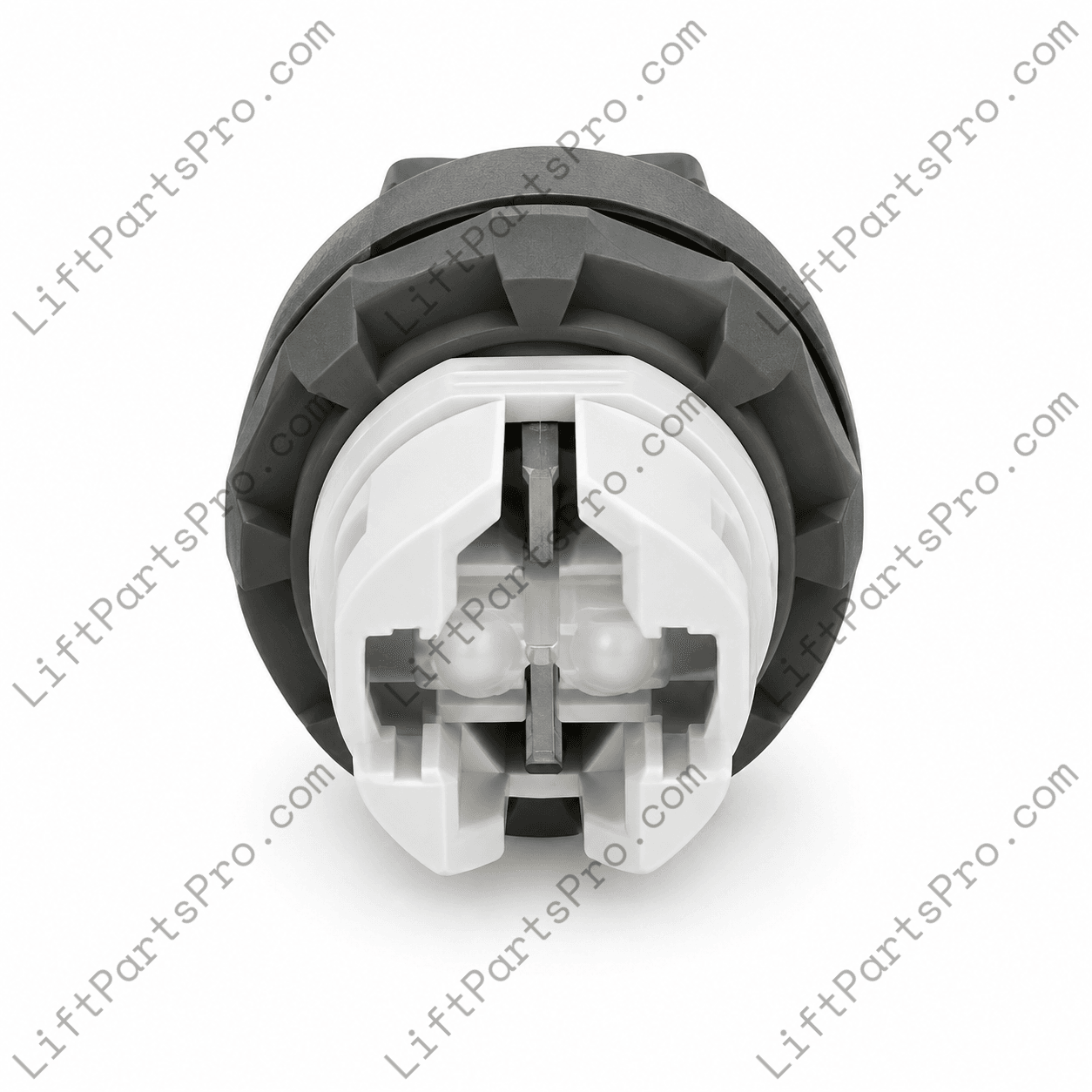

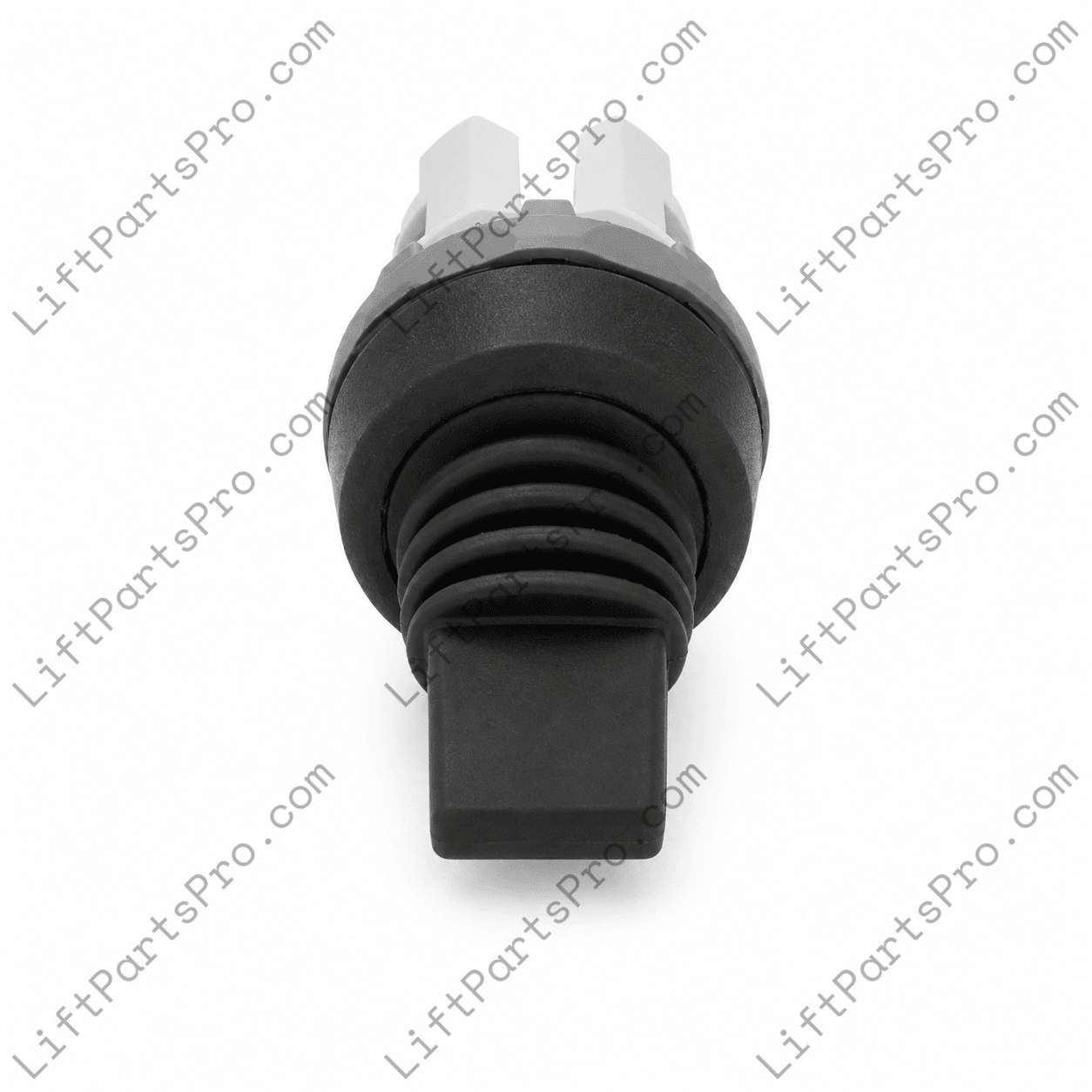

• Switch operation: 3-position momentary
• Return function: Spring return from both operating positions to center
• Toggle color: Black
• Bezel: Black plastic
• Illumination: Non-illuminated
• Mounting system: Modular 22 mm pilot-device system

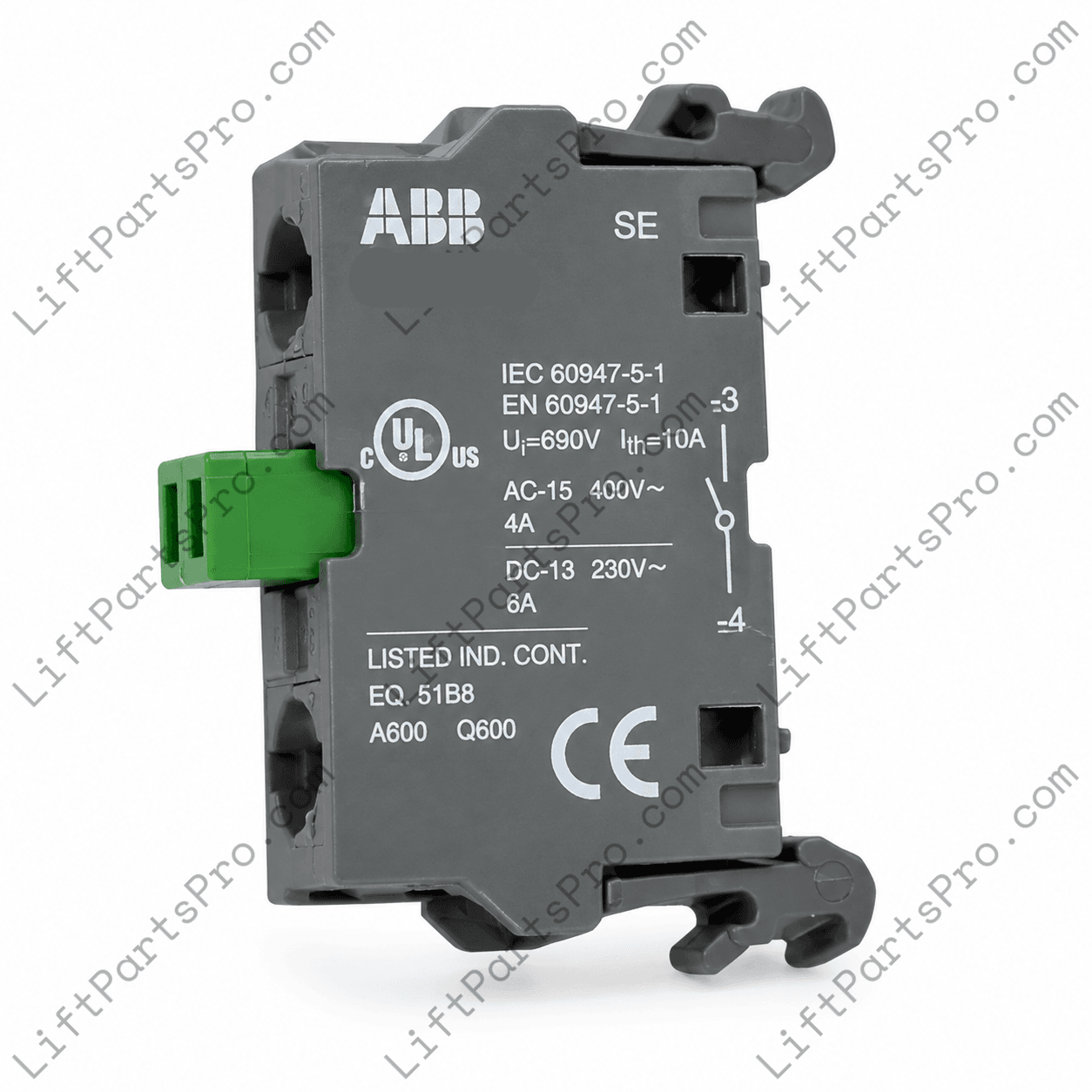

• Contact block: 1 normally open contact per block

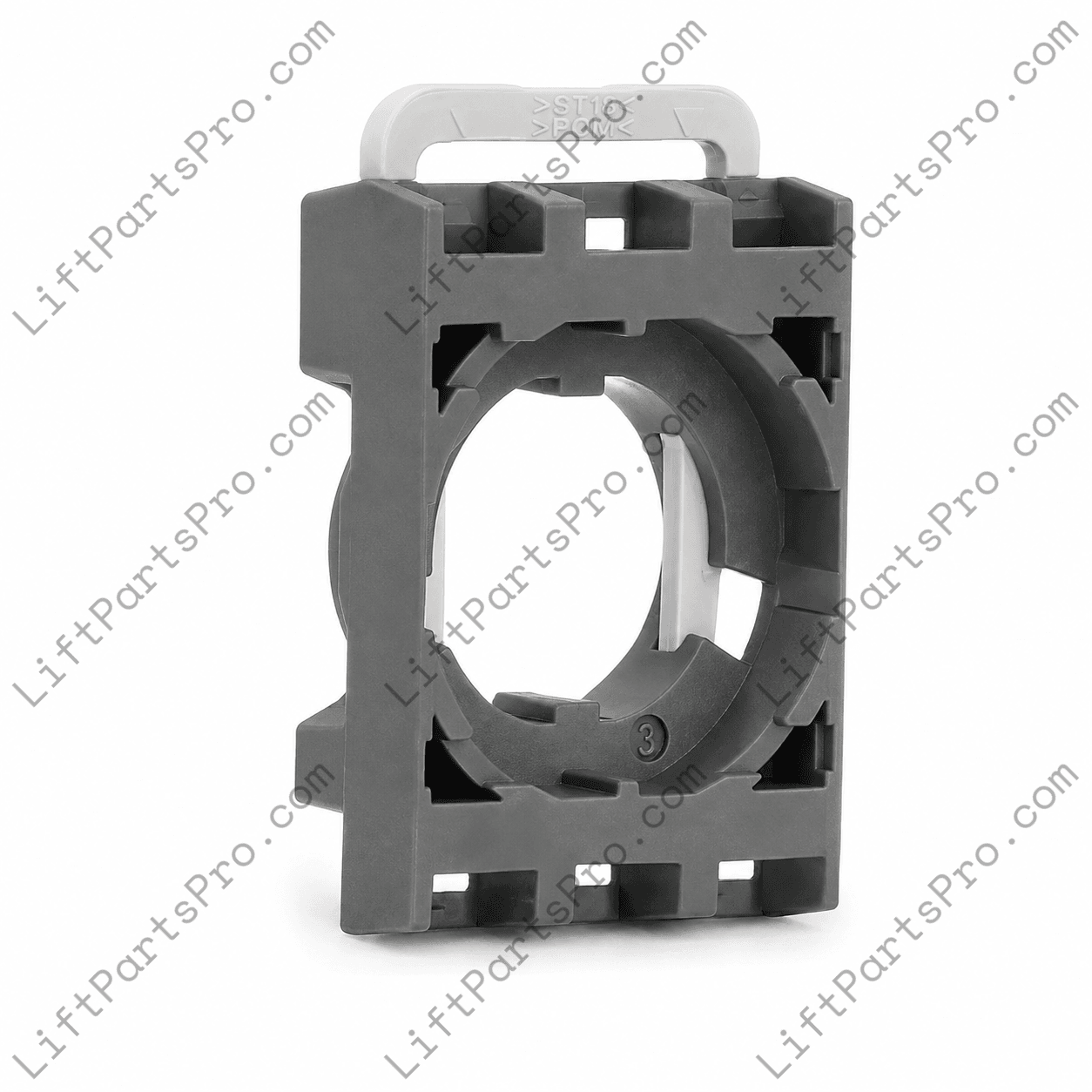

• Contact holder capacity: Up to 3 contact blocks
• Operator protection: IP66 from front
• Operating temperature: -25°C to +70°C
• Available variants: Complete Assembly / NO Contact Block / Toggle Switch / Contact Holder

Lift control components should be installed and verified by qualified personnel familiar with accessibility lift electrical systems. Confirm the required component and lift configuration before installation to ensure proper fit and operation.
