RAE DC Products Motor for Waupaca AutoGate Door Operator | 2423284 | E-004603
RAE DC Products Motor for Waupaca AutoGate Door Operator | 2423284 | E-004603
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: MTR.RAE.AG
Condition: New
Couldn't load pickup availability
Replacement RAE DC Products motor for select Waupaca elevator Autogate door operator applications. This motor is referenced by part number 2423-284 (2423284) and replaces legacy motor part number E-004603.

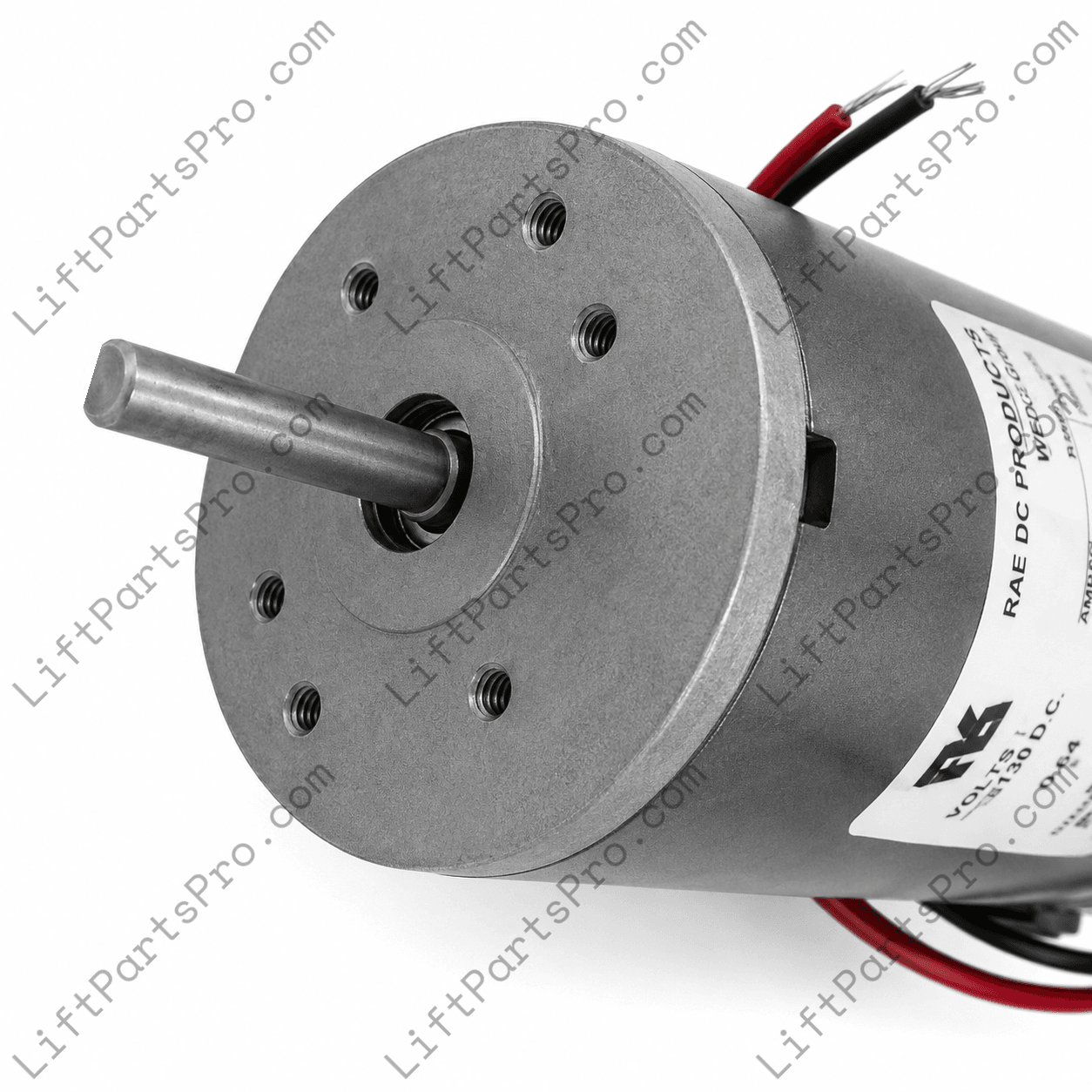

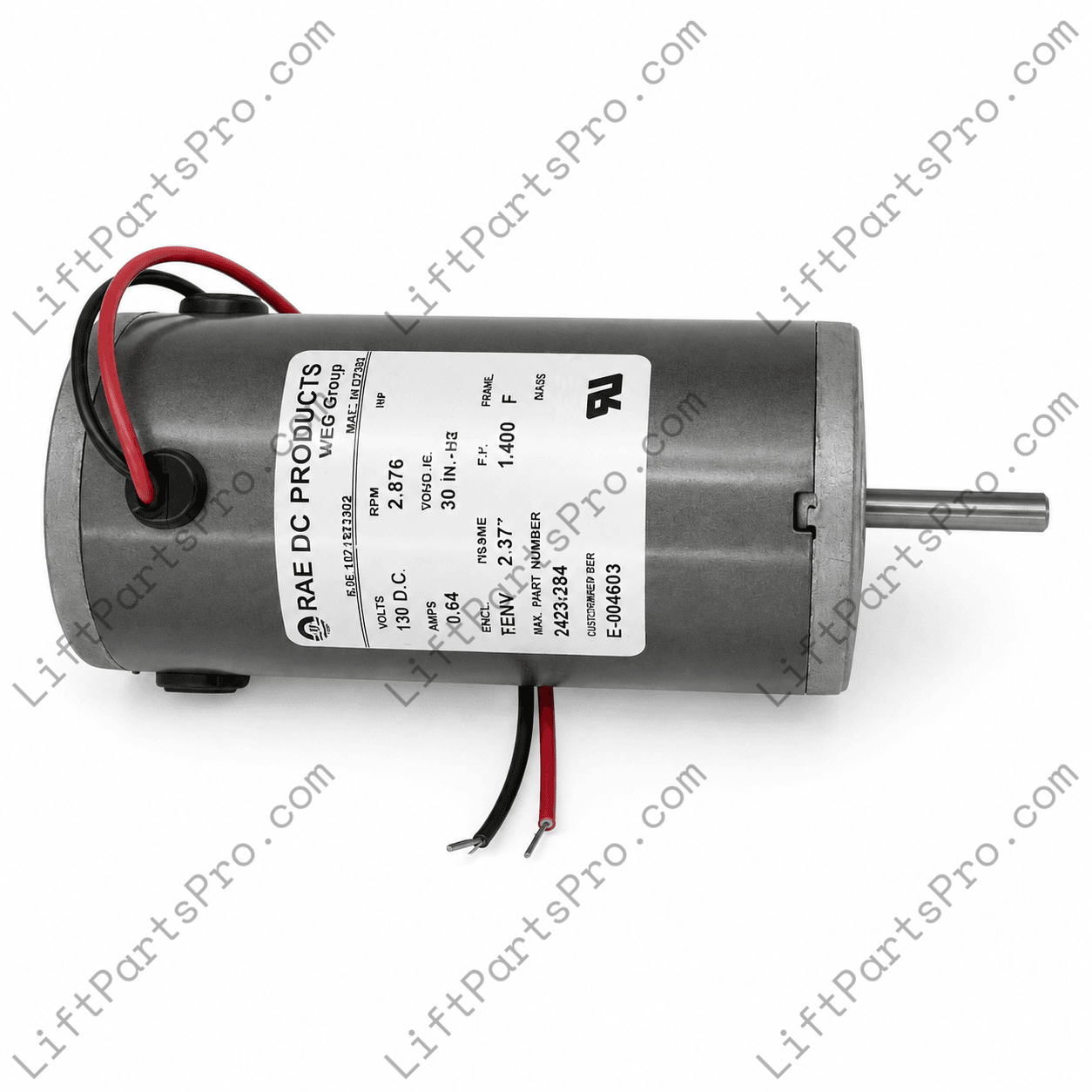

Designed for replacement applications where the existing AutoGate operator uses the corresponding RAE DC motor. The motor includes the output shaft, mounting face, and red/black wire leads shown in the product photos.
Product Details
- Manufacturer: RAE DC Products
- Lift Parts Pro Part #: 2423-284
- Alternate Part #: 2423284
- Replaces / Legacy #: E-004603
- Application: Select Waupaca elevator AutoGate door operators
- Motor Type: DC motor
- Voltage: 130 VDC
- Power: 0.09 HP
- Amperage: 0.64 A
- Speed: 2,876 RPM
- Torque: 30 in-oz
- Frame: 2.37"
- Insulation Class: F
- Configuration: Shaft output with red and black wire leads
Compatibility note: Waupaca Auto-Gate systems can vary by model and production date. Confirm the existing motor part number and physical configuration before ordering.
