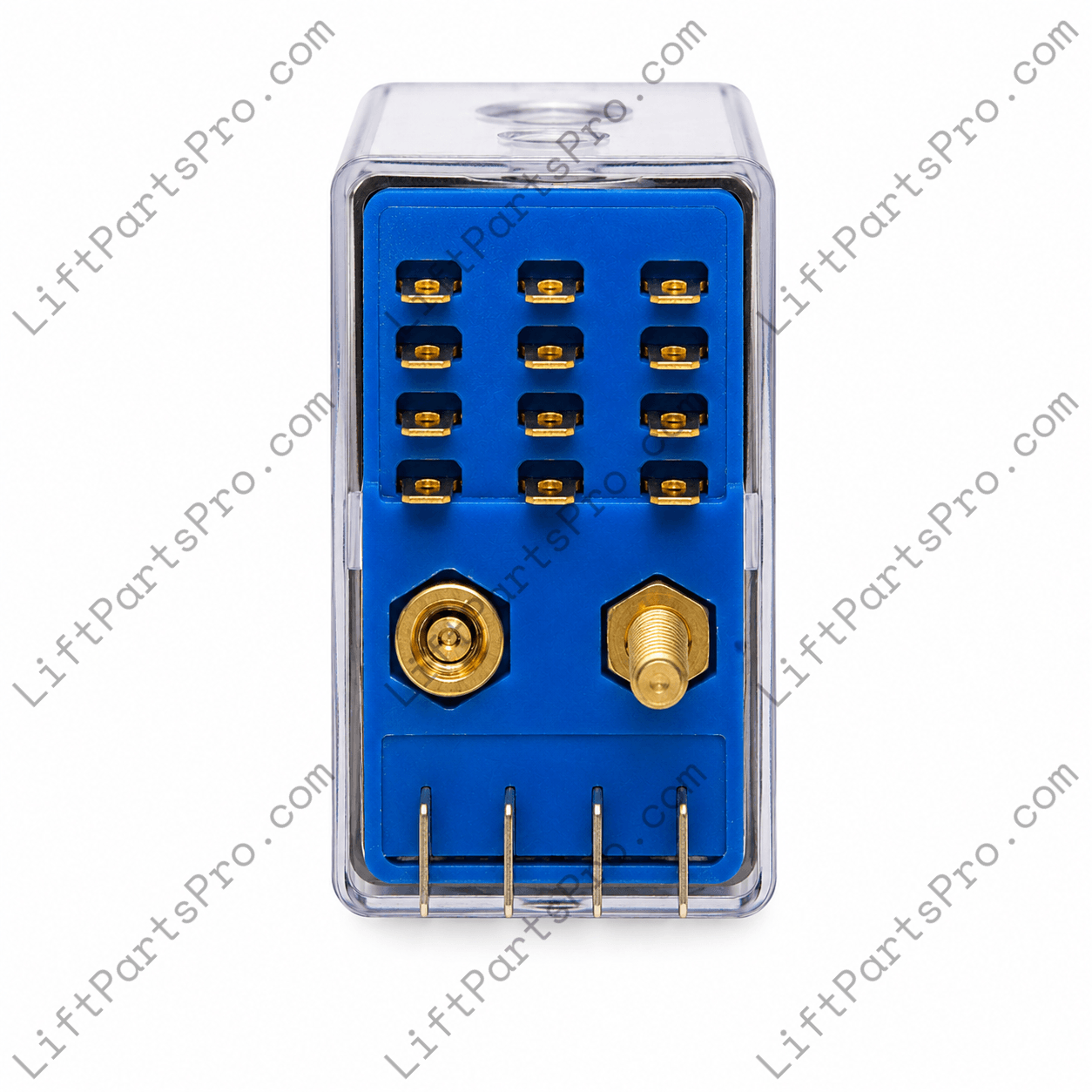

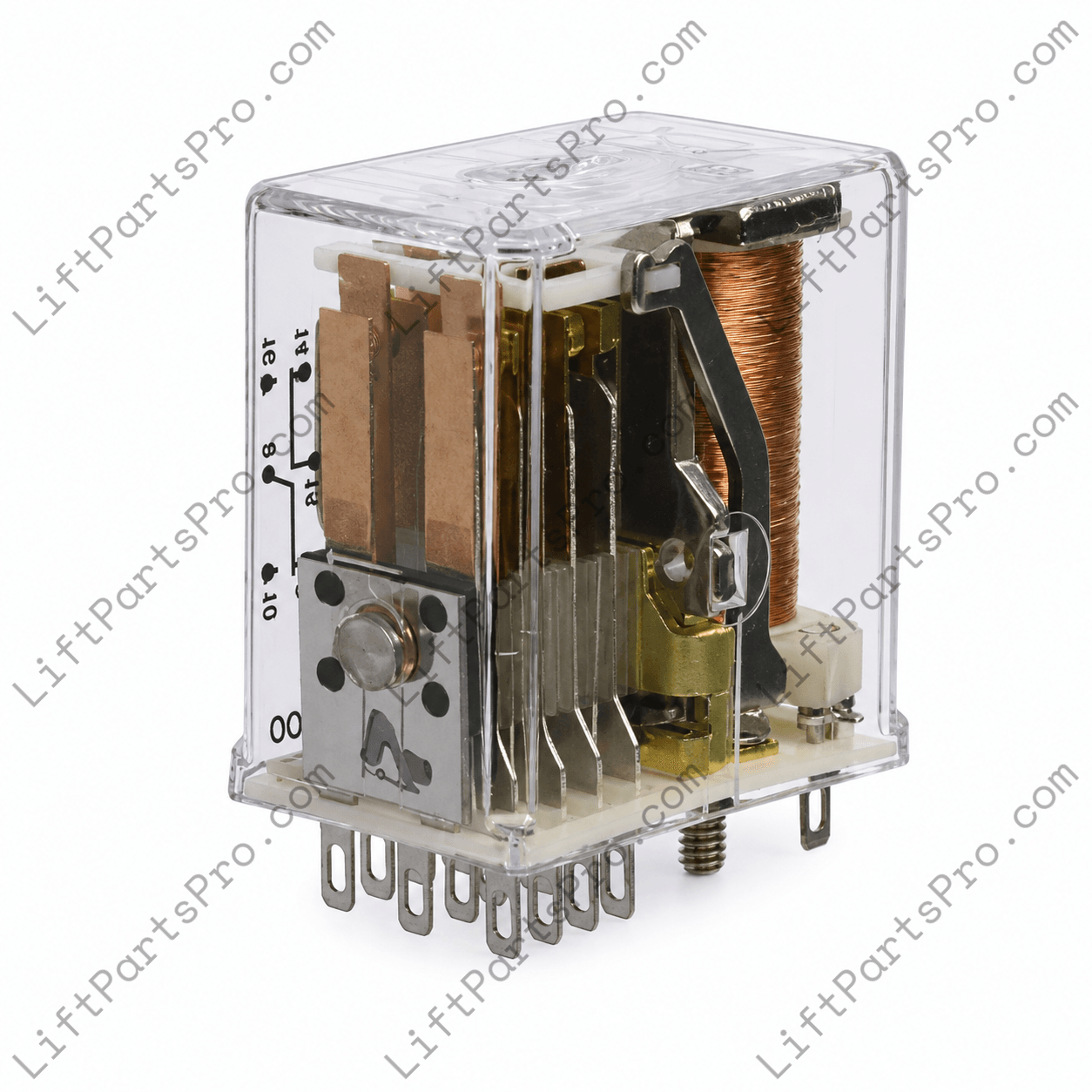

R10-E1Y6-V1.5K Ice Cube Relay 48VDC Coil 6PDT Plug-In Relay

Designed for control and switching circuits, this ice cube relay features a 48VDC coil and six Form C (6PDT) contacts in a compact plug-in configuration. Its multi-pole design makes it suitable for applications requiring multiple simultaneous switching functions within elevator systems, lift equipment, industrial controls, signaling systems, and other electromechanical assemblies.

The relay utilizes silver contacts for dependable electrical performance and is built for socket mounting, allowing straightforward replacement during maintenance procedures. With a non-latching coil design and broad application compatibility, it serves as an effective solution for control panels, relay logic circuits, and automation equipment requiring multiple changeover contacts.

• Ice cube relay
• General purpose power relay
• Contact configuration: 6PDT (6 Form C)
• Coil voltage: 48 VDC
• Coil type: Non-latching
• Contact rating: Up to 3A
• Contact material: Silver
• Coil resistance: 1.5 kΩ
• Mounting style: Plug-in / Socket mount
• Termination style: Quick connect / Plug-in terminals
• Switching voltage: Up to 120 VAC nominal
• Operating temperature range: -55°C to 75°C
• Suitable for control, signaling, and automation circuits

For optimal reliability and performance, electrical components should be installed and inspected by qualified personnel following applicable equipment specifications and industry-standard practices. Proper installation and maintenance help support long-term system operation and component longevity.
