Prudhomme LR180 Custom 24V Elevator Door Interlock Lock
Prudhomme LR180 Custom 24V Elevator Door Interlock Lock
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: INL.PD.LR180.490.LH
Condition: New
Couldn't load pickup availability
This custom Prudhomme LR180-series electrical interlock is designed for elevator landing door locking applications.

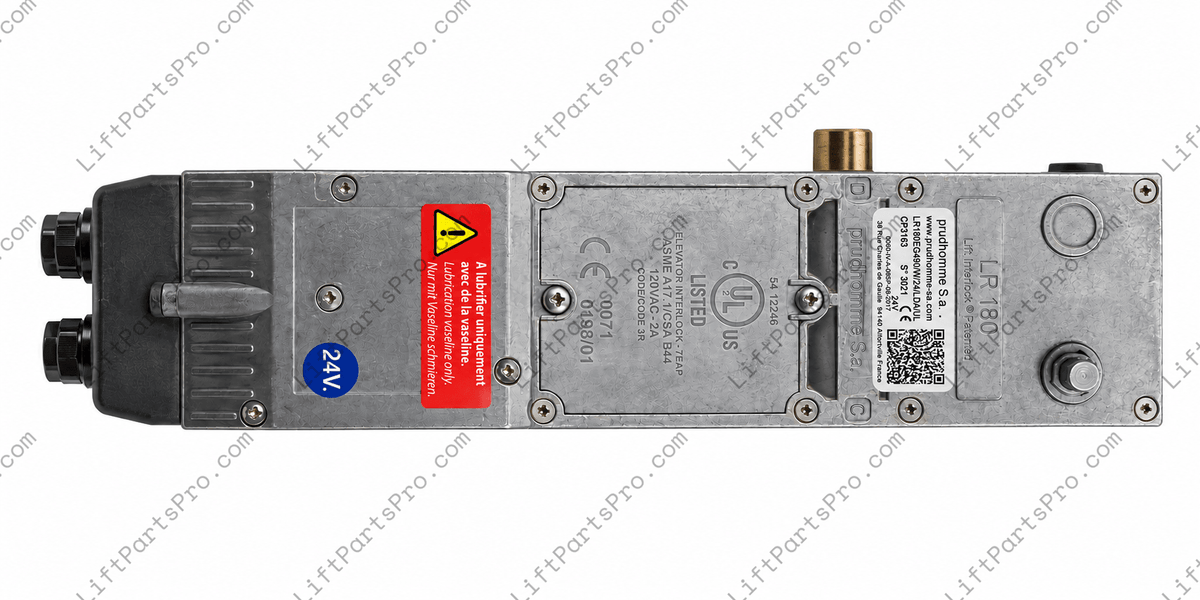

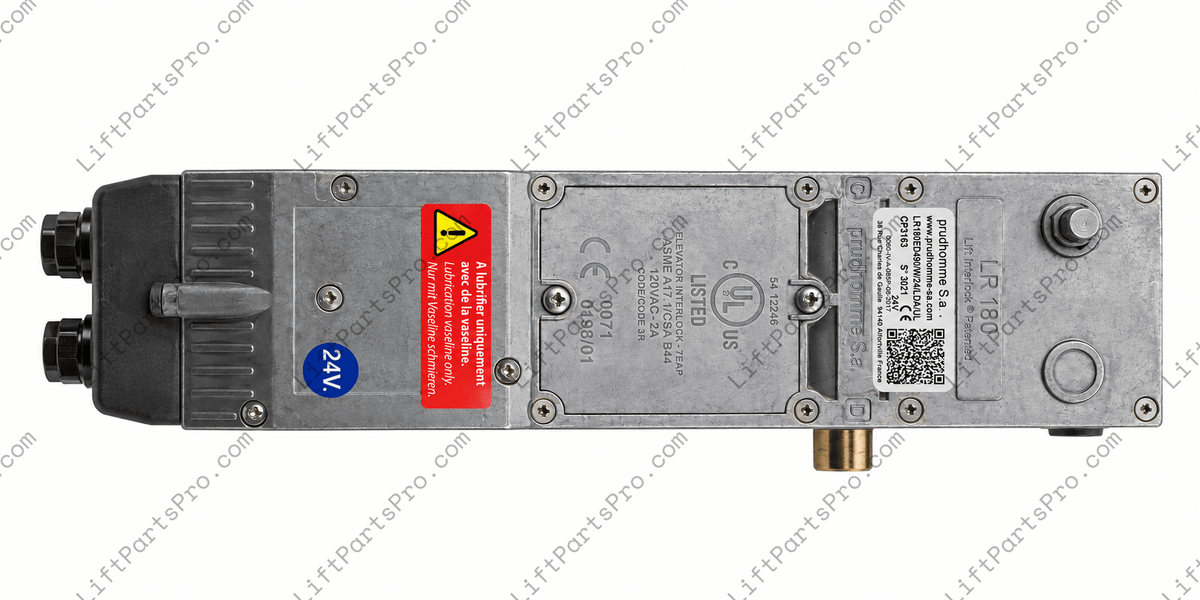

The unique configuration is available as LR180EG490/W/24/LDA/UL for left-hand applications and LR180ED490/W/24/LDA/UL for right-hand applications. These identifiers should be used when matching an existing lock for replacement.
The LR180 series combines mechanical door locking with electrical monitoring for use as an elevator landing door safety component. This custom version incorporates a 24V electrical configuration along with the specific 490/W/LDA/UL arrangement. Selection should be based on the existing interlock configuration and identifying information rather than lift make or model.
- Manufacturer: Prudhomme
- Product family: LR180
- Component type: Electrical elevator landing door interlock
- Voltage: 24V
- Left-hand identifier: LR180EG490/W/24/LDA/UL
- Right-hand identifier: LR180ED490/W/24/LDA/UL
- Handing: Left or right
- LDA configuration
- Application: Elevator landing door locking
- Available configurations: Left-hand and right-hand
Elevator interlocks are safety-related components and should be selected for the intended installation and installed by qualified elevator or accessibility-lift personnel in accordance with applicable requirements.
