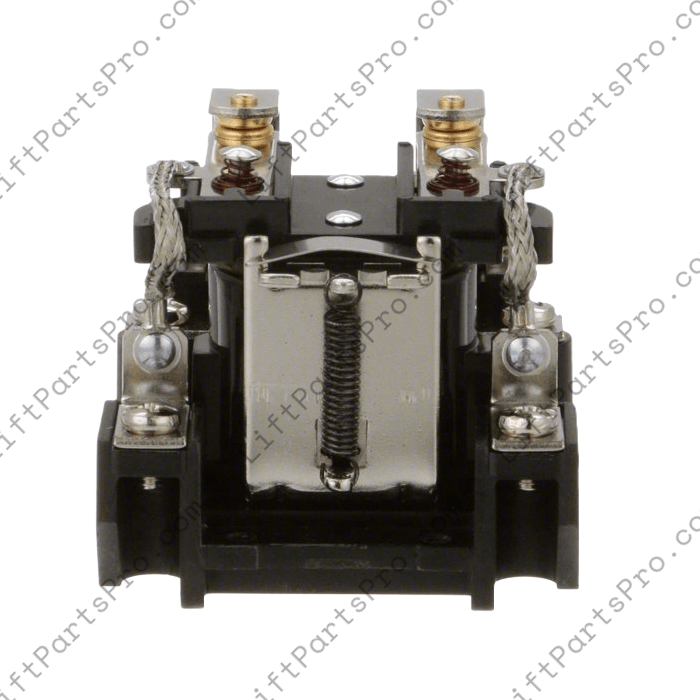

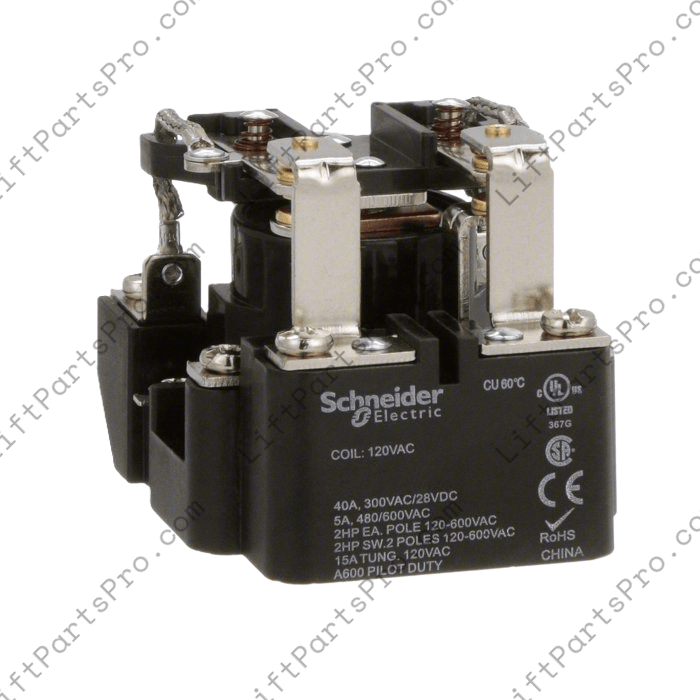

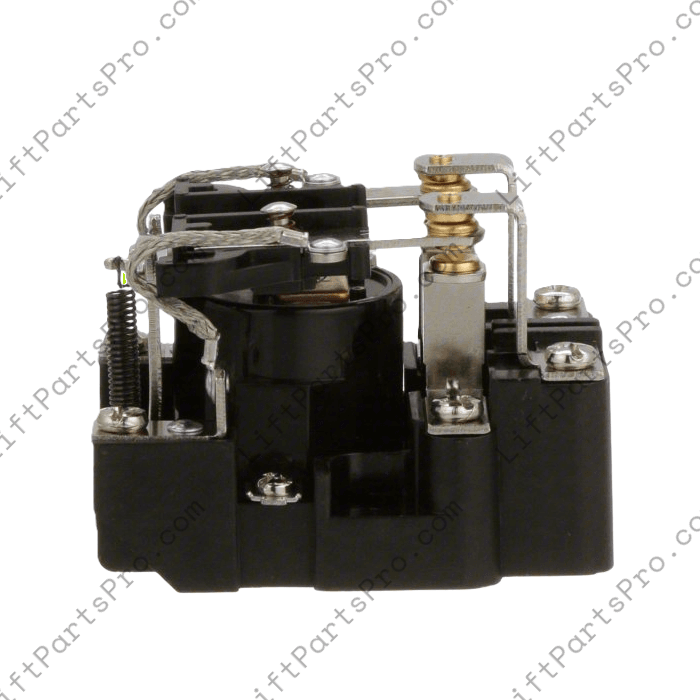

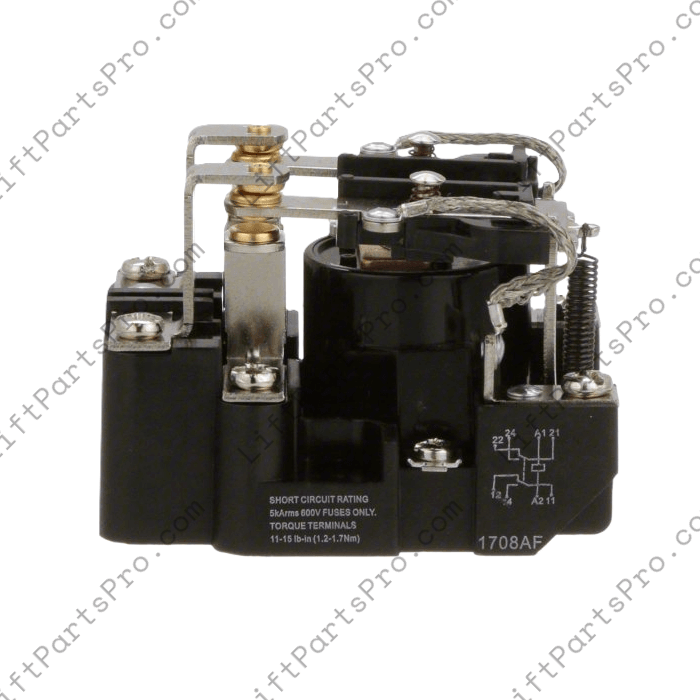

PR-2709 Relay for Dover Elevator Controllers, DPDT 120V AC Coil

This heavy-duty control relay is commonly found in Dover elevator controllers where dependable switching performance is required. It is frequently identified in the field by the legacy part numbers 71922, PR2709 (PR-2709), and PR2709-6 (PR-2709-6), making it a practical replacement option for maintenance, modernization, and inventory stocking applications.

Designed as an open-style power relay with a double-pole double-throw (DPDT) contact arrangement, this relay is suitable for elevator control circuits requiring high-current switching capability and reliable mechanical operation. Because multiple controller revisions and field modifications may exist, buyers should carefully verify coil voltage, contact configuration, terminal arrangement, and electrical ratings before ordering to ensure compatibility with their specific equipment. The legacy part numbers listed above are provided as identification references only and may have been used across different applications.

• Relay Type: Electromechanical power relay
• Contact Configuration: DPDT (2 Form C / 2 C/O)
• Coil Voltage: 120 VAC, 50/60 Hz
• Contact Rating: Up to 40A resistive
• Contact Material: Silver alloy
• Maximum Switching Voltage: 600 VAC
• Terminal Style: Screw terminals
• Mounting Style: Surface mount
• Cover Style: Open-frame design
• Typical Application: Elevator controller and industrial control circuits
• Operating Temperature Range: Approximately -40°C to +55°C
• Mechanical Life: Up to 1,000,000 operations
• Electrical Life: Up to 100,000 operations at rated load

For safe and reliable operation, all replacement components should be installed and inspected by qualified elevator personnel familiar with the applicable equipment and governing codes. Verifying the relay’s electrical characteristics and application requirements before installation helps ensure proper system performance and compatibility.
