Bridge Rectifier for Savaria V-1504 & Garaventa Genesis

This heavy-duty bridge rectifier converts single-phase AC power to DC in compatible accessibility lift electrical systems. It is associated with legacy part numbers 641077 and 127369 and is commonly found in Savaria V-1504 vertical platform lifts and Garaventa Genesis lift applications.

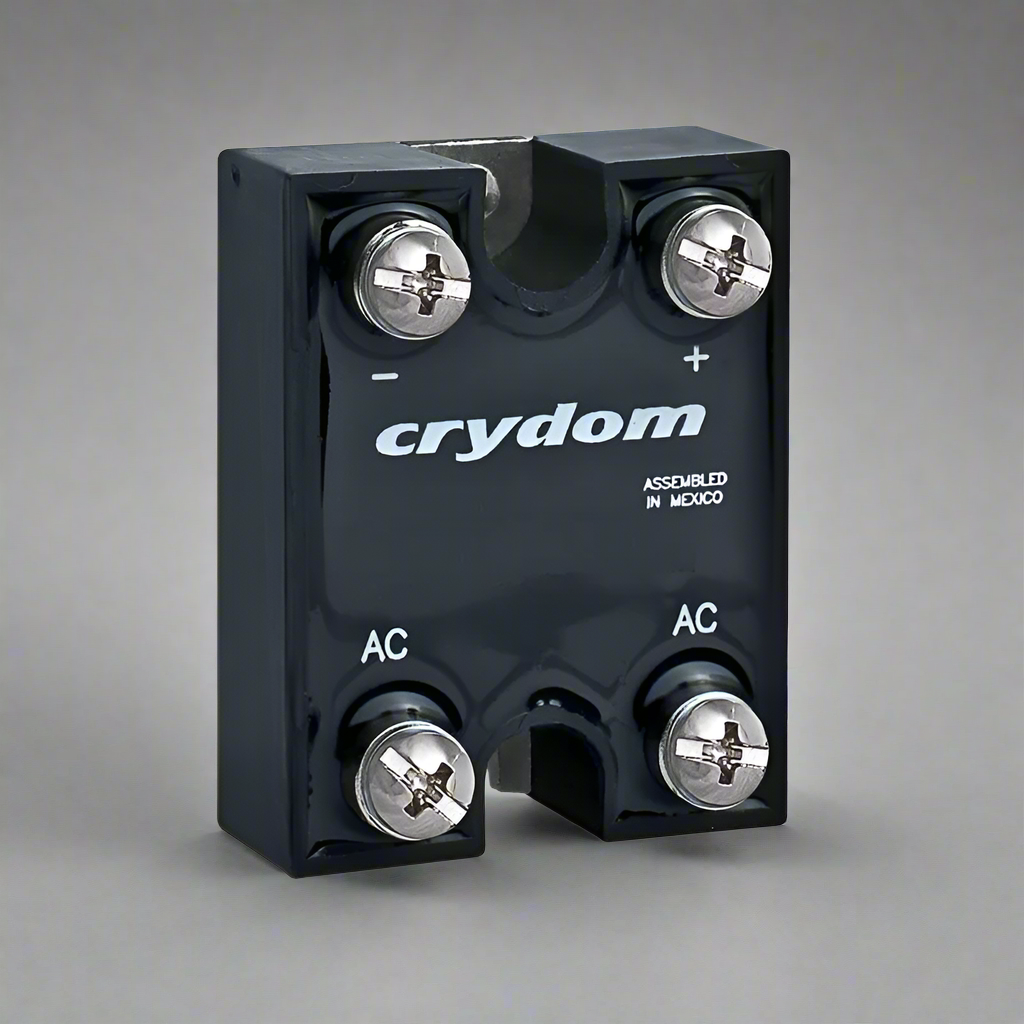

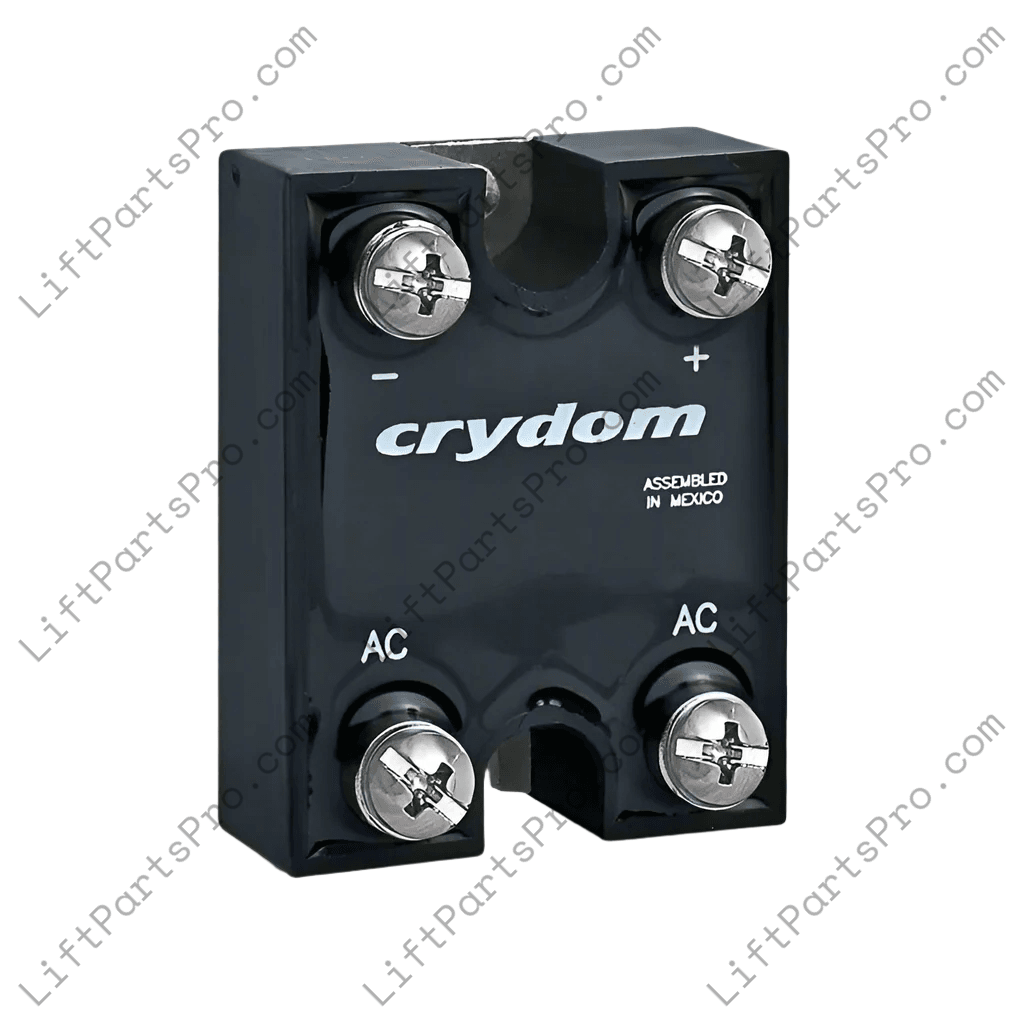

Designed as a high-current power diode module, the rectifier uses a chassis-mounted module configuration with screw terminals for connection to the lift electrical system. Its high surge-current capability and efficient thermal design make it suitable for the demanding power-conversion requirements found in accessibility lift equipment.

• Component Type: Bridge rectifier / power diode module
• Configuration: Single-phase full-wave bridge
• Average Rectified Current: 100 A
• Repetitive Peak Reverse Voltage: 600 V
• Maximum Forward Voltage: 1.2 V at 100 A
• Non-Repetitive Surge Current: 1,500 A
• Operating Junction Temperature: -40°C to 125°C
• Thermal Resistance, Junction to Case: 0.3°C/W
• Mounting Type: Chassis / screw mount
• Termination: Screw terminals
• Number of Terminals: 4
• Package Style: Power module
• Legacy Part Numbers: 641077, 127369
• Known Applications: Savaria V1504 and Garaventa Genesis lifts

Electrical lift components should be matched to the equipment requirements before installation. Installation and replacement should be performed by qualified personnel familiar with accessibility lift electrical systems and applicable safety procedures.
