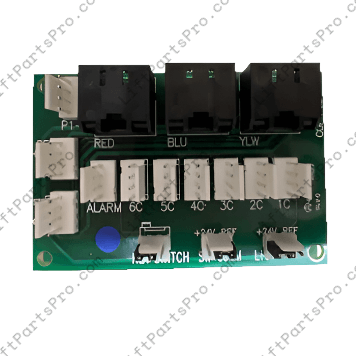

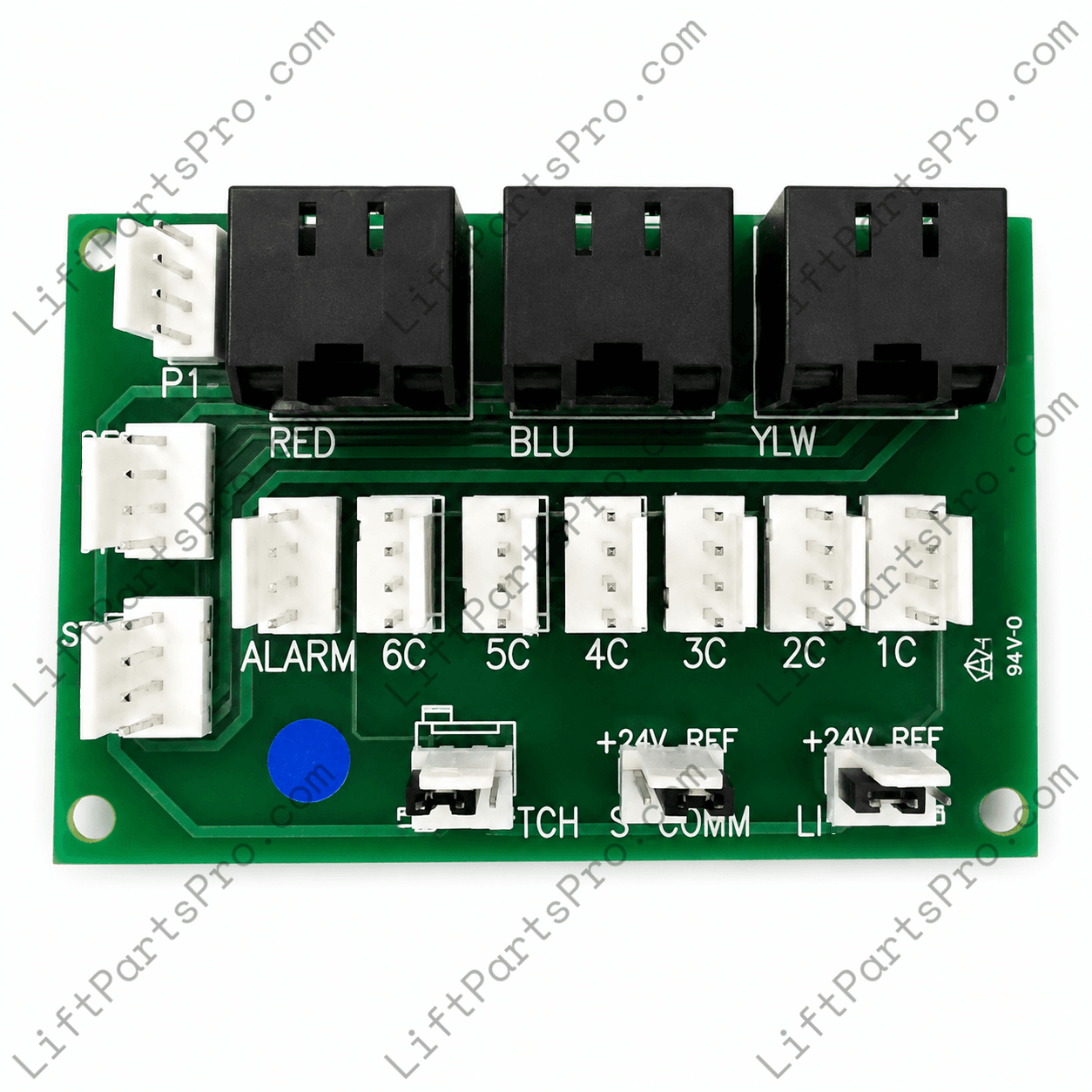

EMI Porta Elevator COP Car Operating Panel Circuit Board

This electronic printed circuit board mounts behind the Car Operating Panel (COP) inside the elevator cab and serves as an interface for passenger control inputs. It processes signals from floor-selection buttons, door-control functions, and emergency alarm controls before relaying the appropriate information through the elevator traveling cable to the main controller.

Designed for broad elevator applications rather than a specific elevator brand or model, this COP board can be used in legacy modernization projects, retrofits of existing installations, and new elevator installations where the corresponding EMI Porta operating-panel architecture is used. Multiple onboard connectors provide dedicated interfaces for COP controls and related cab functions.

• Component type: Car Operating Panel (COP) printed circuit board
• Installation location: Behind the elevator cab operating panel
• Primary application: Elevator cab control and signal interface
• Input functions: Floor selection, door controls, and emergency alarm
• Communication path: Interfaces cab controls with the elevator control system through the traveling cable
• Board connections: Multiple dedicated control and communication connectors
• Application type: Modernization, retrofit, and new installations
• Elevator compatibility: Not elevator brand or model specific

Elevator electronic components should be installed and commissioned by qualified elevator personnel in accordance with applicable codes, system requirements, and established installation practices. Proper installation helps ensure reliable integration with the associated elevator control equipment.
