Porch-Lift Infrared Photoelectric Sensor Photo Eye
Porch-Lift Infrared Photoelectric Sensor Photo Eye
🔄 Backorder Available
This item is available for backorder. Estimated lead time is 8 to 14 business days. We’ll send an update once your order is confirmed and provide tracking when it ships.
LPP Part Number: PE.PLS.H53163
Condition: New
Couldn't load pickup availability

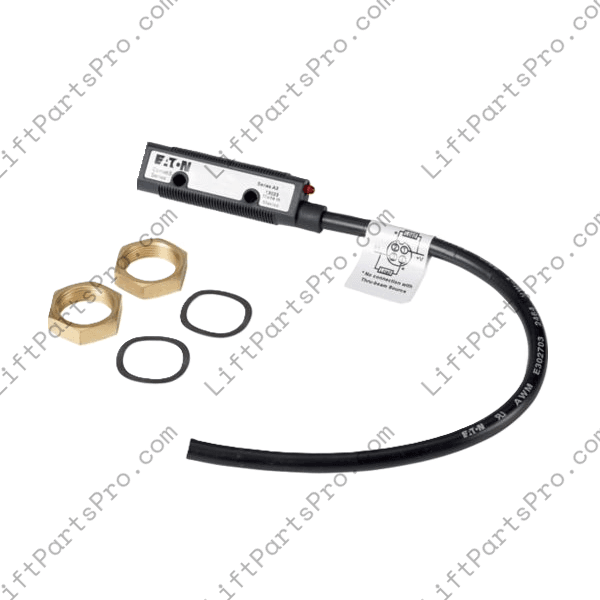

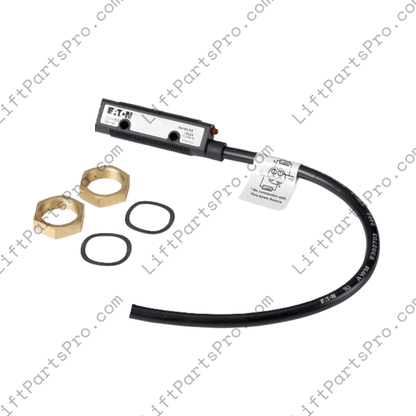

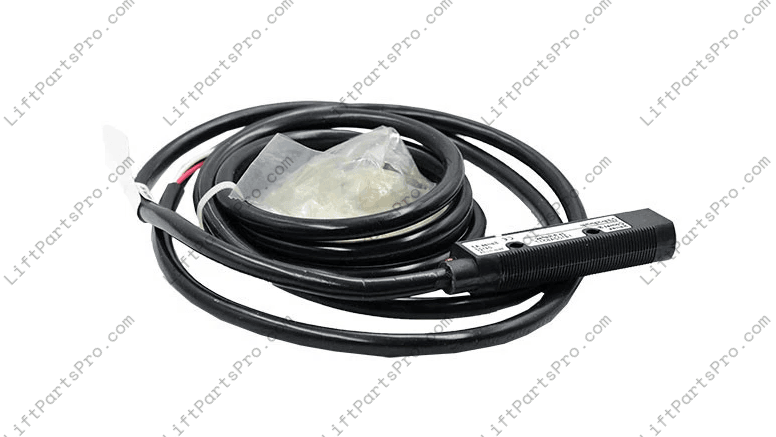

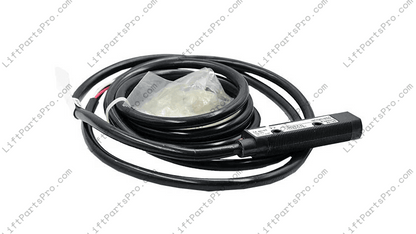

This infrared photoelectric sensor eye is designed for porch lifts utilizing H53163 safety sensors, providing dependable non-contact obstruction detection to maintain proper platform operation. It serves as a direct replacement for legacy part number H53163, ensuring compatibility with existing lift configurations without requiring system modifications.
Using an infrared beam, the sensor detects interruptions along the lift path to help prevent unintended movement. Its compact, durable design supports long-term use in both indoor and outdoor lift environments where consistent performance is essential.
- Photoelectric infrared emitter/receiver sensor
- Operating voltage: 10–30V DC

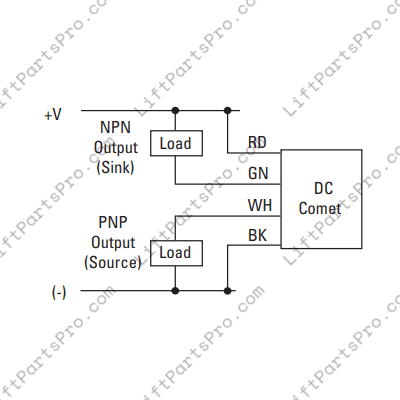

- Output type: Selectable NPN/PNP
- Light source: Infrared LED
- Sensing mode: Retroreflective

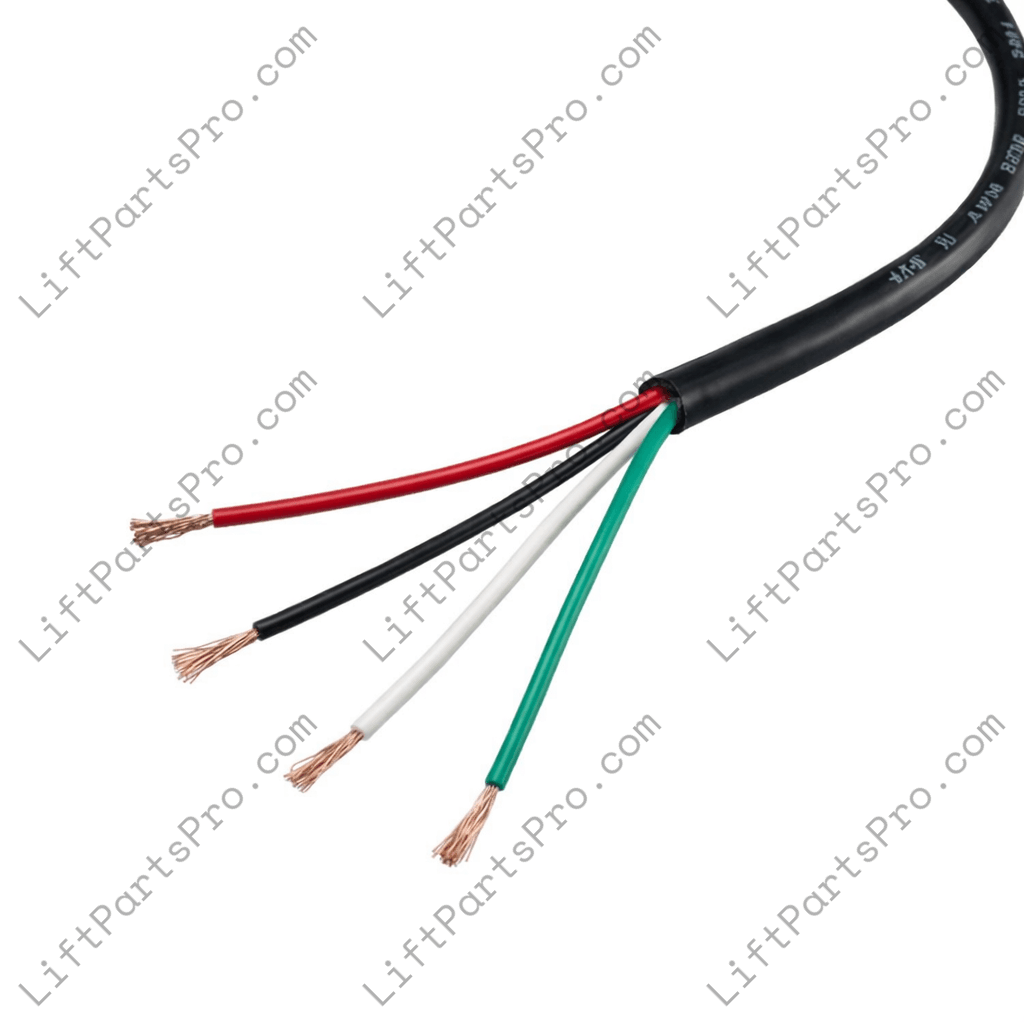

- Electrical connection: Integral cable with bare wire (flying leads) termination
- Cable: 4-Wire 2m
- Housing style: Cylindrical, straight body
- Protection rating: IP65 or equivalent
- Designed for indoor and outdoor lift applications
- Replaces legacy part number H53163
For optimal performance and system integrity, this component should be installed and maintained by qualified personnel experienced with lift equipment and applicable safety standards.
