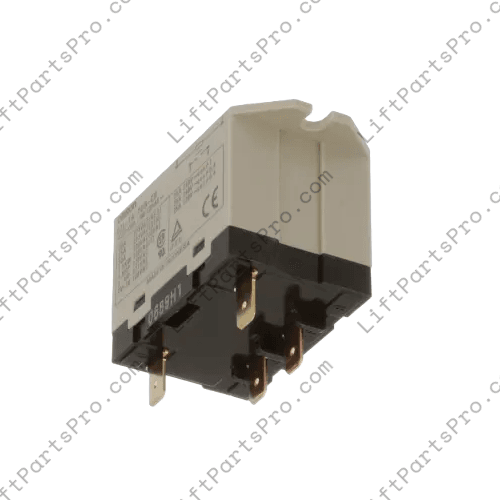

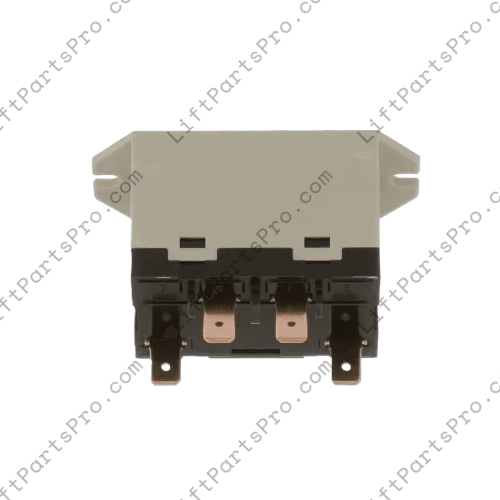

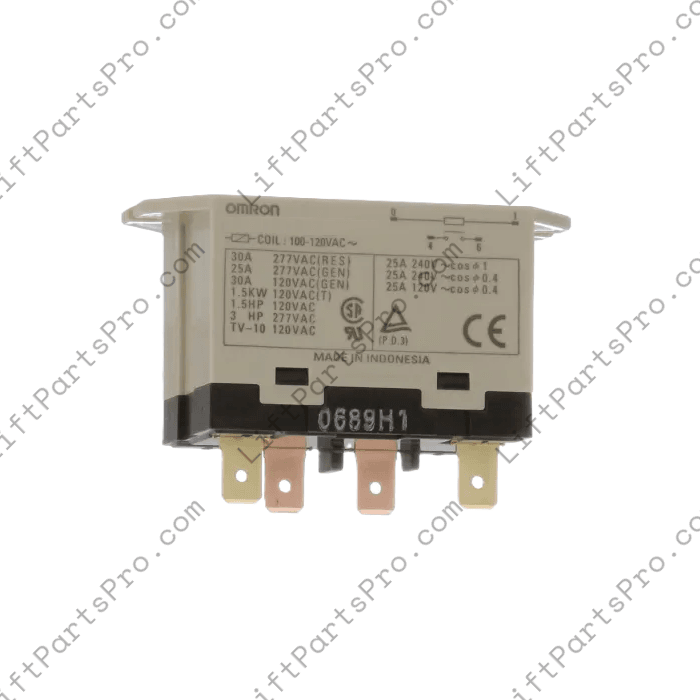

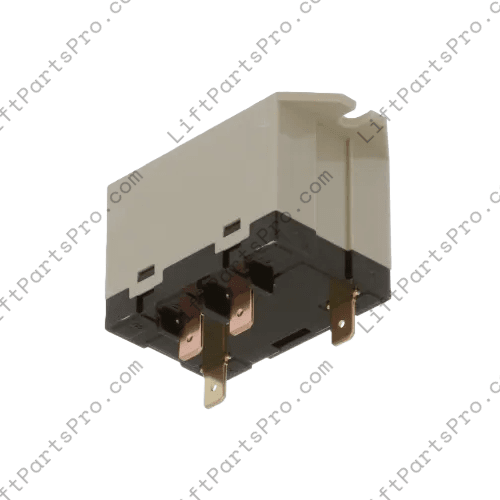

Porch-Lift Emergency Stop E-Stop Relay Contact Block

Reliable Omron power relay with 100/120VAC coil, 30A SPST-NO contacts for ThyssenKrupp Porch-Lift VPL emergency stop systems; Replaces #53140.

This is a heavy-duty power relay designed for high-capacity switching in accessibility lift control systems. Featuring a 100/120VAC coil and single-pole, single-throw normally open (SPST-NO) contact configuration, this relay is engineered to manage substantial electrical loads with consistent performance.

In select ThyssenKrupp Porch-Lift VPL models, this relay functions as the relay contact block for the emergency stop circuit, playing a key role in system control and safe operation. It serves as a direct replacement for legacy part number 53140, restoring proper switching functionality within the lift’s control assembly. Built with durable internal contacts and a robust housing, it is well-suited for repeated cycling in demanding vertical platform lift environments.

• Coil Voltage: 100/120VAC
• Contact Configuration: SPST-NO (1 Form A)
• Contact Rating: 30A
• Relay Type: General purpose power relay
• Mounting Style: Panel/PCB mount compatible
• Application: Emergency stop relay contact block in select ThyssenKrupp Porch-Lift VPL units

For optimal performance and system integrity, this relay should be installed and serviced by qualified technicians familiar with accessibility lift equipment. Proper integration into the lift’s control system helps ensure reliable operation and continued compliance with applicable safety standards.
