Pillow Block Bearing — ¾″ Bronze Sleeve Insert - NWOV and Others

This bearing is designed for ACME screw support in wheelchair lifts (e.g. lower nut bearing in National Wheel‑O‑Vator CDE42 units) and replaces legacy #V1337.

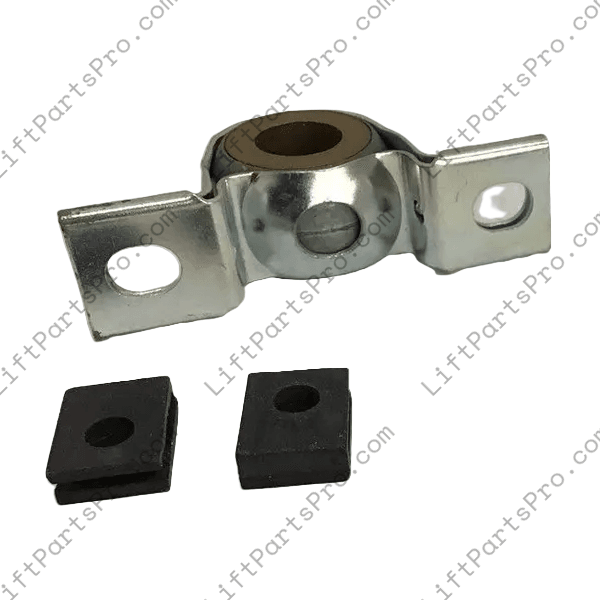

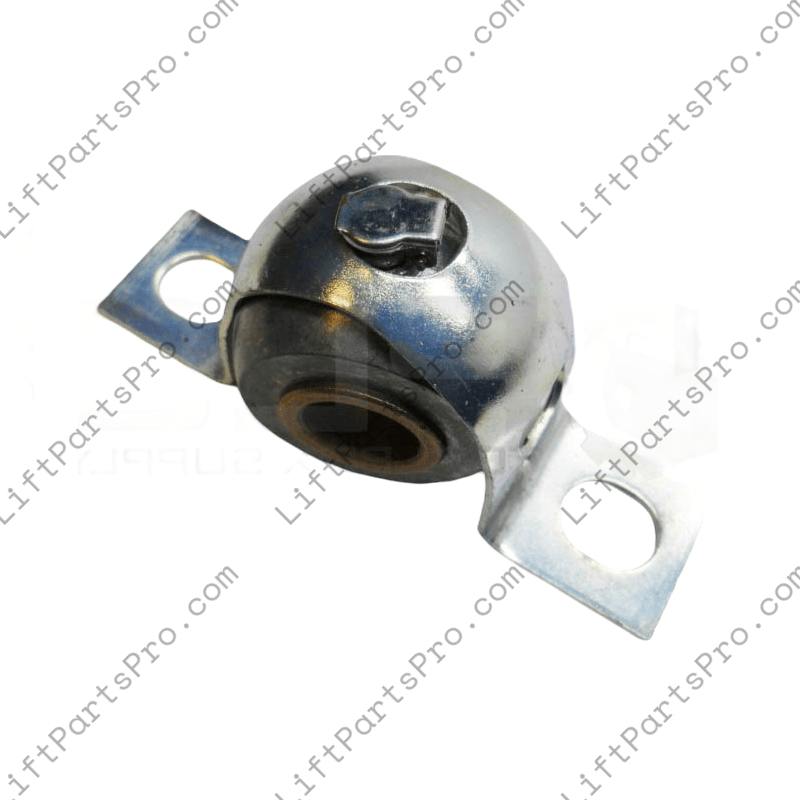

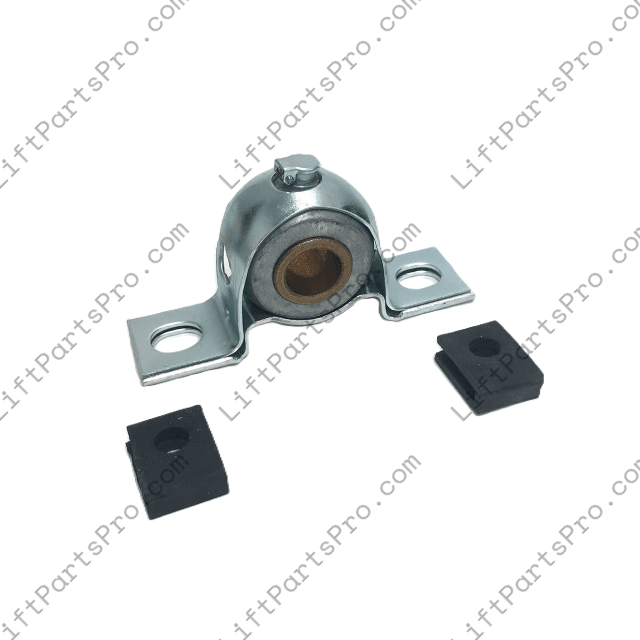

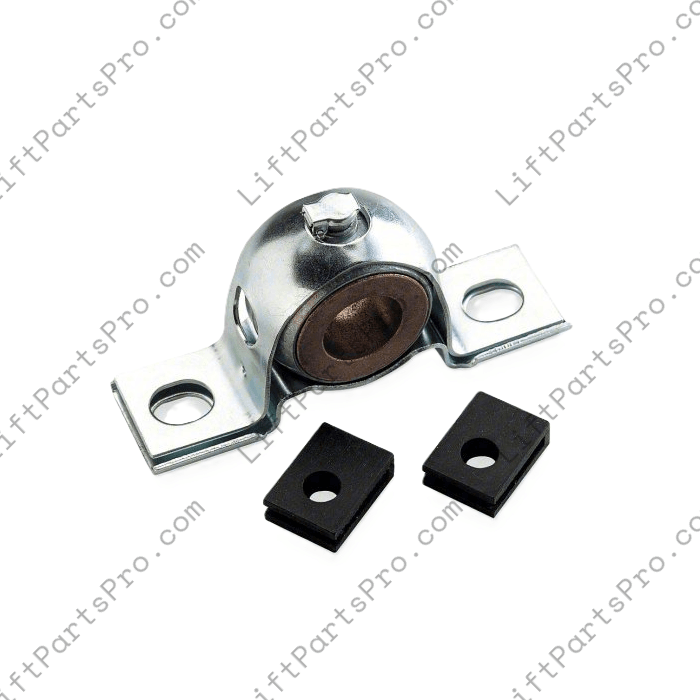

This pillow block bearing provides reliable support under thrust and radial load, with a bronze sleeve insert that runs cooler and wears longer. Its pressed steel housing and replaceable rubber grommets reduce noise and vibration. It’s suitable for vertical or horizontal mounting and includes an oil cap for maintenance.

Specifications

• Bore diameter: ¾ in (0.75 in)
• Center height (mount surface to shaft center): 1.00 in
• Overall length (housing + insert): 4.00 in
• Overall width: 1.125 in
• Overall height: 2.093 in
• Bolt hole center‑to‑center spacing: 3.00 in
• Mounting hole size: 7⁄16 in (≈ 0.438 in)
• Bolt size: 7⁄16 in
• Base height (housing thickness above mounting surface): 0.14 in
• Bearing insert material: Bronze, sleeve type
• Housing material: Pressed steel, rust‑resistant plated finish
• Maximum speed: 4,500 RPM
• Operating temperature range: –5 °F to 220 °F
• Dynamic load / PV rating (max): 50,000 lb·ft / sq in·min (or equivalent)
• Grommets: Includes two replaceable rubber grommets for vibration damping
• Lubrication: Open oil cap (spring lid) for 20 weight non‑detergent oil

This pillow block bearing is dimensionally compatible with the lower ACME screw mounting location in many wheelchair lifts, particularly National Wheel‑O‑Vator VPLs like the CDE42, where it replaces the older #V1337 style bearing.

Please ensure installation is carried out only by qualified technicians. Proper alignment, torque, and lubrication are essential to maintain safety and extend service life.
